Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
U336-MMF-1G-LC
Category
Network Interface Cards
Overview
Connects Your Laptop or PC to a Wired Fiber Network without an Internet Card Installed

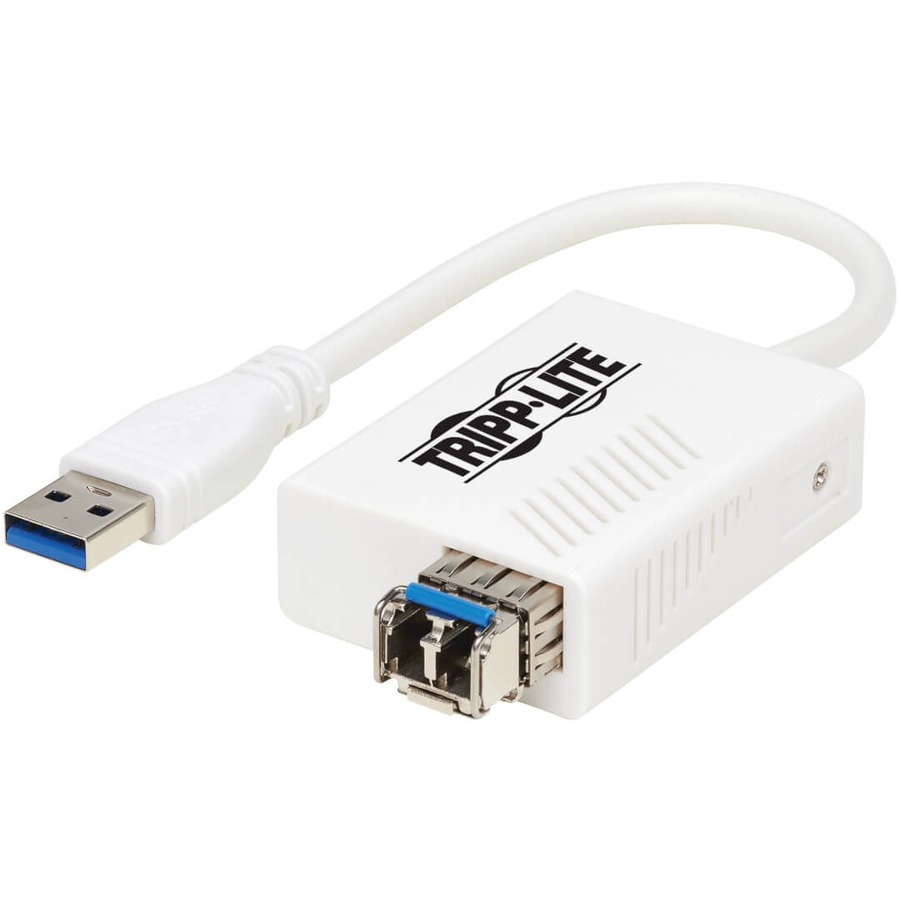

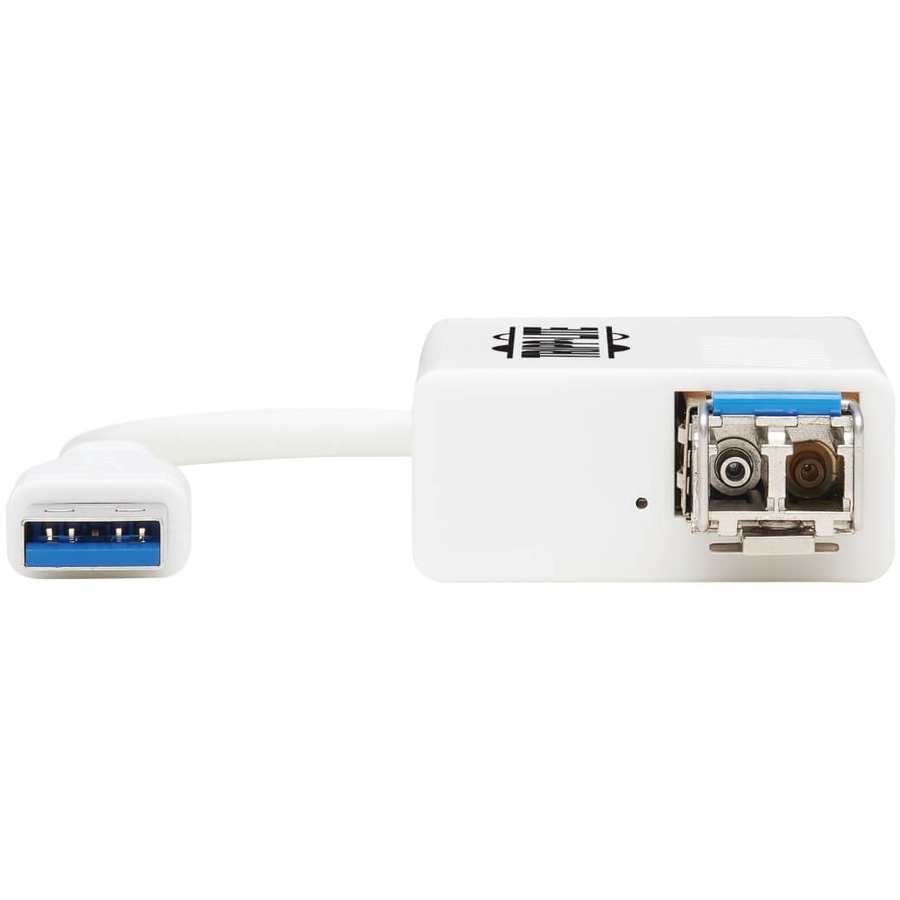

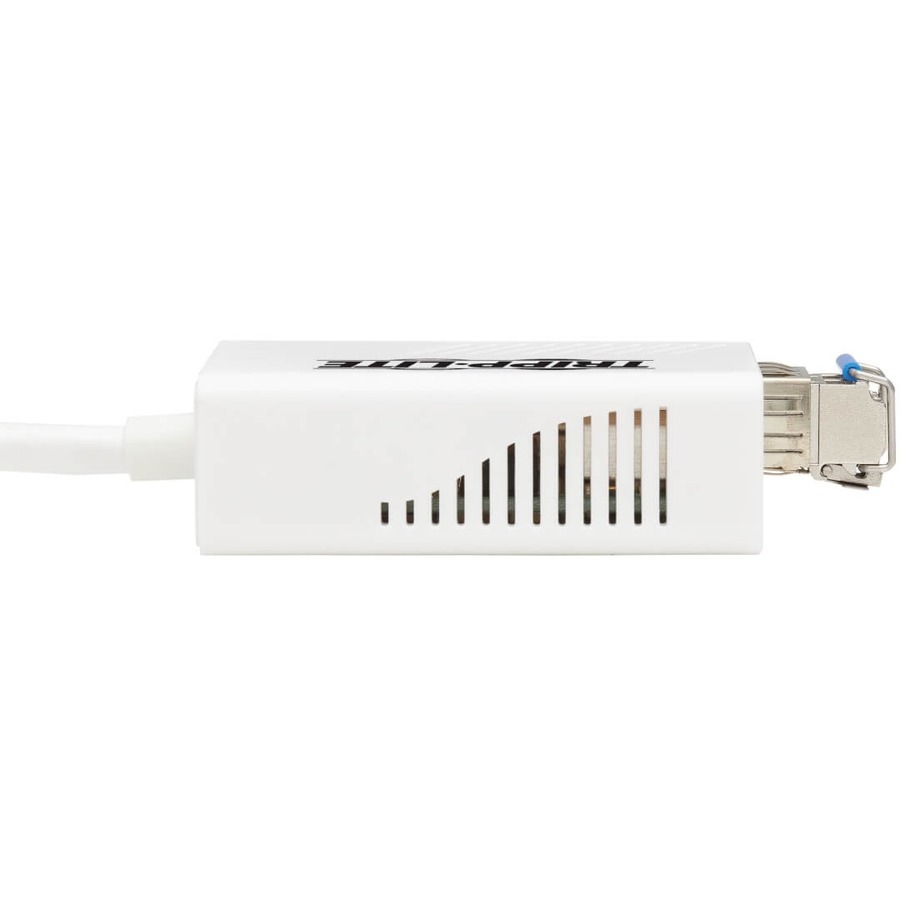

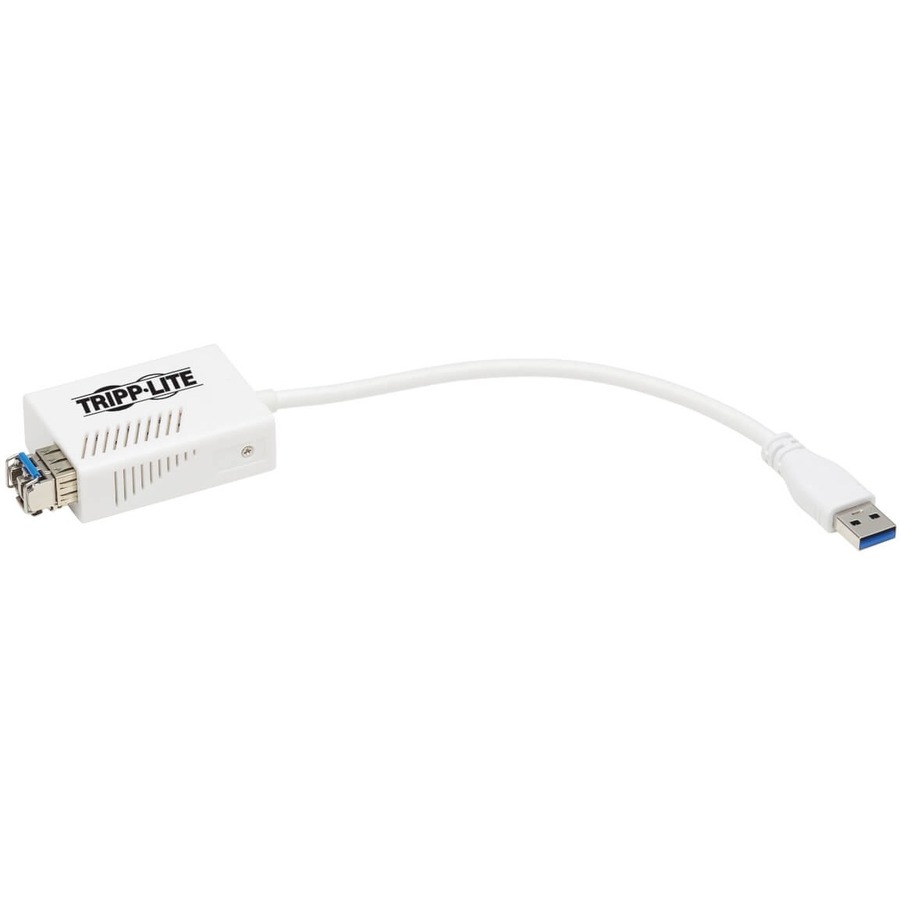

This USB to LC fiber optic Ethernet adapter allows you to instantly connect your computer, laptop, tablet or other USB-compatible device to a wired 10/100/1000 Mbps fiber optic network, even if your device has no NIC (Network Interface Controller) installed. The adapter offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. It transmits data up to 550 meters (1804 feet) from your fiber network using a wavelength of 1310nm.
Hot-Swappable for Installation Without Network Interruption

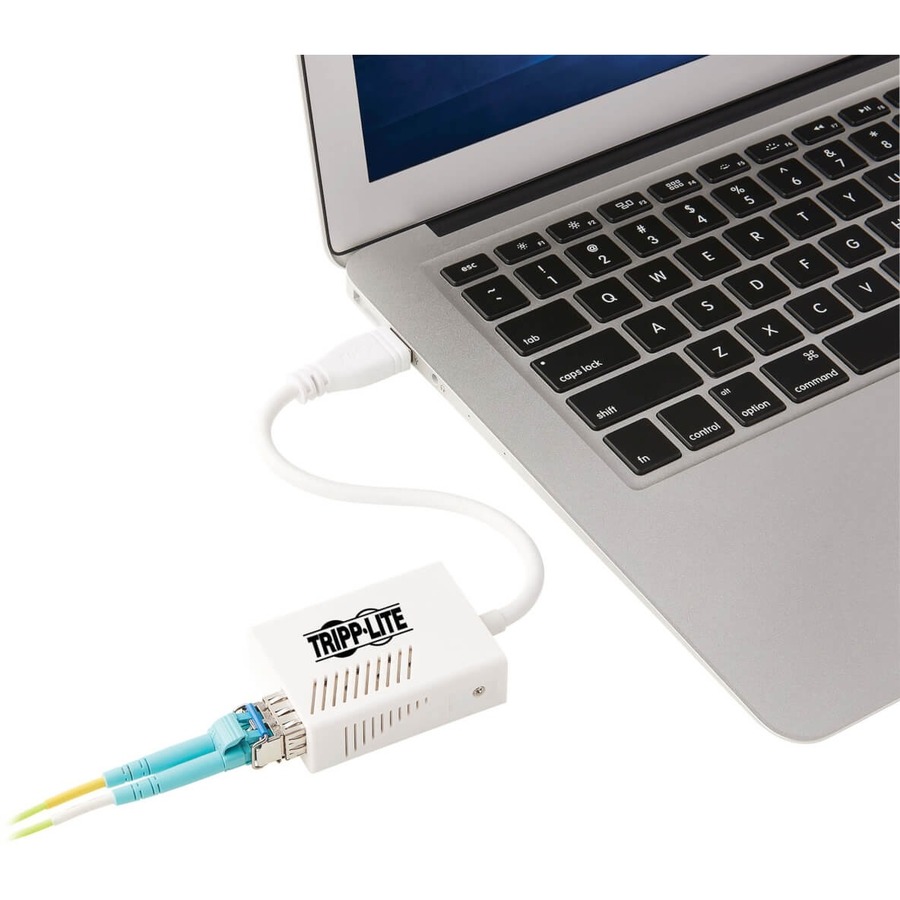

This USB 3.0 Multimode Fiber Optic Transceiver Ethernet adapter is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just connect the built-in USB cable to your device's USB port (which also powers the adapter), and connect the LC duplex port to a high-speed managed switch, router or hub using existing or newly run multimode fiber cable (such as Tripp Lite's N820-Series, sold separately).
Delivers Full Gigabit Ethernet Performance with Audio and Video Streaming
The compact USB to Ethernet adapter supports full 1 Gbps network speeds and USB 3.0 speeds, allowing you to transfer data efficiently and stream audio and video. The direct fiber connection minimizes the risk of data leaks and electromagnetic interference (EMI). A blue LED indicates successful Ethernet connection and data transfer. The adapter works with Windows, Mac, Linux and Microsoft Server operating systems.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
Provides 1 Gbps throughput up to 550 m (1804 ft.) via multimode fiber cabling for fast Ethernet browsing
Supports USB 3.0 speeds up to 5 Gbps to ensure efficient data transfers
USB 3.0 Fiber Transceiver Ethernet adapter powered via USB, so no external power supply is required
Works with most laptops and PCs running Windows, Mac or Linux
3-year limited warranty
Specifications
Package Contents
U336-MMF-1G-LC Gigabit Ethernet Card
Driver CD
Quick Start Guide
Host Interface
USB 3.0 Type A
Product Type
Gigabit Ethernet Card
Device Supported
Tablet, Notebook, Computer
Manufacturer Part Number
U336-MMF-1G-LC
Limited Warranty
3 Year
Weight (Approximate)
1.92 oz
Form Factor
Portable
Manufacturer
Eaton Corporation
Product Model
U336-MMF-1G-LC
Product Name
U336-MMF-1G-LC Gigabit Ethernet Card
Network Technology
1000Base-X
Brand Name
Tripp Lite series
Country of Origin
China
Height
0.7"
Width
2.2"
Depth
1.6"
Environmentally Friendly
Yes
Media Type Supported
Optical Fiber
Total Number of Ports
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
