PCI Express x16 - Intel I350-T2 - 2 Port(s) - 2 - Twisted Pair - Low-profile Bracket Height - 1000Base-T - Plug-in Card - Green
MSRP$345.00
$128.87
Save 63%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Adds Dual Gigabit Ethernet Ports to Your Desktop Computer

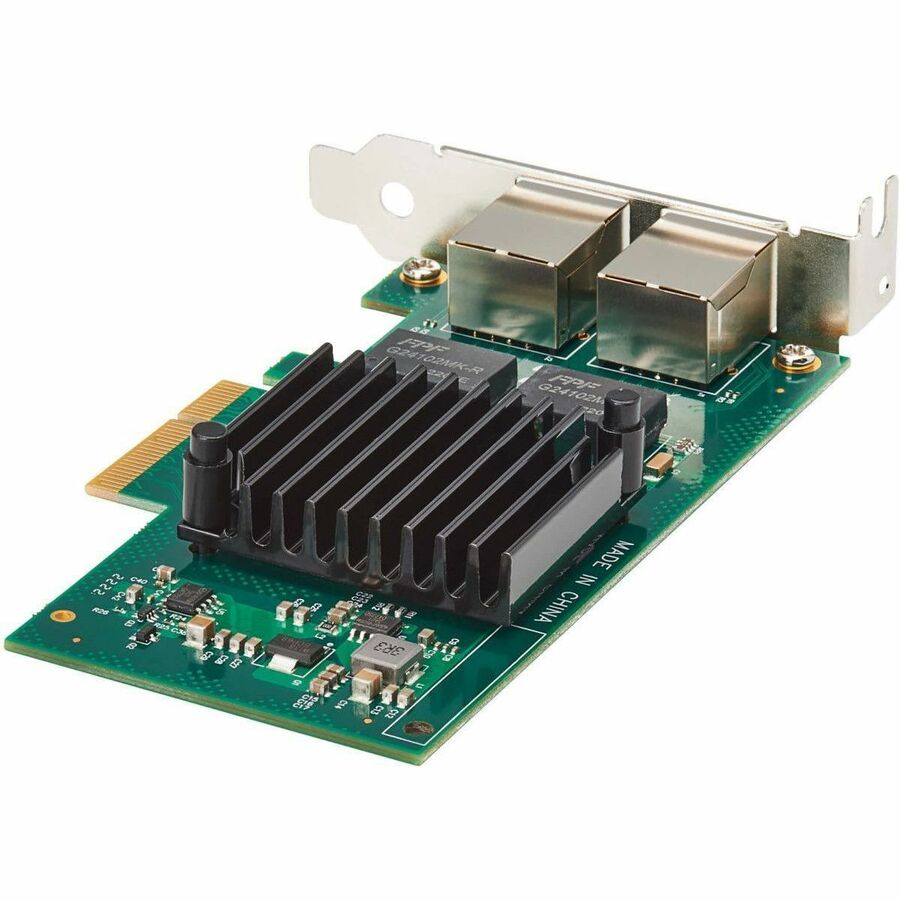

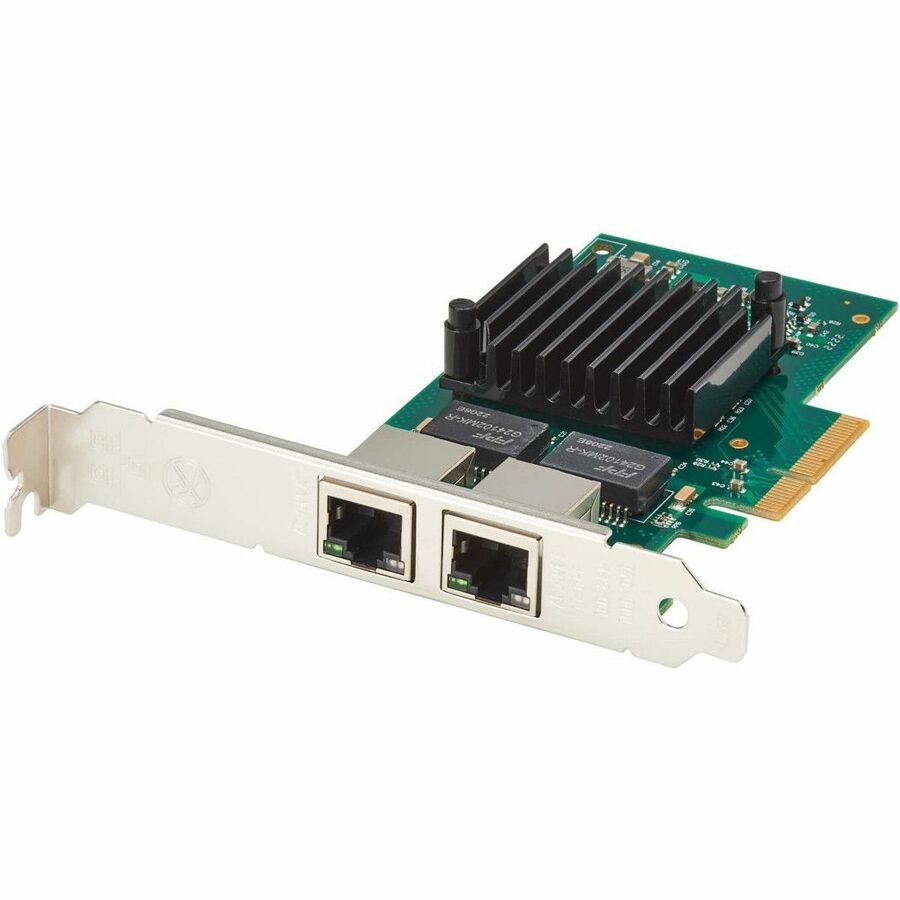

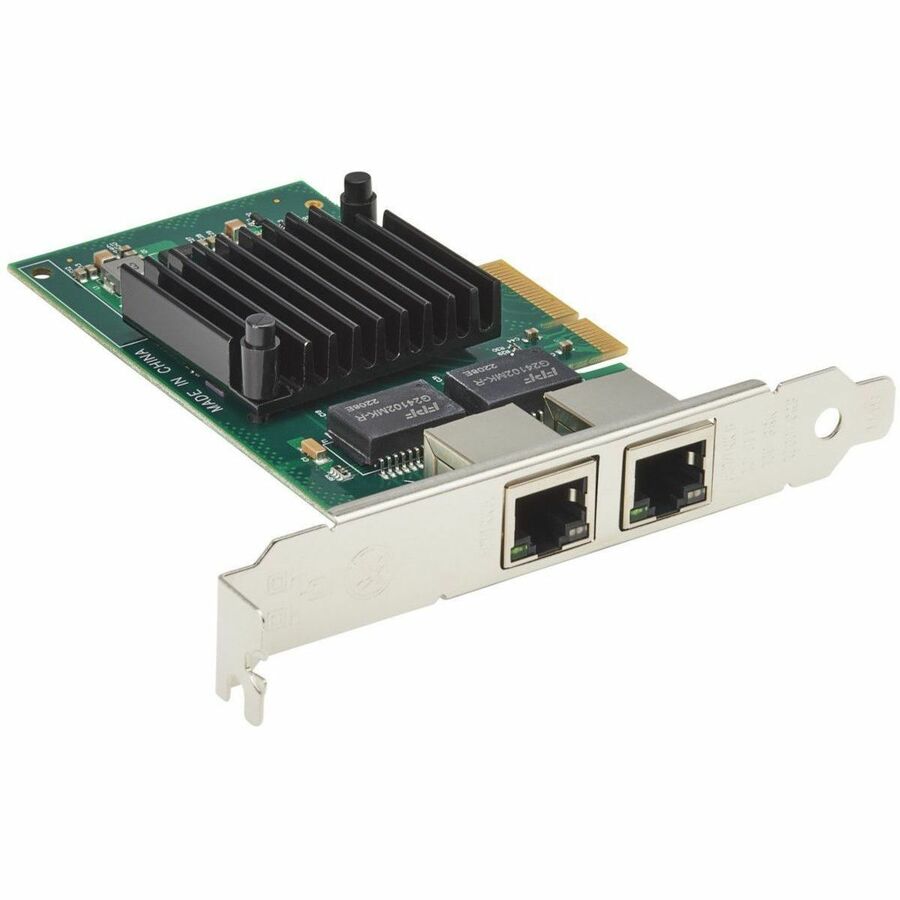

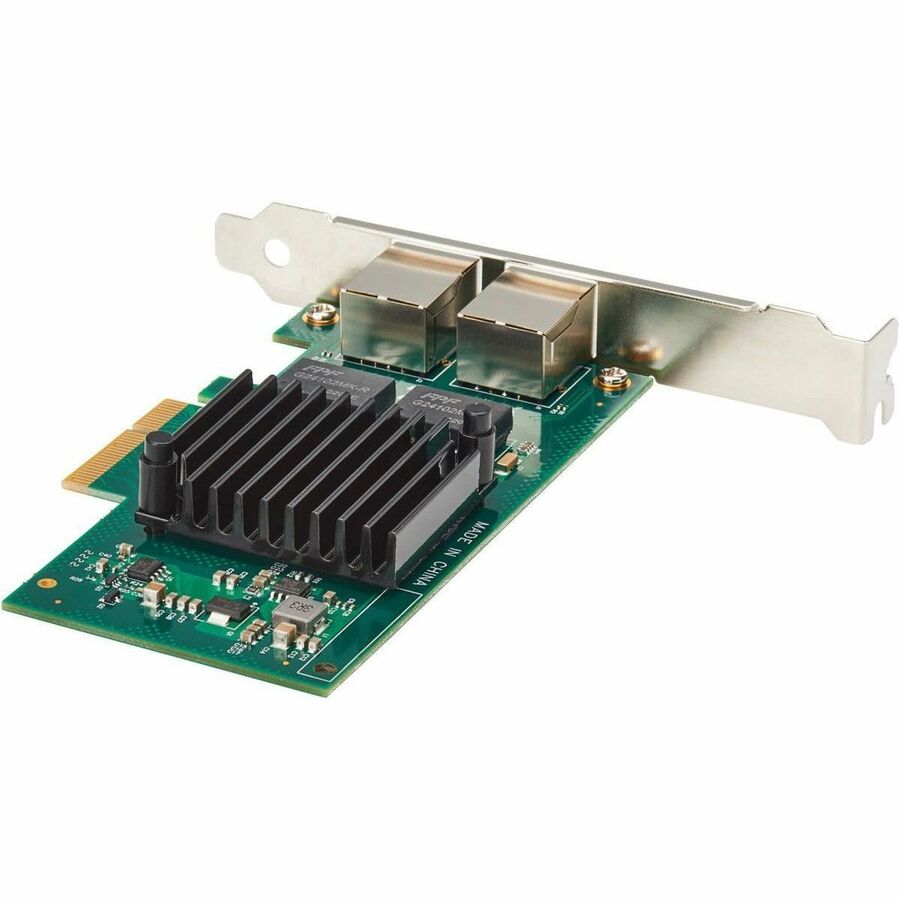

The high-performance PCE-1G-02-NIC connects to your desktop computer's motherboard and adds two 10/100/1000 Mbps RJ45 ports via an available four-lane PCI Express (PCIe) slot. Based on the bridgeless Intel I350 controller, this adapter is a 1 Gbps networking innovation for enterprise and data center applications. Add multiple Ethernet ports to dual-homed proxy or gateway systems for added security and redundant connectivity for uninterrupted network connections.
Recommended for VM Environments
This PCIe network interface card (NIC) is ideal for Virtual Machine (VM) environments with multiple operating systems that require shared or dedicated NICs. It also is a valuable addition to desktop PC servers and workstations with few PCIe slots available in which turning one RJ45 port into two is beneficial.
Loaded with the Latest Features
The PCE-1G-02-NIC supports common IEEE standards, including 802.3ab (1000Base-T Gigabit Ethernet), 802.3u (100base-TX), 802.3az, 802.1Q (VLAN) and 802.1ad. The high-performing bridgeless design supports PCI Express Gen 2.1 5GT/s x4, compatible with PCIe x8 or x16.
Innovative Power Management Features for Enterprise and Data Centers
Energy Efficient Ethernet (EEE) and DMA coalescing increase efficiency and reduce power consumption for enterprise and data center applications. Scalable iSCSI performance delivers cost-effective SAN connectivity. The PCE-1G-02-NIC also supports jumbo frames, VMDq, DPDK, PXE, WOL and FCoE. Flexible I/O virtualization is ideal for port partitioning and quality of service (QoS) of up to 32 virtual ports.
Installs in Minutes

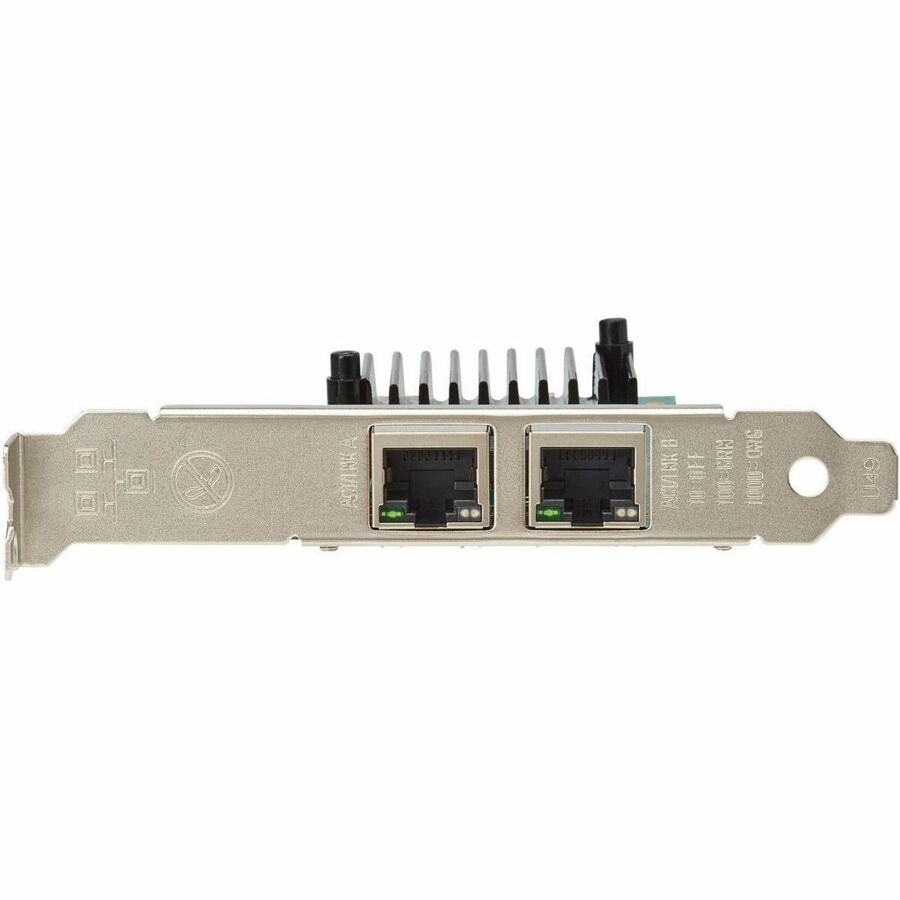

The halogen-free adapter is compatible with copper UTP cabling, including 1000Base-T Cat5e/Cat6 or higher up to 100 meters, 100Base-Tx Cat5/Cat5e/Cat6 or higher up to 100 meters, and 10Base-T Cat3/4/5/5e/6 or higher up to 100 meters. The PCE-1G-02-NIC can be installed with either a standard or low-profile bracket (both are included).
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Package Contents |
|
|---|---|
| Host Interface | PCI Express x16 |
| Product Type | Gigabit Ethernet Card |
| Device Supported | Computer, Workstation, Server |
| Manufacturer Part Number | PCE-1G-02-NIC |
| Limited Warranty | 2 Year |
| Form Factor | Plug-in Card |
| Manufacturer | Eaton Corporation |
| Product Name | Gigabit Ethernet Card |
| Network Technology | 1000Base-T |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Height | 4.7" |
| Width | 2.7" |
| Depth | 4.7" |
| Chipset Manufacturer | Intel |
| Chipset Model | I350-T2 |
| Number of Network (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| Product Color | Green |
| Bracket Height | Low-profile |
| Color Family | Green |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
