w 15KV ESD Immunity and metal case, Mountable"
MSRP$210.33
$100.51
Save 52%In stock: 1,062
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Tripp Lite's U223-004-IND is a rugged, all metal constructed USB 4-Port hub for use in data centers, work areas, and Industrial applications. Can be mounted on a wall or din-rail with included mounting hardware. Supports Hi-Speed USB 2.0 transfer rates at 480mbps, but is also backward compatible to USB 1.1 ( 12mbps ). Hub is bus-powered through the computer connection, or can self power with an external adapter ( not included ) or via the included 3-wire terminal block connector ( 9-36V ).
More from the Manufacturer
Get More USB Ports and Protection in Harsh Environments
Tripp Lite's U223-004-IND 4-port USB 2.0 Industrial-Grade Hub allows you to attach multiple USB devices to a single USB port on your computer and provides USB 2.0 hi-speed data transmission up to 480 Mbps. Electrostatic discharge (ESD) protection to ± 15 kV reduces potential static damage while overcurrent protection guards against power surges and voltage spikes, saving your connected peripherals from damage and data loss. With its robust protection features and industrial-grade metal enclosure design, the U223-004-IND is ideal for use in factories and other demanding electrical environments.
Give Your Computer 4 USB 2.0 Ports
With its superior design and construction, the U223-004-IND is ideal for a wide range of USB devices, including flash drives, external hard drives, bar code scanners, digital cameras and other applications that require fast, clear transmission, free of line noise and other interference, over long distances. It meets or exceeds USB 2.0 specifications for high-speed (up to 480 Mbps) data transfer, and is backward compatible with USB 1.1 applications so you can keep using older peripherals. Setting up the U223-004-IND is easy; simply plug in your devices and you are ready to go. No software or drivers are required and it is compatible with all major operating systems.
Electrostatic Discharge (ESD) and Over-Current Protection
Machines on the shop floor can generate electrostatic discharges, wiping data and damaging sensitive electronics. The U223-004-IND includes ESD protection to ± 15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with per-port over-current protection to safeguard your connected peripheral devices against damage or data loss.
Multiple Power Connection Options
The U223-004-IND offers three power connection options. It can take power directly from the computer via the source USB port, an external power supply (not provided)
Tripp Lite U223-004-IND Product Summary
ESD protected to ± 15 kV to reduce static damage
Overcurrent protection safeguards equipment from power surges
Rugged, industrial-grade metal enclosure stands up to harsh conditions
Supports USB 1.1 and 2.0 transfer speeds (12-480 Mbps)
Dual power inputs for AC or DC power connection options

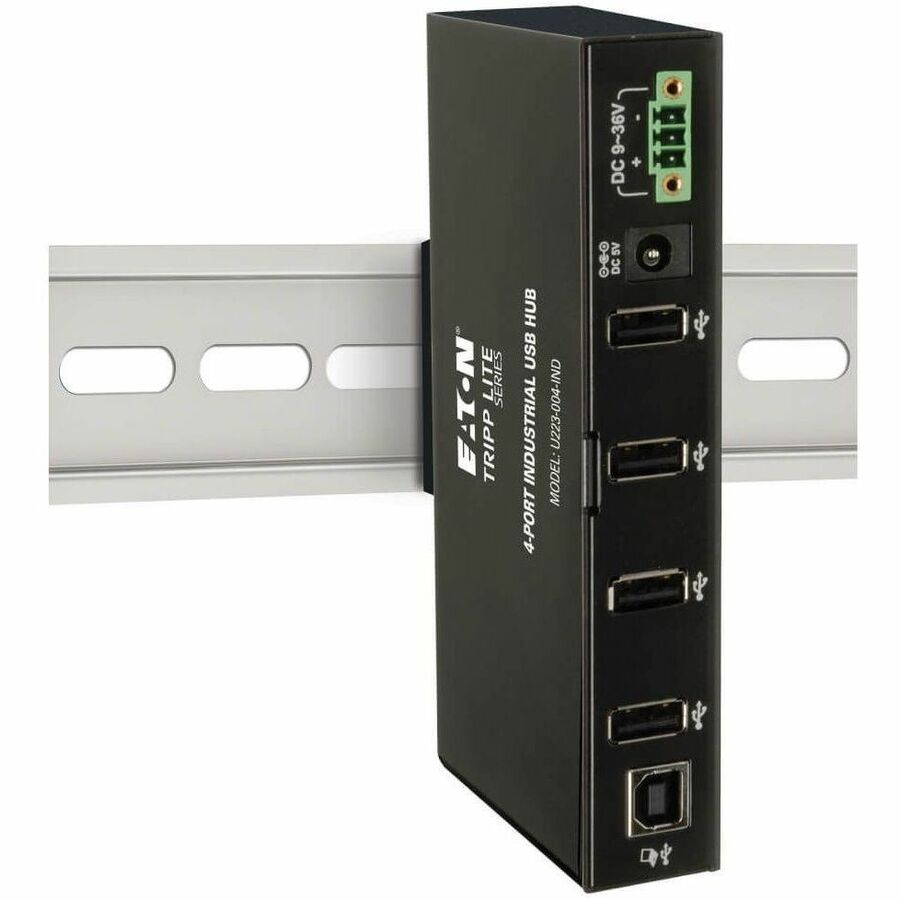

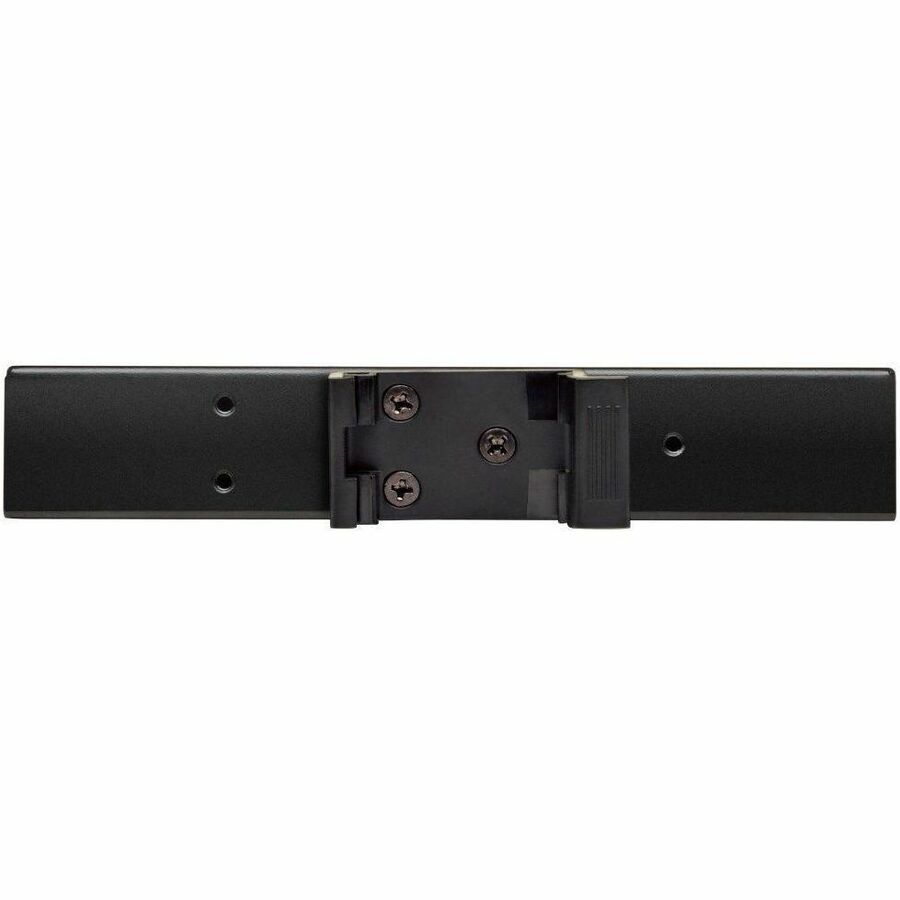

DIN rail mount and wall-mount support for multiple installation options
Compatible with all major operating systems
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U223-004-IND |
| Brand Name | Tripp Lite series |
| Product Model | U223-004-IND |
| Product Name | 4-Port Industrial USB 2.0 Hub with 15kV ESD Immunity |
| Product Type | USB Hub |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Media & Performance | |
| Data Transfer Rate | 480 MB/s |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | External |
| Height | 1" |
| Width | 2.5" |
| Depth | 5.6" |
| Technical Information | |
| Host Interface | USB |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
