Eaton Tripp Lite Series 4-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity, Metal Housing, Mountable

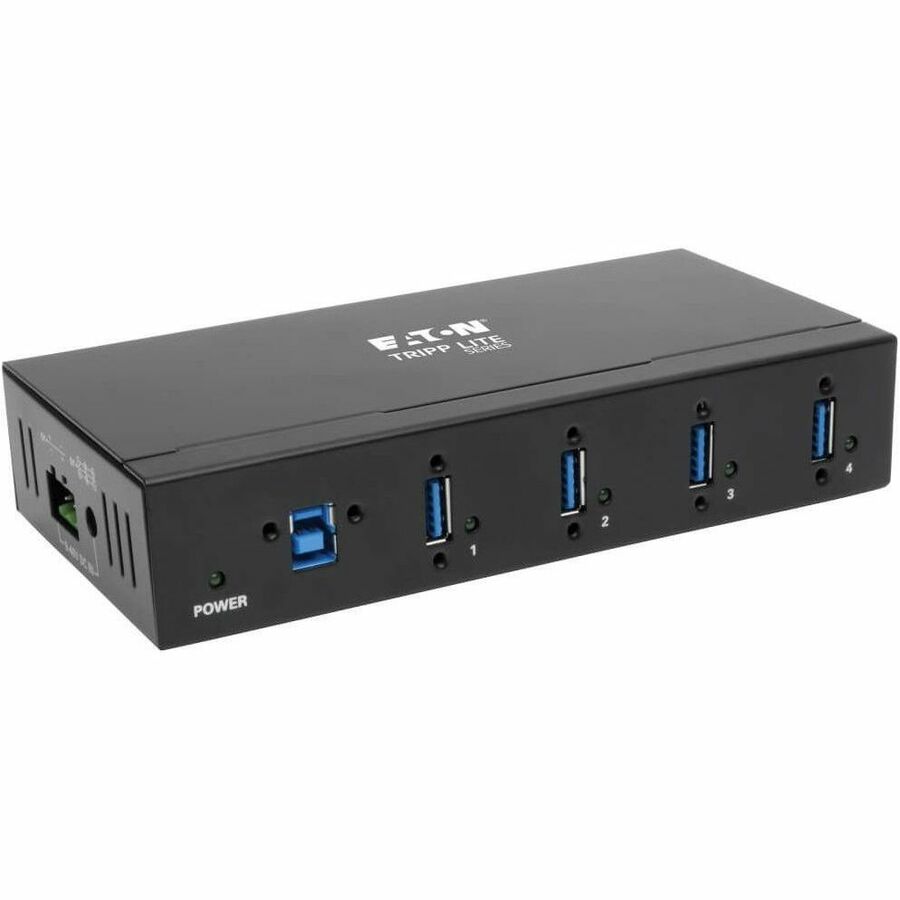

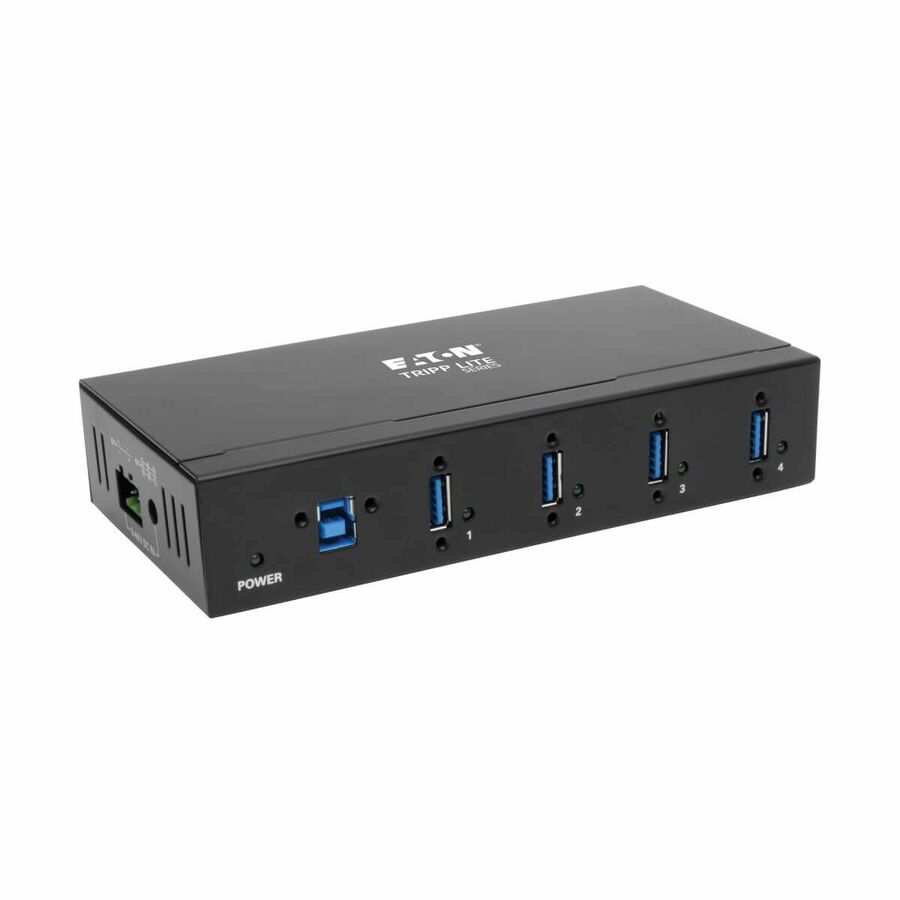

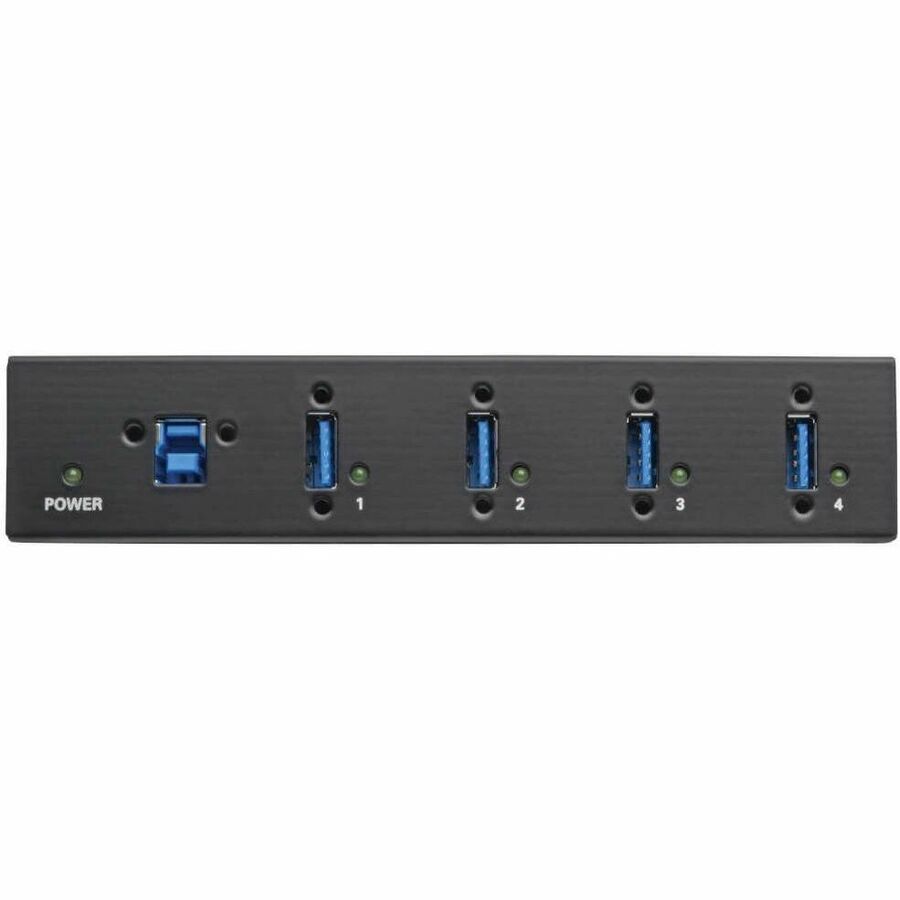

Tripp Lite's U360-004-IND is a rugged, all metal, USB 3.0 SuperSpeed 4-Port hub is ideal for use in data centers, work areas and Industrial applications. Can be mounted on a wall or din rail with included mounting hardware. Supports SuperSpeed USB 3.0 transfer rates at 5 Gbps, but is also backward compatible to USB 2.0 and 1.1 (480mbps and 12mbps). Hub is bus-powered through the computer connection, or can self power with an external adapter (not included) or via the included 3-wire terminal block connector (9-40V DC).

Features

• Increases the number of SuperSpeed USB 3.0 ports from a single computer port

• USB 3.0 compliant with data transfer rates up to 5 Gbps

• Backward-compatible with USB 2.0 and 1.x

• Rugged all-metal enclosure designed for use in industrial applications

• Wallmount and DIN rail hardware included for secure installation

• Three power connection options (source USB port, external power supply (*not included) or 3-wire terminal block)

• Each USB 3.0 port provides up to 900 mA of power

• Overcurrent detection and protection

• Supports 2 kV surge protection per port

• ESD protection to +/- 20 kV

• EFT protection to +/- 2.5 kV

• Automatic link and speed detection

• Plug-and-play; no software or drivers required

More from the Manufacturer

Rugged Housing Provides Industrial-Grade Protection for Dema

The U360-004-IND has a rugged, all-metal housing to withstand harsh physical conditions in industrial and commercial applications. It’s perfect for factories and warehouses.

Electrostatic Discharge (ESD) and Over-Current Protection

Machines on the shop floor can generate electrostatic discharges, wiping data and damaging sensitive electronics. The U360-004-IND includes ESD protection to ± 15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with per-port overcurrent protection to safeguard your connected peripheral devices against damage and data loss.

Multiple Power Connection Options

The U360-004-IND offers three power connection options. It can take power from the computer via the source USB port, a compatible external 5V DC power supply (not provided) or the included 3-wire terminal block. The U360-004-IND does not require software or drivers.

Multiple Installation Options

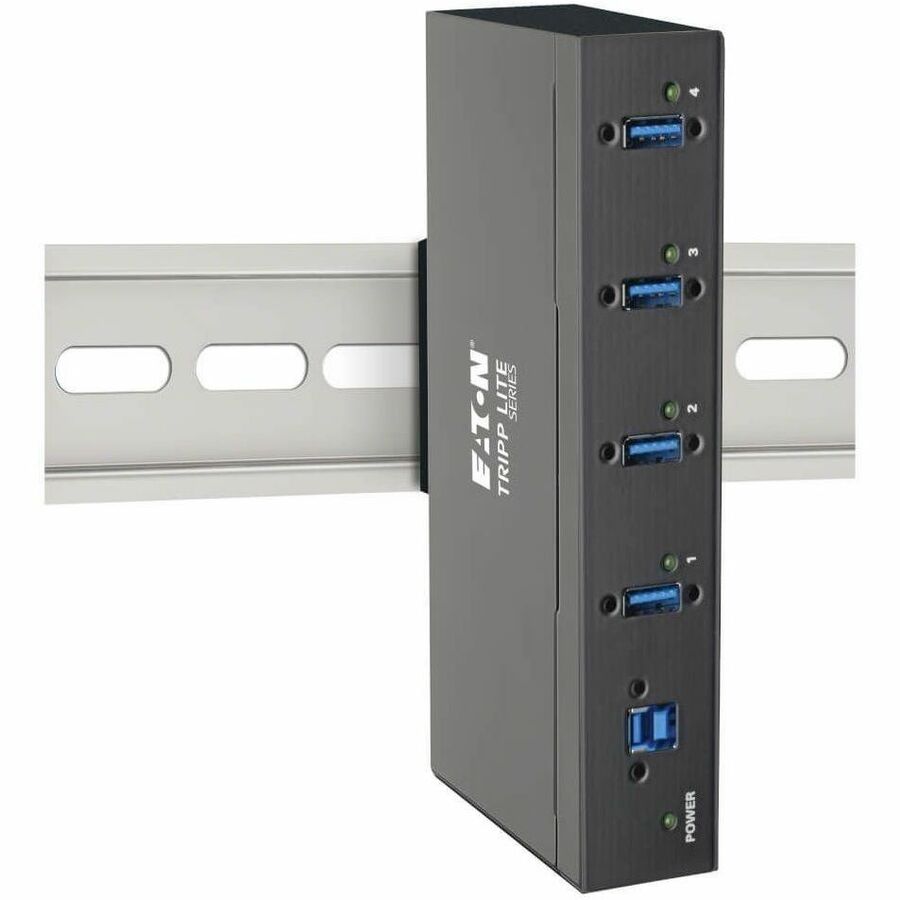

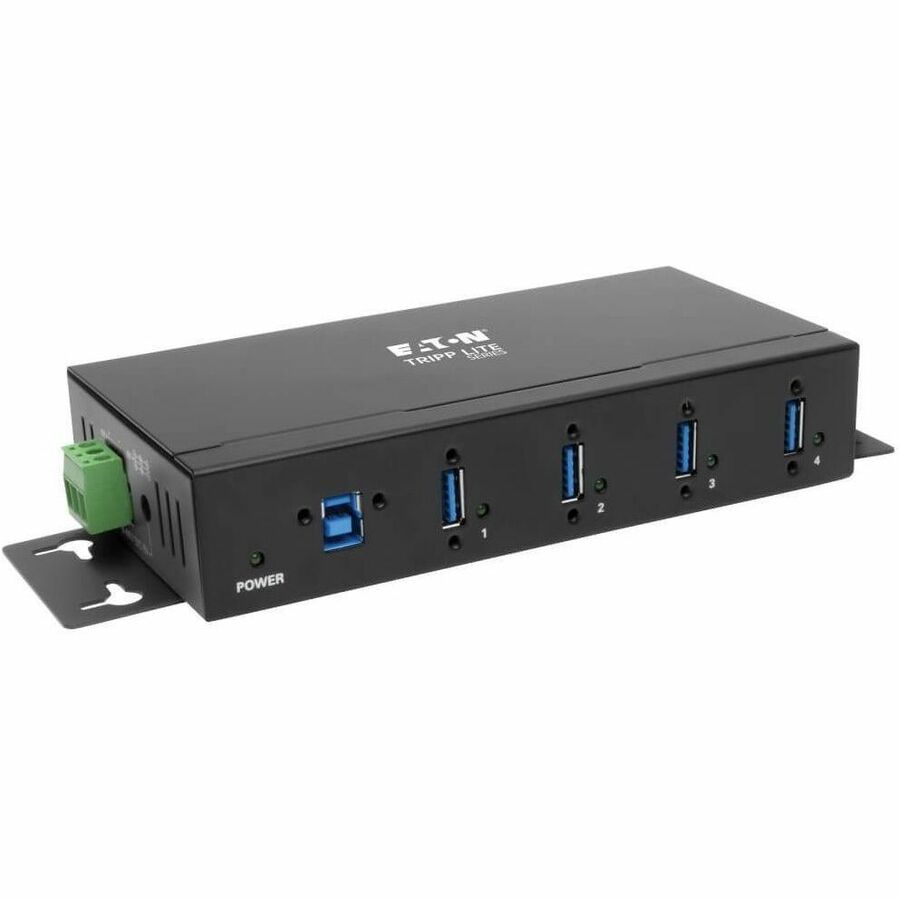

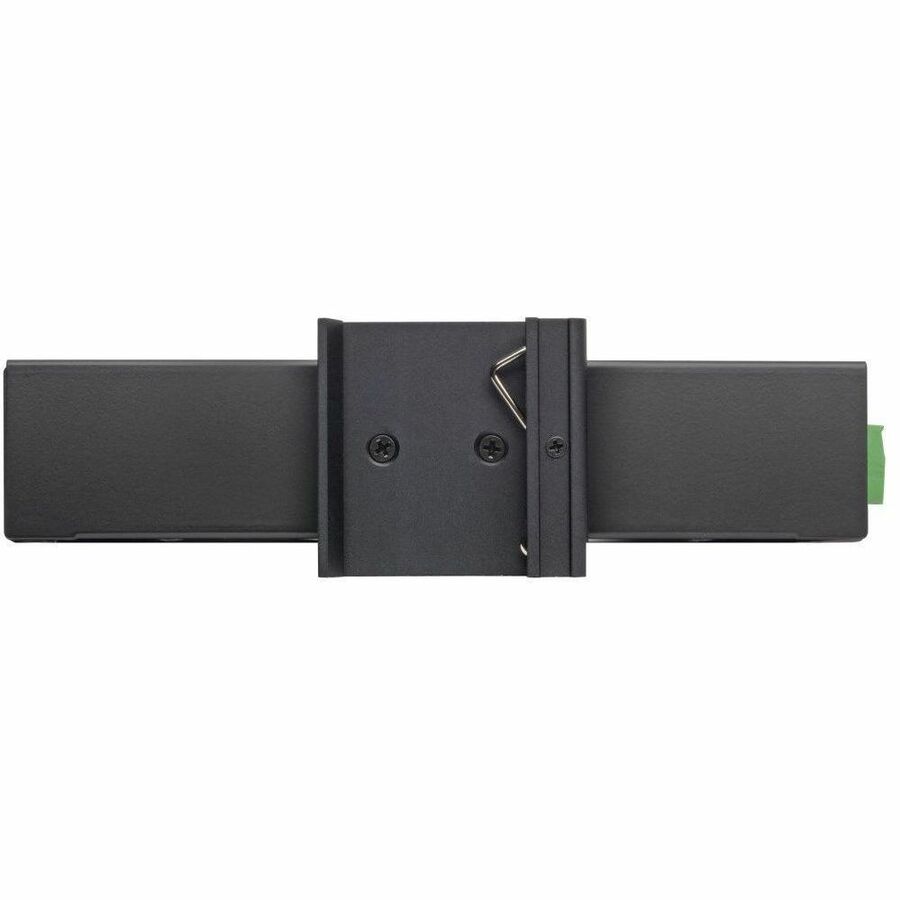

Not sure where you’re going to put your hub? Included mounting hardware gives you the flexibility to mount the U360-004-IND securely onto a wall or DIN rail.
