Tripp Lite by Eaton 3000VA 3000W Step-Down Isolation Transformer - 5-15/20R & L6-20R Outlets, 208V to 120V, 60 Hz, 2U
Eaton

Tripp Lite by Eaton 3000VA 3000W Step-Down Isolation Transformer - 5-15/20R & L6-20R Outlets, 208V to 120V, 60 Hz, 2U

3000 VA, 3000 VA - 230 V AC Input - 120 V AC, 230 V AC Output - 2U

SKU
SU5000XFMRT2U20
Category
Transformers

$1,313.69

In stock: 10

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SU5000XFMRT2U20
Category
Transformers

Overview

208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

This 3kVA 3kW SmartOnline® isolation transformer converts your UPS, utility or generator's 208V high-voltage input to 120V low-voltage output. It features 12 NEMA 5-15/20R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Four resettable 20A circuit breakers protect your 120V equipment against overload conditions. One NEMA L6-20R outlet provides 208V output.

Versatile Options for 2U Rack or Tower Installation in Your Data Center

Hardware is included for mounting this 208V to 120V isolation transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 20.75 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately). A 10-foot cord with L6-20P input plug connects to any compatible 208V 60 Hz wall outlet, UPS system or generator.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Converts 208V AC input into 120V output for powering low-voltage equipment

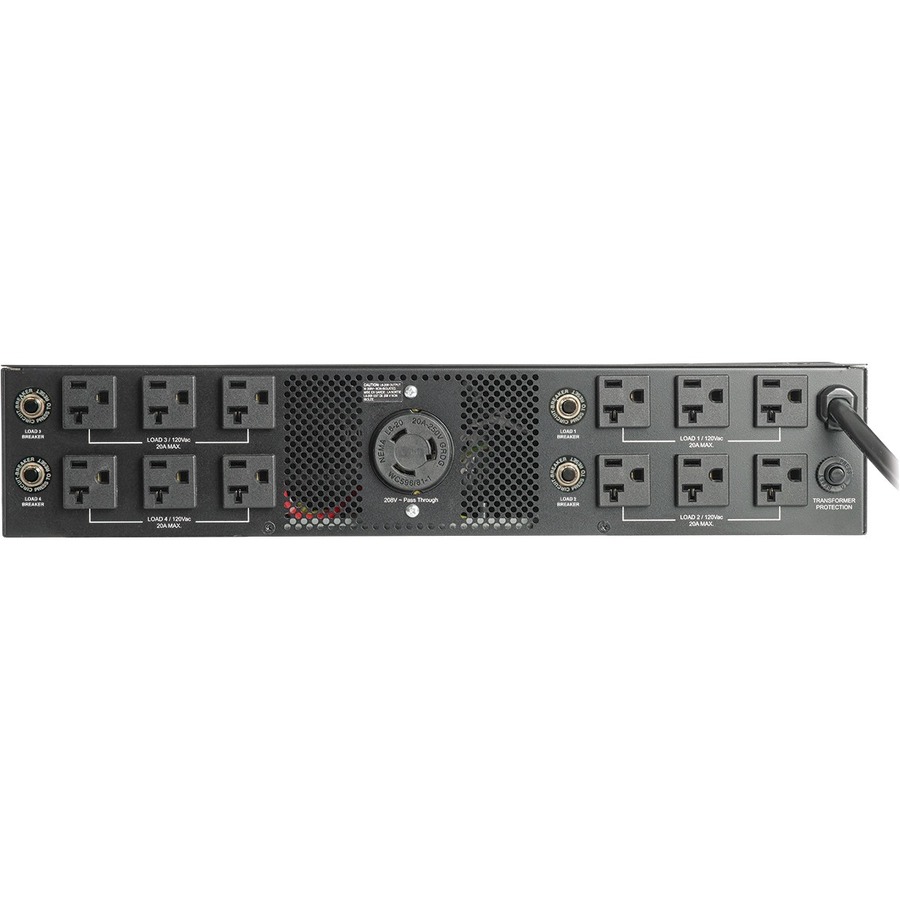

  • 12 NEMA 5-15/20R 120V outlets for connecting components with 5-15P or 5-20P plugs
  • Resettable circuit breakers protect connected equipment from hazardous overloads
  • NEMA L6-20R 208V pass-through outlet accepts one high-voltage component

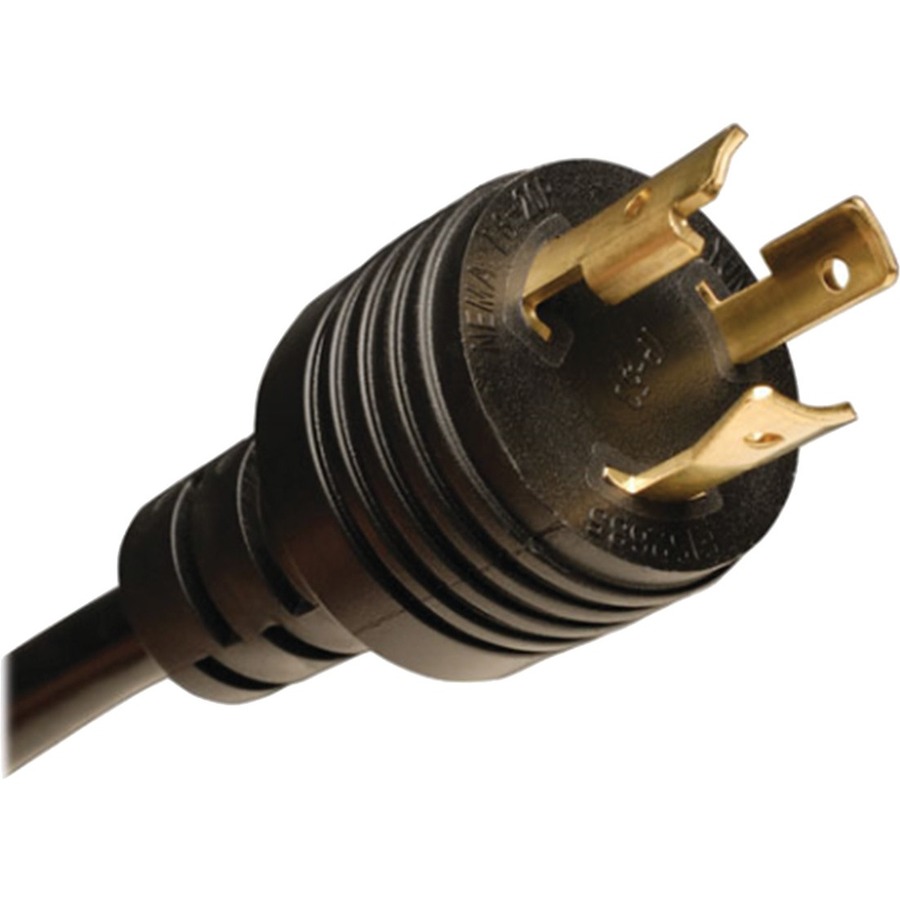

  • 10 ft. power cord with L6-20P input plug connects to compatible AC source
  • 2-year limited warranty

Specifications

Package Contents
  • Step Down Transformer
  • Rack-Mounting Hardware
  • Owner's Manual
Product TypeStep Down Transformer
Input Voltage230 V AC
Manufacturer Part NumberSU5000XFMRT2U20
Limited Warranty2 Year
Output Voltage120 V AC, 230 V AC
Weight (Approximate)63.01 lb
Form FactorTower/Rack Mountable
ManufacturerEaton Corporation
Product NameStep Down Transformer
Rack Width19"
Rack Height2U
Power Rating3000 VA
Brand NameTripp Lite series
Country of OriginChina
Height3.4"
Width17.3"
Depth20.8"
Environmentally FriendlyYes
Output Receptacle TypeNEMA L6-20R, NEMA 5-15/20R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
