Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
9PXTFMR11G2
Category
Transformers
Overview
208V to 120V Transformer Converts High-Voltage Input to Low-Voltage Output

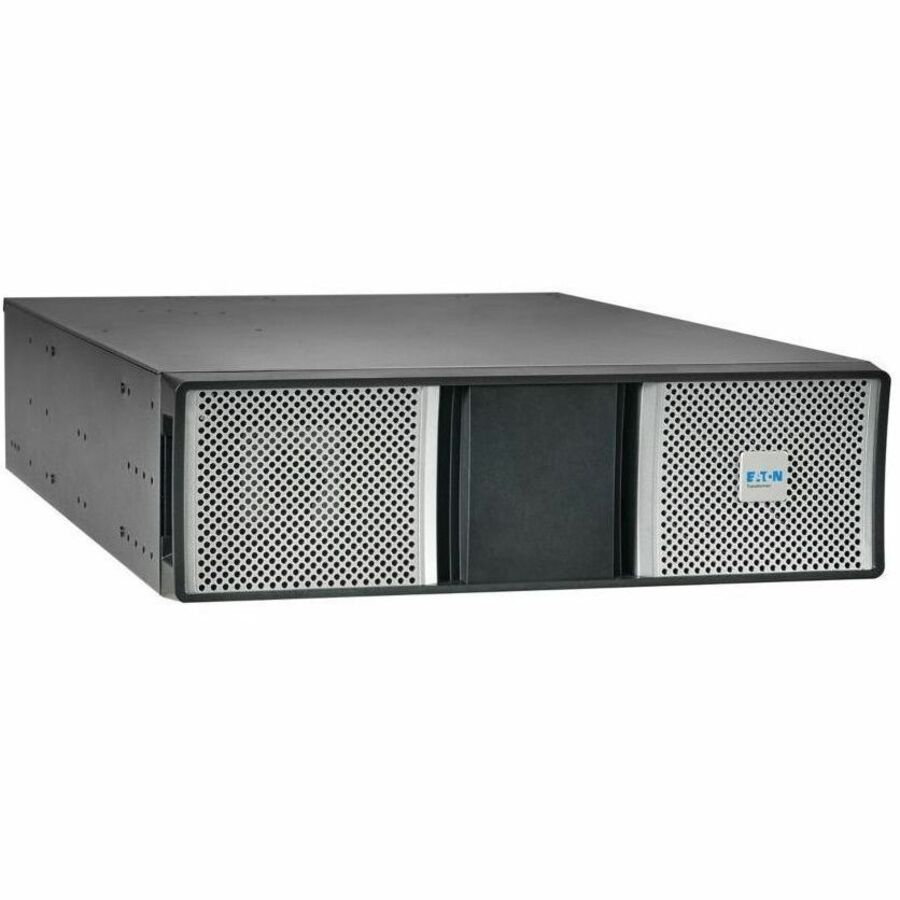

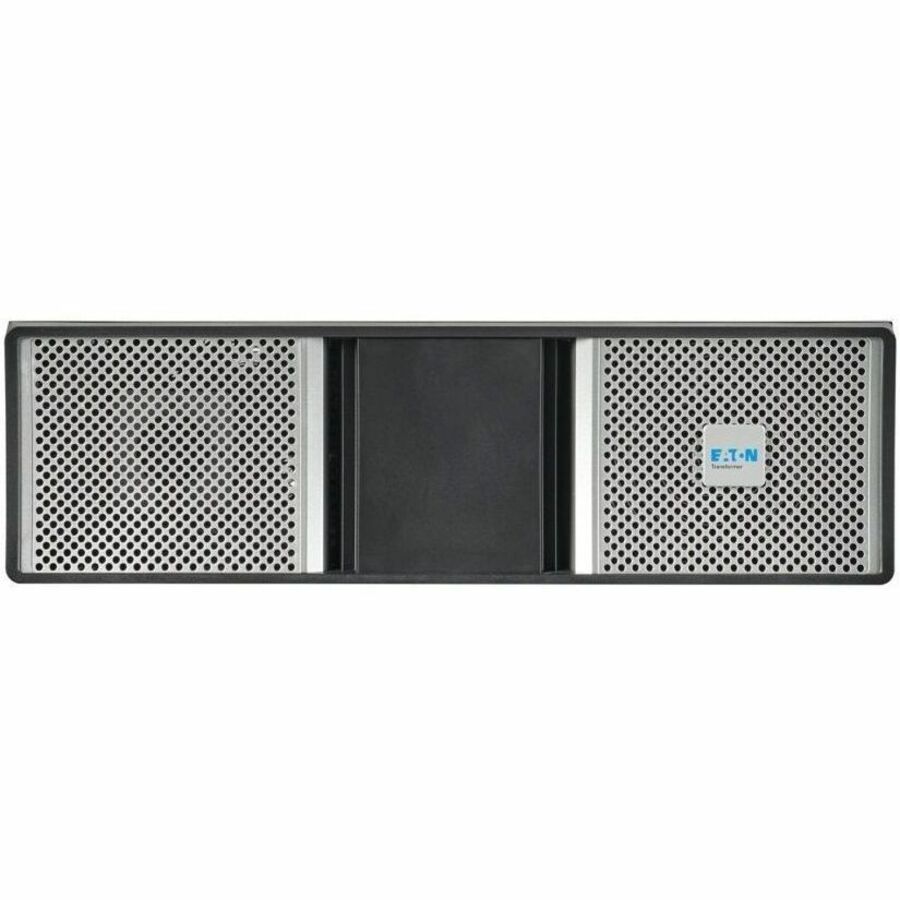

This 10kVA Step-Down Transformer converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features eight NEMA 5-20R and two L14-30R outlets for connecting equipment. Resettable circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR11G2 works with Eaton's 9PX8KG2 and 9PX11KG2 9PX G2 UPS systems.
Versatile Installation Options

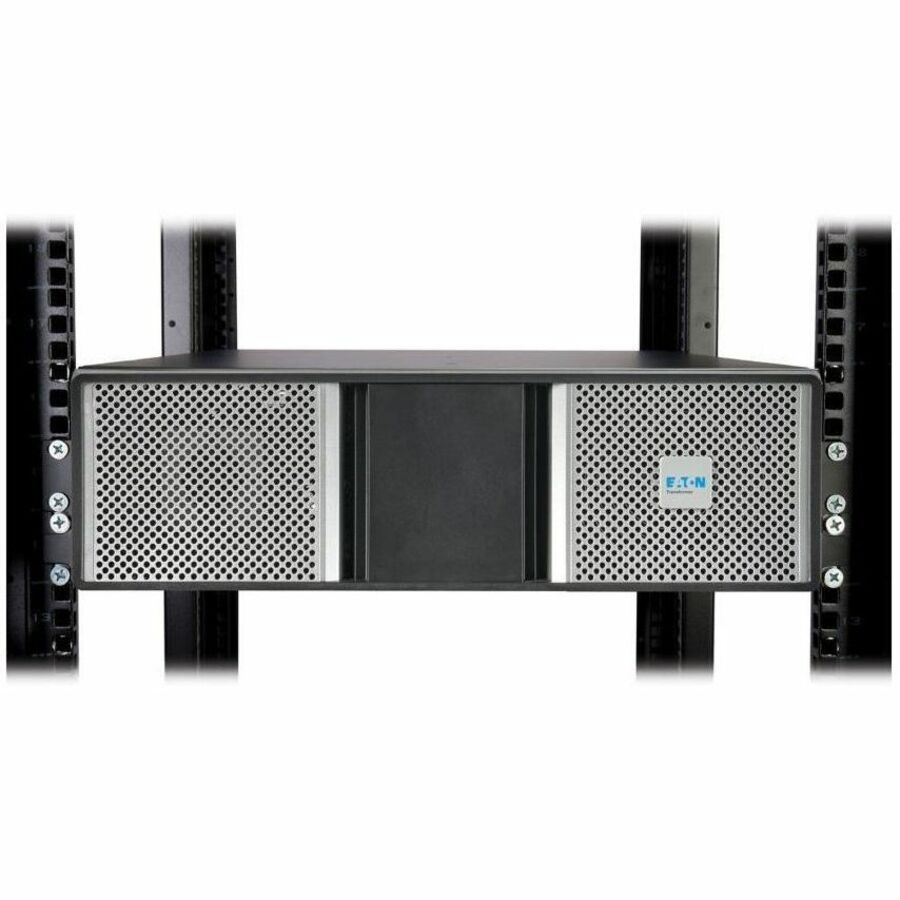

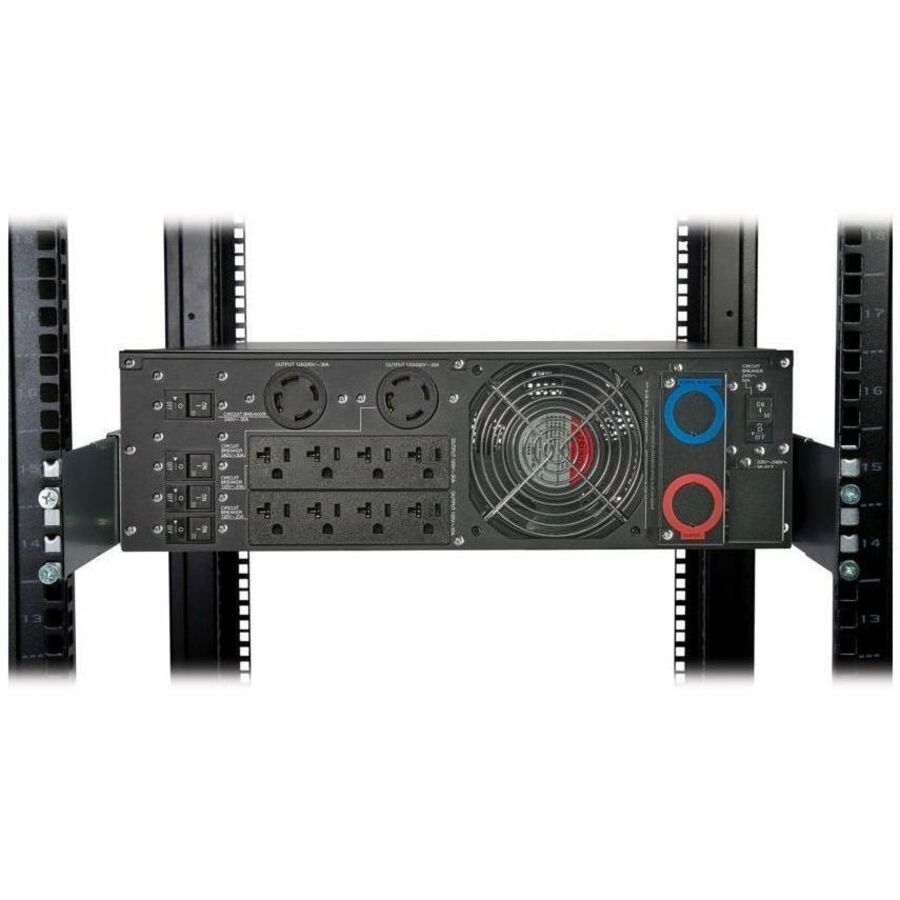

You can mount the 9PXTFMR11G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or adapt it for tower installation using the included joining bracket and hardware. Cable glands are included for hardwire input.
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable.
Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
Converts 208V AC input into 120V output for powering low-voltage equipment

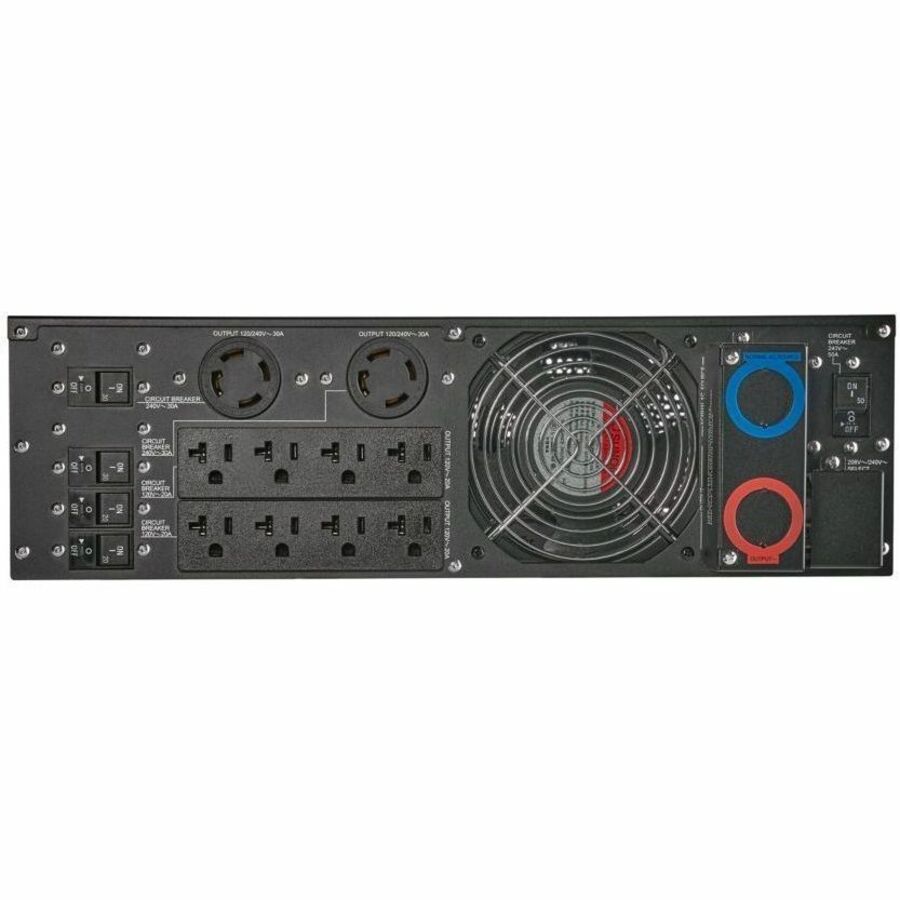

8 NEMA 5-20R and 2 L14-30R 120V outlets for connecting components
Resettable circuit breakers protect mission-critical equipment from hazardous overloads
Requires hardwired connection to Eaton 9PX8KG2 or 9PX11KG2 9PX G2 UPS systems
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
9PXTFMR11G2
Brand Name
Eaton
Product Model
9PXTFMR11G2
Product Name
9PXTFMR11G2 Step Down Transformer
Product Type
Step Down Transformer
Physical Characteristics
Height
5.1"
Form Factor
Tower/Rack Mountable
Width
17.3"
Depth
27.4"
Rack Height
3U
Power Description
Input Voltage
230 V AC
Output Voltage
100 V, 120 V
Technical Information
Power Rating
10000 VA
Input Receptacle Type
Hardwired
Output Receptacle Type
NEMA 5-20R, NEMA L14-30R
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
9PXTFMR11G2 Step Down Transformer
Hardwire Cable
2 x Cable Glands
Joining Bracket And Hardware For Tower Configuration
