Eaton Tripp Lite Series 18kVA 18kW 4U Step-Down Isolation Transformer - Converts 208/240V 60Hz (Source) to 120/240V split phase (Load)
Eaton

Eaton Tripp Lite Series 18kVA 18kW 4U Step-Down Isolation Transformer - Converts 208/240V 60Hz (Source) to 120/240V split phase (Load)

18 kVA, 16 kVA - 208 V AC, 240 V AC Input - 120 V AC, 240 V AC Output - 2U

SKU
SU20KXFMRT4U
Category
Transformers

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SU20KXFMRT4U
Category
Transformers

Overview

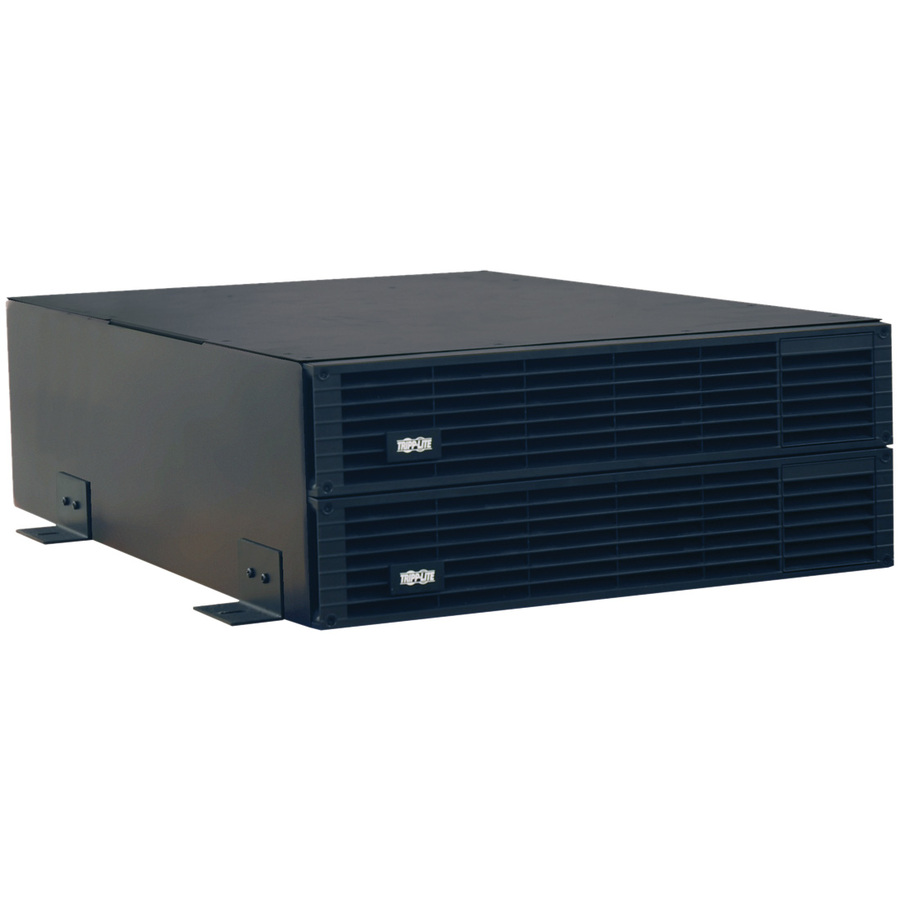

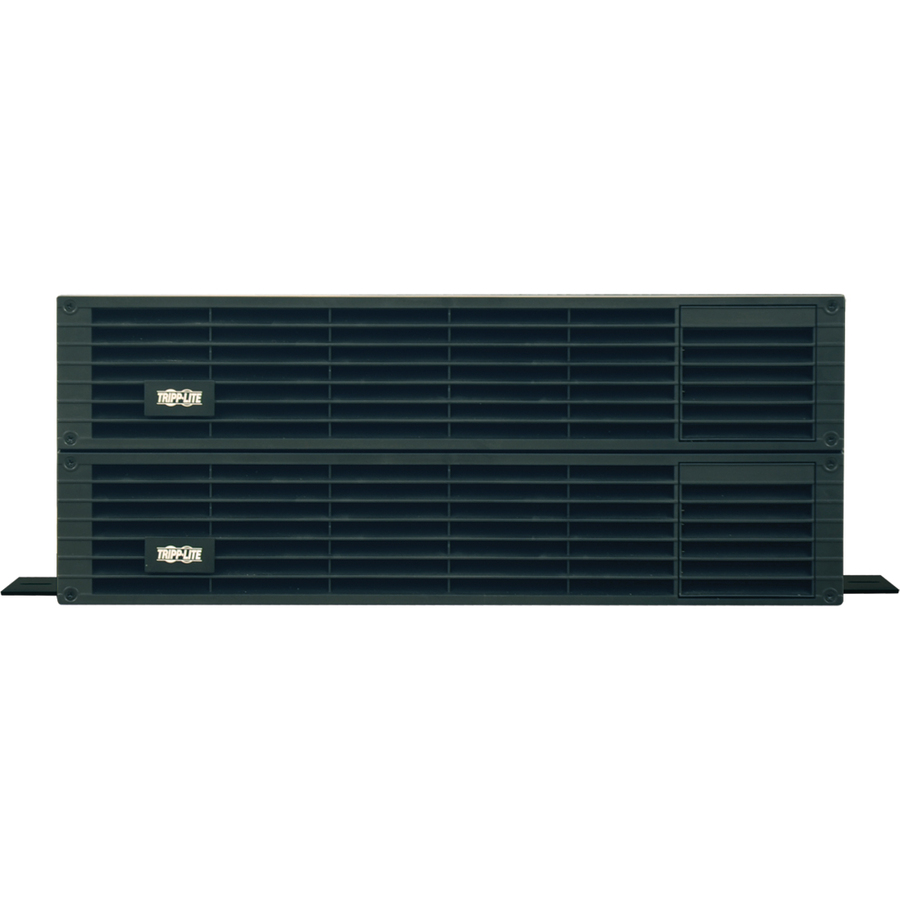

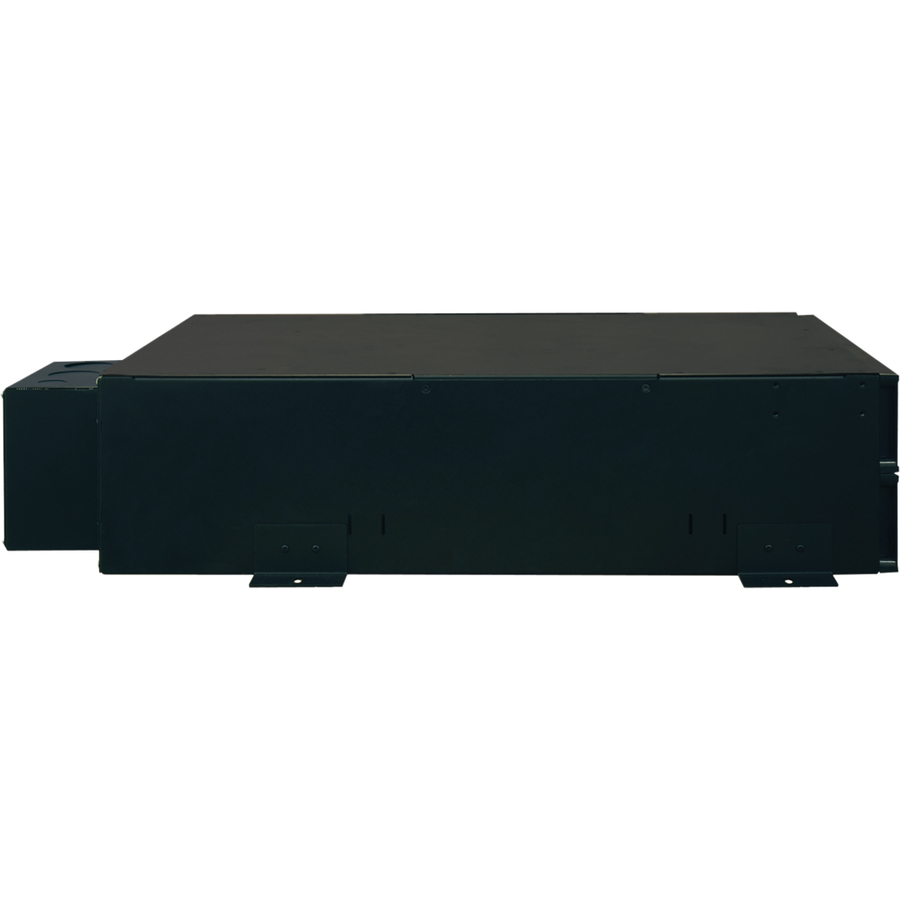

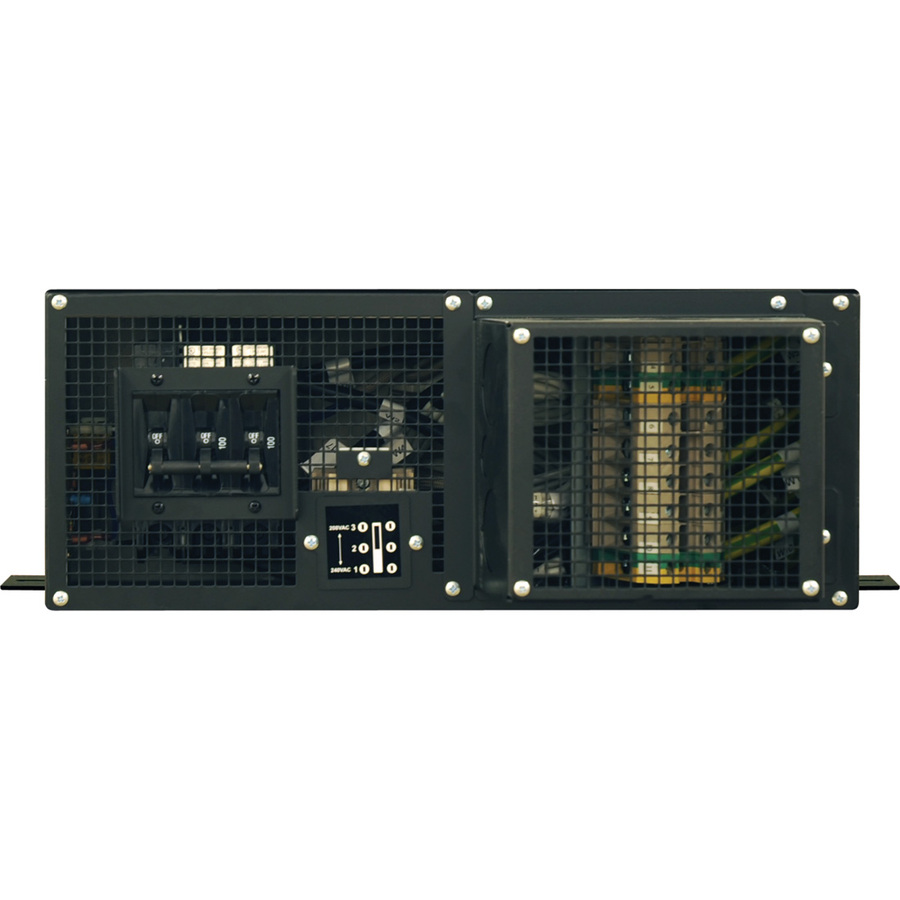

Tripp Lite's SU20KXFMRT4U step-down, isolation transformer converts 208 or 240V input from any 60Hz generator, utility or UPS high voltage source to 240/120V output. 208 or 240V hardwire input connection and hardwire 240/120V output. Supports 4U rackmount installation in 4 post racks with included brackets. Supports 2 post rackmount installation with optional 2POSTRMKITWM. Supports upright tower installation with 2-9USTAND.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • 18kVA / 18kW / 18,000 watt step-down isolation transformer converts 208 or 240V 60Hz to 120/240V split phase output
  • Supports hardwire input and output
  • Ideal means of converting UPS, utility, generator or other 208/240V input to 120/240V split phase
  • Supports 4U rackmount installation

Specifications

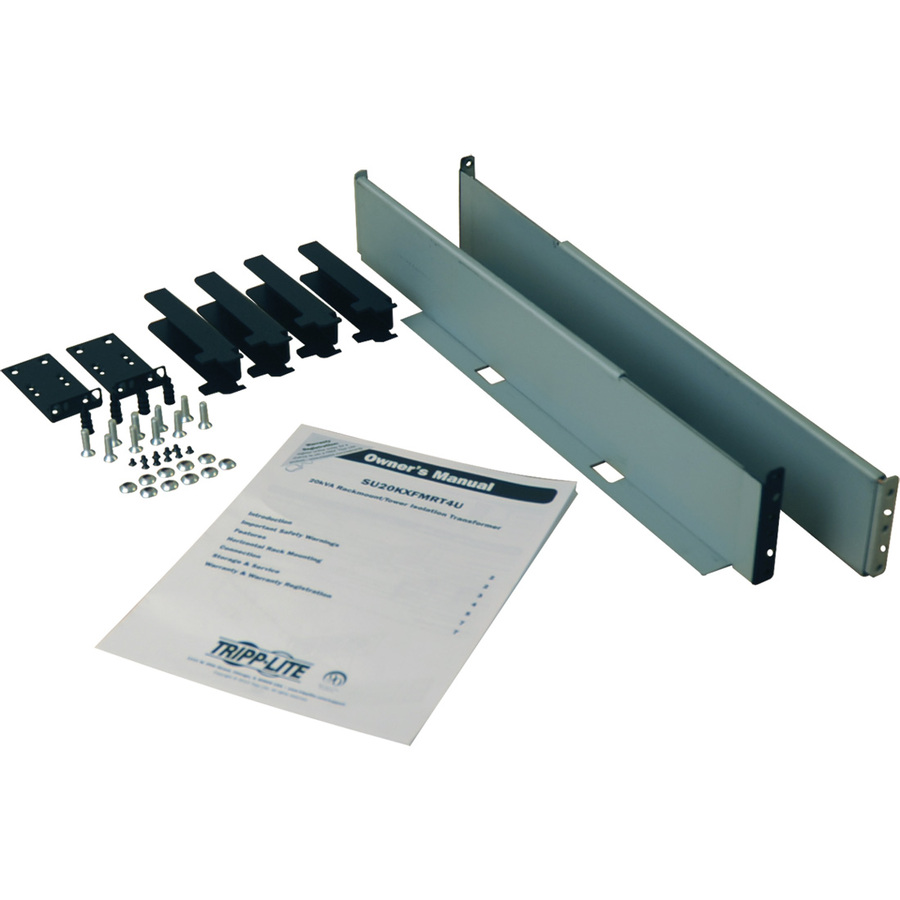

Package Contents
  • SU20KXFMRT4U Step-Down, Isolation Transformer
  • 4 x Post Rackmount Accessories
  • Owner's Manual With Warranty Information
Product TypeStep Down Transformer
Input Voltage208 V AC, 240 V AC
Manufacturer Part NumberSU20KXFMRT4U
Limited Warranty2 Year
Output Voltage120 V AC, 240 V AC
Weight (Approximate)320.11 lb
Form FactorTower/Rack Mountable
ManufacturerEaton Corporation
Product ModelSU20KXFMRT4U
Product NameSU20KXFMRT4U Step-Down, Isolation Transformer
Rack Height2U
Power Rating18 kVA, 16 kVA
Brand NameTripp Lite series
Country of OriginChina
Height7"
Width17.5"
Depth22.9"
Environmentally FriendlyYes
Maximum Line Current77 A
Input Receptacle TypeHardwired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
