Tripp Lite by Eaton SmartRack Vertical PDU Installation Bracket for Server Racks - Mounting Bracket for PDU, Cable Manager
Eaton

Tripp Lite by Eaton SmartRack Vertical PDU Installation Bracket for Server Racks - Mounting Bracket for PDU, Cable Manager

Steel

SKU
SRPDU4PHDBRKT
Category
Mounting Kits

MSRP$62.55

$44.16

Save 29%

In stock: 159

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SRPDU4PHDBRKT
Category
Mounting Kits

Overview

Bracket Enhances Functionality of Enclosures and Open Frame Racks

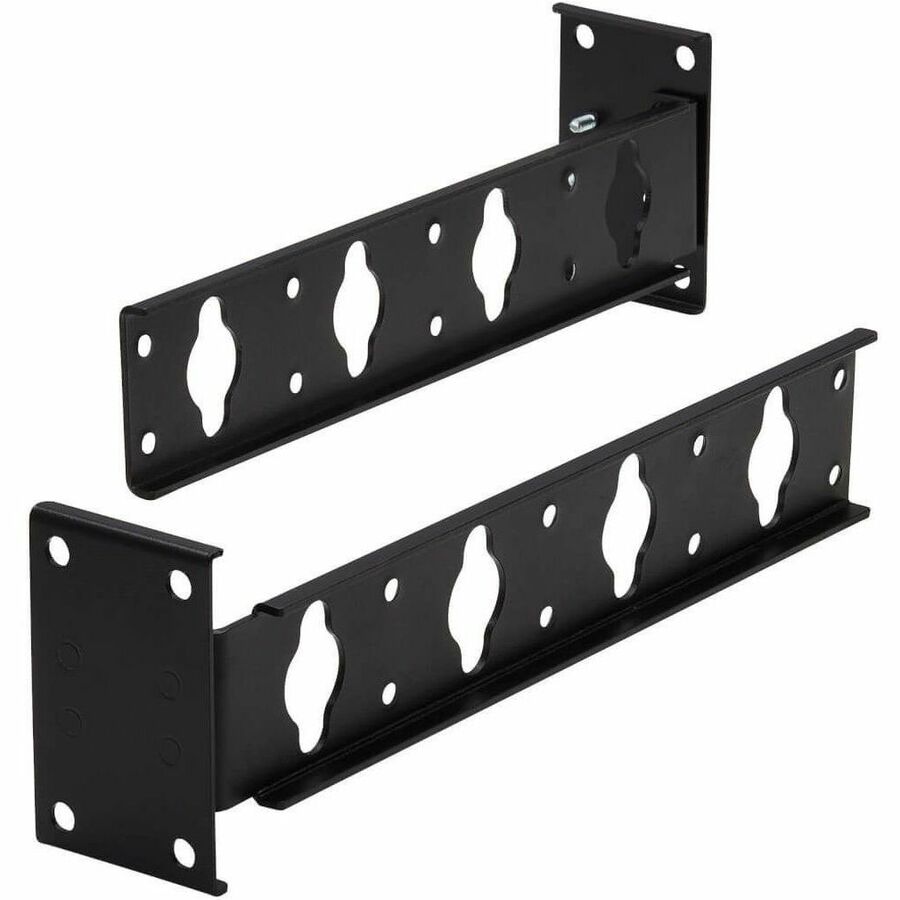

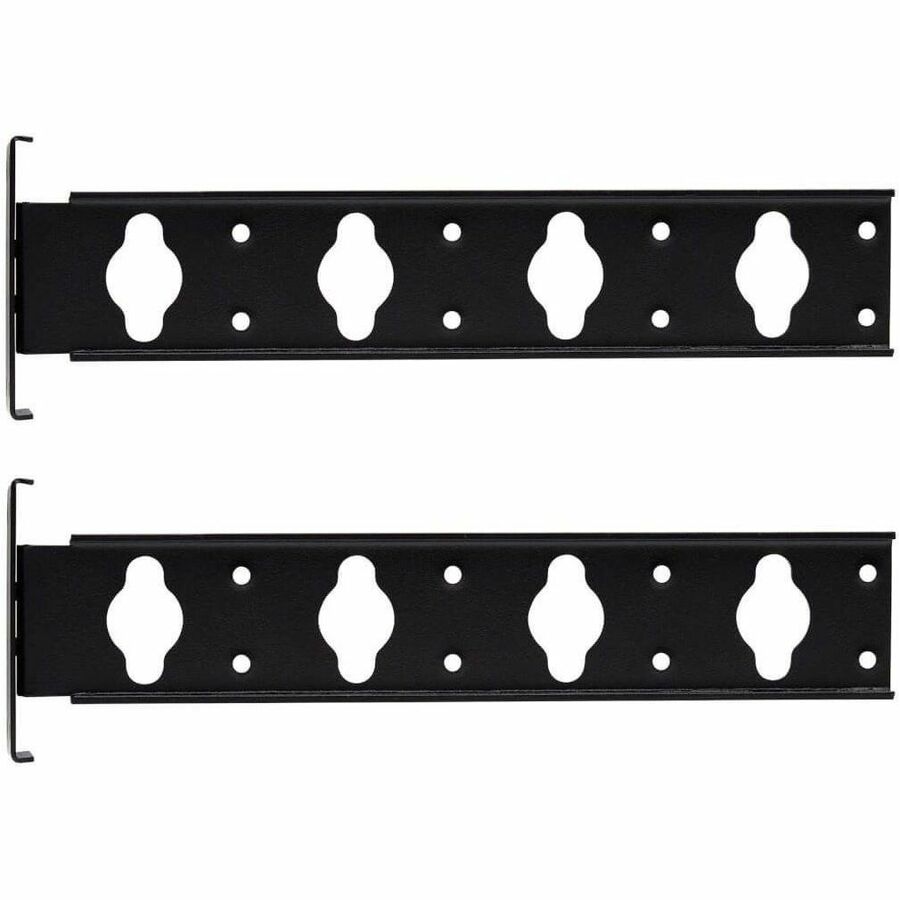

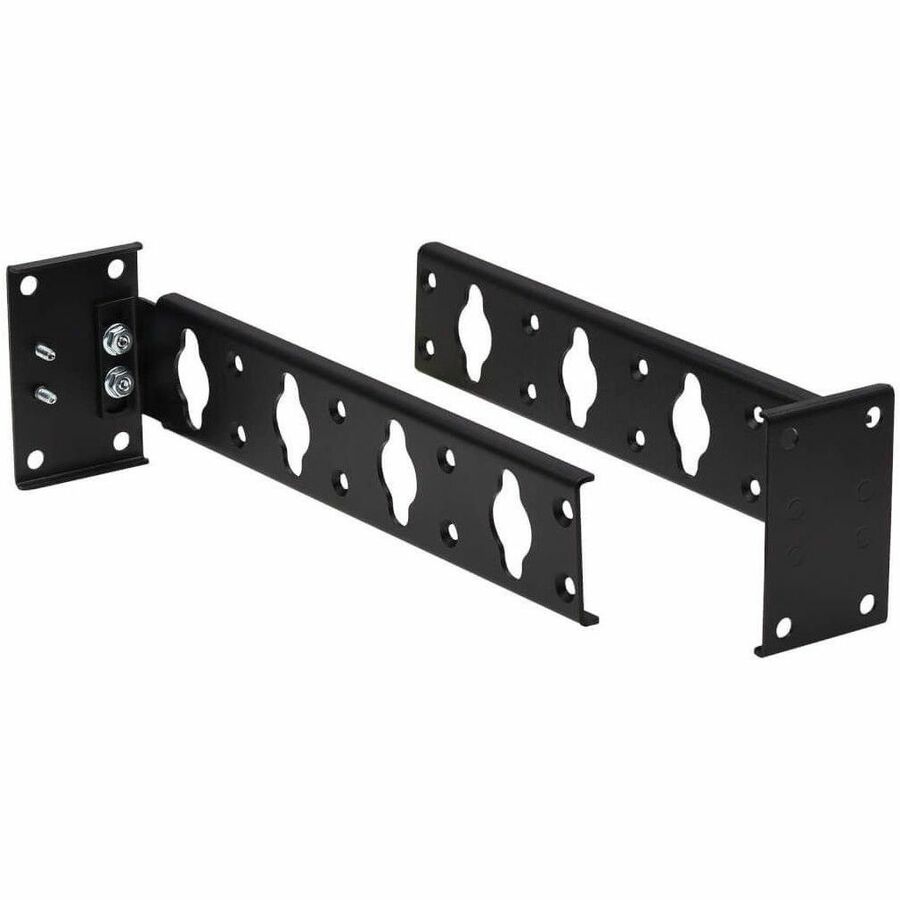

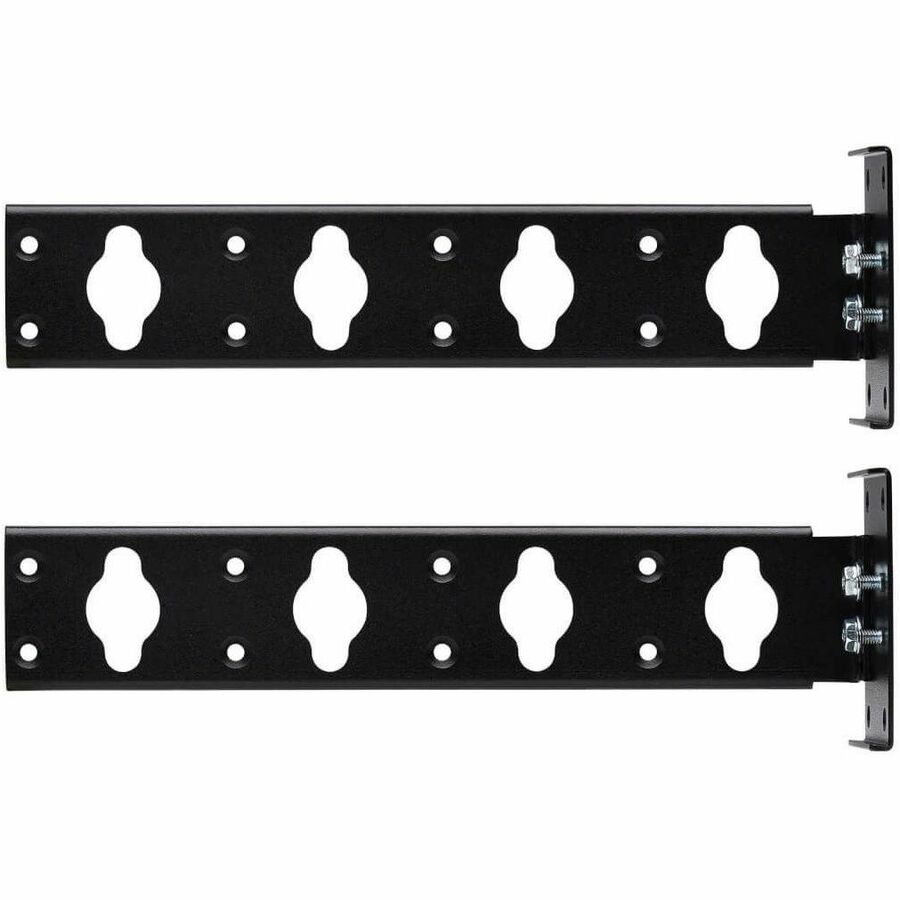

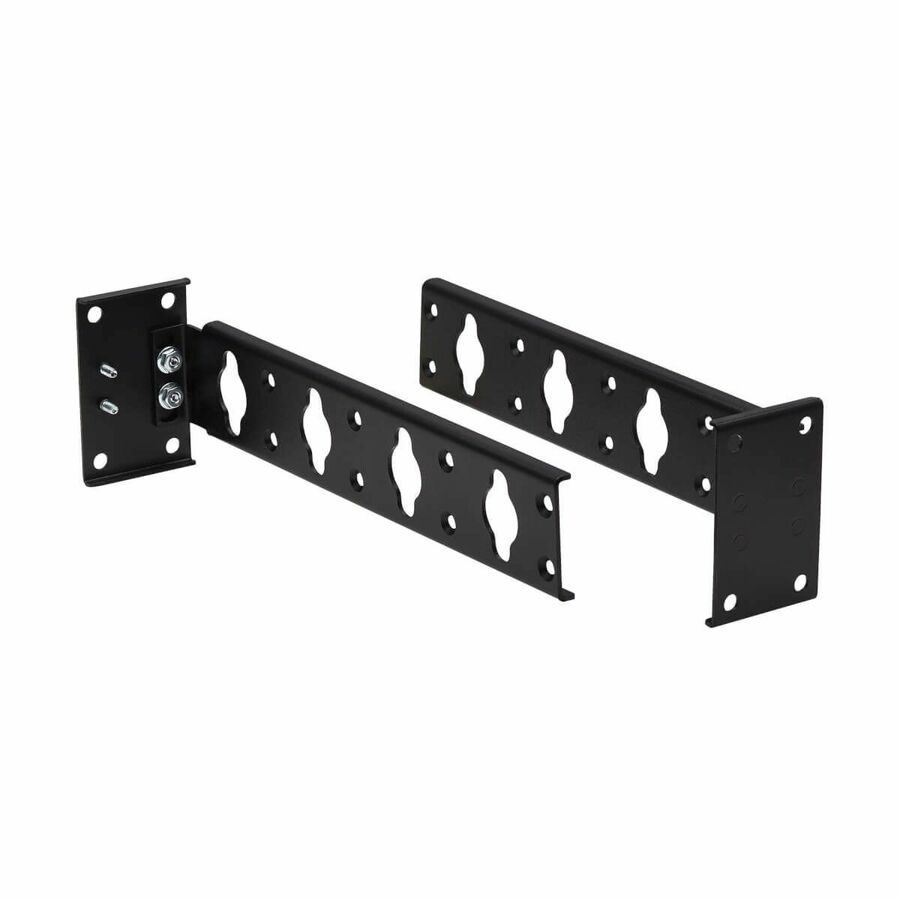

The SRPDU4PHDBRKT allows the addition of up to three vertical PDUs or cable managers to a Tripp Lite rack enclosure or open frame rack, helping you avoid the need to invest in a larger rack configuration. Upper and lower brackets attach to the frame of a standard or heavy-duty rack enclosure using the included screws and cage nuts. Included adapter plates allow connection to mounting rails in 2-post or 4-post open frame racks.

Supports Toolless Mounting of Up to 3 Vertical PDUs or Cable Managers

Up to three vertical PDUs or cable management accessories can be mounted to the SRPDU4PHDBRKT brackets. Keyhole slots support toolless button mounting. The brackets also have equipment mounting holes for attaching PDUs and cable managers with fasteners.

Warranty

Limited Warranty: 5 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Compatible with rack enclosures and open frame racks (with included adapters)
  • Upper and lower brackets support up to three vertical (0U) PDUs or cable managers
  • Supports PDU mounting with toolless button mounts
  • Sturdy steel construction provides a secure mounting surface
  • Mounting hardware is included

Specifications

Application/UsageRack, Enclosure

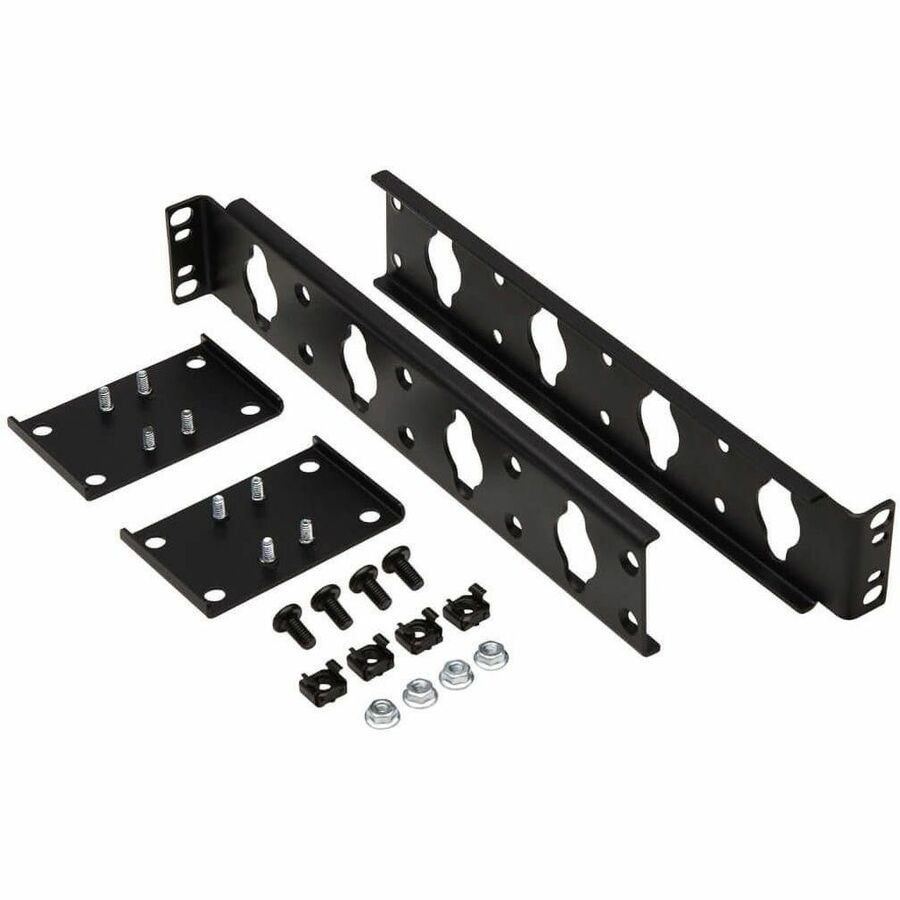

Package Contents
  • Vertical PDU Installation Bracket for Server Racks
  • 2 x Mounting Brackets
  • 2 x Adapter Plates for open frame racks
  • 4 x M6 Screws
  • 4 x Cage Nuts
  • 4 x 8-32 Flange Nuts
  • Owner's Manual
Product TypeMounting Bracket
Device SupportedPDU, Cable Manager
Manufacturer Part NumberSRPDU4PHDBRKT
Limited Warranty5 Year
FeaturesSturdy
ManufacturerEaton Corporation
Product ModelSRPDU4PHDBRKT
Product NameVertical PDU Installation Bracket for Server Racks
Brand NameTripp Lite series
Country of OriginChina
Height2.36"
Width12"
Depth3.35"
Environmentally FriendlyYes
Product MaterialSteel
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
