Eaton Tripp Lite Series Triangular Wall Support Kit for 12 & 18 in. Cable Runway, Straight & 90-Degree - Hardware Included

100 lb Load Capacity

SKU: SRLTRISUPPORT
Category: Mounting Kits

MSRP$150.79

$98.35

Save 35%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SRLTRISUPPORT
Category: Mounting Kits

Overview

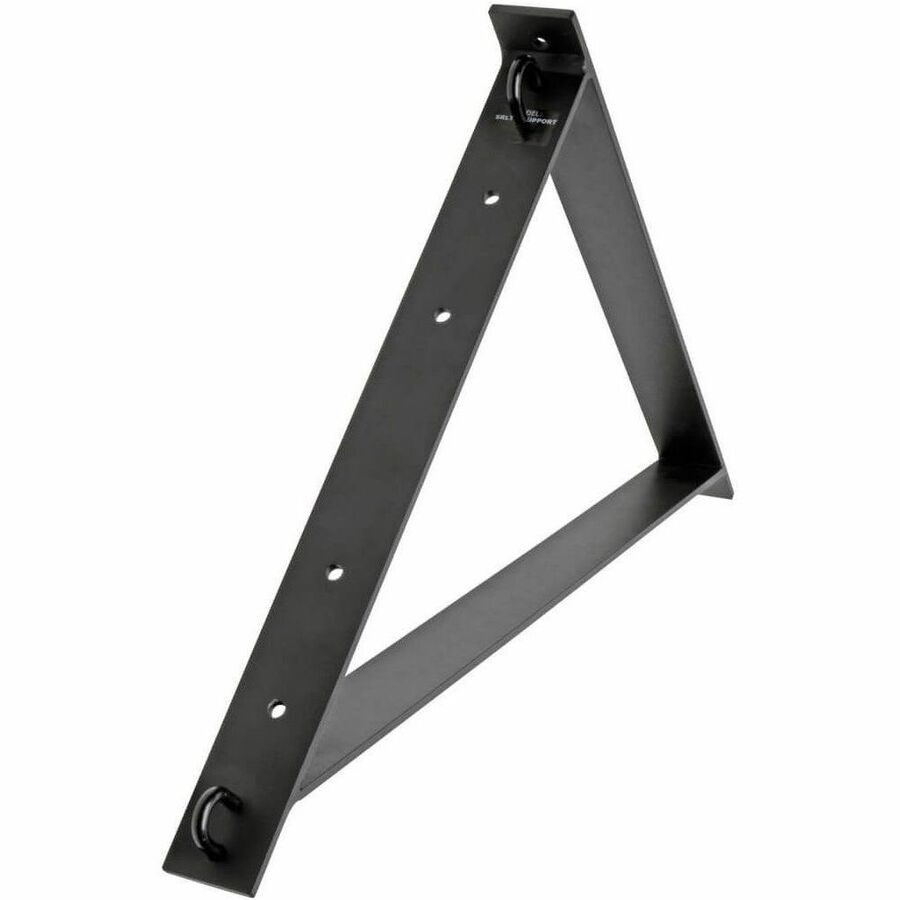

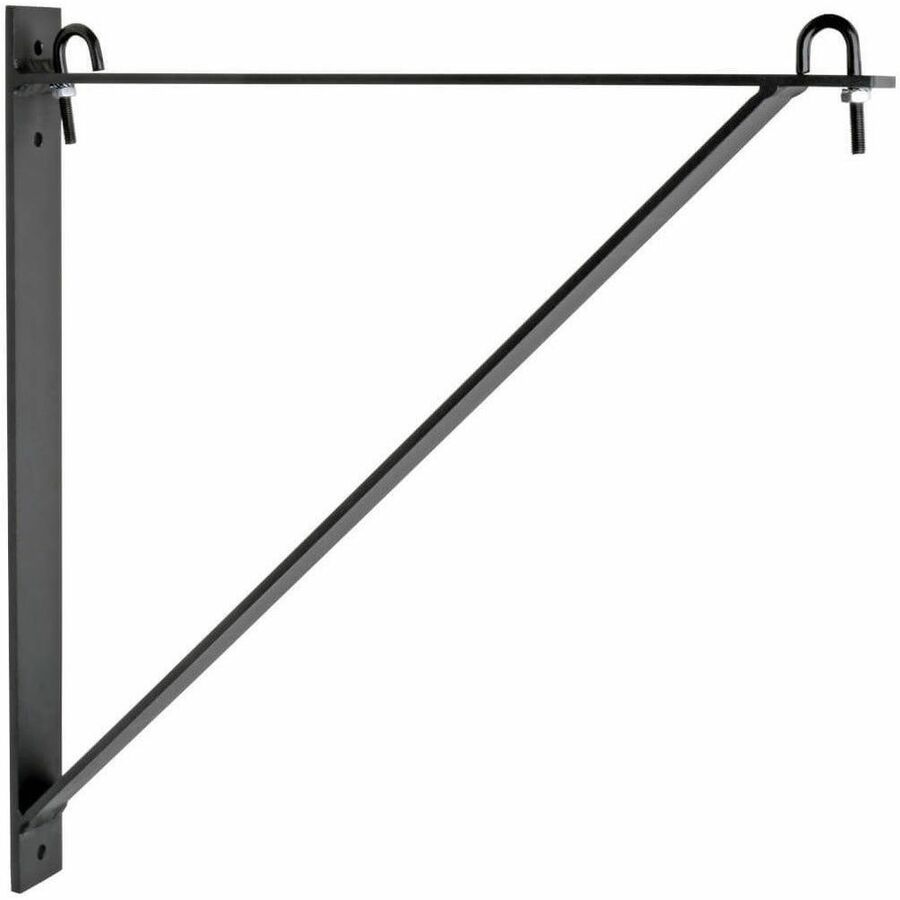

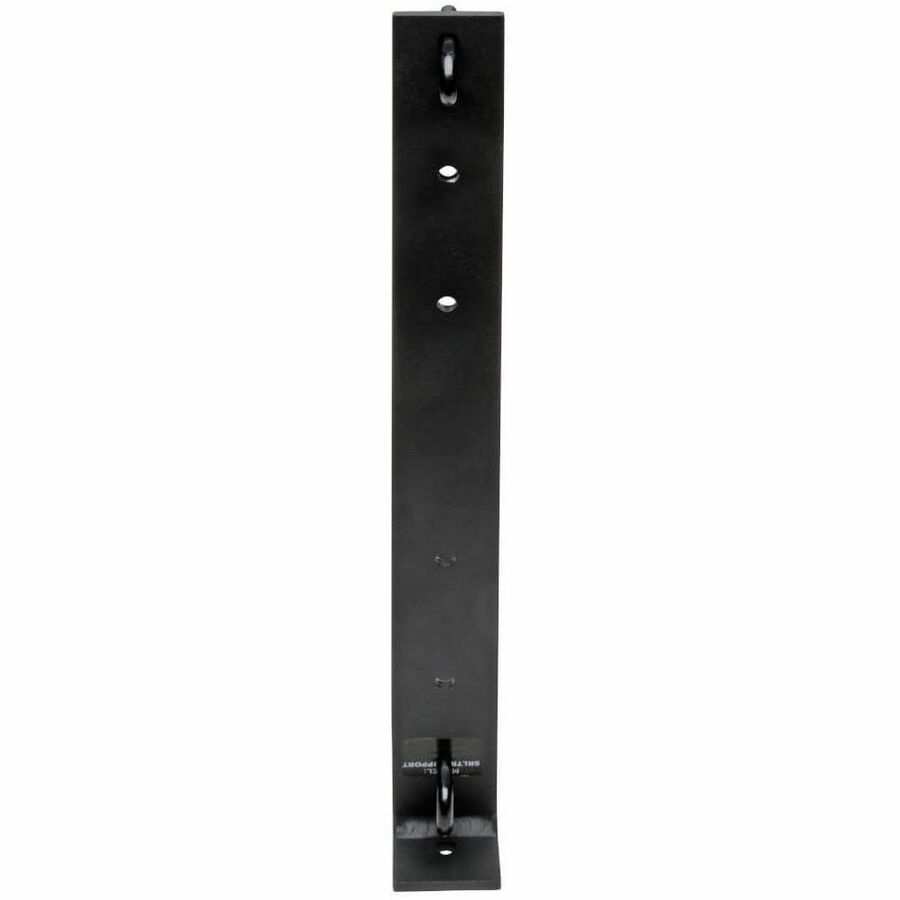

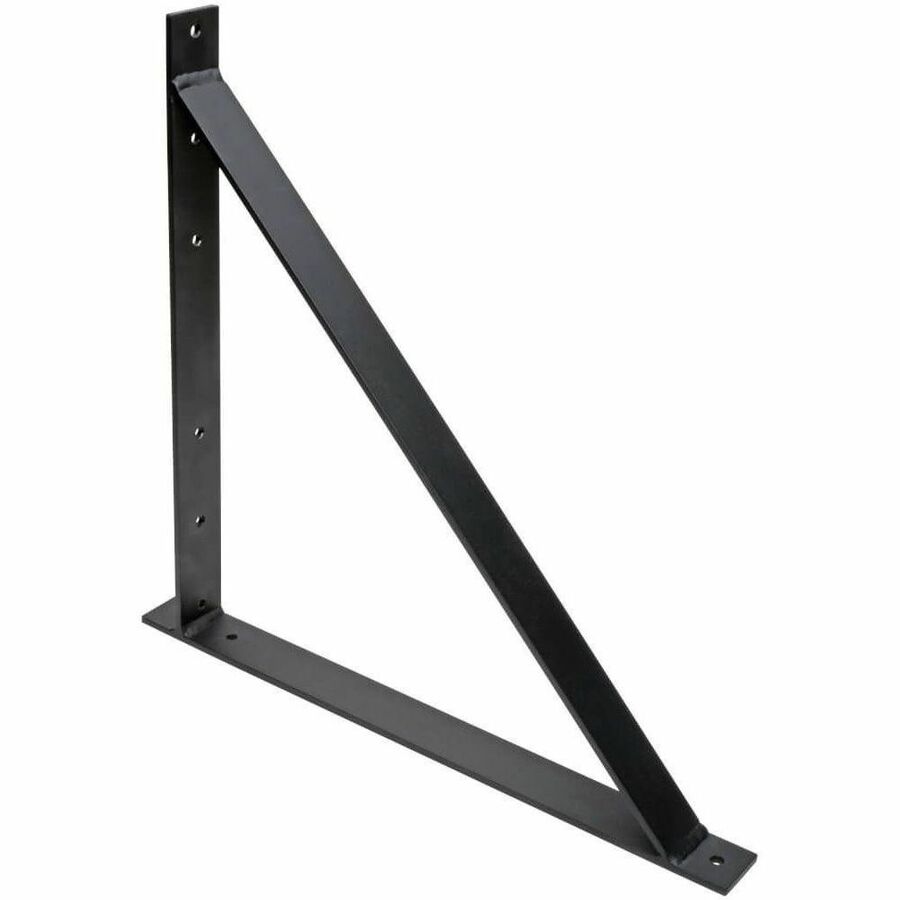

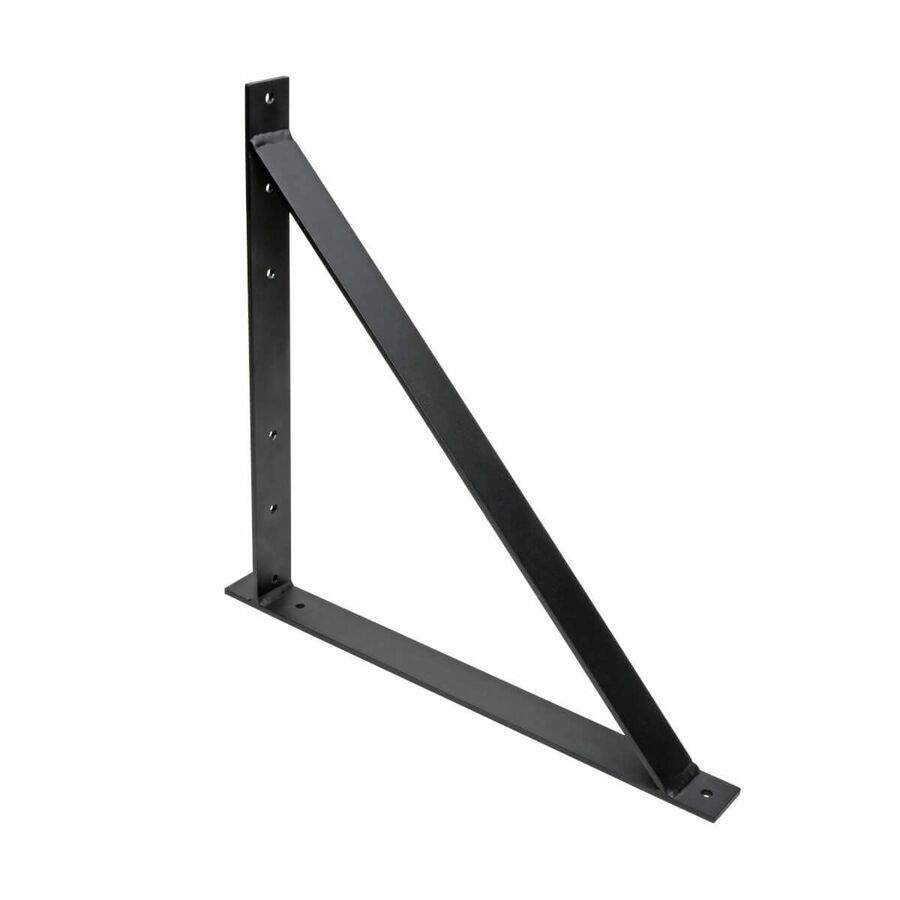

Cable Ladder Triangular Support Bracket Secures Your Data Center's Runway System to a Wall

This innovative SmartRack cable runway wall support kit creates a secure connection between your server rack and the wall of your server room or data center. Mounting and installation hardware is included, except for appropriate fasteners to secure the durable aluminum wall bracket. The mounting surface must be able to support the combined equipment load safely. Be sure to use suitable mounting means when installing to cinder block, concrete, drywall or wooden studs. The SRLTRISUPPORT is constructed of 0.25 x 2 inches (6 x 51 millimeters) aluminum and supports up to 100 pounds (45 kilograms). It is designed for Tripp Lite's SRCABLELADDER, SRCABLELADDER18, SRL90BEND12, SRL90BEND18 and other compatible straight and 90-degree ladder sections.

Warranty

Limited Warranty: 5 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

For safely routing runway from the wall to outside an enclosure or open frame rack
0.25 x 2 in. aluminum wall bracket supports runway and cabling up to 100 lb. (45 kg)
Compatible with 12 in. and 18 in. straight and 90-degree-bend ladder sections
Works with all Tripp Lite SmartRack® ladder system accessories and runways
Includes all necessary mounting and installation hardware for immediate use
5-year limited warranty

Specifications

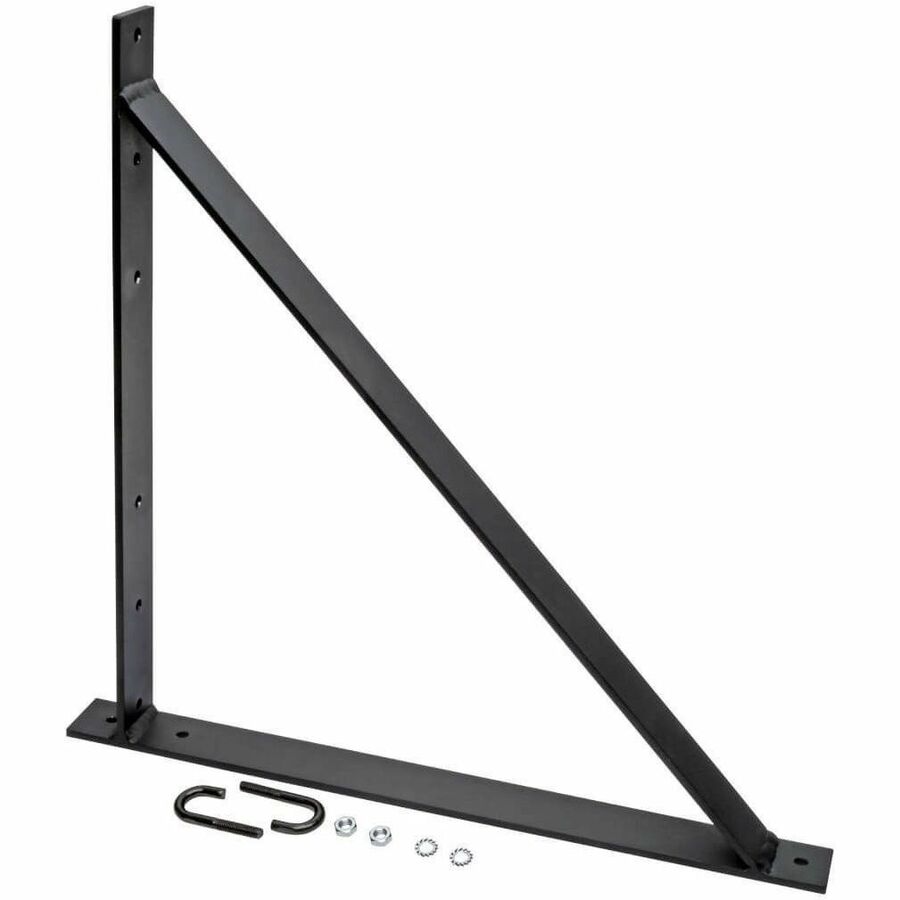

Package Contents	Wall Bracket (2) M8 J-bolts (2) M8 Lock Washers (2) M8 Hex Nuts Installation Guide
Product Type	Wall Mount Support
Compatibility	Tripp Lite SmartRack Ladders: SRCABLELADDER SRCABLELADDER18 SRL90BEND12 SRL90BEND18
Device Supported	Cable Ladder
Manufacturer Part Number	SRLTRISUPPORT
Limited Warranty	5 Year
Weight (Approximate)	3.11 lb
Manufacturer	Eaton Corporation
Product Model	SRLTRISUPPORT
Product Name	SRLTRISUPPORT Wall Mount
Maximum Load Capacity	100 lb
Brand Name	Tripp Lite series
Country of Origin	China
Height	23.28"
Width	23.62"
Depth	3.35"
Environmentally Friendly	Yes
Product Color	Black
Color Family	Black
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
