2U Desktop/Tower/Rack - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave, Pulse-width Modulated Sine Wave - USB - LCD Display - 10 x NEMA 5-15R Receptacle(s) - 10 x Battery/Surge Outlet - Network Card
MSRP$1,066.80
$786.06
Save 26%In stock: 43
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features | 1440VA/1050W/120V Battery Backup for Small Network Servers and Network Workstations

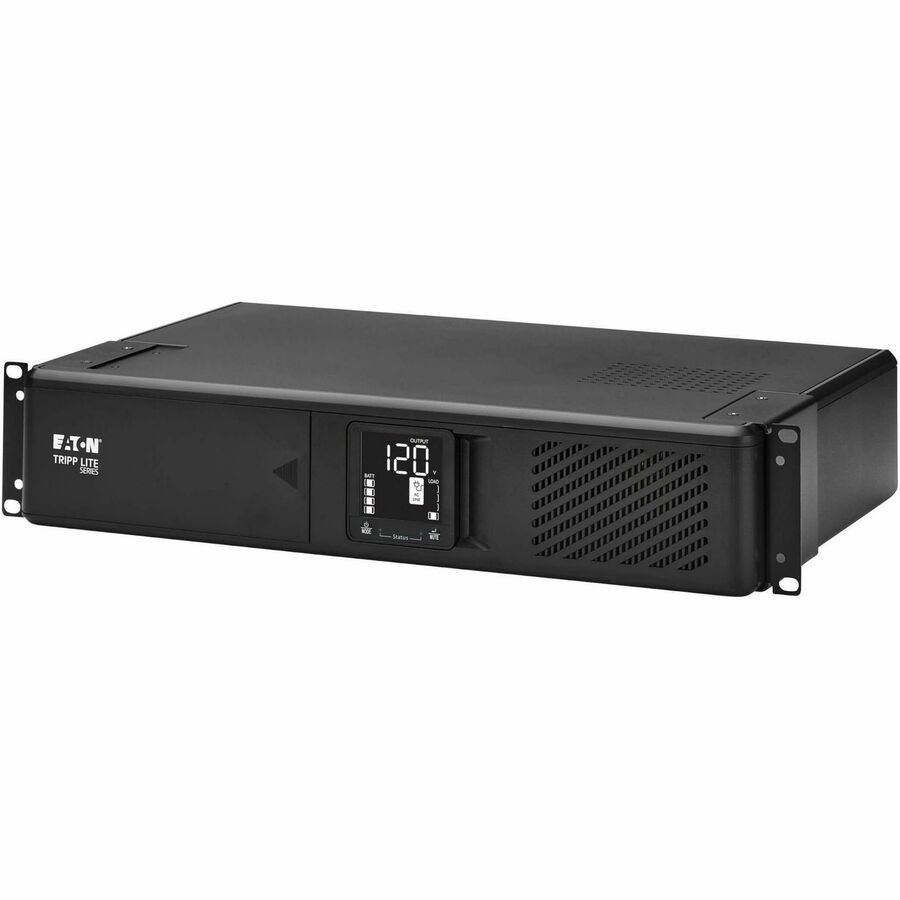

The SMART1500LCDXNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It's recommended for home, office and retail use, as well as network closets in both local and remote locations.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1500LCDXNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1500LCDXNC restarts automatically, regardless of battery charge level, saving you a costly site visit.
Add an Extended Battery Module (EBM) for Extra Runtime
Runtime can be significantly increased by connecting an optional extended battery module (BP24V15RT2U, sold separately). This helps the UPS sustain power through extended outages, which provides additional runtime for heavy or light loads. Only one EBM can be connected at a time.
NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components
Ten 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera, router, network switch, server and other electronic devices. Remote monitoring allows individual control of three switchable load banks that can be powered on/off or cycled remotely, saving you an expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltage. The SMART1500LCDXNC can correct brownouts as low as 97V and overvoltage as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

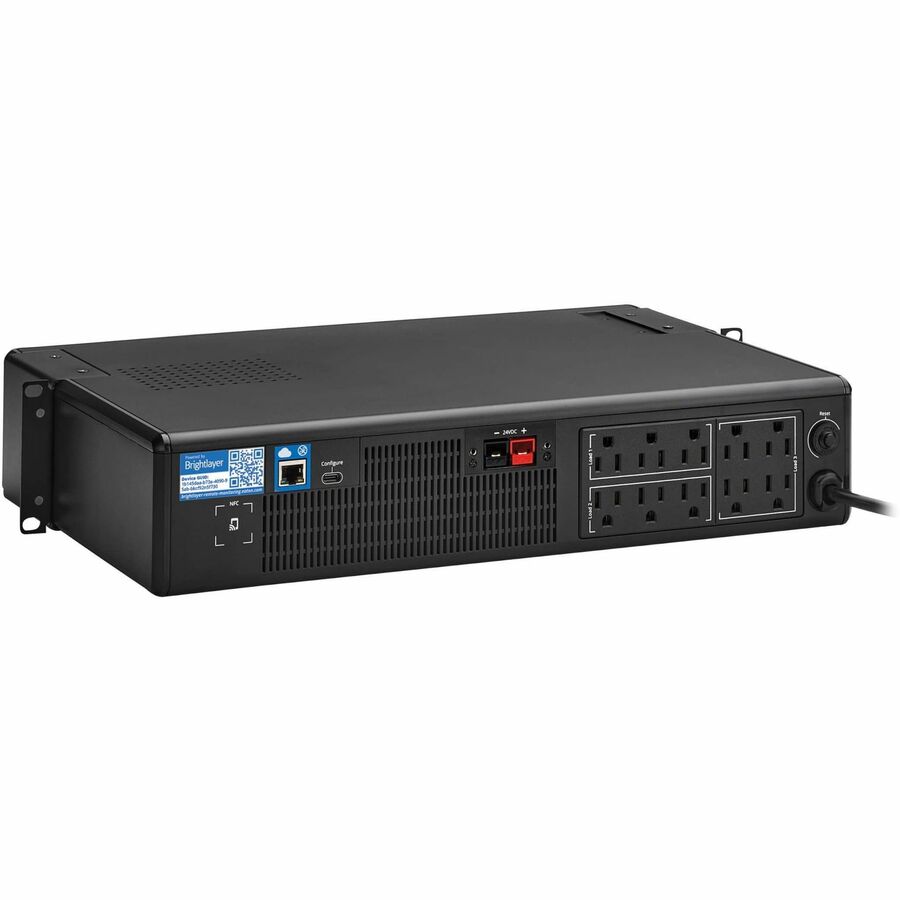

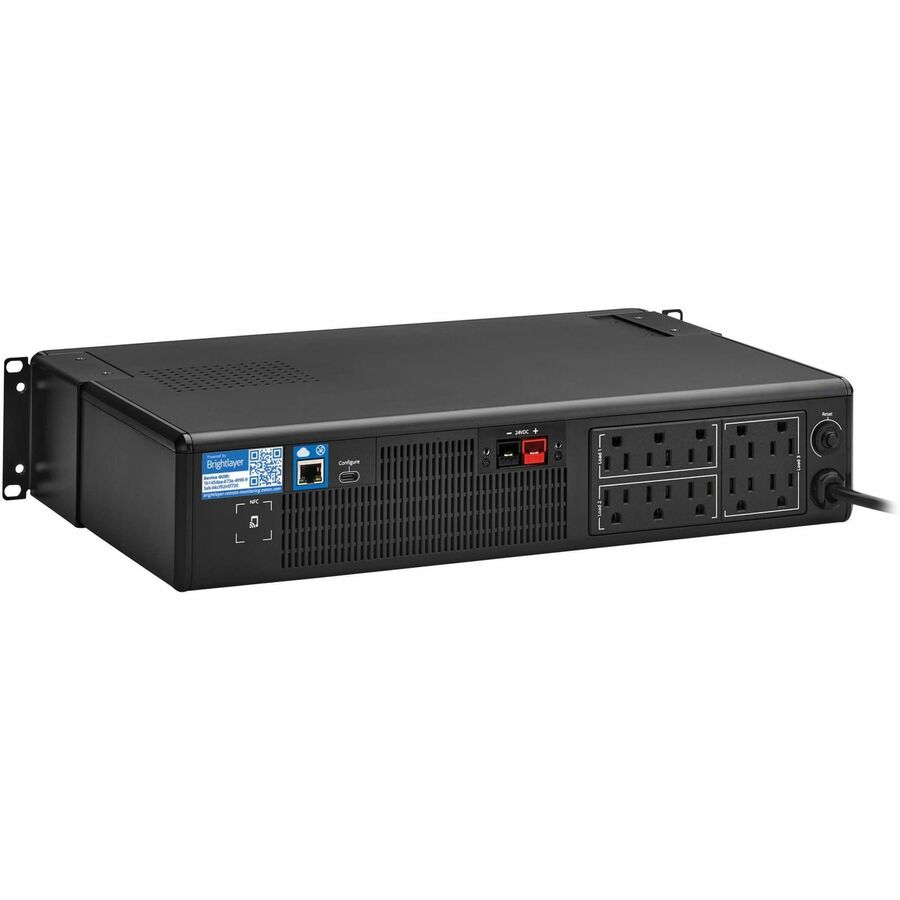

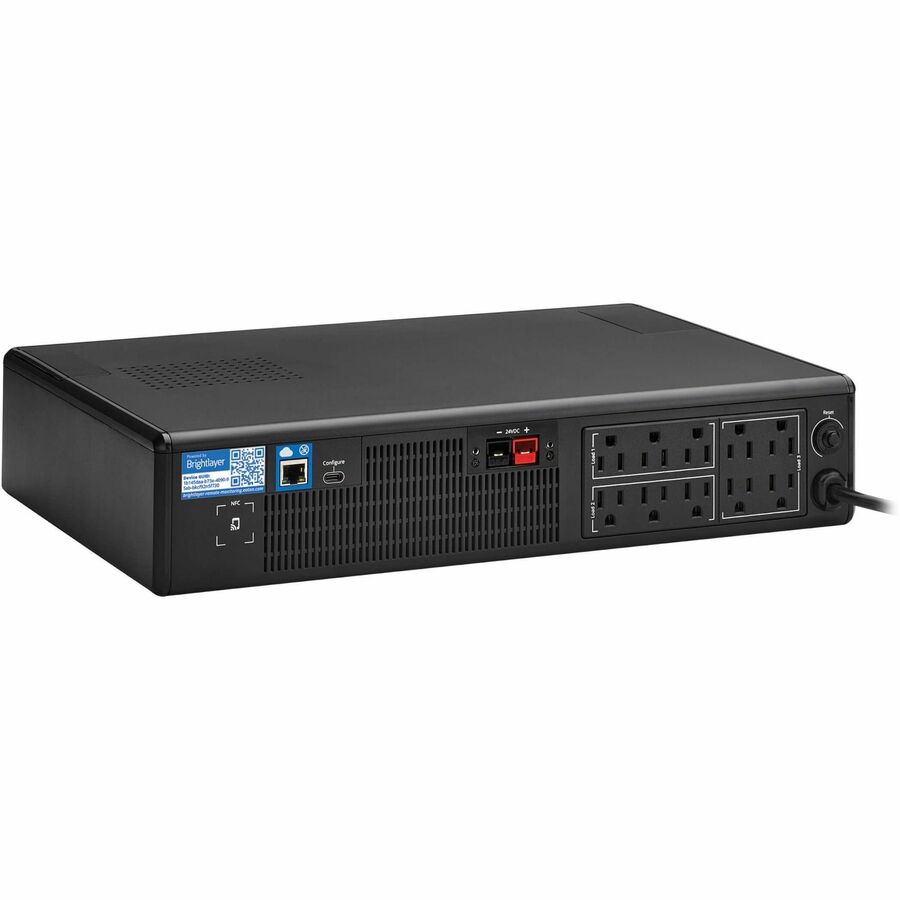

Communications Ports
An RJ45 port for Ethernet connectivity enables use of the cloud-based remote monitoring application. A USB-C port provides direct connection to the command line interface (CLI) for configuration and identification of local network parameters.

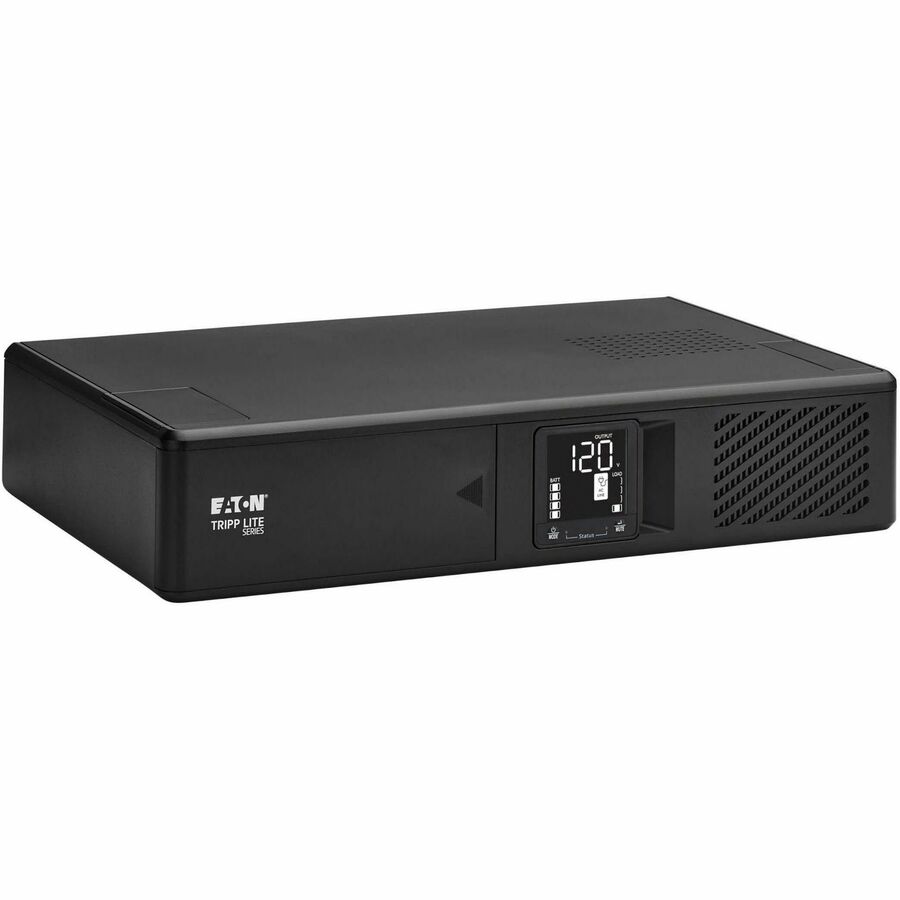

Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The easy-to-read LCD and two status LEDs allow at-a-glance local monitoring of UPS status, voltage, load level, battery level and other vital information. A solid green LED means the battery is charged, a flashing green indicates it is charging and a solid red indicates fault. The audible alarm indicates power outage, low-battery and fault conditions. It can be silenced via the LCD or the remote monitoring app, which will still respond to silenced alarms.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Application/Usage | Retail, POS, Hospital, Home, Office, Desktop, High-end System, Network, Home Network, Server, Workstation, Computer, Monitor, CCTV Camera, Router, Network Switch, Electronic Device |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SMART1500LCDXNC |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 26.50 lb |
| Features | Audible Alarm, Cold Start Function |
| Form Factor | Desktop/Tower/Rack |
| Status Indicators | Front Panel LCD Display: UPS status Input Voltage Output Voltage Estimated Runtime (minutes) Output Load Percentage Output Load Wattage Battery Voltage Graphical 4-Bar Battery Charge level 4 bar load Level UPS status AC Powered Battery operation Alarm muted (icon flashing) Alarm disabled (icon steady on) LED Indicators: AC operation Battery charging UPS fault |
| Input Current | 12 A |
| Manufacturer | Eaton Corporation |
| Product Model | SMART1500LCDXNC |
| Product Name | SMART1500LCDXNC 1440VA Desktop/Tower/Rack UPS |
| Network Management | Network Card |
| Overload Protection | Yes |
| Surge Energy Rating | 380 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 16.80 W |
| Waveform Type | Sine Wave, Pulse-width Modulated Sine Wave |
| Rack Height | 2U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 97 V AC - 145 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Power Failure, Low Battery |
| Country of Origin | Vietnam |
| Cord Length | 5 ft |
| Height | 3.43" |
| Width | 17.24" |
| Depth | 11" |
| Input Frequency | 50 Hz, 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Battery Characteristics | Valve-regulated |
| Load Capacity (VA) | 1440 VA |
| Load Capacity (Watt) | 1050 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| DC System Voltage | 24 V DC |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Number of Load Management Outlets | 10 |
| Maximum Operating Elevation | 9843 ft |
| Number of Battery & Surge Outlets | 10 |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 8 Hour |
| Output Power Factor | 0.73 |
| Receptacle Detail | 10 x NEMA 5-15R |
| Efficiency Detail | 98.4% (AC Mode) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
