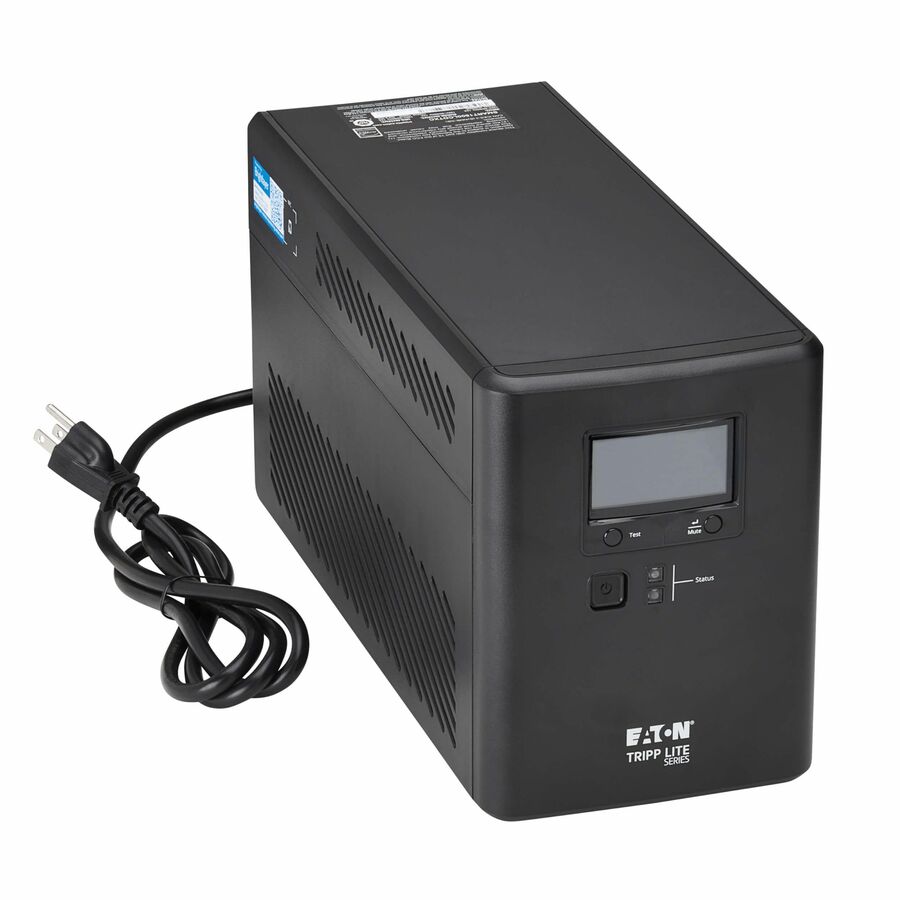

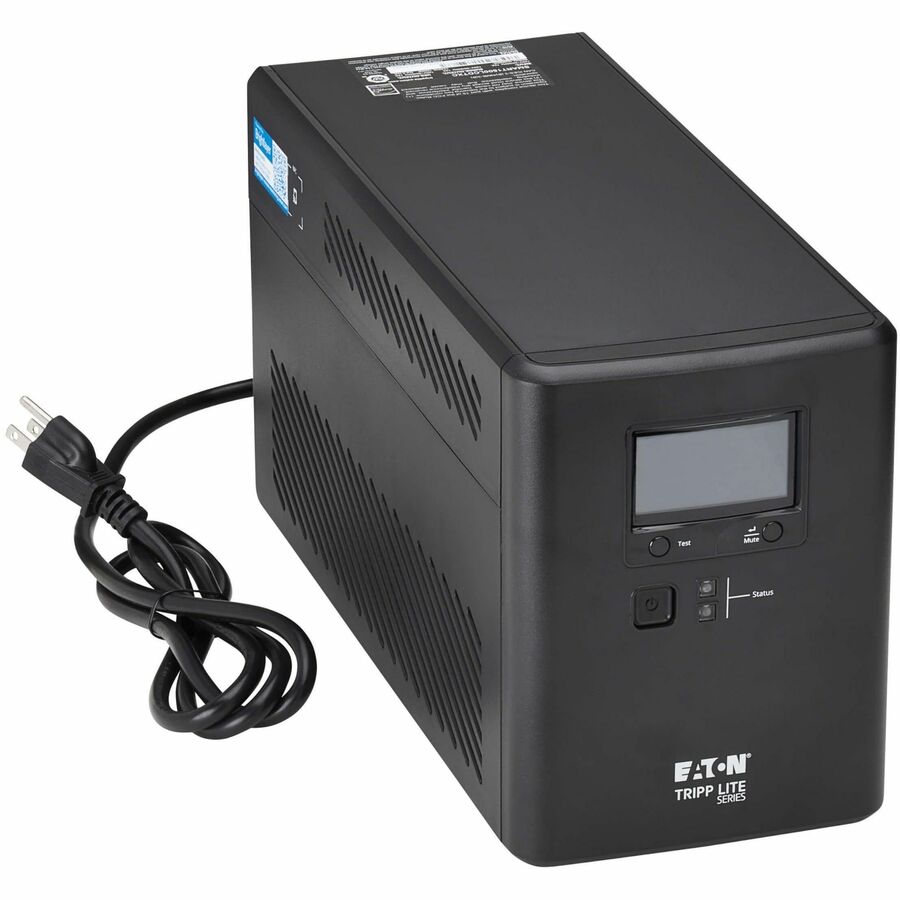

Eaton Tripp Lite Series 1440VA 1000W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, Tower
0U Compact Tower - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - USB - LCD Display - 10 x NEMA 5-15R - 5 x Battery/Surge Outlet
- SKU
- SMART1500LCDTXC
- Category
- General Purpose UPS
MSRP$963.04
$608.23
Save 37%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMART1500LCDTXC
- Category
- General Purpose UPS
Overview
1.4kVA/1kW/120V Battery Backup for Network and Retail Point-of-Sale Applications
The SMART1500LCDTXC Line-Interactive cloud-connected UPS system regulates incoming voltage and provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and Line noise. Its compact tower form factor is suitable for desktop, floor placement, under workstations and other locations where a taller "Rack/Tower" unit may not fit. It's recommended for Home/office, Point-of-sale workstations, digital signage equipment, and gaming equipment.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1500LCDTXC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1500LCDTXC restarts automatically, regardless of battery charge level, saving you a costly site visit.

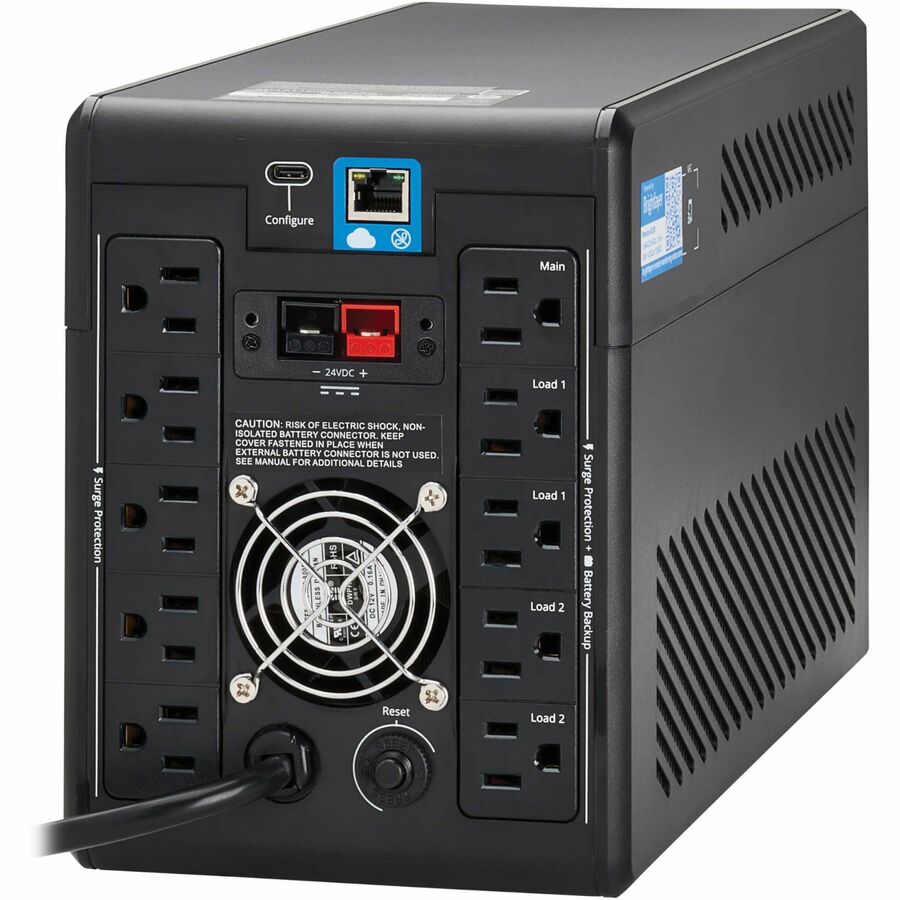

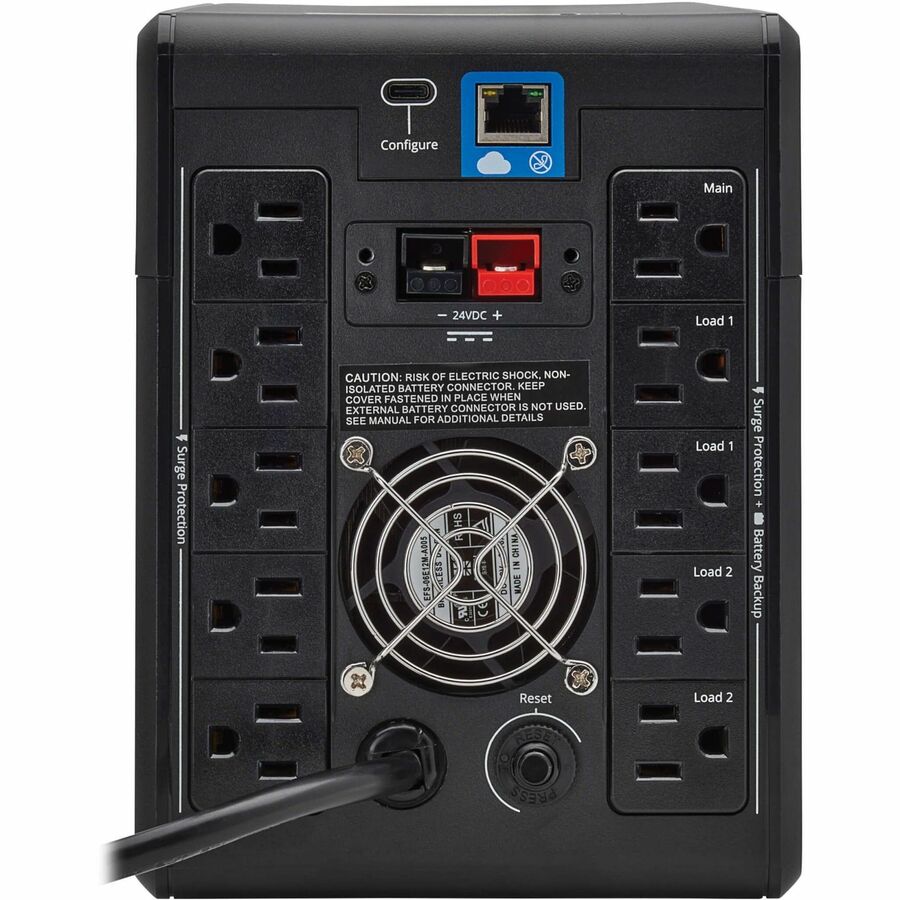

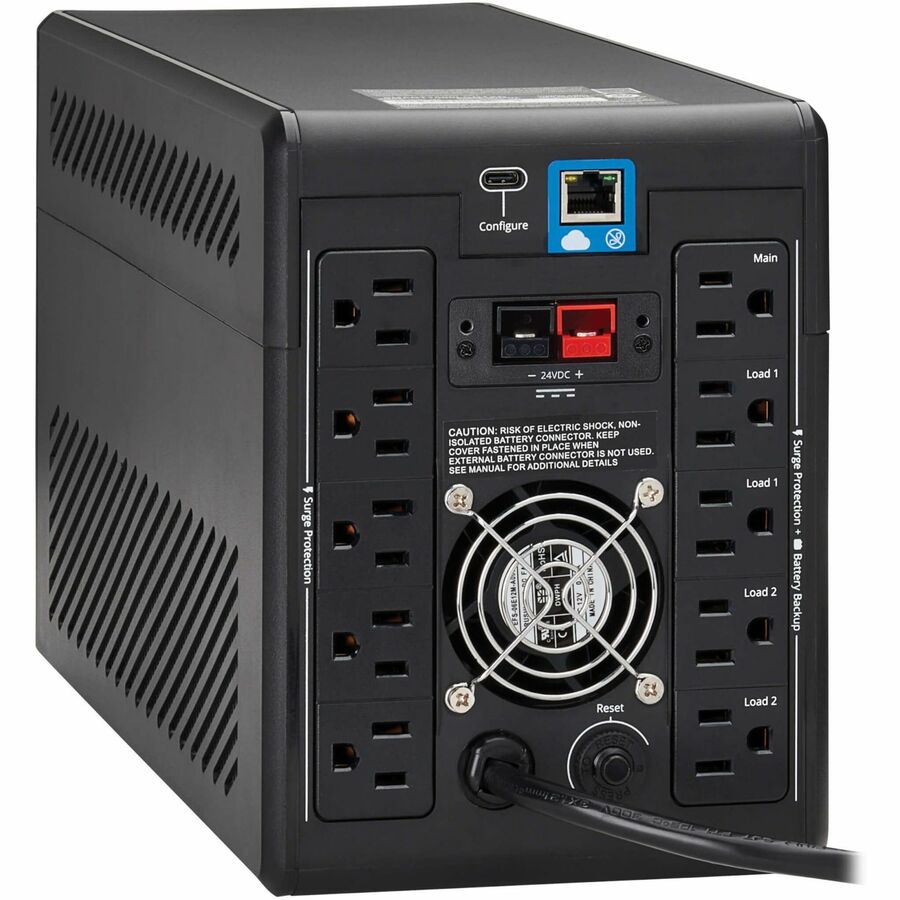

NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components
Five 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera and other crucial equipment. The other five 5-15R outlets provide surge suppression only for desk lamps, speakers and other equipment regarded as non-essential during a blackout. Eaton's remote monitoring application enables individual control of two switchable load banks, allowing them to be powered on, off, or cycled remotely. This remote functionality facilitates the rebooting of equipment that is not responding, thereby eliminating the need for expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1500LCDTXC can correct brownouts as low as 92V and overvoltages as high as 150V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Easy Preventative Maintenance and Initial Troubleshooting
The SMART1500LCDTXC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker on the rear of the UPS helps prevent dangerous system overloads.

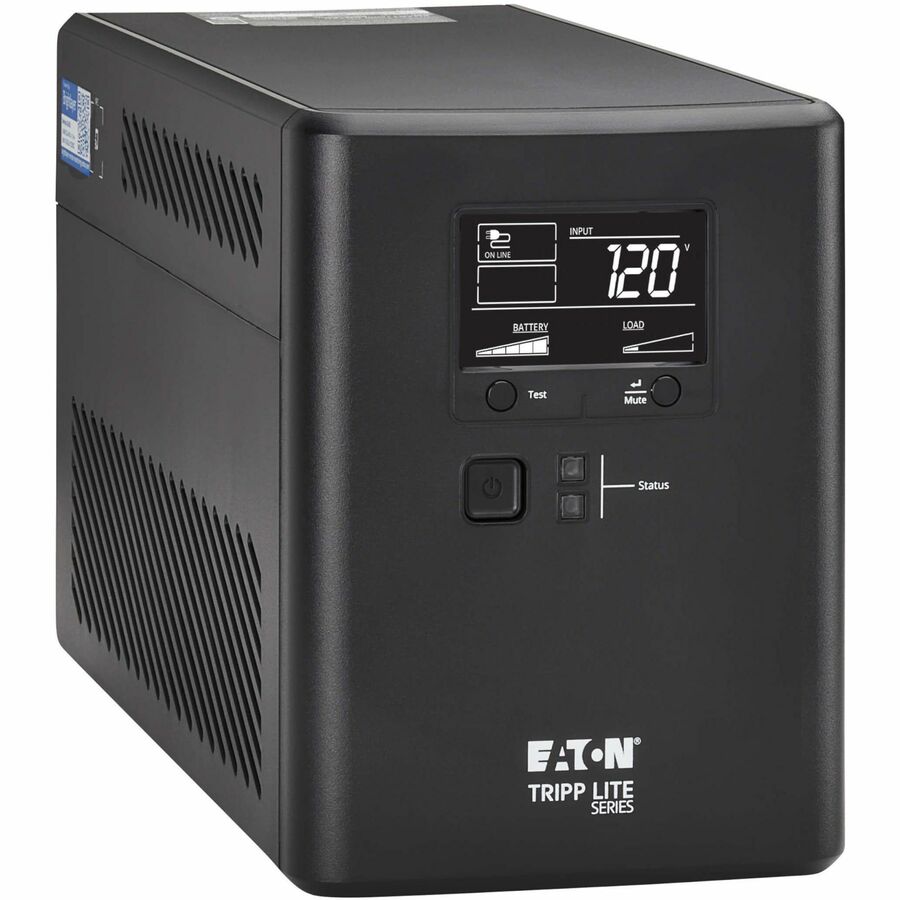

Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The easy-to-read LCD and two diagnostic LEDs provide vital status information, including voltage, battery level, load level and power usage. The audible alarm indicates low-battery and fault conditions. It can be disabled via the LCD or the remote monitoring app, which will still respond to silenced alarms via the app.
1.4kVA/1kW/120V Battery Backup for Network and Retail Point-of-Sale Applications
The SMART1500LCDTXC Line-Interactive cloud-connected UPS system regulates incoming voltage and provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and Line noise. Its compact tower form factor is suitable for desktop, floor placement, under workstations and other locations where a taller “Rack/Tower” unit may not fit. It’s recommended for Home/office, Point-of-sale workstations, digital signage equipment, and gaming equipment.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton’s cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit’s NFC (Near-Field Communication) feature lets you configure network settings instantly from your mobile device.
NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components
Five 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera and other crucial equipment. The other five 5-15R outlets provide surge suppression only for desk lamps, speakers and other equipment regarded as non-essential during a blackout. Eaton's remote monitoring application enables individual control of two switchable load banks, allowing them to be powered on, off, or cycled remotely. This remote functionality facilitates the rebooting of equipment that is not responding, thereby eliminating the need for expensive and time-consuming on-site visit.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1500LCDTXC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1500LCDTXC restarts automatically, regardless of battery charge level, saving you a costly site visit.
Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The easy-to-read LCD and two diagnostic LEDs provide vital status information, including voltage, battery level, load level and power usage. The audible alarm indicates low-battery and fault conditions. It can be disabled via the LCD or the remote monitoring app, which will still respond to silenced alarms via the app.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
- Cloud-connected UPS sets up in minutes to start protecting your devices
- Create account with two-factor authentication for an additional layer of security
- NFC technology allows easy configuration of network settings from your mobile device
- Add external battery module (sold separately) to extend runtime during power outages
- Auto-restart with input power, regardless of the battery's low charge or if its completely absent
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Specifications
| Application/Usage | Network, Retail, POS, Home, Office, Workstation, Digital Signage, Equipment, Computer, Monitor, Security, Camera, Desk Lamp, Speaker, Desktop, Audio/Video Equipment, Hospital |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SMART1500LCDTXC |
| Sound Emission | 45 dB |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC, 110 V AC, 115 V AC |
| Weight (Approximate) | 28.60 lb |
| Features | Audible Alarm, Cold Start Function, Auto Restart, Self Test |
| Form Factor | Compact Tower |
| Status Indicators | LCD Display: Input Voltage Output Voltage Frequency (Hz) AVR Boost / Cut Status Output Load in Watts Output Load Percentage Battery Voltage Estimated Runtime LEDs Indictors: Battery Fully Charged Running on AC power Battery Charging Fault |
| Input Current | 12 A |
| Manufacturer | Eaton Corporation |
| Product Model | SMART1500LCDTXC |
| Product Name | SMART1500LCDTXC 1440VA Compact tower UPS |
| Overload Protection | Yes |
| Surge Energy Rating | 380 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 16.92 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Rack Height | 0U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 5-15P |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Low Battery, Fault, Overload, Replace Battery |
| Country of Origin | Vietnam |
| Cord Length | 5 ft |
| Height | 7.87" |
| Width | 5.91" |
| Depth | 14.57" |
| Input Frequency | 50 Hz, 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Battery Characteristics | Valve-regulated |
| Load Capacity (VA) | 1440 VA |
| Load Capacity (Watt) | 1000 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| DC System Voltage | 24 V DC |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Number of Battery & Surge Outlets | 5 |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Number of Surge-only Outlets | 5 |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 8 Hour |
| Output Power Factor | 0.69 |
| Receptacle Detail | 10 x NEMA 5-15R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
