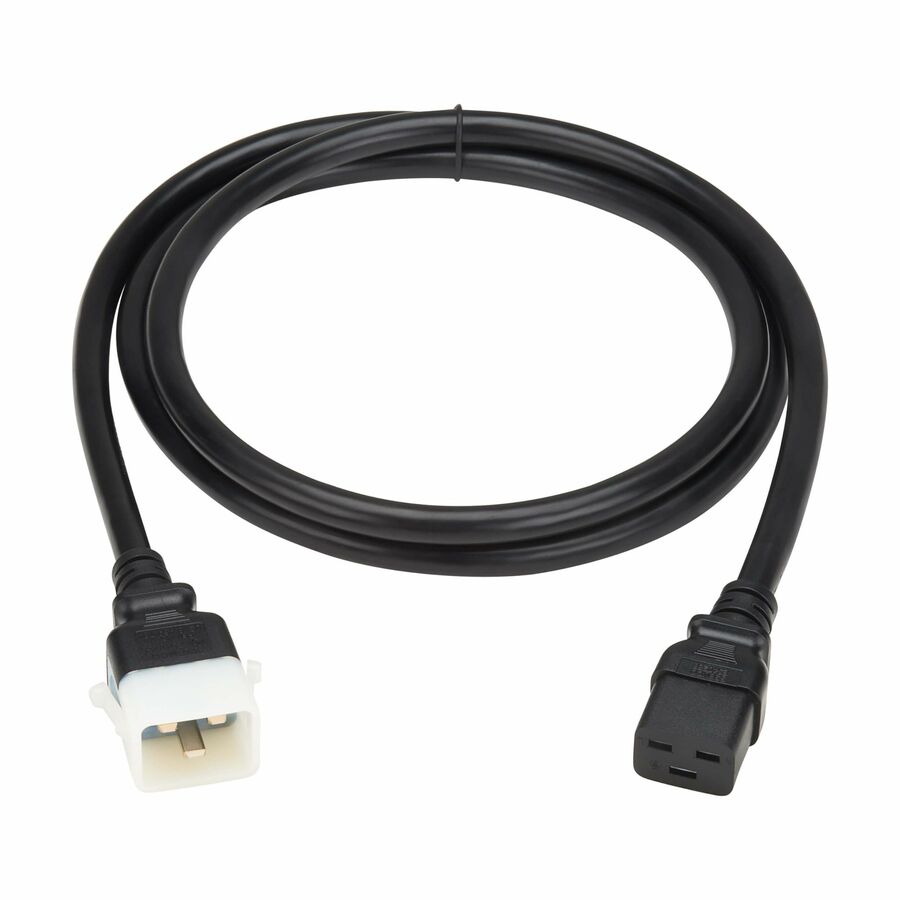

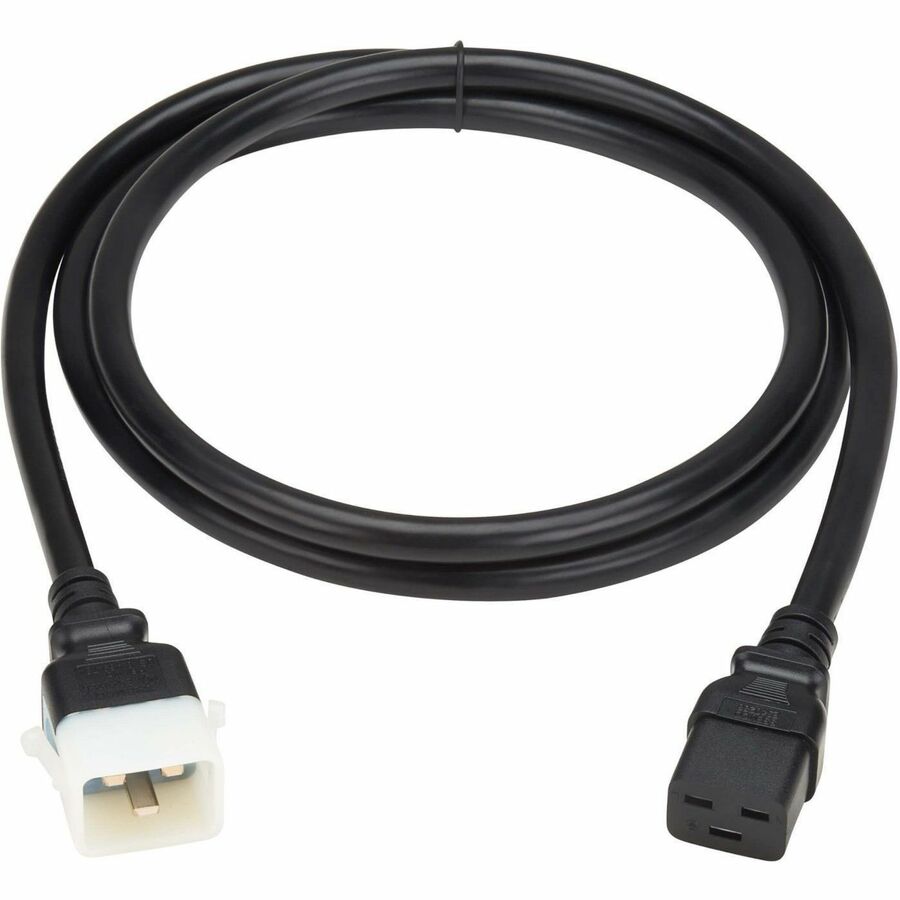

Tripp Lite series P036-E06 Standard Power Cord
For Blade Server, Network Switch, Server, Router, Network Device, UPS, PDU, Computer, Monitor, HDTV, Printer, ... - 12 Gauge - 250 V AC / 20 A - Black - 6 ft Cord Length - IEC 60320 C20 / IEC 60320 C19 - North America - Heavy Duty, P-Lock
- SKU
- P036-E06
- Category
- Power Cords
MSRP$169.73
$69.49
Save 59%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- P036-E06
- Category
- Power Cords
Overview
C20-to-C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This power extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. The P036-E06 can be used to connect a server, router, network switch or blade server enclosure to a UPS system or PDU. The six-foot (1.8-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU in a crowded rack enclosure.

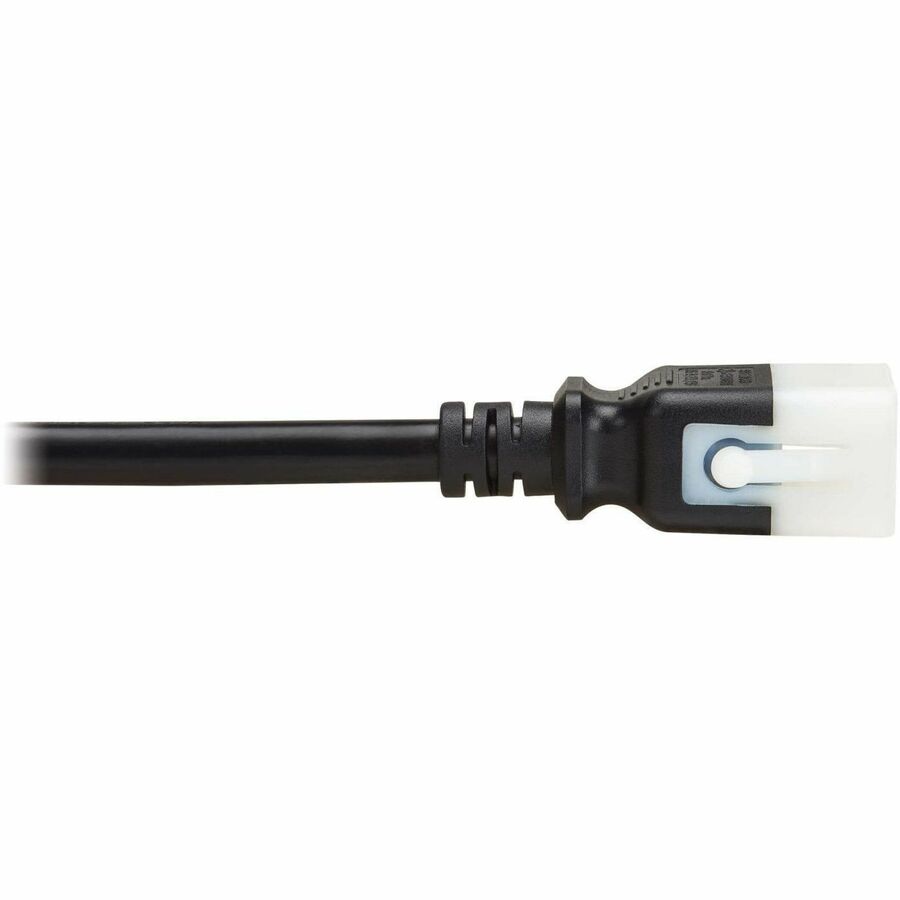

Forms a Special Locking Connection with a P-Lock Outlet
The P-Lock C20 connector forms a secure connection with a PDU with a P-Lock outlet, including Eaton G4 and newer PDUs with C39 outlets. The P-Lock connection helps reduce costly downtime caused by accidental cable disconnections in a crowded rack or PDU space. The P036-E06 lets you replace a non-locking C19/C20 cable or upgrade an entire PDU application by pairing with an Eaton PDU or other PDU with P-Lock outlets.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Recommended for powering servers, routers and other high-output network devices
- P-Lock C20 connector eliminates accidental cable disconnections in a crowded PDU
- Thick 12 AWG wire gauge manages high power levels required for larger equipment
- 6 ft. length allows flexibility in mounting devices within a rack while avoiding cable clutter
- PDU-style cord replaces or upgrades non-locking power cable provided by manufacturer
- This product is covered by a Lifetime Limited Warranty
Specifications
| Product Type | Standard Power Cord |
|---|---|
| Device Supported | Blade Server, Network Switch, Server, Router, Network Device, UPS, PDU, Computer, Monitor, HDTV, Printer, Tablet |
| Localization | North America |
| Manufacturer Part Number | P036-E06 |
| Limited Warranty | Lifetime |
| Features | Heavy Duty, P-Lock |
| Manufacturer | Eaton Corporation |
| Product Model | P036-E06 |
| Product Name | P036-E06 Standard Power Cord |
| Voltage Rating | 250 V AC |
| Current Rating | 20 A |
| Number of Conductors | 3 |
| Brand Name | Tripp Lite series |
| Gauge | 12 |
| Cord Length | 6 ft |
| Minimum Storage Temperature | 14°F (-10°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |

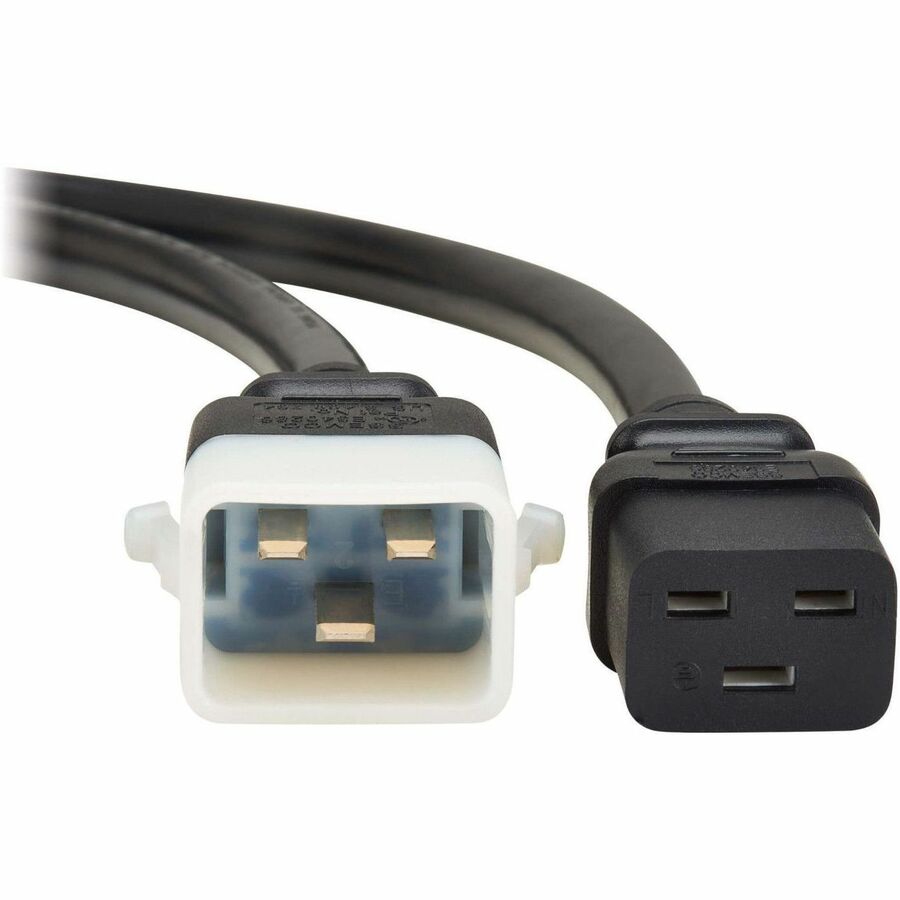

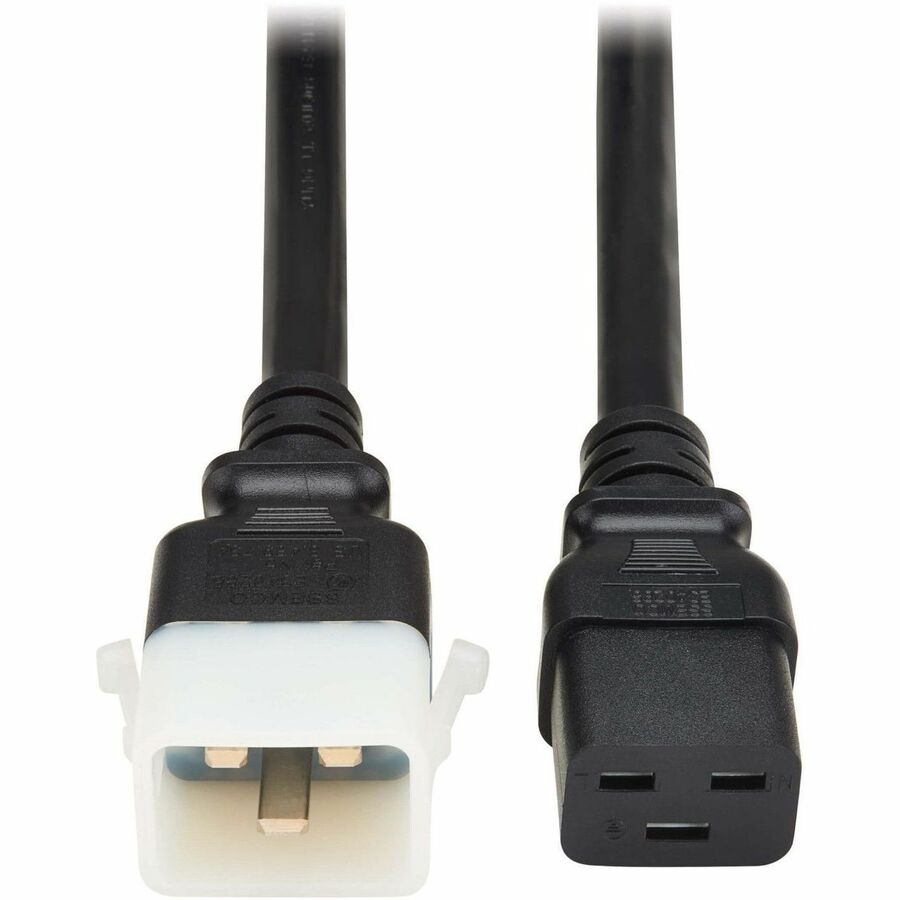

| First End Connector Type | IEC 60320 C20 |
| First End Connector Detail | 3-Pin IEC 60320 C20 Male |
| Second End Connector Type | IEC 60320 C19 |
| Second End Connector Detail | 3-Pin IEC 60320 C19 Female |
