Extended Run, Tower, USB port, C13 Outlets
1500VA/940W - 5 Minute Full Load - 8 x IEC 320 EN 60320 C13 - Surge-protected
MSRP$711.00
$654.12
Save 8%In stock: 77
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

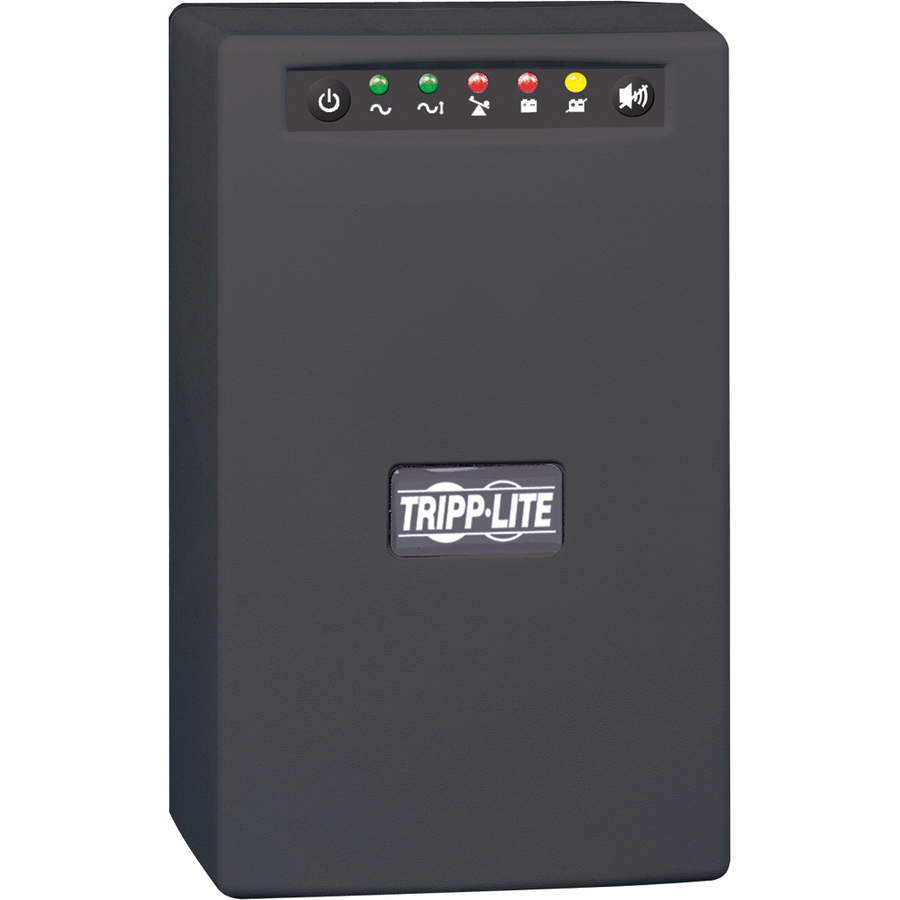

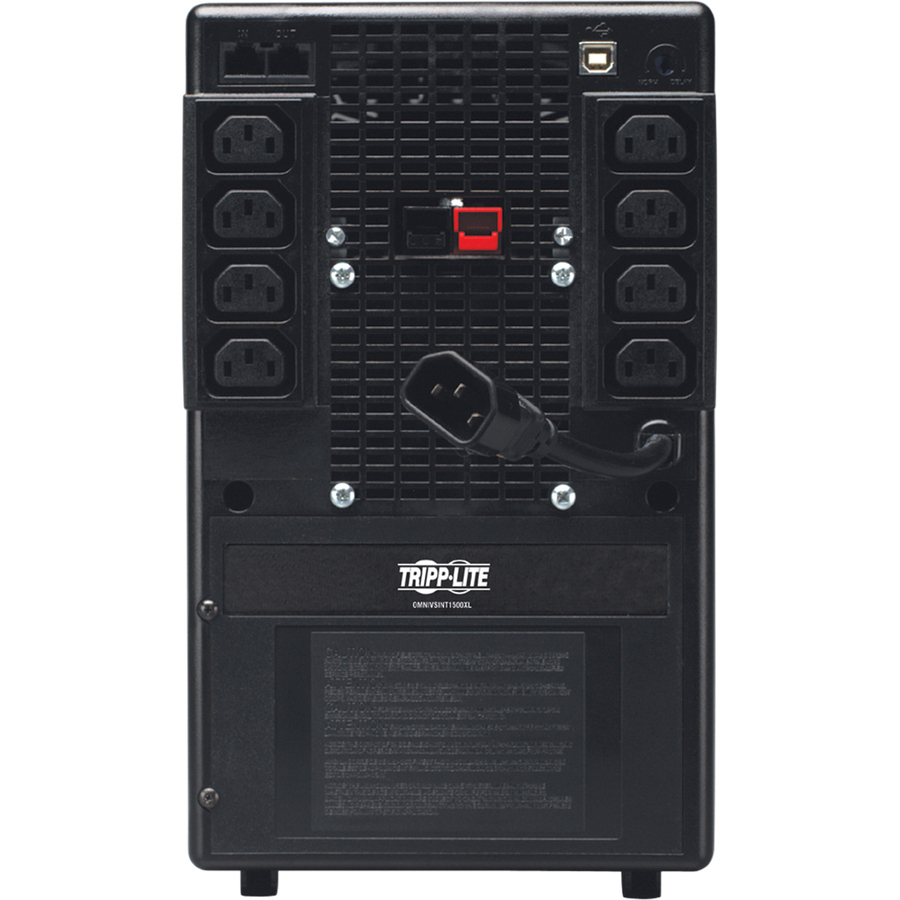

Tripp Lite's OMNIVSINT1500XL line interactive UPS system offers voltage regulation, surge suppression and expandable battery support for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151 and overvoltages up to 282 volts back to usable 230V levels without using battery power. Includes 8 IEC320-C13 outlets with battery support and AC surge suppression. USB port enables unattended system shutdown. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ jacks. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via access panel.
More from the Manufacturer
1500VA/940W Line-Interactive Power Protection for PCs and Workstations in 230V Regions
Reliable 1500VA/940W Battery Backup with Expandable Runtime Option with Advanced AVR
UPS battery backup support lets you to work through short power failures and gives you enough time to save files and perform an orderly system shutdown in case of a prolonged blackout. The OMNIVSINT1500XL’s internal battery provides 13 minutes of battery support for a half load (470 watts) and 4.5 minutes for a full load (940 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available when needed. Runtime may be expanded by connecting optional external battery packs, sold separately (compatible Tripp Lite external battery packs: BP24V15RT2U, BP24V48-2U, BP24V70-3U).
AVR protects your equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions (brownouts) and overvoltages. The OMNIVSINT1500XL automatically corrects brownouts as low as 151 volt and overvoltages as high as 280 volt back to 230 volt without drawing on battery power needed to support equipment through blackouts.
Robust AC and Dataline Surge Suppression and EMI/RFI Line Noise Filtering
A sudden power surge or spike on an AC, phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The OMNIVSINT1500XL features a 340-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provide surge protection for a standard phone or network connection.
Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The OMNIVSINT1500XL incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
USB Port and Free PowerAlert Software
The OMNIVSINT1500XL contains a USB port (USB cable included). When used with PowerAlert software, this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure.
2-Year Warranty and Environmentally Responsible Design
The OMNIVSINT1500XL comes backed by a 2-year warranty. The OMNIVSINT1500XL is also manufactured in compliance with strict RoHS guidelines to minimize the use of hazardous materials, and its replaceable internal battery is 100% recyclable.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Battery Information | |
|---|---|
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Controls/Indicators | |
| Status Indicators | 4 Front Panel LEDs: Line power Battery power Low battery Replace battery Voltage regulation operation |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | OMNIVSINT1500XL |
| Brand Name | Tripp Lite series |
| Product Line | Omni |
| Product Series | VS |
| Product Name | Omni VS 1500VA Tower UPS |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | Power Failure |
| Physical Characteristics | |
| Product Color | Black |
| Height | 11.75" |
| Width | 7.25" |
| Depth | 7.50" |
| Form Factor | Tower |
| Weight (Approximate) | 33 lb |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 940 W |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 1920 J |
| Technical Information | |
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Dataline Protection | RJ-45, RJ-11 |
| Cord Length | 5.91 ft |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
