Overview

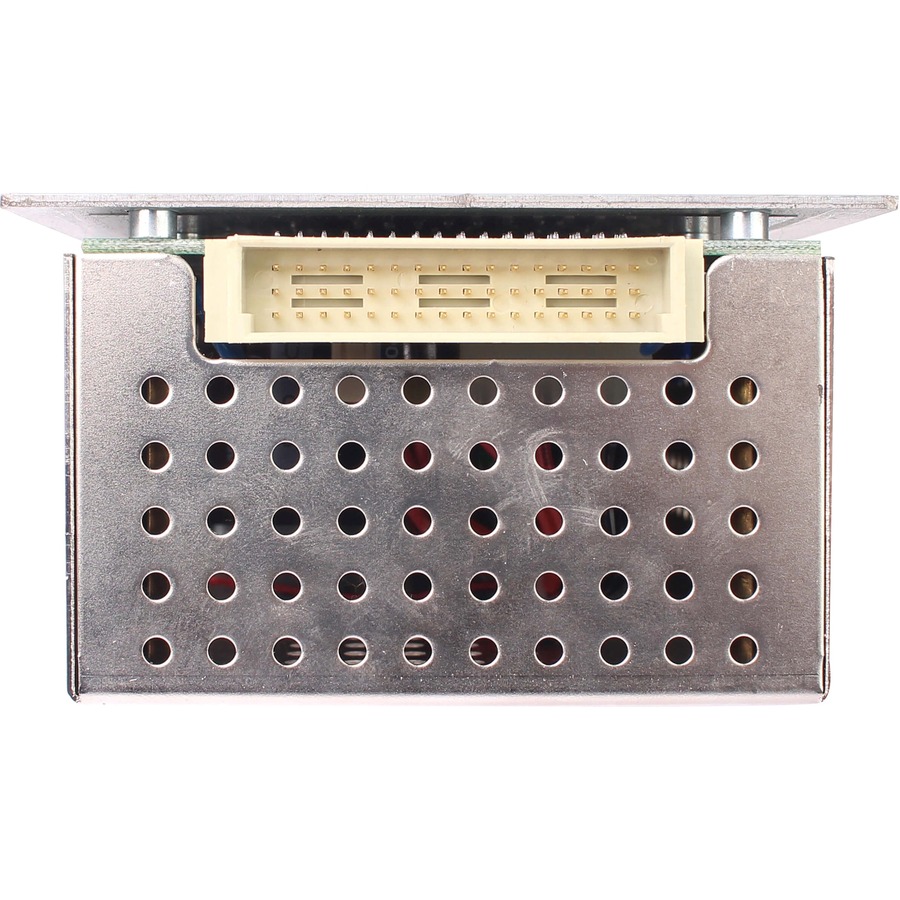

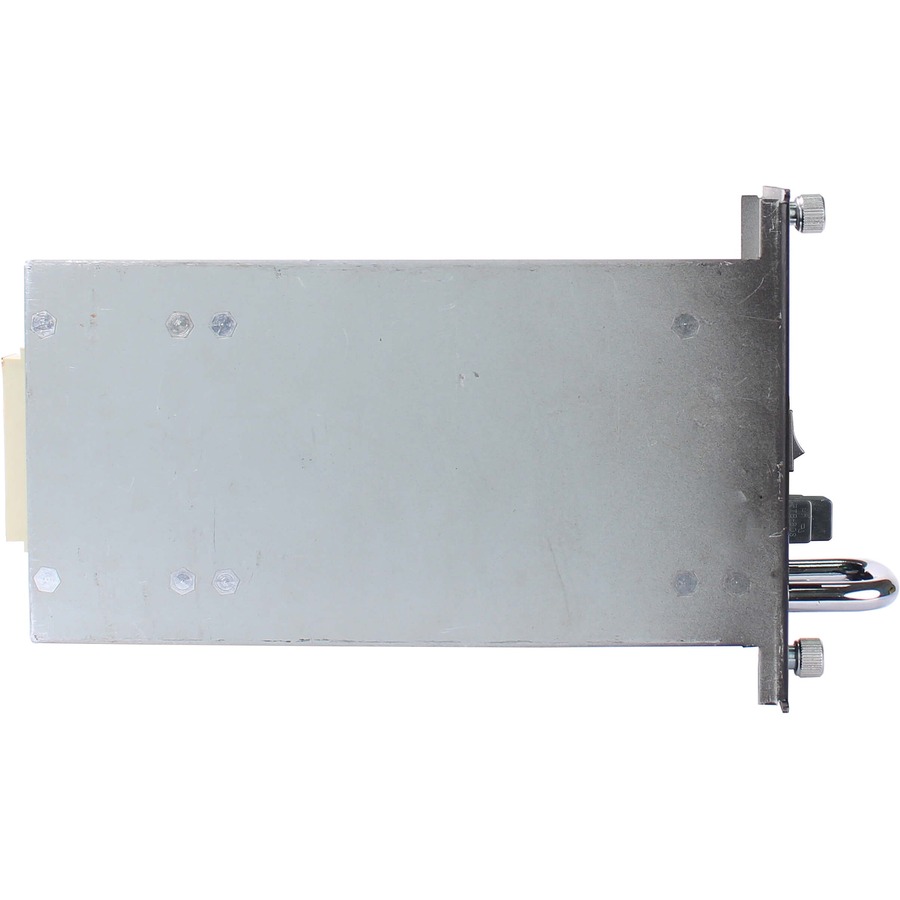

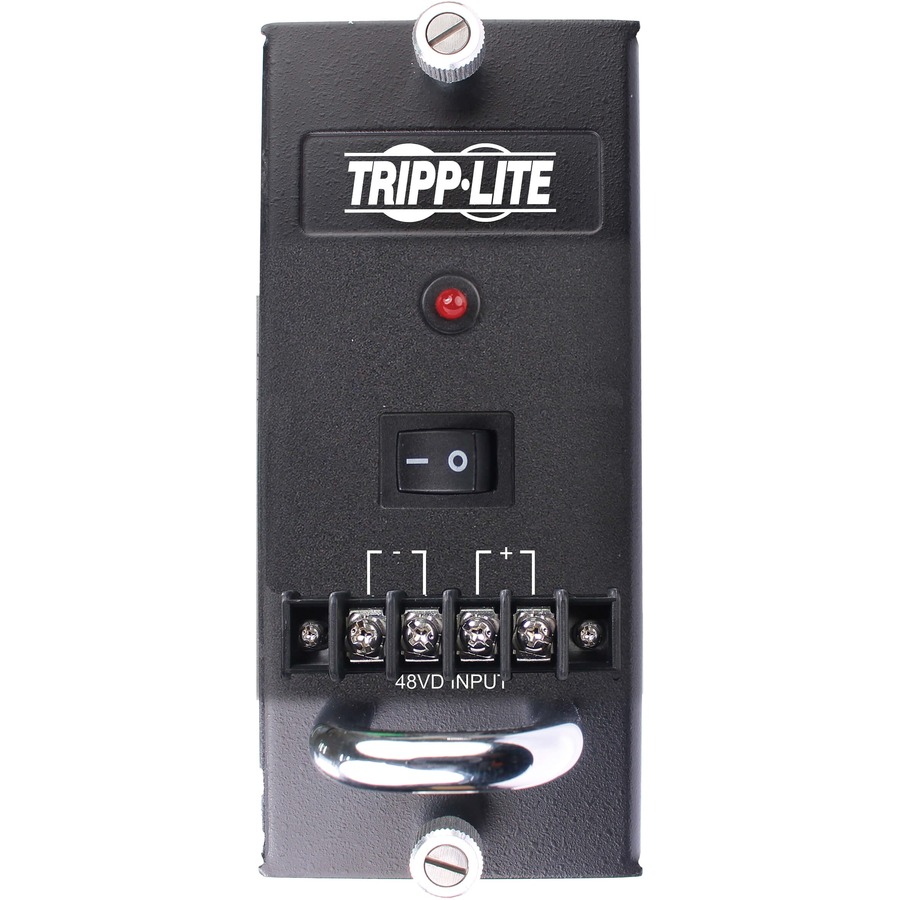

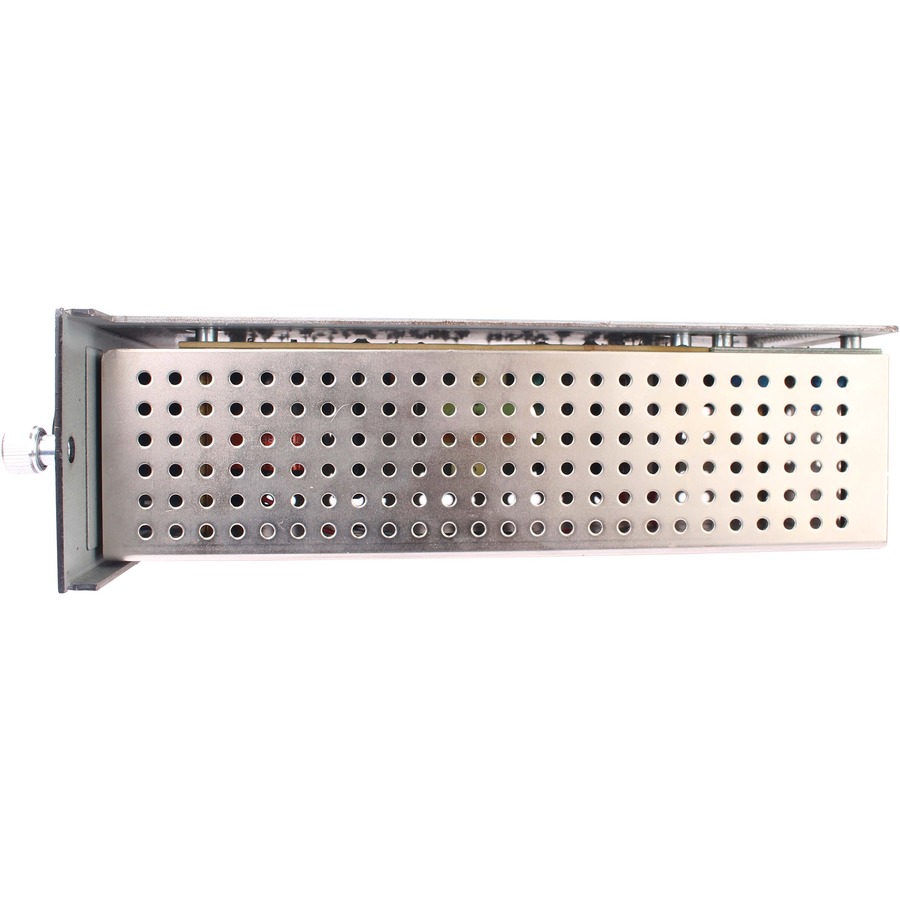

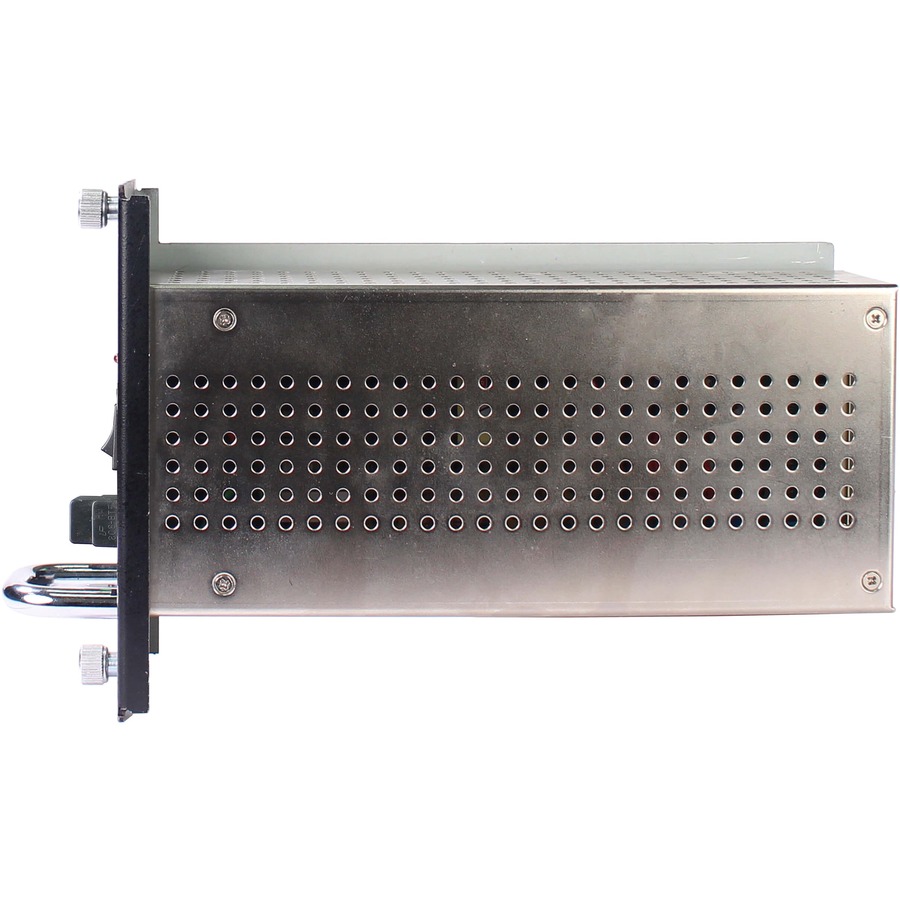

Powers Your Tripp Lite N785-CH12 12-Port Media Converter Chassis
This 75-watt DC power supply works with the Tripp Lite N785-CH12 media converter chassis to provide primary or redundant power. The N785-CH12 comes wiwith a pre-installed AC power supply, but you can swap it out for the N785-CH75W-DC if you prefer DC power. This DC power supply can be used with any DC power source up to 48V 3A. A second DC power supply is also recommended to provide redundant power that helps prevent unwanted and expensive downtime.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Supplies DC power to a media converter installation using Tripp Lite's N785-CH12
Multiple power supplies provide primary and redundant power to prevent downtime
3-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N785-CH75W-DC
Brand Name
Tripp Lite series
Product Name
75W Power Supply
Packaged Quantity
1
Product Type
Power Supply
Physical Characteristics
Form Factor
Box
Height
3.4"
Width
9.3"
Depth
10.4"
Weight (Approximate)
3.75 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
12 V
Output Voltage Detail
12 V @ 6.5 A
Output Current
6.50 A
Output Power
75 W
Warranty
Limited Warranty
3 Year
Miscellaneous
Compatibility
Tripp Lite N785-CH12 Media Converter Chassis
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
