Tripp Lite by Eaton High Density Rackmount Fiber Enclosure Panel 14 Cassette 2URM

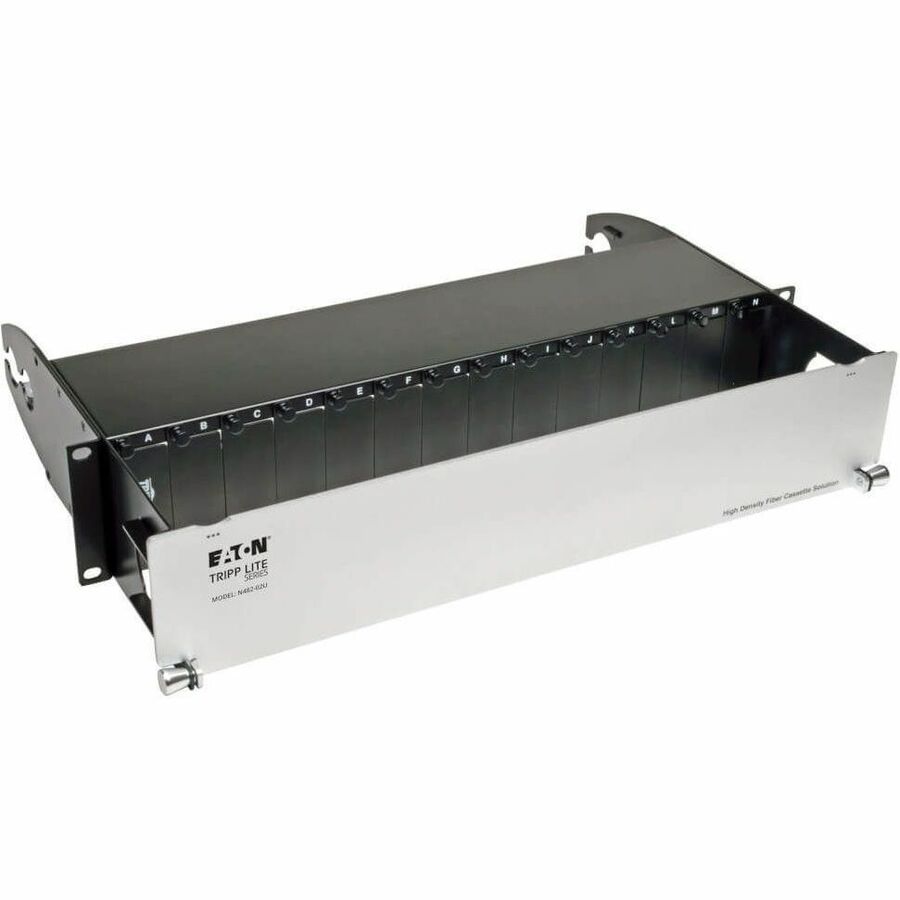

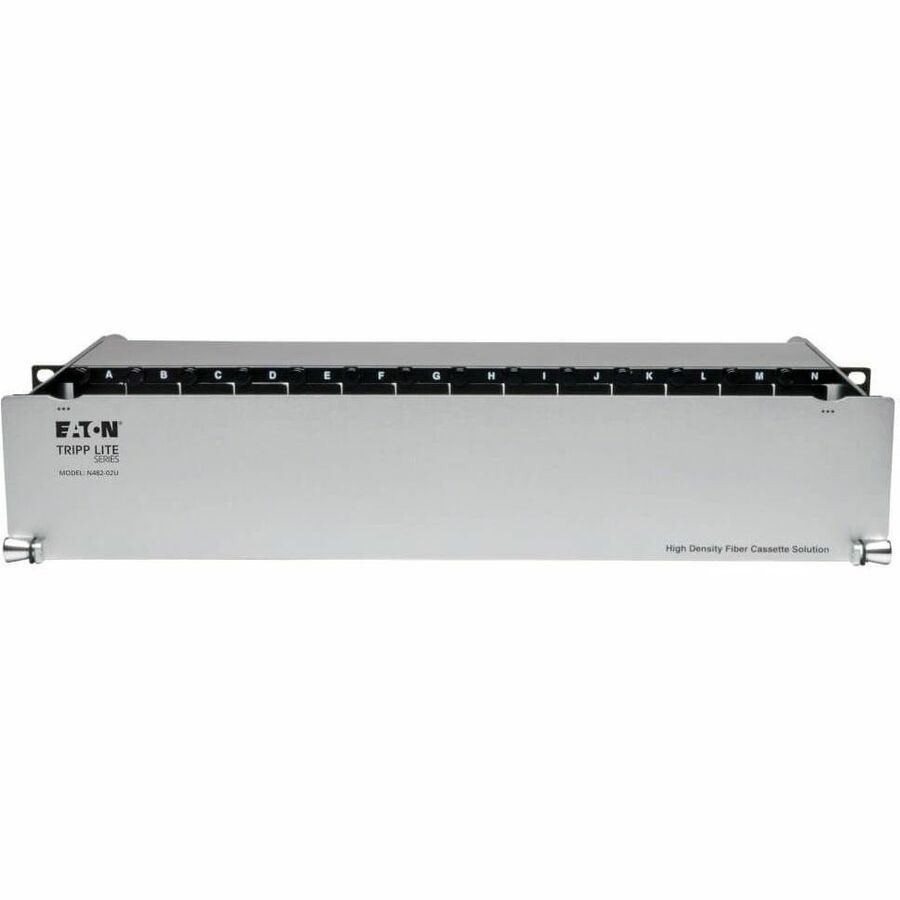

Tripp Lite's N482-02U is a High Density Fiber Cassette solution that supports up to 14 High Density Fiber Cassettes, maximizing rack space and allowing for up to 168 Duplex LC Ports (336 fiber connections) in just 1U of space. Tripp Lite's High Density Fiber Cassettes come in multiple variations, allowing you to connect different generations of equipment (10Gb, 40Gb, 100/120Gb), and giving you the flexibility to adapt as your technology changes. Installation is simple, with the cassettes being easily installed or removed using push / pull tabs to lock or unlock them from the panel; no tools required. Management is a breeze with an optional rear-mounting cable management bracket that allows you to rout your cabling neatly and safely. A fold-down door panel is featured on the front of the unit, and protects your connections, while rotating out of the way to provide full access. The door panel can also be removed altogether for installations where constant access is preferred. Constructed of heavy-duty steel housing.

More from the Manufacturer

The Smart Solution for Interconnecting 10GbE, 40GbE and 100/120GbE Network Equipment

2U High-Density Fiber Enclosure Panel

Tripp Lite’s N482-02U High-Density Fiber Enclosure Panel offers a cost-effective solution for using high-density fiber cassettes and cables to seamlessly interconnect any combination of 10GbE, 40GbE and 100/120GbE network equipment in a simple, elegant way. Perfect for a wide range of singlemode and multimode applications and fiber protocols in telecom and data center environments, the N482-02U mounts in a 19 inch rack and takes up just 2U of space.

Greater Flexibility and Greater Adjustability for Making Network Connections

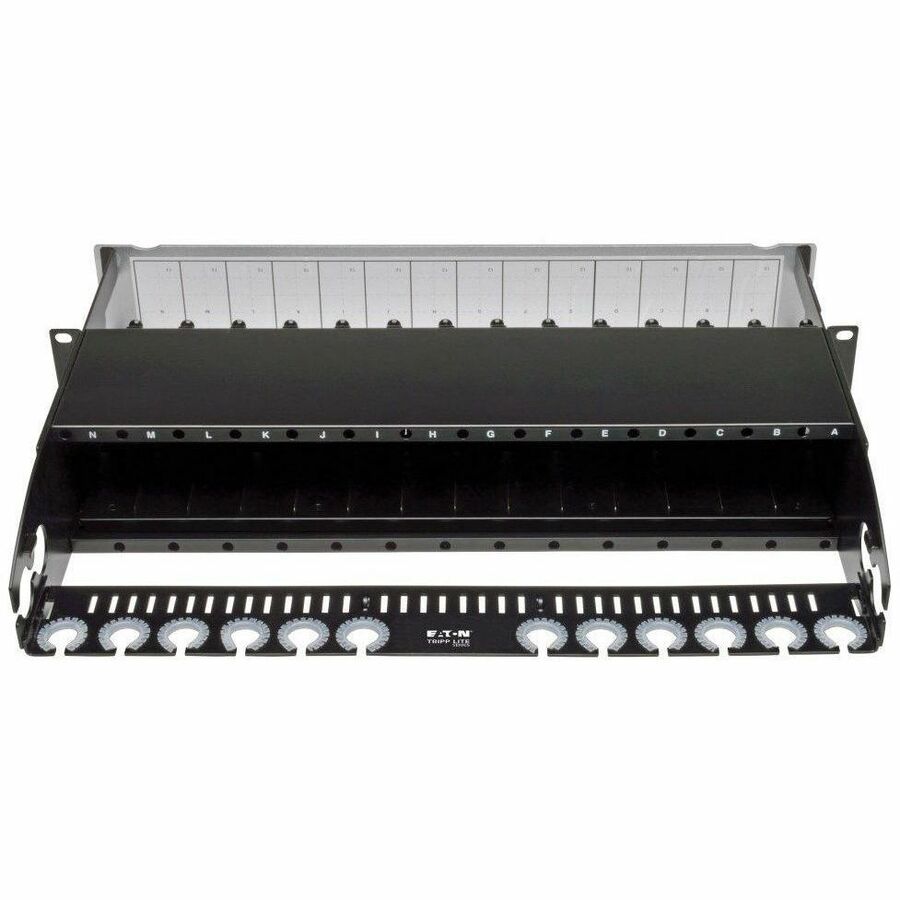

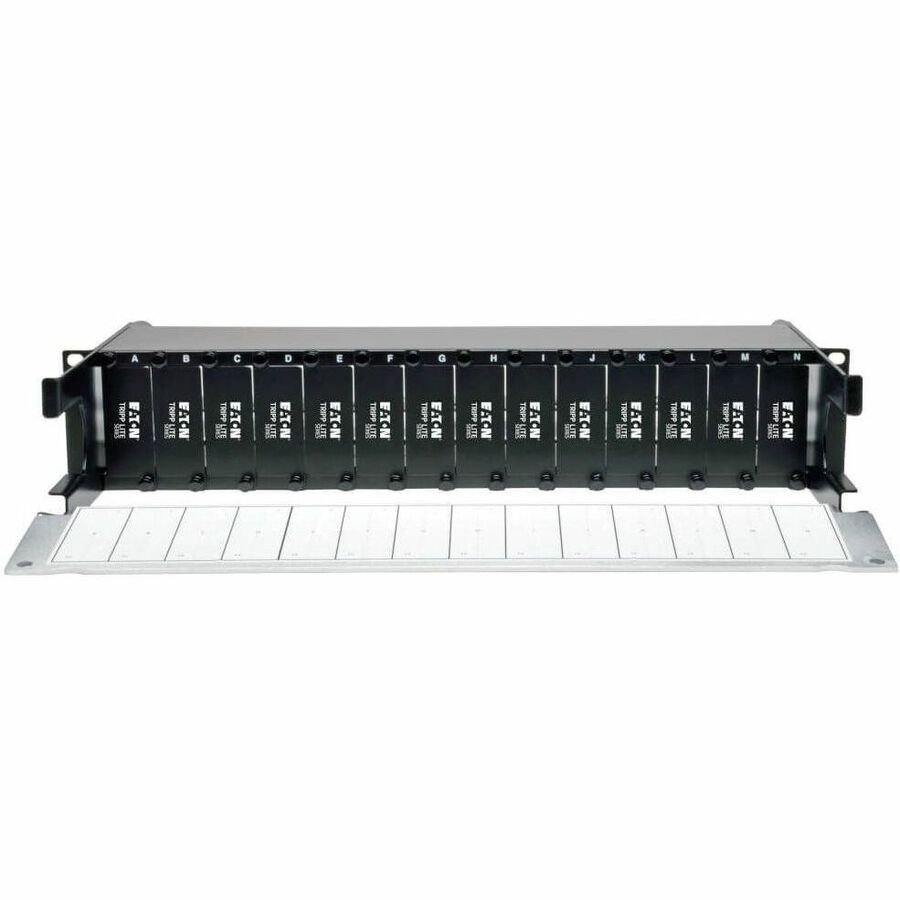

Made of heavy-duty steel, the N482-02U accommodates up to 14 Tripp Lite N482-Series high-density fiber cassettes. This allows you to patch up to 168 Duplex LC ports (336 fiber connections). The N482-02U offers the ability to manage cables from any direction, both in the front and back of the enclosure. A protective panel prevents cables from being struck or accidentally disconnected. Fold down the panel to reveal a space to label your connections, so you’ll know exactly which cable connects to which device. The built-in, easy-access wire manager keeps cables organized. The protective panel and wire manager are removable, allowing for many different configurations.

Lifetime Product Warranty and Environmentally Responsible Design

The N482-02U comes backed by a lifetime warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
