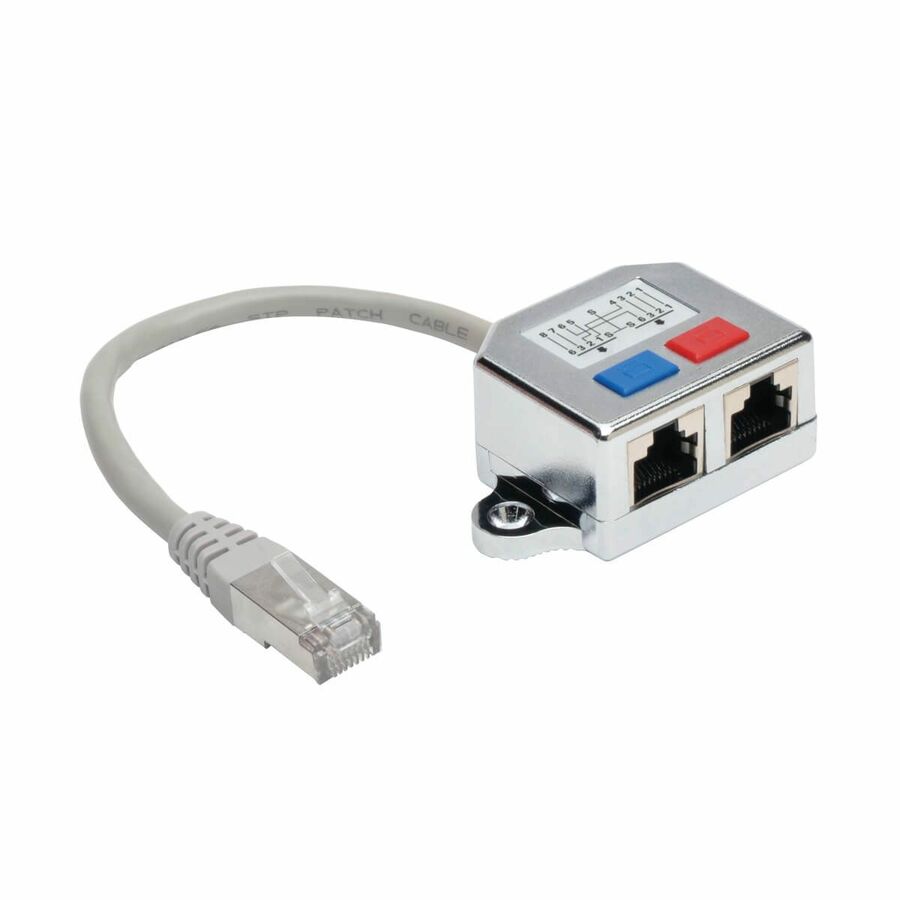

Eaton Tripp Lite Series 2-to-1 RJ45 Network Signal Splitter (M/2xF) - 10/100 Mbps Ethernet, Cat5/Cat5e, 6 in. (15 cm)

The N035-001 2-to-1 RJ45 Splitter Adapter Cable (M/2xF) allows you to transmit two 10/100 Ethernet signals through one Cat5/Cat5e cable, saving you the time, effort and cost of adding a second cable drop. Two N035-001 units are required: one connected to two network devices, such as servers or computers, and one connected to two ports of a network switch. A single Cat5/Cat5e cable connects the two N035-001 units through a four-pair UTP wall plate or patch panel. The RJ45 jacks transmit on 1, 2, 3 and 6. Drilled flanges allow you to mount the unit on a wall. The N035-001 cannot be used to share two computers on one network line.

Features Connects 2 Workstations with One Cat5/Cat5e Cable

• Supports 10/100Base-T network transmissions

• Saves expense and effort of adding second cable drop

• Supports wall-mounting via built-in flanges

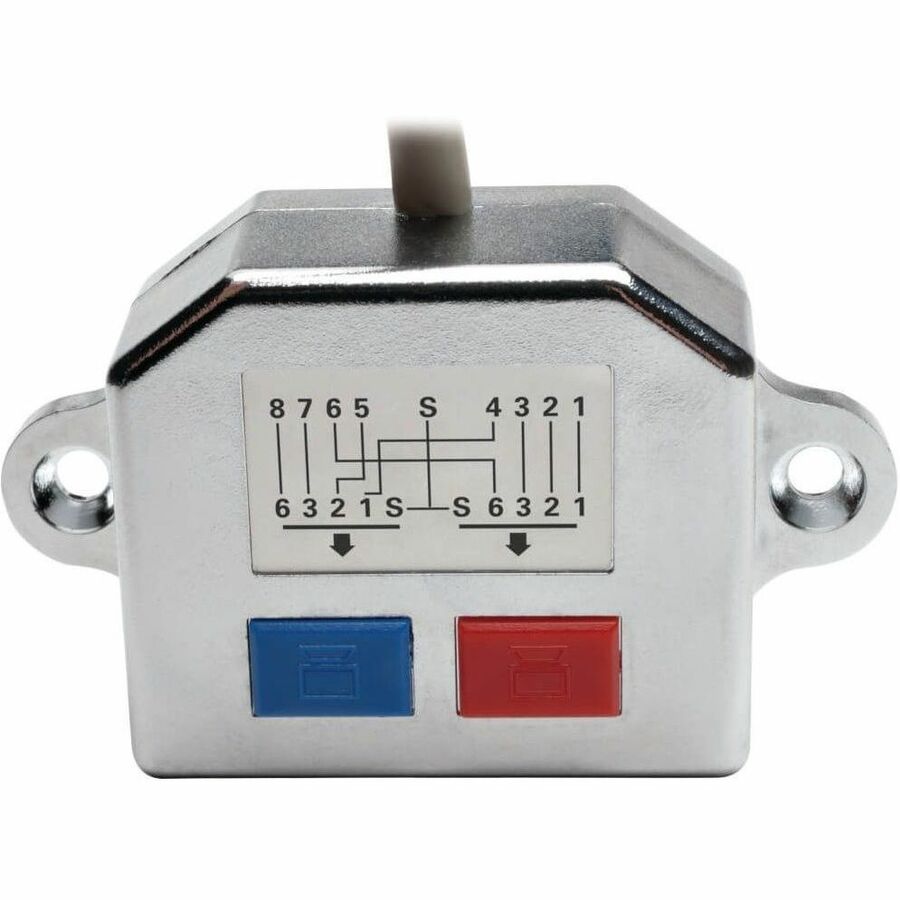

• RJ45 jacks transmit on 1, 2, 3 and 6

• 2 units are required for proper installation

• Cannot be used to split a single network signal for use with 2 computers

More from the Manufacturer

Integrates Easily Into Your Existing Network

For proper installation, two N035-001 adapters are required. Integrating them into your existing network requires four simple steps. First, connect the two RJ45 female ports on one unit to a network switch using Cat5 or 5e cable. Next, plug that unit’s male connector into a wall plate or patch panel. Plug the other unit’s male connector into the other side of the wall plate or patch panel. To complete your installation, use Cat5 or 5e cable to connect your network devices.

Delivers Superior Signal Quality

The N035-001 supports transmission speeds up to 100 Mbps, allowing it to consume more bandwidth. Its RJ45 jacks transmit on pins 1, 2, 3 and 6.

Occupies Very Little Space in Your Installation

The N035-001’s 6 in. length takes up very little space in your installation. To keep it up and out of the way, drilled flanges allow you to mount it on a wall.
