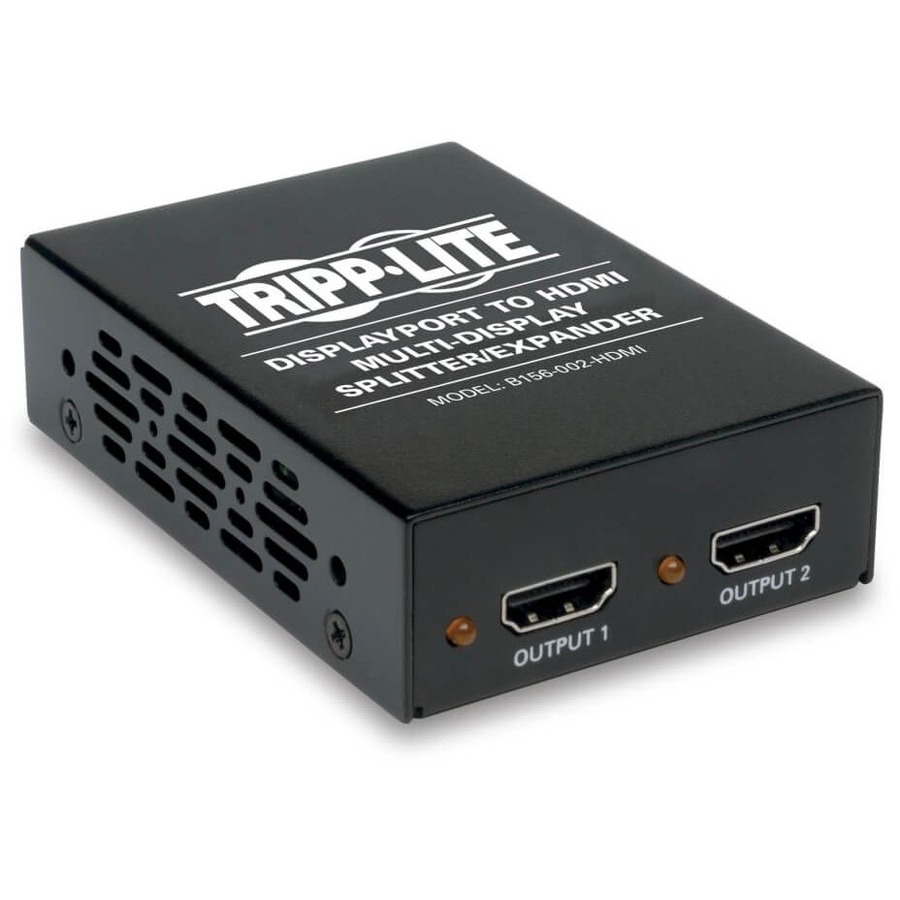

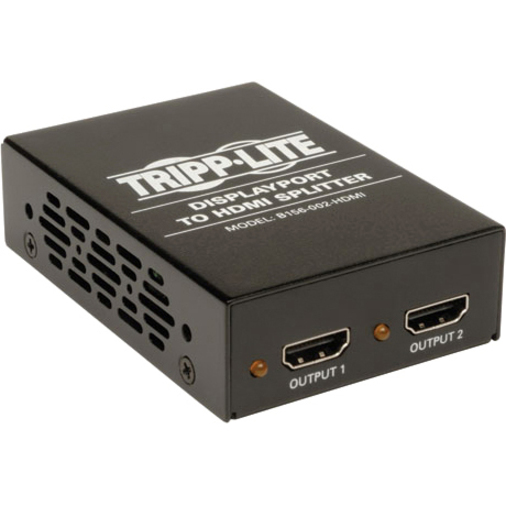

Eaton Tripp Lite Series 2-Port DisplayPort to HDMI Multi-Monitor Splitter MST Hub, 4K UHD, DP1.2, TAA

Get everyone's attention by broadcasting awesome messages in ultra-high definition video! With Tripp Lite's B156-002-HDMI 2-Port DisplayPort 1.2 to HDMI MST Hub, you can split or expand a single DisplayPort signal into two separate signals and display them on two HDMI monitors using standard DisplayPort (Tripp Lite P580-Series or P583-Series) and HDMI (Tripp Lite P568-Series) cables. You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002-HDMI supports 4Kx2K Ultra-High Definition (UHD) video resolutions up to 3840 x 2160 (30 Hz), 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

Works with the Latest Video Protocols

When using the most current protocols, your installation is guaranteed vibrant, rich picture and sound. The B156-002-HDMI is compatible with DisplayPort v1.2, which supports multi-stream transport. This allows you to configure your monitors in three possible ways: in mirror mode, where each monitor displays the exact same thing as the other; in extended mode, which stretches your desktop over both monitors; and in video wall mode, which combines both monitors into one large monitor. This hub also provides better resolutions, higher refresh rates and greater color depth. It is backward compatible with earlier DisplayPort versions and works with Apple Thunderbolt connectors.

Delivers Superior Signal Quality Over Distances Up to 41 Ft

This hub supports 4K x 2K Ultra-High Definition (UHD) video resolutions up to 3840 x 2160 (24 and 30 Hz) and 48-bit Deep Color (16 bits per channel). For maximum playback capability, it complies with the latest HDCP, EDID and DDC digital video content standards. Displays can be placed up 35 ft. away from the splitter unit and an additional 6 ft. away from the video source.

Easy to Set Up and Use

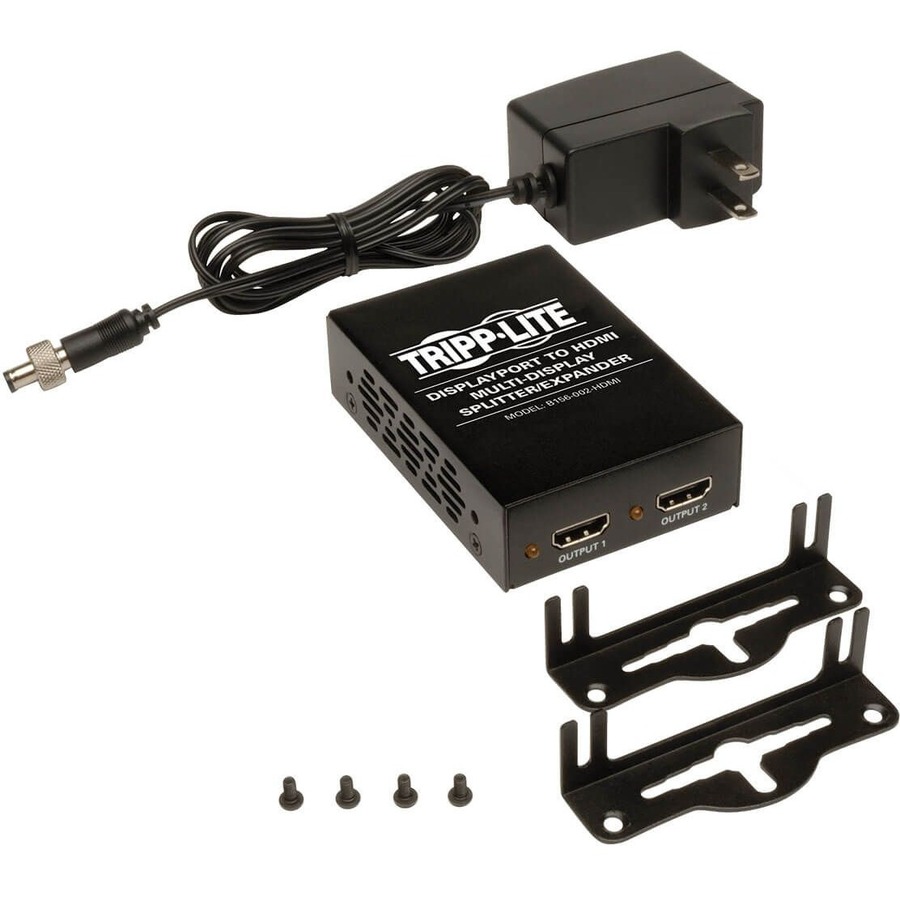

The B156-002-HDMI includes mounting hardware for wall-mount, rack mount and pole mount installation. With no software or drivers to install, plug-and-play setup gets your application up and running quickly. Simply connect the unit’s external power supply, connect the unit to the video source and remote displays, and enjoy some of the most stunning video available.
