for Desktop PC, Notebook, Monitor, TV, Projector, Keyboard, Flash Drive, Mouse, Hard Drive, Webcam, Printer, ... - Charging Capability - Memory Card Reader - microSD, SD, miniSD - 150 W - Thunderbolt 4 - 2 Displays Supported - 4K @30Hz, 4K @ 60Hz, 8K @ 30Hz, 4K @ 120Hz, 8K @ 60Hz, HD, Full HD, 4K, 5K, 8K, 4K @ 144Hz - 3840 x 2160, 7680 x 4320, 1280 x 720, 1920 x 1080, 5120 x 2880 - 5 x USB Ports - 4 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - Network (RJ-45)2
MSRP$526.00
$483.92
Save 8%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 2 and Nov 6, then process your delivery right after.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Thunderbolt 4 Dock Turns Your MacBook Pro into a Multiport 8K Workstation
This Thunderbolt 4 docking station dramatically expands the potential of your MacBook Pro or Windows laptop by adding 12 ports to its Thunderbolt 4 port. Not only does the MTB4-DOCK01A allow you to transmit 8K @ 60 Hz or 4K @ 144 Hz video to one display, 8K and 4K video to two displays or 4K video to two displays, you can also add USB peripherals, record a podcast, connect to a 2.5 Gb Ethernet network, charge your laptop and more, all at the same time.
Supports DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the included Thunderbolt 4 cable to a source device that supports DisplayPort Alt Mode, you can output 8K/4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Thunderbolt 4 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds
The included Thunderbolt 4 cable supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.2 Gen 1, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB4-DOCK01A is perfectly suited for 8K and 4K video streaming and editing on two monitors, as well as transferring large files. Because Thunderbolt 4 supports minimum PCIe (PCI Express) data rates of 32 Gbps (twice that of Thunderbolt 3), transferring large RAW video, Photoshop images or CAD files takes hardly any time at all.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

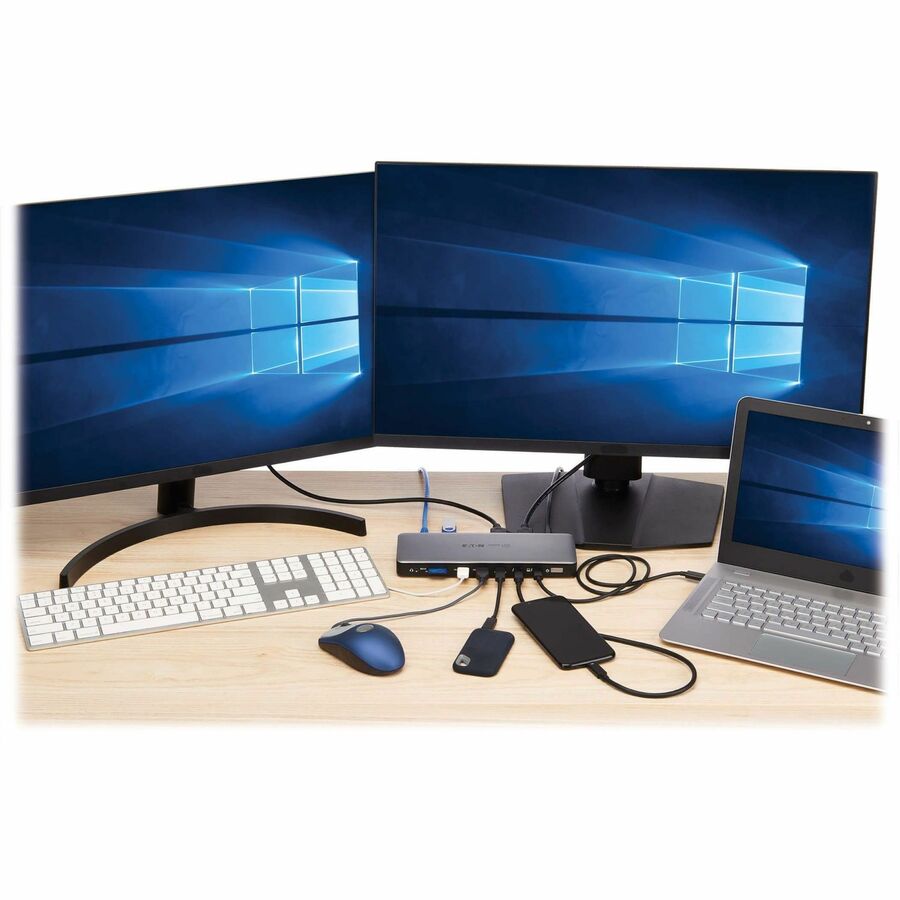

By connecting the included Thunderbolt 4 cable to a source that supports DisplayPort MST Mode, you may connect two displays simultaneously at resolutions of 8K @ 30 Hz plus 4K @ 60 Hz or both displays at 4K @ 60 Hz. This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall.
Cascade Up to 6 Thunderbolt Devices at Once
The downstream Thunderbolt 4 port lets you cascade Thunderbolt devices up to six levels vertically. It also supports 15W charging, as well as 8K video.
USB Ports Connect Keyboards, Thumb Drives and Other USB Peripherals

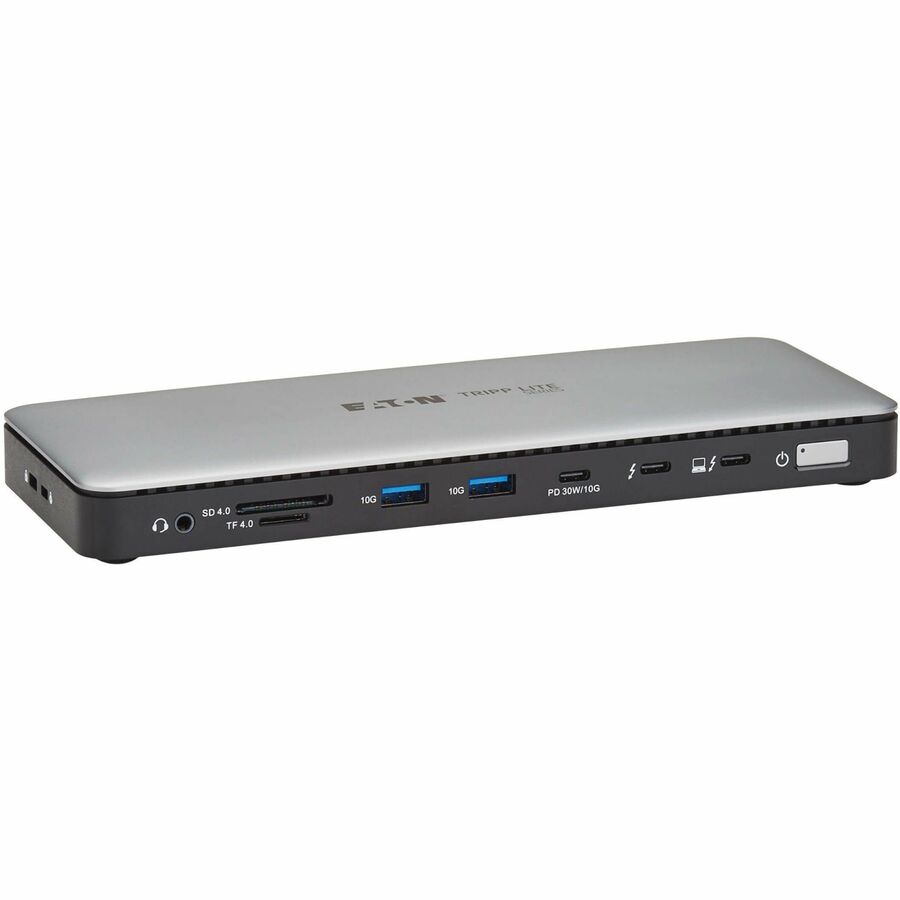

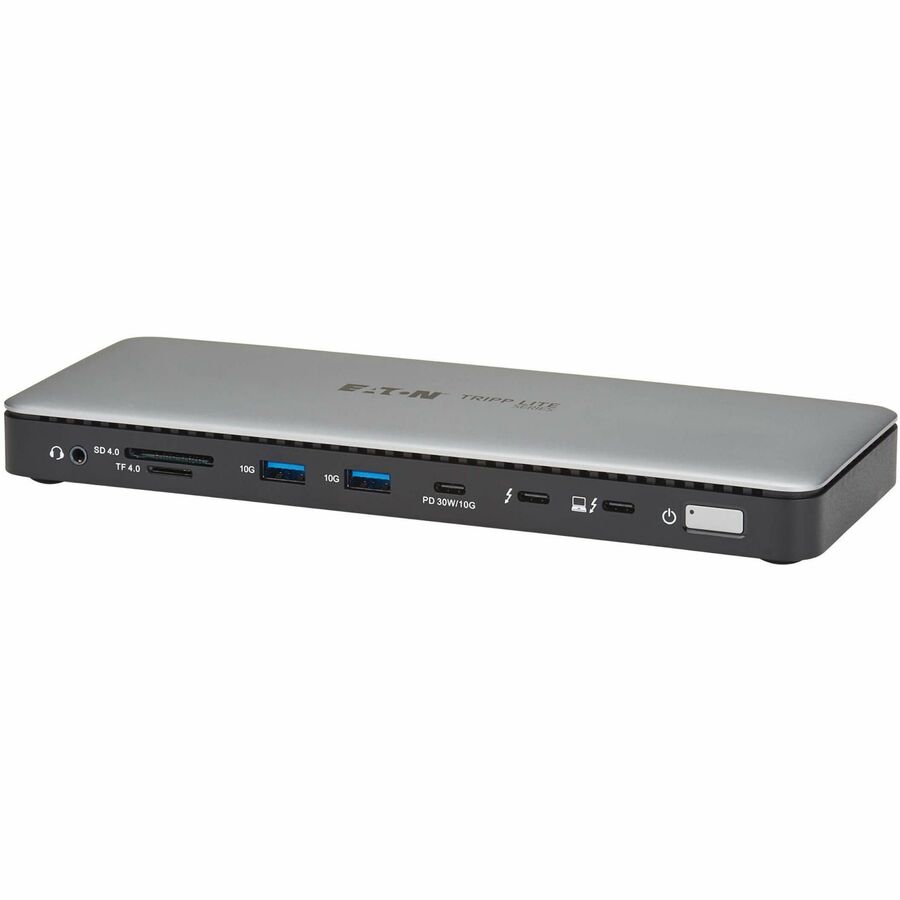

Four USB-A hub ports and one USB-C port accept USB peripherals, such as flash drives, mice, keyboards, external hard drives, webcams and printers. The USB-C port and two USB-A ports support USB 3.2 Gen 2 data transfer rates up to 10 Gbps. The other two USB-A ports support USB 3.2 Gen 1 speeds up to 5 Gbps. The USB-C port supports Power Delivery (PD) 3.0 charging up to 30W (5V 3A, 9V 3A, 15V 2A, 20V 1.5A). The USB-A ports support charging up to 900mA (primarily for powering ports).
Accesses a Wired 2.5 Gb Ethernet Network

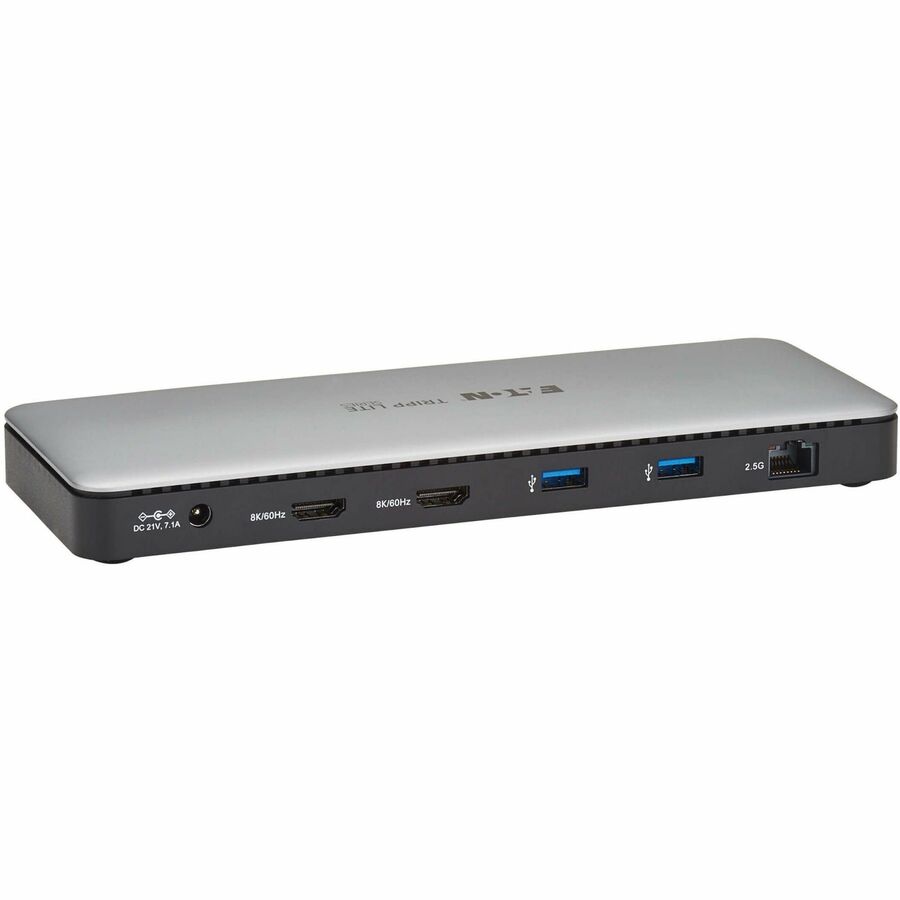

The RJ45 port offers access to a 2.5 Gbps Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 2.5G Ethernet speeds for fast data transfers.
Connects Stereo Audio Equipment for Recording and Playback
This Thunderbolt 4 docking station has one 3.5 mm mini stereo jack, convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.
Allows External Memory Access
The memory card slots support SD 4.0 and TF 4.0 cards for transferring data to and from your connected computer or laptop. Both slots may be used at the same time.
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | MTB4-DOCK01A |
| Brand Name | Tripp Lite series |
| Product Model | MTB4-DOCK01A |
| Product Name | MTB4-DOCK01A Docking Station |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB Type-C Ports | 1 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C - USB 3.2 Gen 2 (10 Gbps) |
| Number of USB Type-A Ports | 4 |
| Network (RJ-45) | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Outputs | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| Number of Thunderbolt 4 Ports | 2 |
| USB Power Delivery | 96W |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Product Color | Gray |
| Height | 0.87" |
| Width | 8.86" |
| Depth | 3.35" |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Software | |
| Operating System Supported | Windows, macOS, ChromeOS |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Device Supported | Desktop PC, Notebook, Monitor, TV, Projector, Keyboard, Flash Drive, Mouse, Hard Drive, Webcam, Printer, Workstation, Speakerphone, Microphone, Headphone |
| Supported Resolutions | 3840 x 2160, 7680 x 4320, 1280 x 720, 1920 x 1080, 5120 x 2880 |
| Screen Mode Supported | 4K @30Hz, 4K @ 60Hz, 8K @ 30Hz, 4K @ 120Hz, 8K @ 60Hz, HD, Full HD, 4K, 5K, 8K, 4K @ 144Hz |
| Memory Card Reader | Yes |
| Memory Card Supported | microSD, SD, miniSD |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents | MTB4-DOCK01A Docking Station Thunderbolt 4 Cable (M/M) External Power Supply (Input: 100-240V, 50/60 Hz, 2.5A; Output: 21V 7.1A) with 3.3 ft. (1 m) Cord and NEMA 5-15P Plug Installation Instructions |
| Compatibility | Apple MacBook Pro |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | No |
| Country of Origin | Vietnam |
