Adjustable Height - 1 Display(s) Supported - 45? to 70? Screen Support - 154 lb Load Capacity - 200 x 200, 200 x 400, 300 x 300, 400 x 400, 400 x 600 VESA Standard
MSRP$438.00
$345.16
Save 21%Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

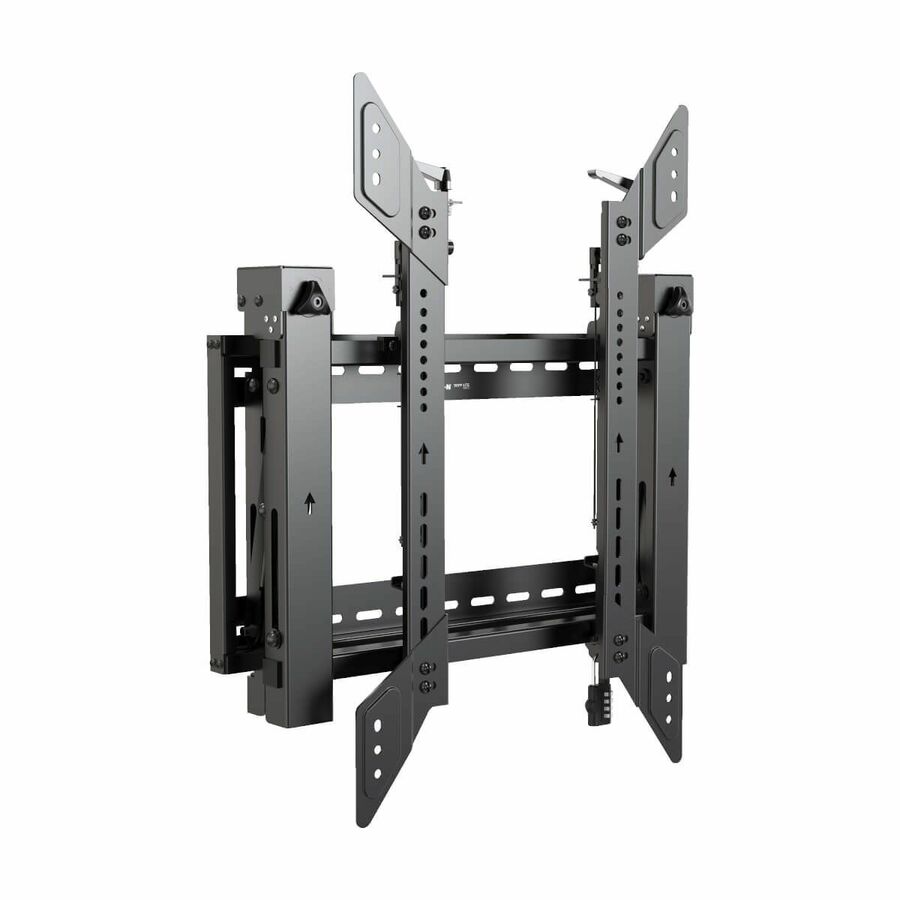

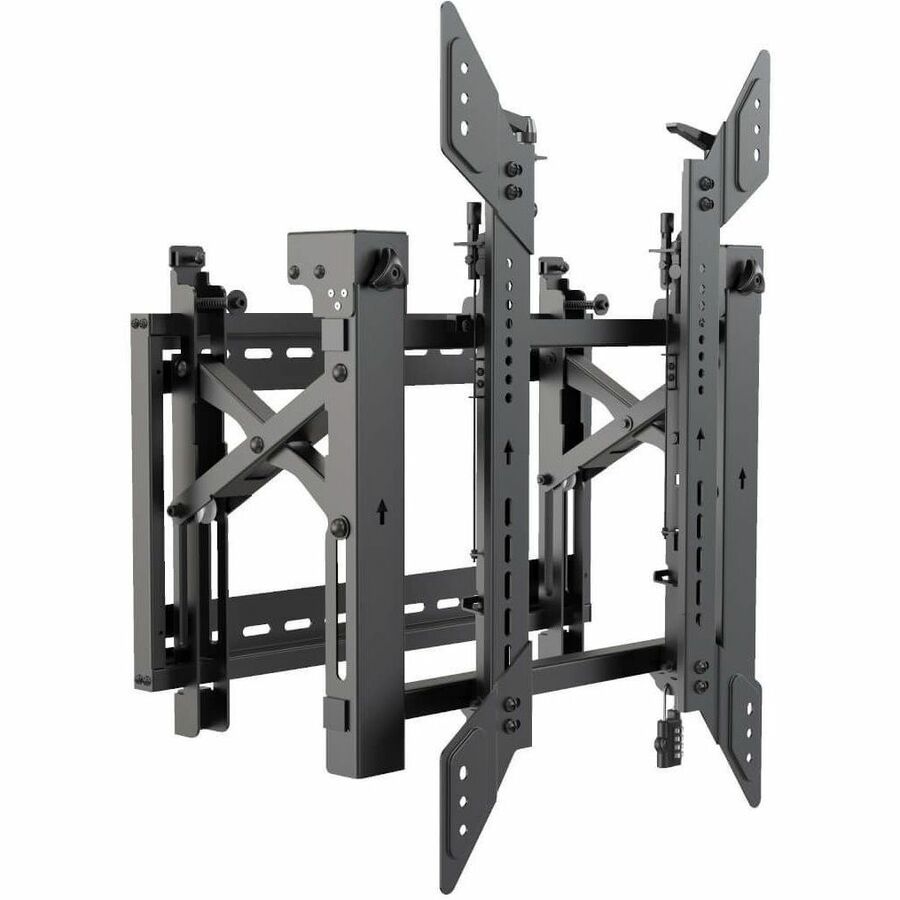

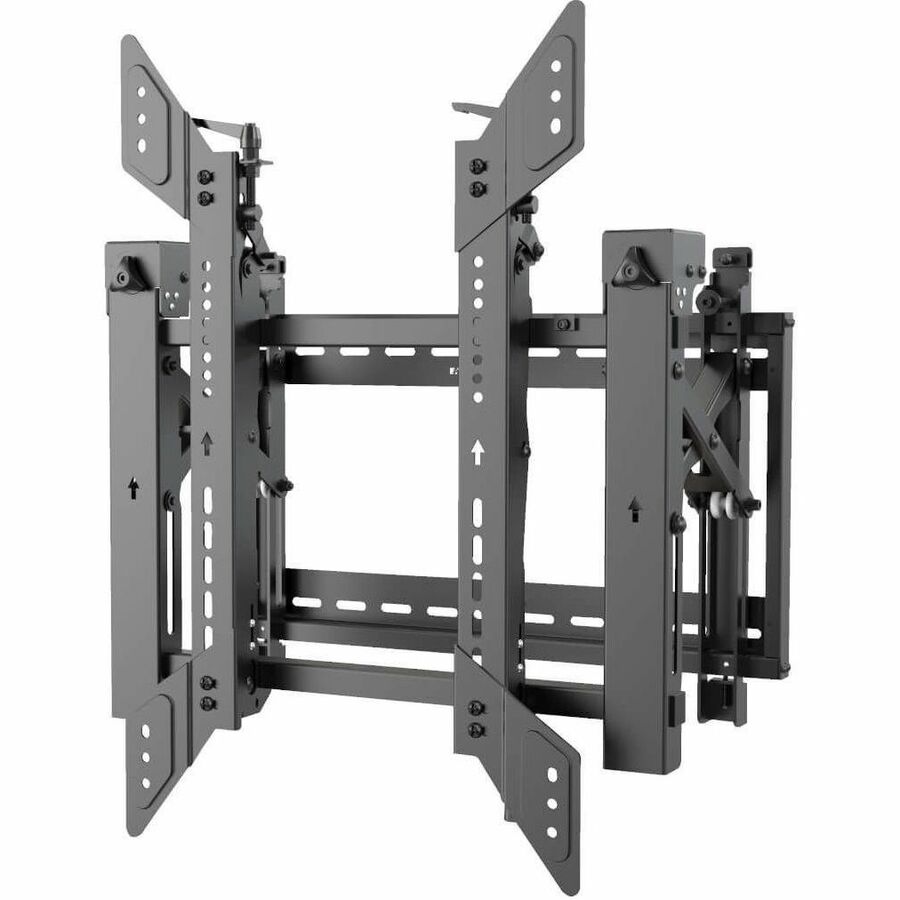

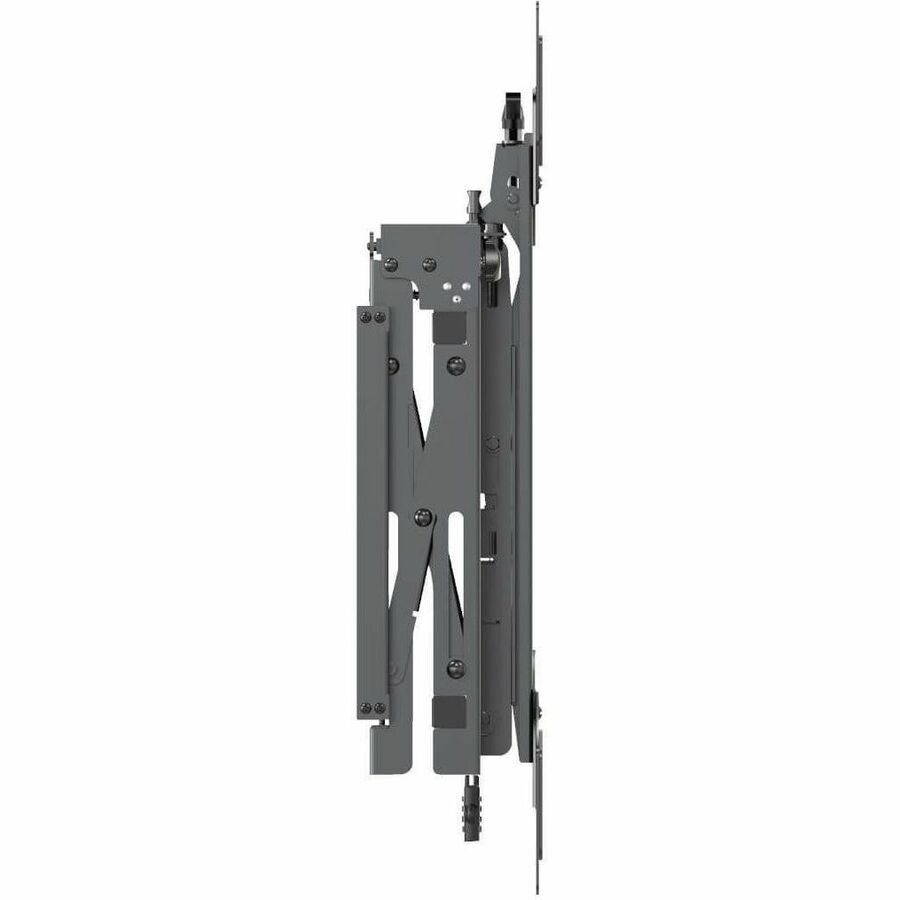

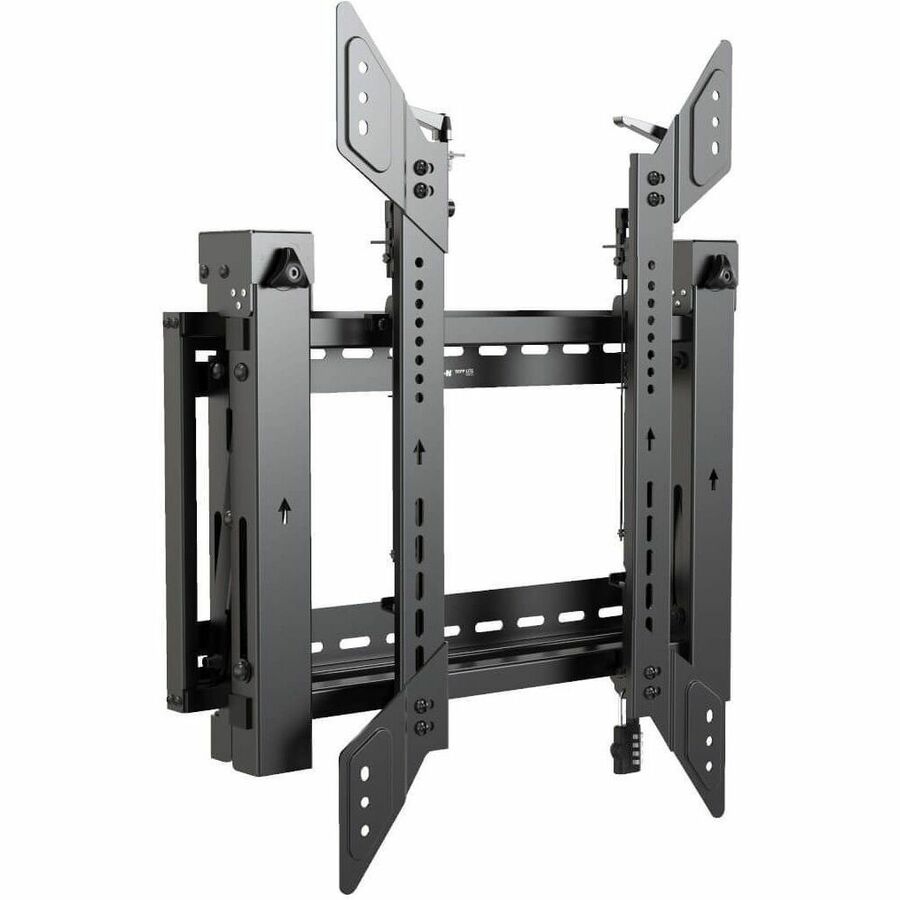

Pop-Out Display Mount Designed for Video Wall Installations
A pop-out feature and micro-adjustability make the DWMSCP4570VW wall mount a purpose-built solution for video walls in home theaters, offices, conference centers, medical facilities, airports, libraries, hotels, bars, restaurants and security stations. This portrait-oriented wall mount fits most flat-panel displays from 45 to 70 inches and up to 154 pounds (70 kilograms).
Pop-Out Feature Supports Convenient Cable Access and Screen Adjustments
To unlock the pop-out mechanism, press lightly on the front of your display and release. Kickstands provide tilt access for easy cable management and maintenance and make it easier to replace a connected display. This is especially helpful in video wall installations, where adjacent screens may limit access. You can also shift the display left or right along the lateral bracket, as well as adjust the height and viewing angle. When the display is in the ideal position, insert the included plastic anti-skid blocks in the brackets to secure it in place and prevent accidental pop-outs.
Included Combination Lock Deters Display Theft
The four-position combination lock secures the display bracket to the wall plate to deter theft, which can be a concern in public areas with unguarded traffic. Deterring display theft also protects the mount, which is often damaged beyond repair when a display is stolen.
Designed for Long Life in Your Video Application
The heavy-duty steel frame withstands the stress of frequent adjustments, and the black powder-coated finish offers durability and scratch resistance. Your display hides both the mount and the included combination lock, maintaining a professional look.
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 200 x 200, 300 x 300, 400 x 200, 400 x 400 and 600 x 400. Mounting hardware is included.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DWMSCP4570VW |
| Brand Name | Tripp Lite series |
| Product Model | DWMSCP4570VW |
| Product Name | DWMSCP4570VW Pop-Out Security TV Wall Mount |
| Product Type | Wall Mount |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200, 200 x 400, 300 x 300, 400 x 400, 400 x 600 |
| Height | 26.97" |
| Width | 22.83" |
| Depth | 12.40" |
| Weight (Approximate) | 31 lb |
| Product Information | |
| Device Supported | TV, Monitor, Interactive Display, Whiteboard, Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 154 lb |
| Minimum Screen Size Supported | 45" |
| Maximum Screen Size Supported | 70" |
| Height Adjustable | Yes |
| Features | Combination Lock, Full Motion, Security Lock, Kickstand, Anti-theft, Tool-less Micro-Adjustment, Cable Management, Heavy Duty, Durable, Anti-skid |
| Durability | Tamper Resistant, Scratch Resistant |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Wall |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
