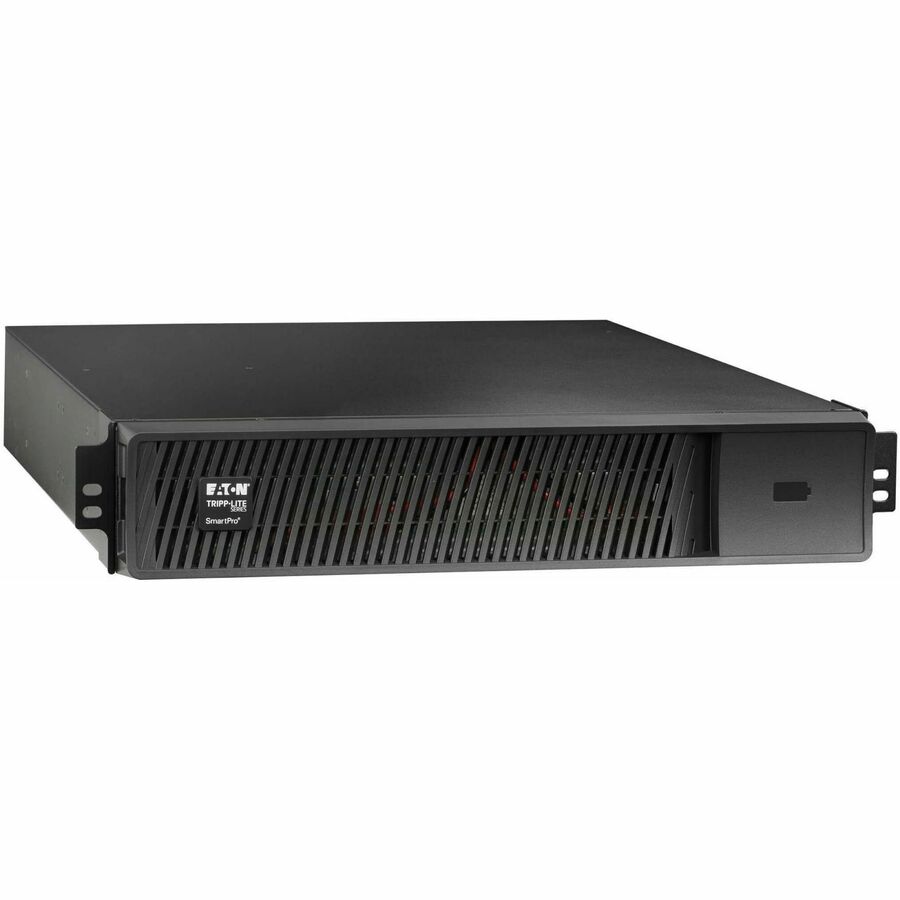

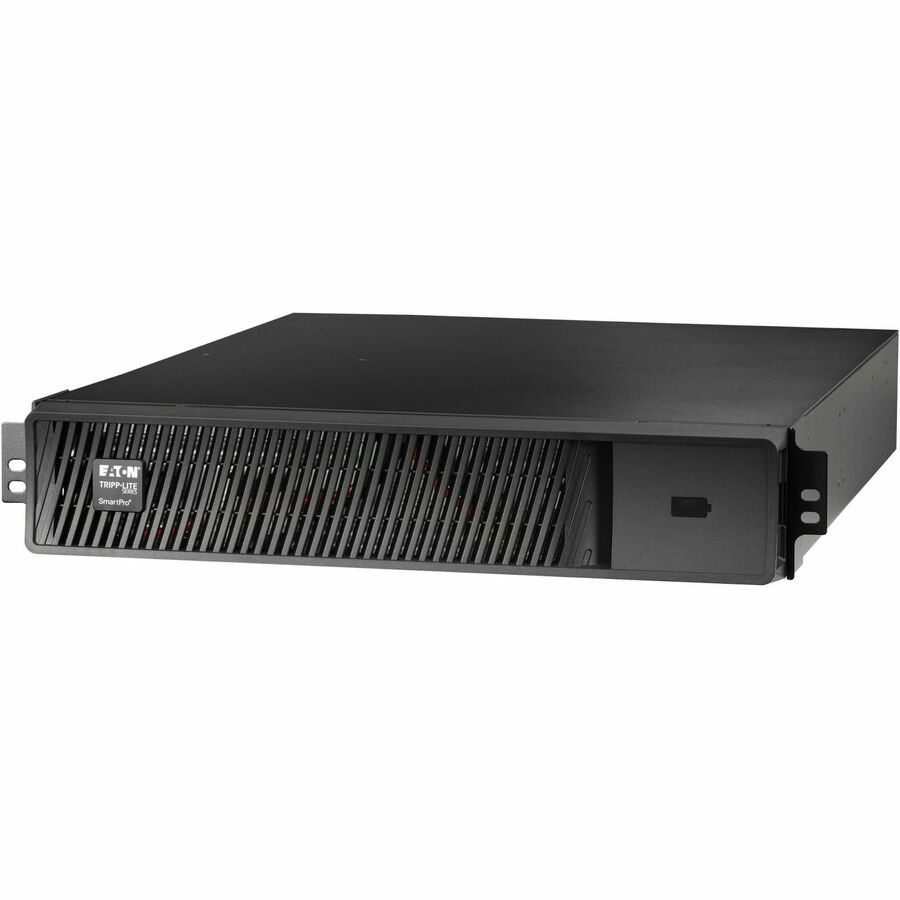

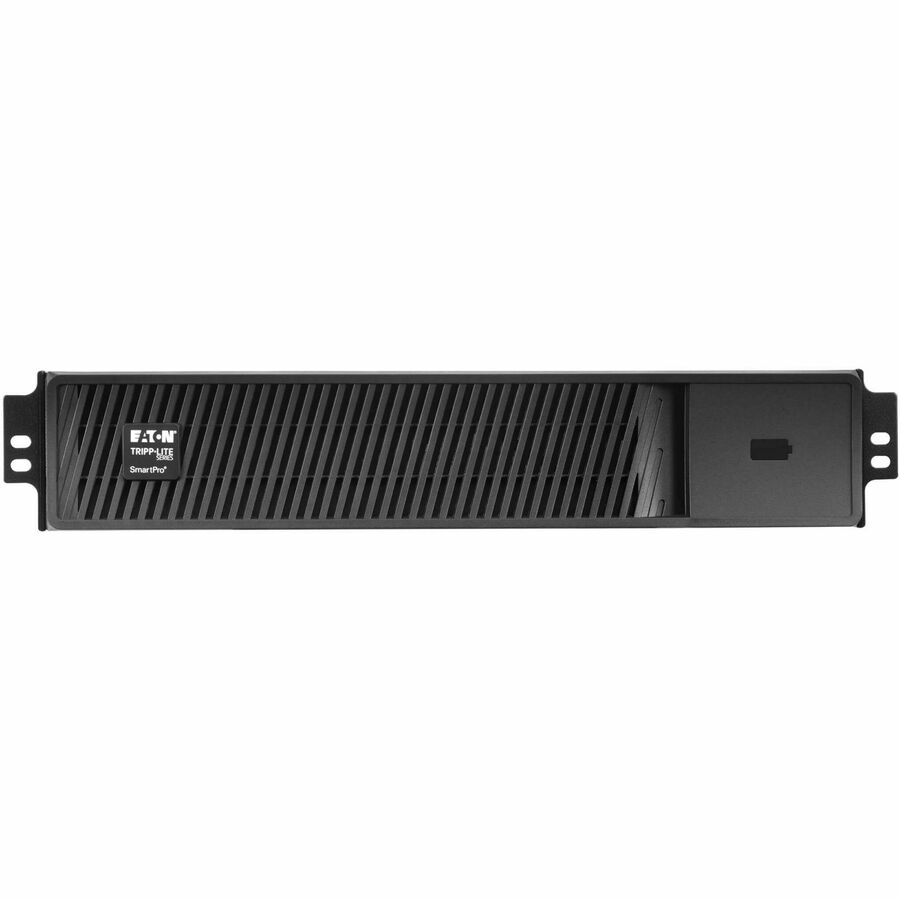

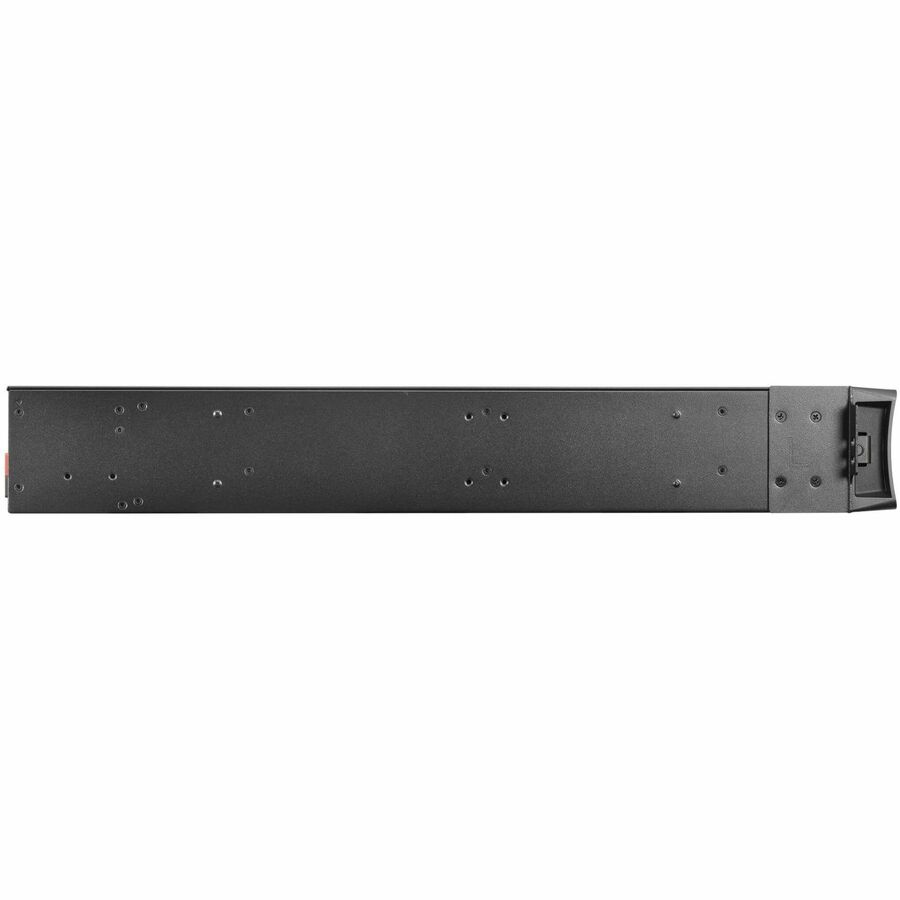

Tripp Lite by Eaton series 72V Extended Battery Module (EBM) for 2200VA and 3000VA SmartPro UPS Systems, 2U Rack/Tower
72 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable
- SKU
- BP72VRM2U
- Category
- UPS Batteries
MSRP$1,769.25
$1,117.43
Save 37%In stock: 57
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BP72VRM2U
- Category
- UPS Batteries
Overview
External battery pack provides extended runtime for compatible UPS systems in small business, education, retail, financial or healthcare applications.
Features | Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The BP72VRM2U offers extended battery runtime when used in conjunction with Eaton Tripp Lite series 2200VA and 3000VA SmartPro® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with highcurrent DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19- inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration. More from the Manufacturer
Extended Battery Modules for Eaton Tripp Lite Series UPS Systems
An ideal solution for extended-run operation
The BP72VRM2U rack/tower external battery pack extends battery runtime when used with compatible Eaton Tripp Lite series 2200VA and 3000VA SmartPro UPS Systems. An included daisy-chain connector allows the addition of up to four matching battery packs per UPS for even longer extended-run operation. To ensure safe and simple installation, heavy-gauge cabling with high-current DC connectors is also included.
Innovative features for premium performance
Versatile installation
The BP72VRM2U’s multi-use form factor supports both rack-mount and tower installation, allowing you to place the battery where you need it most.
Mounts in 2U of space in EIA-standard 19-inch racks or enclosures using the included 4-post mounting brackets.
Tower stands are included for optional upright configuration.
Optional 2-post rack-mount or wall adapter kit (2POSTRMKITWM or UPSHDEARKIT, sold separately) supports 2-post rack or wall-mount installation.
Broad compatibility
This 72V external battery pack is designed for select SmartPro line-interactive UPS systems.
120V model compatibility: SMART2200RMXL2U, SMART2200RMXLN, SMART3000RMXL2U and SMART3000RMXLN
208V/230V model compatibility: SMX3000XLRT2UA and SMX3000XLRT2UN

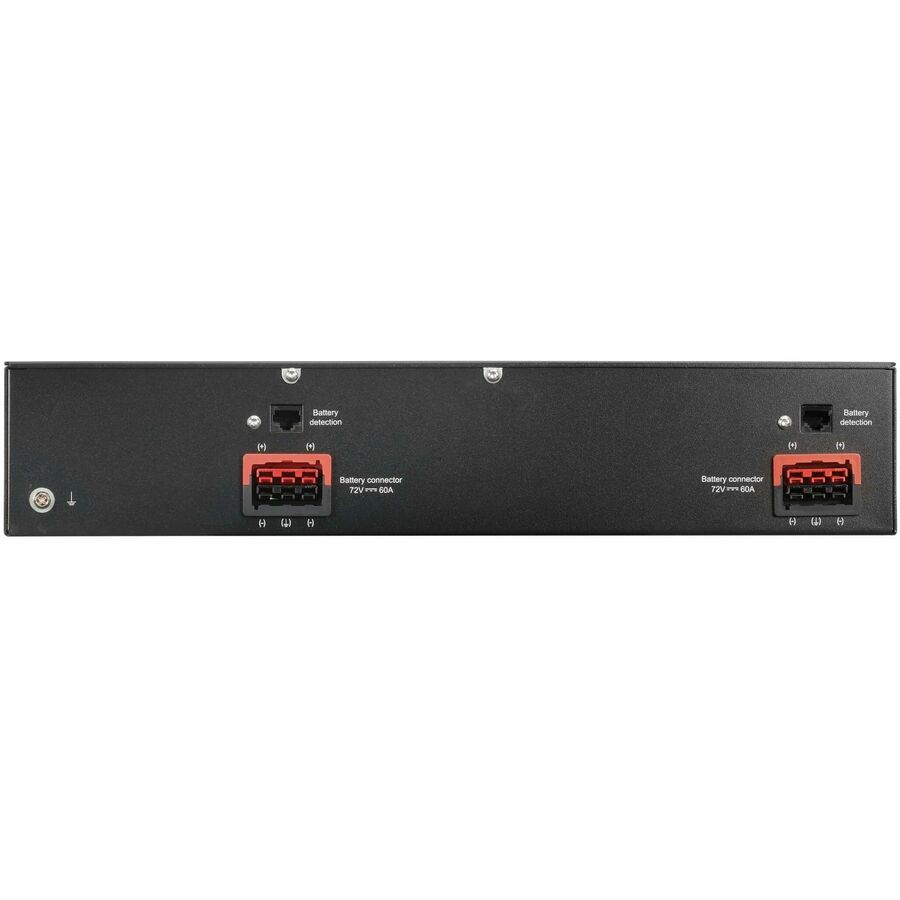

Optional use rear-panel battery detection jacks automatically configure host UPS systems supporting this feature.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Connects to select expandable Eaton Tripp Lite series UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge cabling with high-current 72V DC connectors
- Supports 2U rack mounting or upright tower installation using included accessories
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | UPS Battery Pack |
| Compatibility | Tripp Lite SmartPro Uninterruptible Power Supplies: SMART2200RMXL2U SMART2200RMXLN SMART3000RMXL2U SMART3000RMXLN SMX3000XLRT2UA SMX3000XLRT2UN |
| Hot Swappable | Yes |
| Manufacturer Part Number | BP72VRM2U |
| Limited Warranty | 2 Year |
| Output Voltage | 72 V DC |
| Manufacturer | Eaton Corporation |
| Product Model | BP72VRM2U |
| Product Name | Extended Battery Modules BP72VRM2U UPS Battery Pack |
| Product Series | Extended Battery Modules |
| Brand Name | Tripp Lite series |
| Country of Origin | Philippines |
| Height | 3.4" |
| Width | 17.2" |
| Depth | 23.7" |
| Environmentally Friendly | Yes |
| Battery Characteristics | Valve-regulated/User Replaceable |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Downloads
