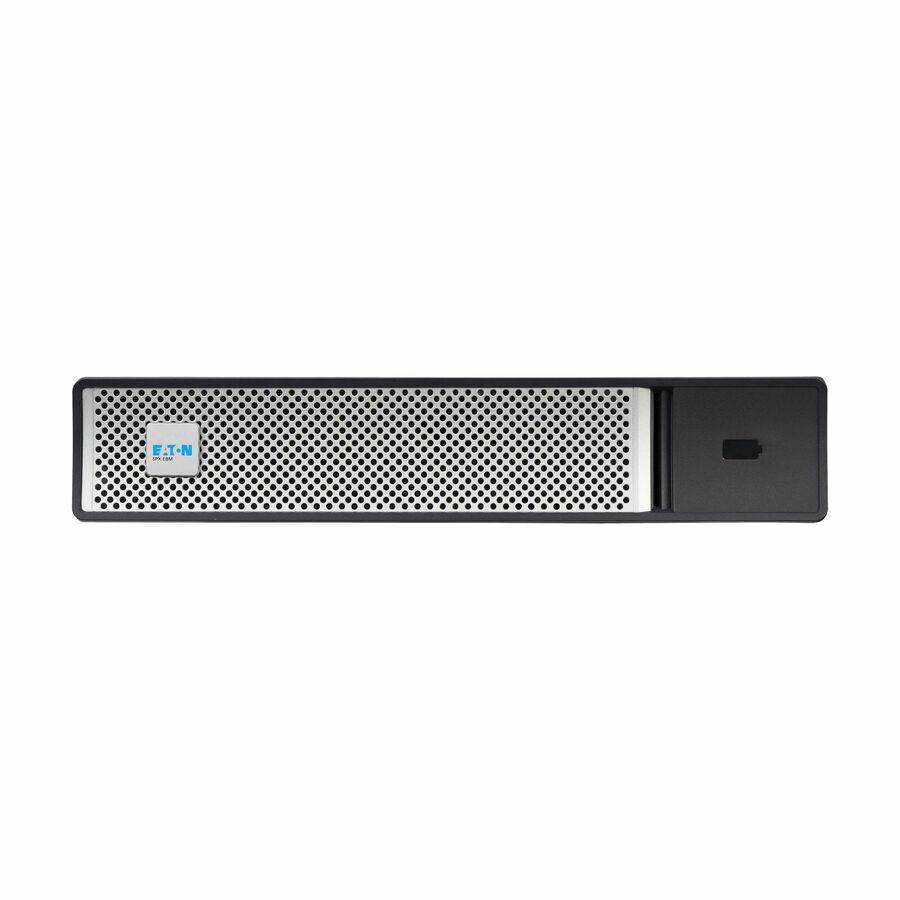

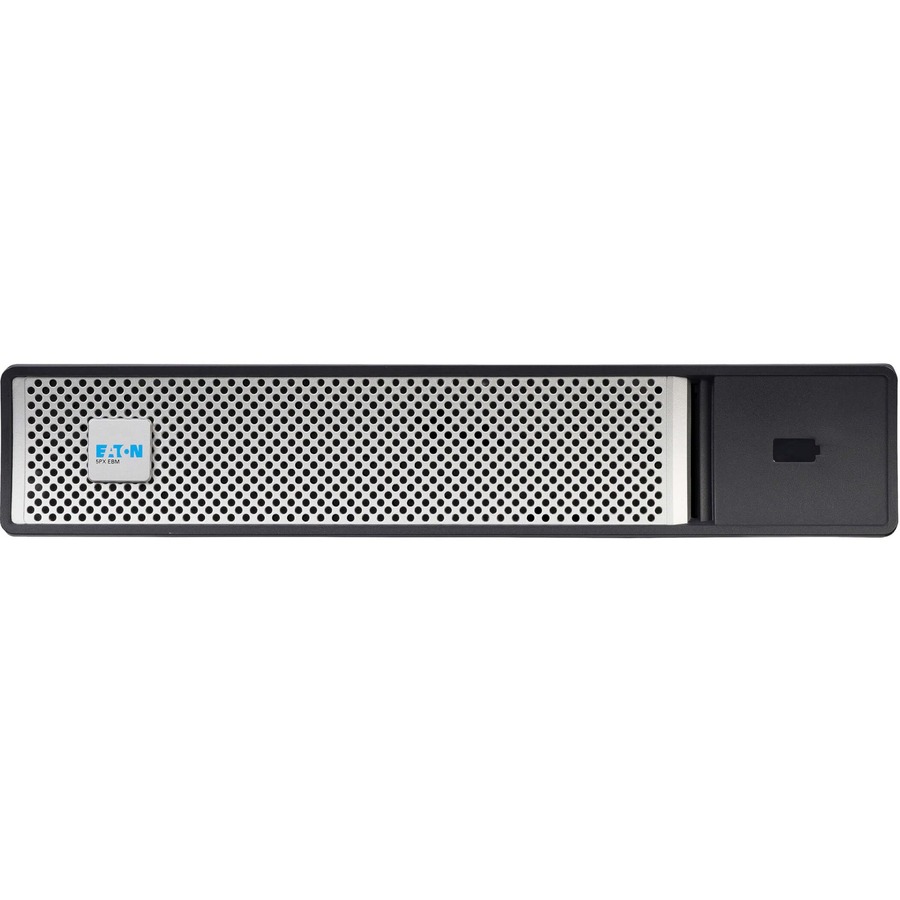

Eaton 72V Extended Battery Module (EBM) for 2000 VA and 2U 3000 VA 5PX G2 UPS Systems, 2U Rack/Tower

Lead Acid - Sealed Battery Pack

SKU: 5PXEBM72RTG2
Category: UPS Batteries

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: 5PXEBM72RTG2
Category: UPS Batteries

Overview

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

The 5PXEBM72RTG2 offers extended battery runtime when used in conjunction with Eaton's 5PX2000RTG2, 5PX2000RTNG2, 5PX2200HRTG2, 5PX3000RTG2, 5PX3000RTNG2, 5PX3000HRTG2 and 5PX3000HRTNG2 5PX G2 UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Supports 2U Rack or Tower Installation

This backup battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

Connects to select expandable Eaton 5PX G2 UPS systems for extended runtime
Daisy-chain connector supports additional battery packs for even longer runtime

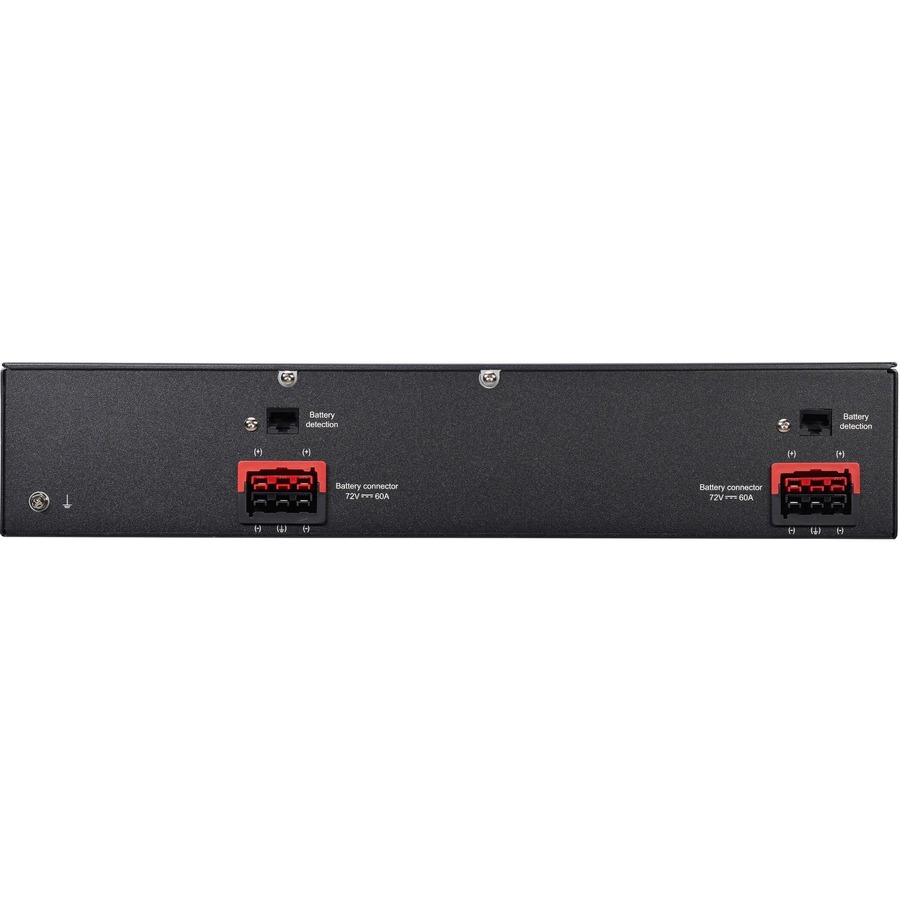

Includes heavy-gauge cabling with high-current 72V DC connectors
Supports 2U rack mounting or upright tower installation using included accessories
3-year limited warranty

Specifications

Battery Chemistry	Lead Acid
Package Contents	5PX G2 Extended Battery Module (EBM) External battery cable Rack-mounting hardware Tower support stands Quick Start Guide
Product Type	UPS Battery Pack
Compatibility	Eaton UPS: 5PX2000RTG2 5PX2000RTNG2 5PX2200HRTG2 5PX3000RTG2 5PX3000RTNG2 5PX3000HRTG2 5PX3000HRTNG2 5PX G2
Hot Swappable	Yes
Manufacturer Part Number	5PXEBM72RTG2
Limited Warranty	3 Year
Output Voltage	72 V DC
Weight (Approximate)	89.10 lb
Manufacturer	Eaton Corporation
Product Name	5PX G2 Extended Battery Module (EBM)
Product Series	5PX
Brand Name	Eaton
Country of Origin	Philippines
Height	3.4"
Width	17.2"
Depth	23.7"
Environmentally Friendly	Yes
Battery Characteristics	Valve-regulated/User Replaceable
Environmental Compliance	Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
