Eaton Tripp Lite Series HDMI Signal Booster / Extender, 4K 60 Hz, F/F, 4:4:4, Up to 50 ft., TAA

HDMI Booster Extends High-Definition 4K Video and Digital Audio Signals up to 50 ft.

Don't let HDMI's 16-foot distance limitation limit your audio/video application. This in-line HDMI signal extender boosts your 4K transmission up to 50 feet from the source device without a drop in signal quality. This gives you the flexibility to hide your Blu-ray player or media server away in a secure, remote location for controlled access, while delivering video to an HDMI display somewhere else. The B122-000-4K6 is recommended for digital signs or video presentations in schools, conference rooms, retail displays, trade show booths and anywhere else you need to display high-definition video.

Meets HDMI Industry Standards to Deliver High-Definition Results

This HDMI signal booster supports computer video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as well as 36-bit Deep Color (12 bits per channel). It also supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound to ensure your speakers deliver rich, clear audio to match the video quality. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Greater Distance Gives You More Freedom in Placing Your Source and Display Devices

This low-profile HDMI booster is designed for use with Tripp Lite P568-Series HDMI cables (sold separately). Connect one cable (up to 25 feet) to your source device, such as a Blu-ray player or computer, to transmit a 4K (60 Hz) signal. The second cable connects the B122-000-4K6 and the HDMI display device, and must be no longer than 25 feet. This unit can also extend a 3D signal up to 50 feet. For best results, 24 AWG HDMI cable, such as Tripp Lite P568-100-HD (sold separately), is required.

Ready to Use Right from the Package, So You Can Plug and Play Immediately

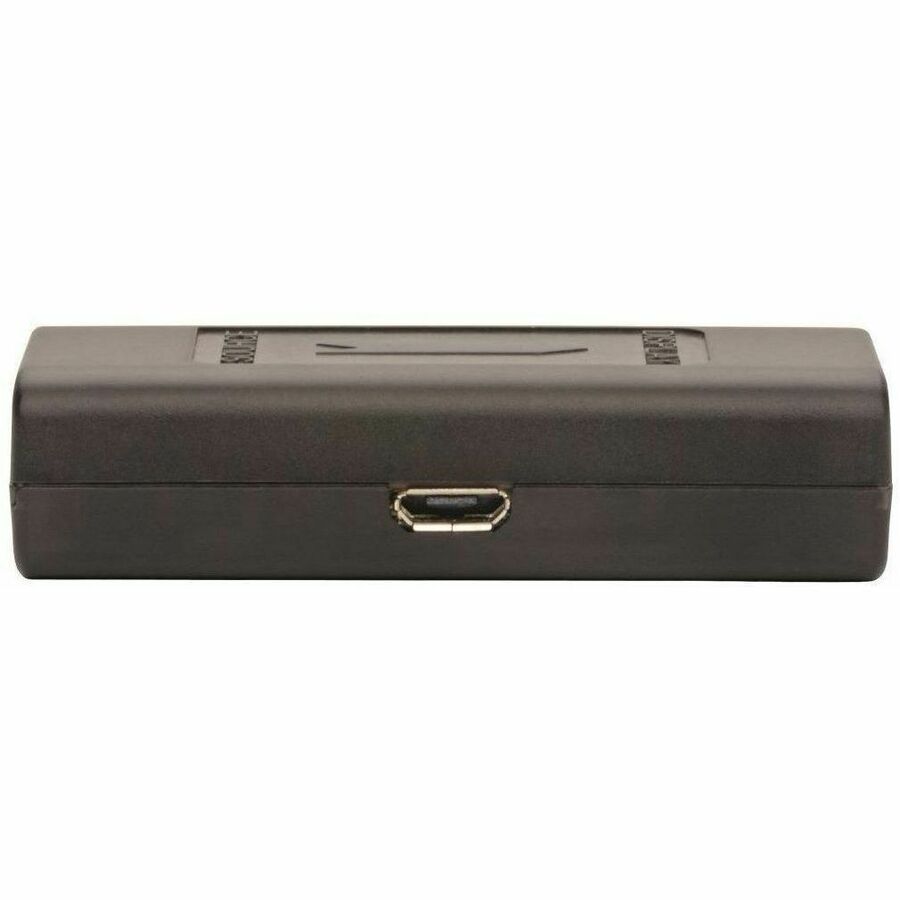

The plug-and-play unit requires no software, drivers or (usually) external power. In the extreme case that external power is needed, connect a USB Micro-B cable (such as Tripp Lite's UR050-Series) between the unit's USB Micro-B port and a USB wall charger or USB port on your monitor or computer (cable and charger sold separately). With its low-profile design, the B122-000-4K6 is easy to stow in your laptop bag and carry to school, the office or the latest trade show.

TAA-Compliant for GSA Schedule Purchases

The B122-000-4K6 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Digital signage in office lobbies, churches, retail stores, restaurants and hotels

• Video presentations in conference rooms, lecture halls, classrooms and trade shows

• Home theater systems where the source devices are secured in a closet or other room

System Requirements

• Source device with HDMI output

• Display device with HDMI input

• 24 AWG HDMI cable required for full 4K @ 60 Hz quality (Tripp Lite P568-Series)

More from the Manufacturer

Tripp Lite B122-000-4K6 Product Summary

Extends high-quality 4K HDMI video and digital audio signals up to 50 ft.

Allows you to install expensive source device in a secure location for controlled access

Delivers HD picture quality at resolutions up to 3840 x 2160 (4K) @ 60 Hz

Supports DTS-HD, Dolby TrueHD and 7.1 surround sound for rich, clear audio

Compact unit fits easily into briefcase or laptop bag for instant use anywhere

Plug-and-play operation with no software required for easy, immediate installation

In-Line Extender Boosts Your 4K Audio/Video up to 50 ft. with No Loss in Quality

Don’t let HDMI’s 16-foot distance limitation limit your audio/video application. Tripp Lite’s B122-000-4K6 active in-line HDMI signal extender boosts your 4K transmission up to 50 feet from the source device without a drop in signal quality. This gives you the flexibility to hide your Blu-ray player or media server away in a secure, remote location for controlled access, while delivering video to an HDMI display somewhere else. The B122-000-4K6 is recommended for digital signs or video presentations in schools, conference rooms, retail displays, trade show booths and anywhere else you need to display high-definition video.

Offers 4K Video with 7.1-Channel Audio and True 4:4:4 Color

This HDMI signal booster supports computer video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as well as 36-bit Deep Color (12 bits per channel). It also supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound to ensure your speakers deliver rich, clear audio to match the video quality. It also supports true 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Typical Applications

Complete digital signage connections in office buildings, retail stores, restaurants and other public areas where the source device needs to be secured

Give video presentations in large conference rooms, classrooms and lecture halls

Create a custom home theater where the source devices are secured in a different room, such as a network closet

Connect 24 AWG HDMI Cable to Place the Source and Display in Premium Locations

This low-profile HDMI booster is designed for use with Tripp Lite P568-Series HDMI cables (sold separately). Connect one cable (up to 25 feet) to your source device, such as a Blu-ray player or computer, to transmit a 4K (60 Hz) signal. The second cable connects the B122-000-4K6 and the HDMI display device, and must be no longer than 25 feet. This unit can also extend a 3D signal up to 50 feet. For best results, 24 AWG HDMI cable, such as Tripp Lite P568-100-HD (sold separately), is required.

Plug and Play with No Drivers or Other Additional Software Needed

The plug-and-play signal booster requires no software, drivers or (usually) external power. In the extreme case that external power is needed, connect a USB Micro-B cable, such as Tripp Lite’s UR050-Series (sold separately), between the unit’s USB Micro-B port and a USB wall charger or USB port on your monitor or computer. With its low-profile design, the B122-000-4K6 is easy to stow in your laptop bag and carry to school, the office or the latest trade show.

TAA-Compliant for GSA Schedule Purchases

The B122-000-4K6 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

3-Year Warranty and Environmentally Responsible Design

The B122-000-4K6 comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
