Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Signal Splitters/Amplifiers
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

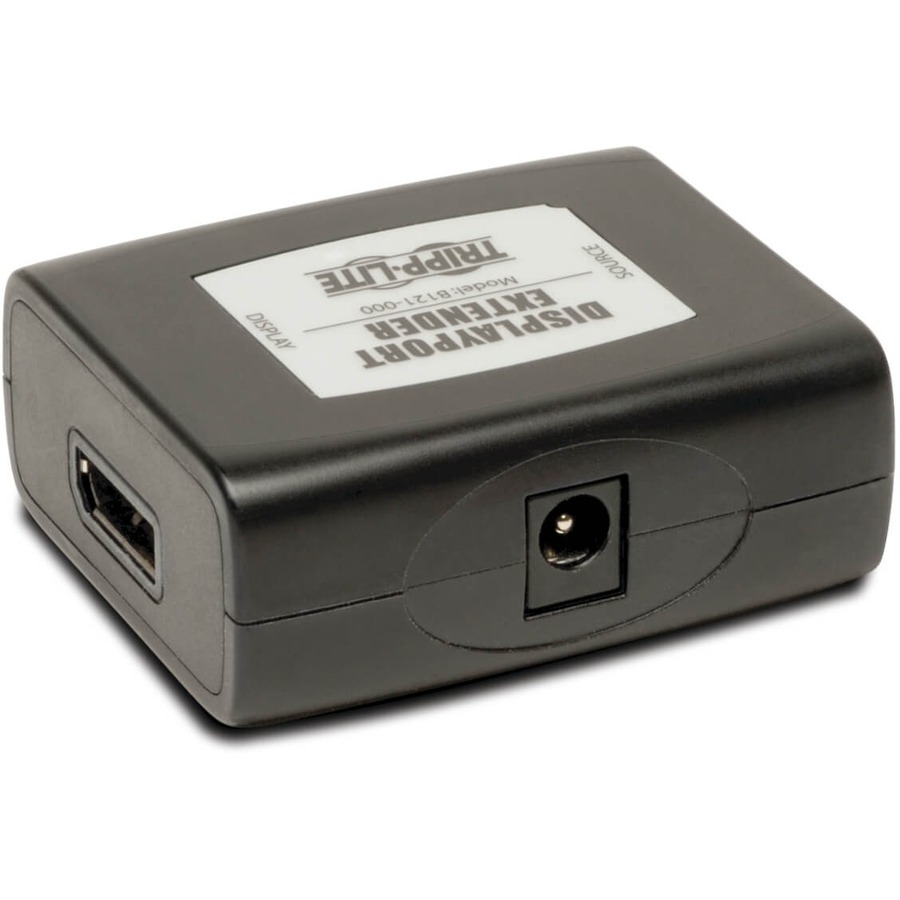

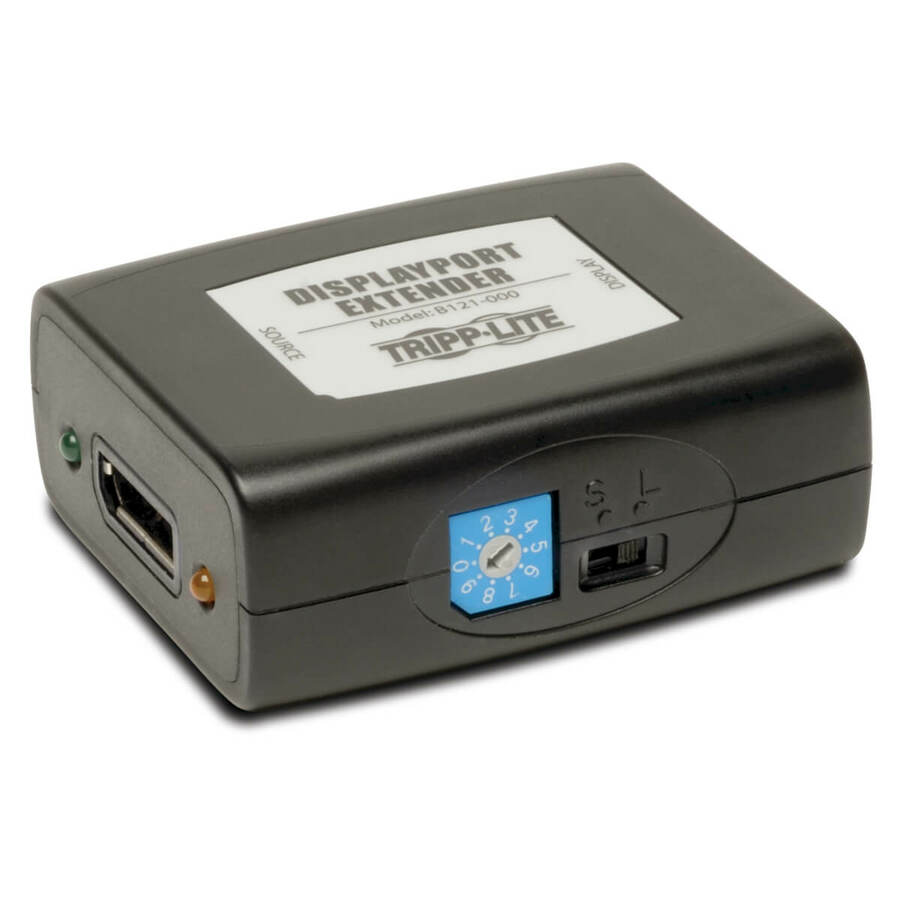

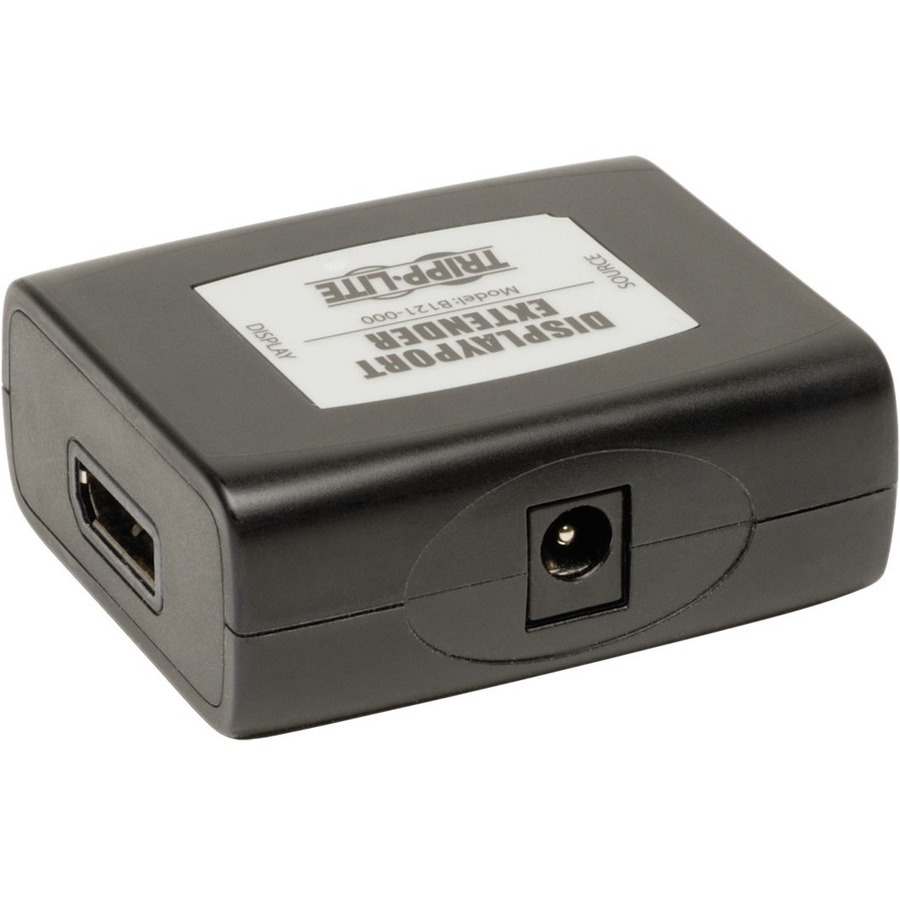

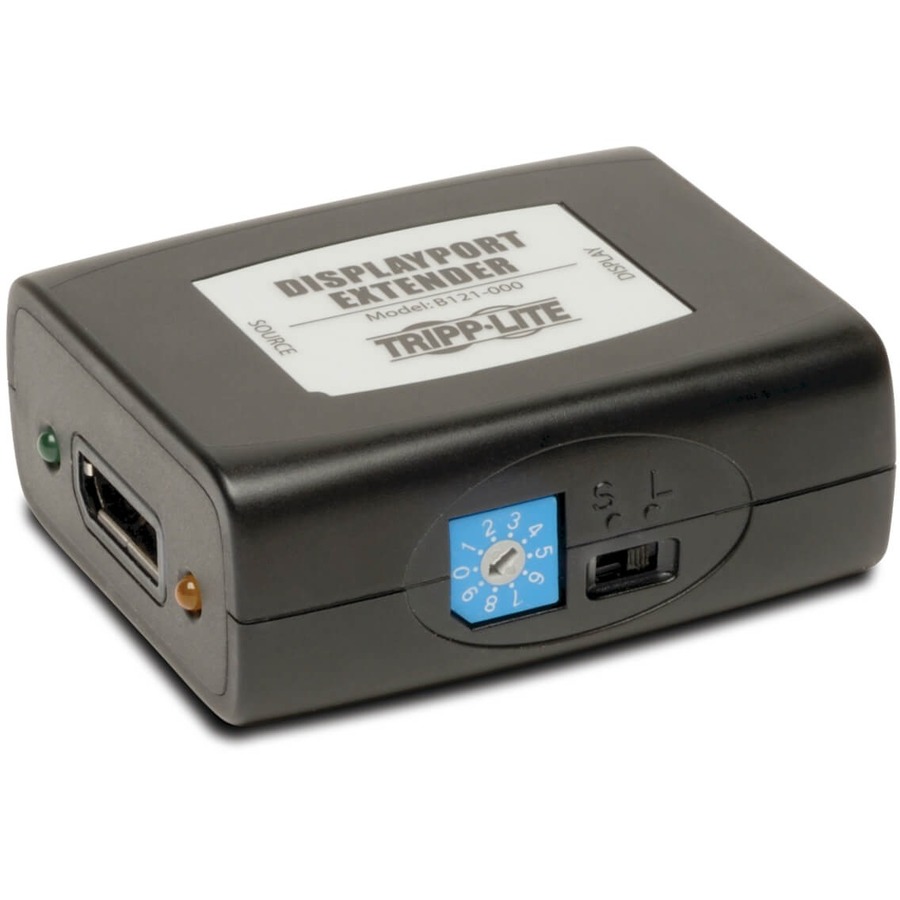

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 150 ft. from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
• Extend a Displayport signal up to 150 ft. from the source
• Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
• Use P580-Series Displayport Cables
• When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
• Built-in Equalization control to adjust the video image
• HDCP compliant
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
More from the Manufacturer
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Extend a Displayport signal up to 150 ft. from the source
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) signal more than 100 ft., use cable made with 24Awg wiring
Built-in Equalization control to adjust the video image
Displayport v1.1a compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
B121-000
Brand Name
Tripp Lite series
Product Model
B121-000
Product Name
B121-000 Displayport Signal Extender
Product Type
Signal Repeater
Interfaces/Ports
DisplayPort
Yes
Number of DisplayPort Inputs
1
Number of DisplayPort Outputs
1
Media & Performance
Maximum Operating Distance
150 ft
Video
Maximum Video Resolution
1920 x 1200
Warranty
Limited Warranty
3 Year
Miscellaneous

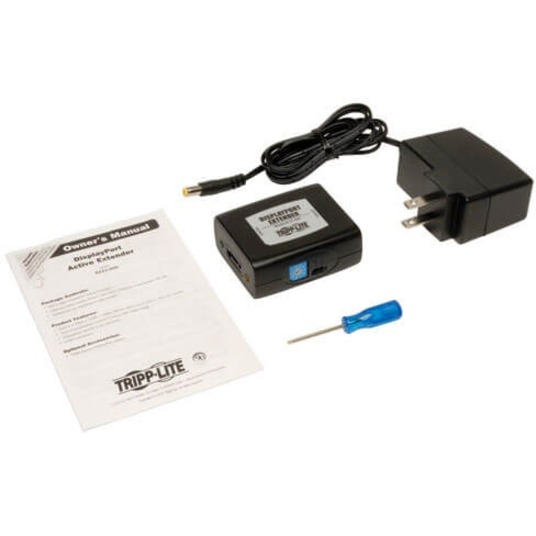

Package Contents
Displayport Active Extender Signal Booster ( Displayport F/F )
