SKU
B119-4X4
Category
Video Switchboxes
Overview

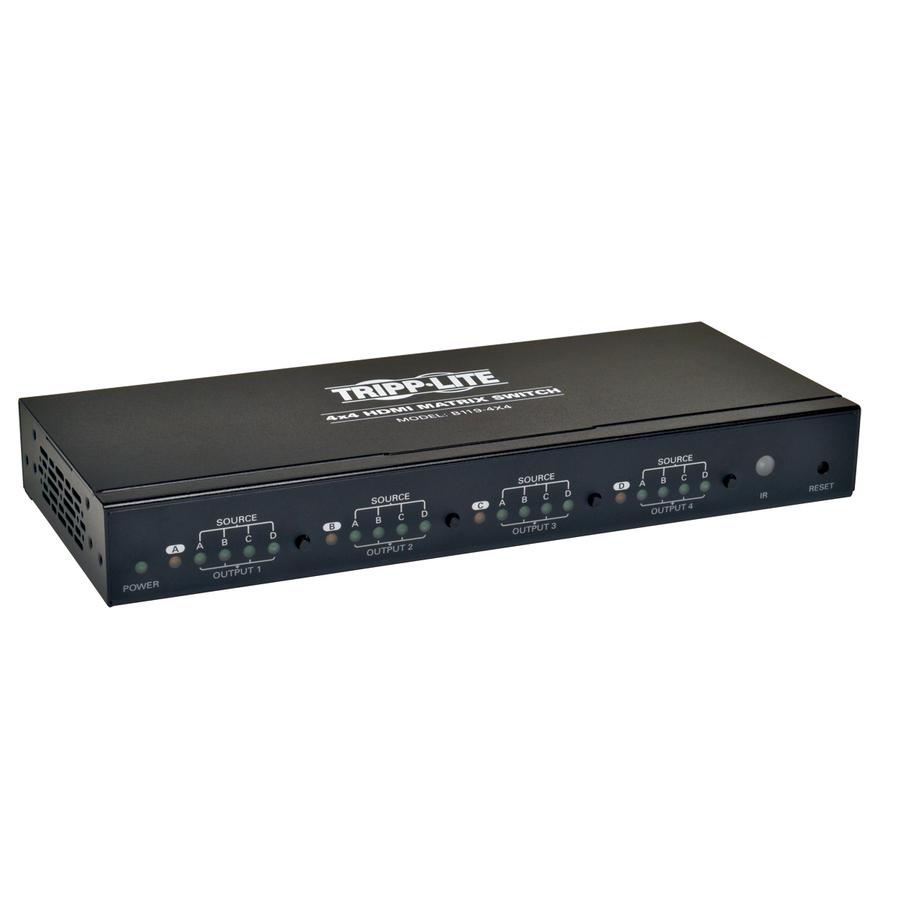

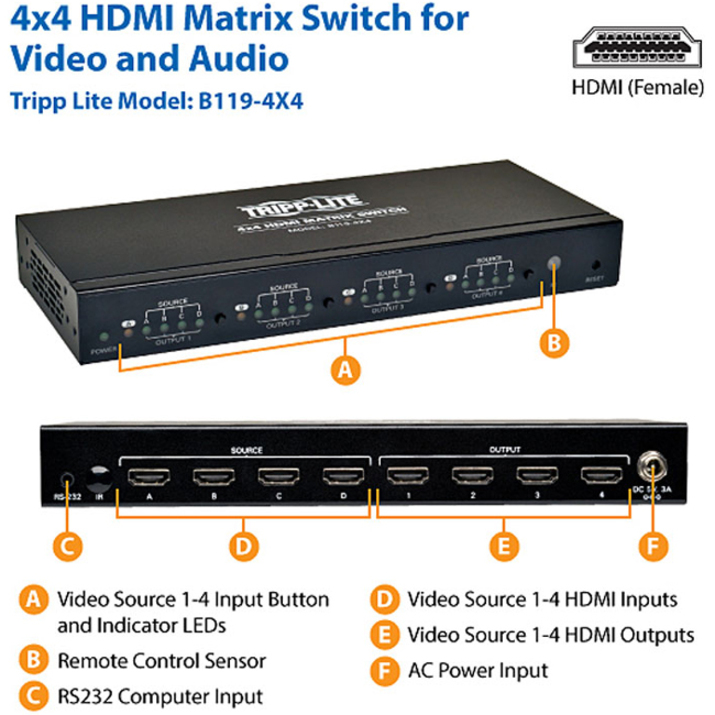

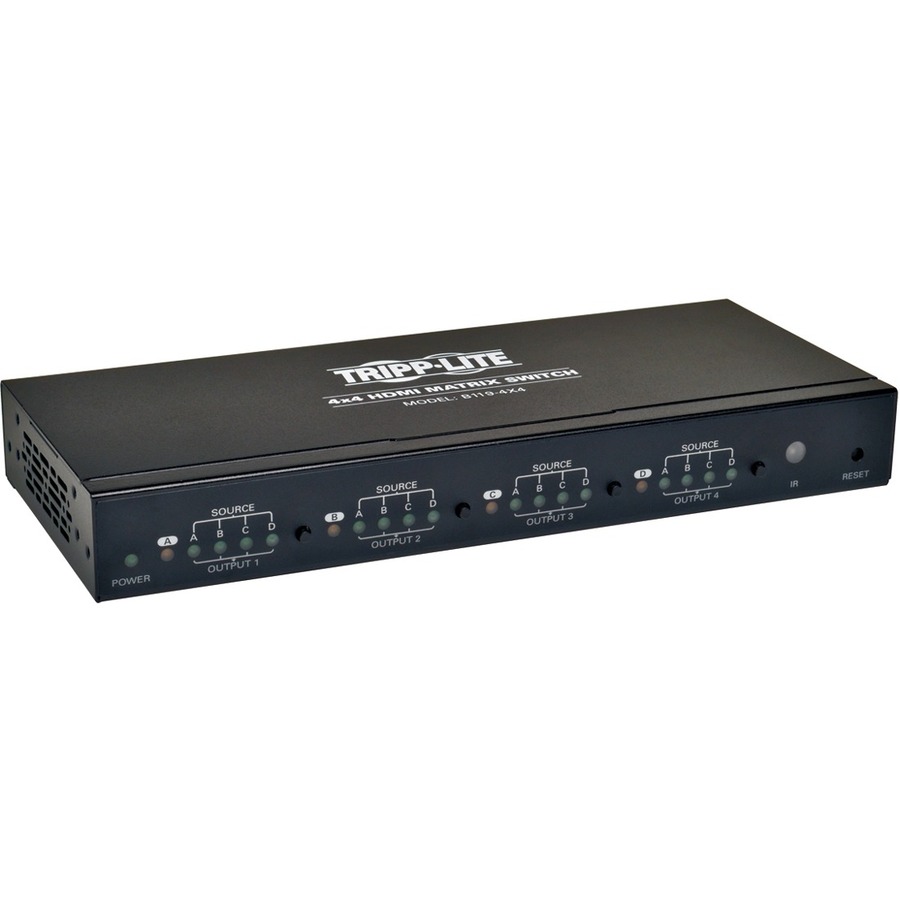

Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
More from the Manufacturer
Convenient IR Control and Plug-and-Play Setup
Displays can be located up to 25 feet from the B119-4X4. By connecting the included IR extension cable, you can extend the range of the remote control, which means, for instance, you can stand next to a display and still operate the unit. This allows you to place the B119-4X4 in a discreet location and still maintain switching functionality.
With no software or drivers to install, the B119-4X4's plug-and-play setup gets your application up and running faster. The unit supports HDCP and EDID. It’s compatible with all HDMI sources and all operating systems. Use the included mounting hardware to attach the B119-4X4 to a wall, pole or EIA-standard 19-inch rack.
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Share multiple HDMI sources between multiple monitors
Supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz
Plug-and-play; No software or drivers required
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
B119-4X4
Brand Name
Tripp Lite series
Product Model
B119-4X4
Product Name
4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
Product Type
Audio/Video Switchbox
Interfaces/Ports

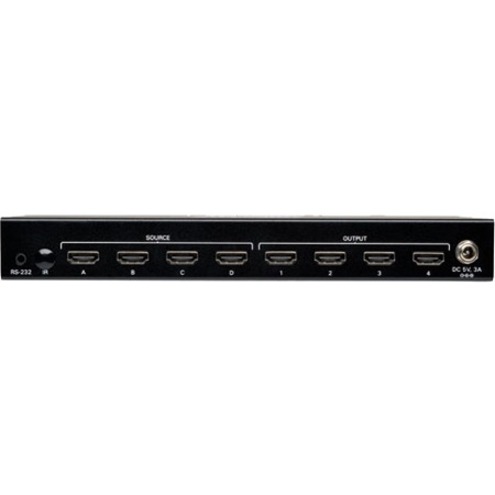

HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
4
Number of HDMI Outputs
4
Physical Characteristics
Height
1.2"
Width
9.2"
Depth
3.9"
Weight (Approximate)
1.45 lb
Technical Information
Number of Input Devices Supported
4
Device Supported
Display
Number of Displays Supported
4
Video
Graphics Modes
Full HD
Maximum Video Resolution
1920 x 1080
Warranty
Limited Warranty
3 Year
Miscellaneous

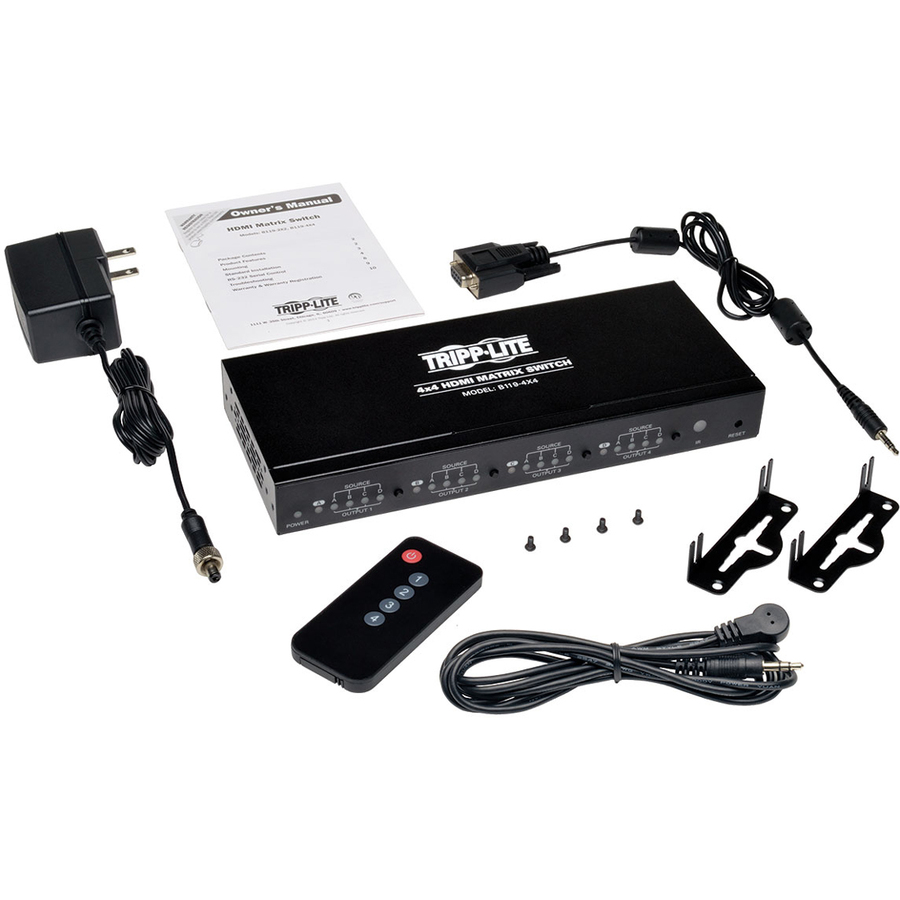

Package Contents
4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 3A)
