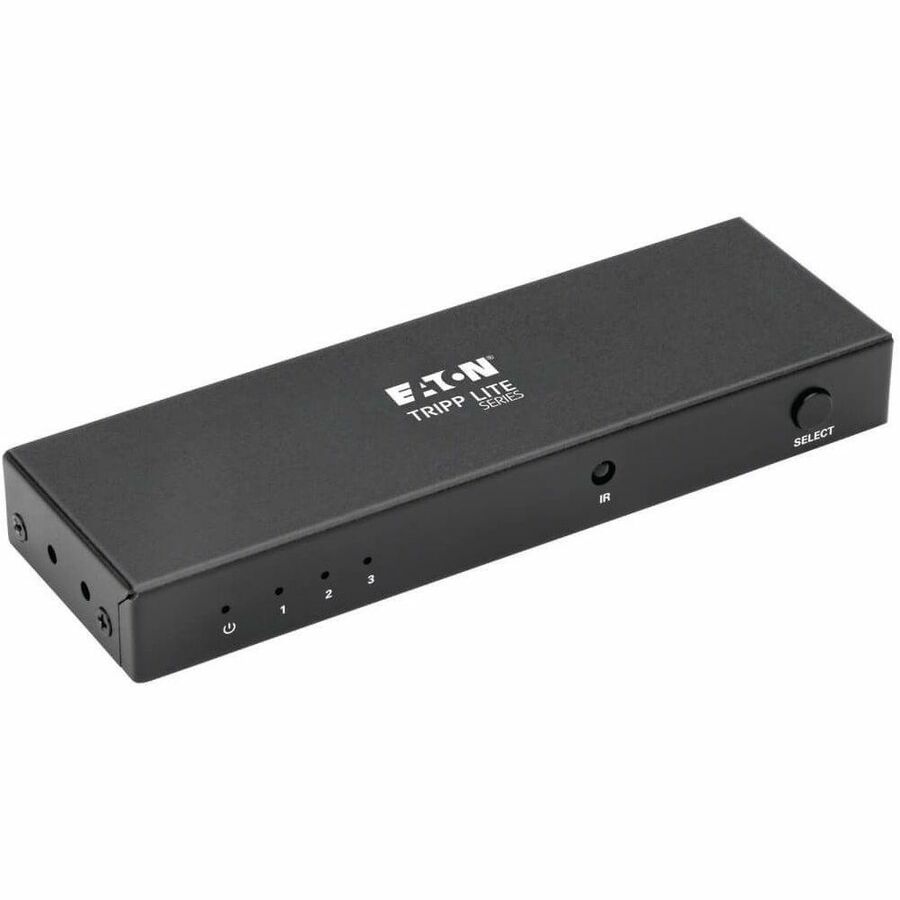

Eaton Tripp Lite Series 3-Port HDMI Switch with Remote Control - 4K @ 60 Hz (HDMI F/3xF), 3D, HDCP 2.2, EDID

Connect 3 HDMI Source Devices to an HDMI Display and Switch Between Them

This 4K HDMI switch allows you to connect three HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player, cable/satellite DVR and video game system to one HDMI port on a monitor, projector or TV. Or you can connect three computers or media centers to an HDMI display for exhibiting digital signage or giving presentations.

Hassle-Free Setup of 3 High-Definition Computers, Blu-Ray Players or Other Sources

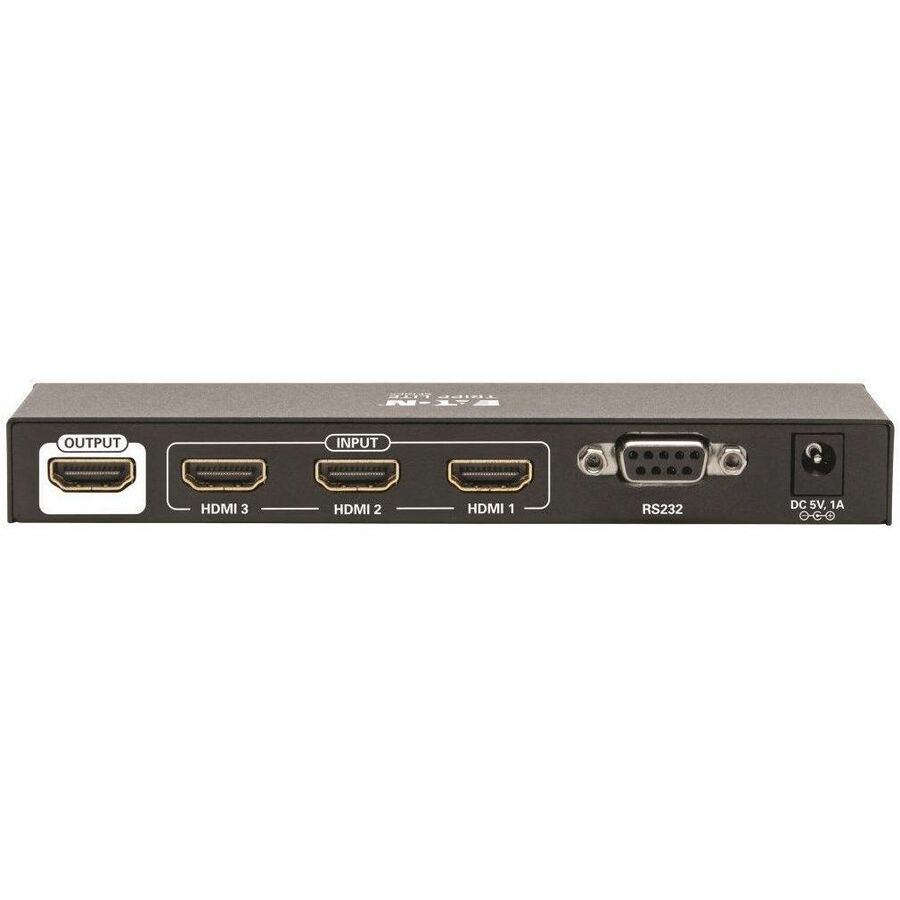

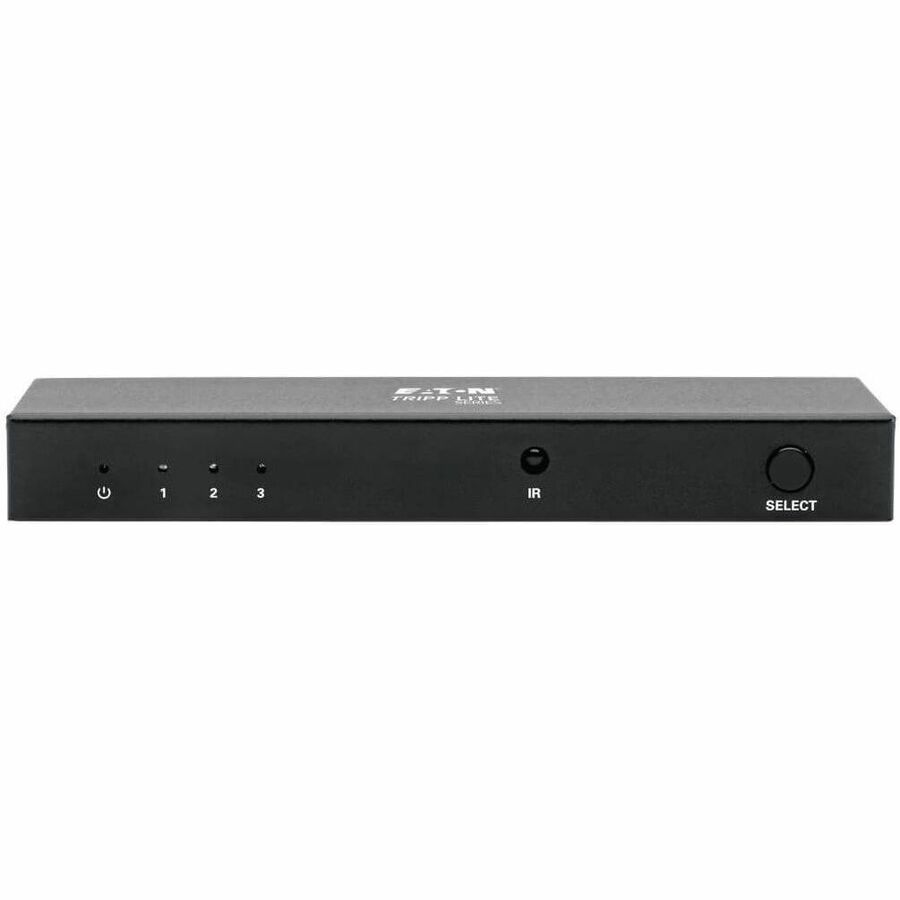

The B119-003-UHD is ideal for home entertainment systems, schools, point-of-sale displays, trade shows and anywhere else digital video is displayed. Connect up to three source devices to the HDMI input ports using HDMI cabling (sold separately), and plug the included external power supply into an AC power source. Another HDMI cable connects the HDMI output port to a monitor, projector or television. A red LED indicates the unit is receiving power, and blue LEDs indicate an HDMI signal is being received.

Easy Switching of Audio/Video Source Devices

You can switch from one source device to another in one of three ways: the Select button on the unit, the included remote control, or RS-232 serial control. An RS-232 serial port connects a computer via DB9 cable (sold separately).

Meets the Latest Audio/Video Standards, Including HDCP 2.2

The plug-and-play 3-port HDMI switch with remote control comes in a durable metal housing and requires no software or drivers. It meets current 3D, EDID, HDCP 2.2 and HDMI 2.0 standards to ensure you can use the switch with the most up-to-date Blu-ray players and other components. It supports Ultra High Definition (UHD) video resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz and 36-bit True Color (12 bits per channel), as well as 7.1-channel surround sound, DTS-HD, Dolby TrueHD, DSD (Direct Stream Digital) and HD (HBR) audio.

One-Year Warranty and Environmentally Responsible Design

The B119-003-UHD comes with a one-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

More from the Manufacturer

3-Port 4K HDMI Mini Switch Connects Three Devices to a Single HDMI Monitor

Tripp Lite’s B119-003-UHD-MN lets you connect three HDMI source devices to one port on an HDMI monitor and switch back and forth between them. For instance, you can connect your Blu-ray™ player, video game system and cable/satellite DVR to one HDMI port on your high-definition television. Or, you can connect three computers or media centers to a single monitor for displaying digital signage or giving presentations.

Typical Applications

Seamlessly switch between three source devices when connected to a single HDMI-enabled monitor, TV or projector

Use in schools, retail locations, point-of-sale displays, trade show booths, conference rooms and other places that require connection of multiple UHD sources connected to a single UHD display

The Most Up-to-Date Audio and Video Standards for a Top-Quality Experience

Your installation is guaranteed vibrant, rich sound and Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz. The B119-003-UHD-MN supports full 3D digital video and 48-bit True Color (16 bits per channel). It’s compatible with the latest HDCP and EDID content standards. It also supports DTS-HD, Dolby TrueHD and 7.1 channel surround sound for immersive, hi-fi audio.

Plug-and-Play Setup, Hassle-Free Switching Between Sources Manually or Remotely

With no software or drivers to install and no external power supply needed for most applications, the B119-003-UHD-MN sets up in seconds and is equally easy to use. Switch between source devices using the button on the unit or the included remote control. The included IR extender receiver lets you hide the unit out of sight while still being able to switch devices up to 16 ft. away using the remote. When the device in use is powered off, the unit automatically switches to the next powered-on device. For flexibility in your installation, the source devices and the HDMI display each can be located up to 16 ft. away from the switch.

Three-Year Warranty and Environmentally Responsible Design

For peace of mind, the B119-003-UHD-MN comes backed by a three-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

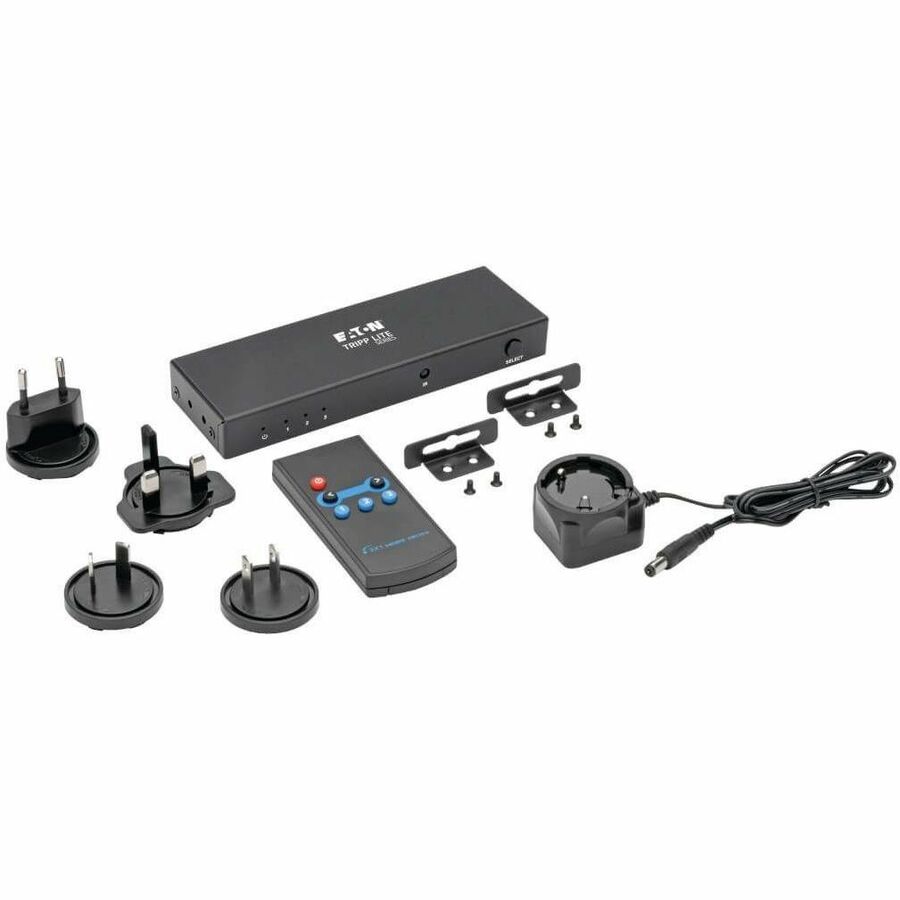

What’s in the Box

B119-003-UHD-MN 3-Port HDMI Mini Switch

Remote Control

IR Extender Receiver

Owner’s Manual

Tripp Lite B119-003-UHD-MN

Product Summary:

Lets you connect three HDMI source devices to one port on an HDMI monitor and switch back and forth between the sources

Supports UHD 4K x 2K video resolutions up to 3840 x 2160 (24/30 Hz)

Supports 48-bit True Color (16 bits per channel)

Supports DTS-HD, Dolby TrueHD, and 7.1 channel surround sound audio

HDCP and EDID compatible

Plug-and-play – no software, drivers or external power supply required

Three-year warranty
