Tripp Lite by Eaton 8-Port Console Server with 4G LTE Cellular Gateway Dual GB NIC 4Gb Flash and Dual SIM

Features

Access All Your Serial and Network Devices from Anywhere in the World

The B093-008-2E4U-V 8-port console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports for redundancy. You can use it in a wide variety of applications, including wiring closets, branch offices, point-of-sale and other remote sites where quick resolution of network issues is imperative.

Cellular Modem for Out-of-Band Access

A multi-carrier 4G cellular modem allows alternate remote access to the rack console in case the primary network goes down. The modem defaults to the Verizon network, but you can switch to AT&T, Rogers (Canada) and Telus (Canada) via the web GUI. This flexibility in networks saves you money by eliminating the need to buy a different modem for each carrier. Configurable port triggers and actions with SNMP, SMS and email alerts, such as pattern recognition, network connection, etc.

Simple and Flexible Accessibility

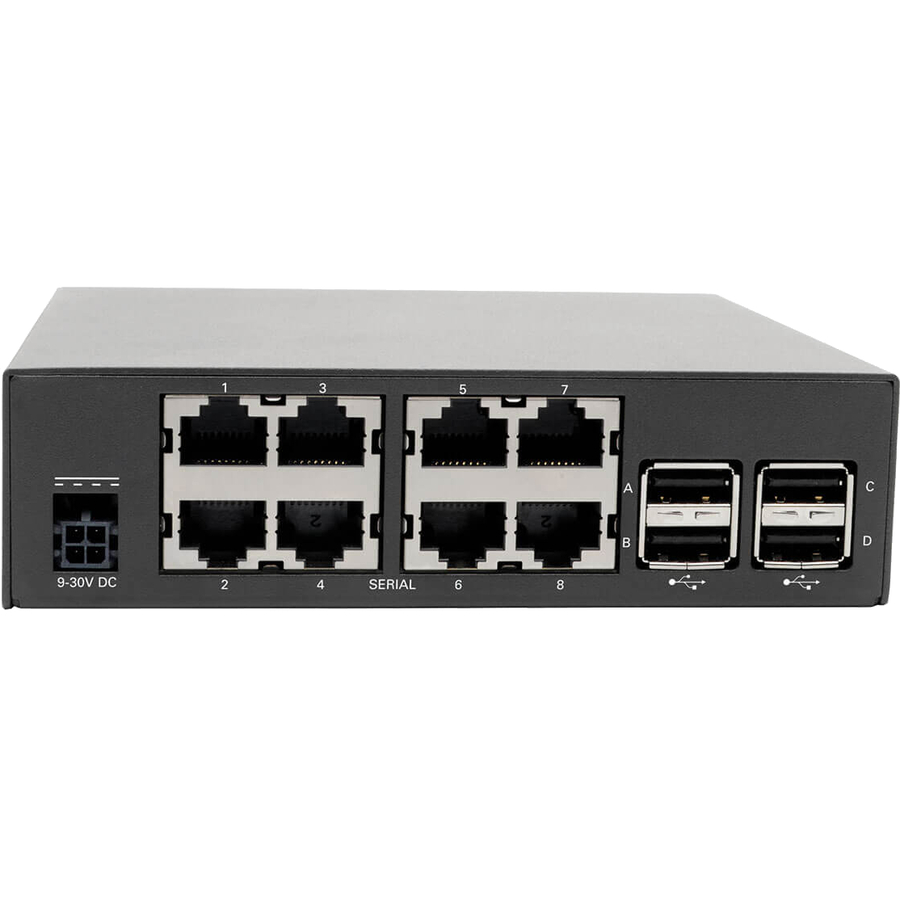

Eight serial RS-232 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 4 Gb of internal NAND flash memory.

Router/Gateway

Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This serial console switch also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.

The Utmost in Security to Keep Your Sensitive Data Private

The B093-008-2E4U-V supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.

PowerMan PDU and UPS Support

This 8-port console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment.

USB Console and Digital I/O (DIO) Ports

Four USB 2.0 console ports allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX and LX Platform remote management cards. Two DIO ports are included for connecting compatible devices, such as drive relays and alarms.

Compact Design for Convenient Mounting

The heavy-duty steel housing comes with mounting brackets for easy installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on four included rubber feet that help prevent the unit from sliding.

TAA-Compliant for GSA Schedule Purchases

This rack console server is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

2-Year Warranty and Environmentally Responsible Design

The B093-008-2E4U-V comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Lets You Access All Your Serial and Network Devices from Anywhere in the World

Tripp Lite’s B093-008-2E4U-V 8-Port Console Server provides secure, remote access to in-band (primary network) and out-of-band (alternate channel) serial- and network-connected devices, such as routers, switches, firewalls, PBX systems, UPS systems and PDUs. With redundancy-providing dual Gigabit primary and failover Ethernet ports, it offers reliable connectivity and can be used in a wide variety of applications, including server rooms, wiring closets, branch offices, retail environments and other remote sites where quick resolution of network issues is critical.

Securely access and control routers, switches, firewalls and other serial-connected devices in server room, wiring closet, branch office or retail environments

Remotely manage diverse server and device platforms using a network connection

Oversee IT infrastructure remotely via a secure network connection

Troubleshoot equipment issues without spending time/money traveling to remote locations

Provides Remote Access via Your Cellular Network If Your Primary Network Fails

This next-generation console server features a built-in multi-carrier 4G LTE cellular modem, which provides remote access in the event of a primary network failure. It defaults to Verizon’s network, but you can set it to AT&T, Rogers (Canada) and Telus (Canada) via its GUI interface. This flexibility saves you time and money by eliminating the need to buy a different modem for each carrier.

Features a Built-In Firewall and Network Forwarding

Each of the B093-008-2E4U-V’s gateways can port forward to an unlimited number of locally networked computers and routers. Those devices can then IP connect through the console server to devices on remote networks. Also included are a built-in stateful firewall and embedded DHCP server to host a separate LAN for critical traffic.

Keeps Your Sensitive Data Private and Secure

This advanced console server provides the utmost in security with support for the following standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, Open VPN and IPSec VPN. Its embedded FIPS 140-2 OpenSSL cryptographic module meets F1PS 140-2 regulations and has received Certificate #2473.

Provides remote monitoring and control for serial- and network-based devices

Features a built-in cellular modem for access to network devices in the event of primary network failure

Provides redundancy and reliability with dual Gigabit Ethernet ports (one for a primary network connection and one for automatic failover)

Designed for use with standard, off-the-shelf Cat5e/6 cable

Easy to install with included mounting hardware
