Tripp Lite by Eaton 16-Port Console Server USB Ports (2) - Dual GbE NIC 16 Gb Flash SD Card Desktop/1U Rack TAA

Access All Your Serial and Network Devices from Anywhere in the World at Any Time

This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports, dual SFP ports for fiber optic network connections, and dual power supplies. You can use it in a wide variety of applications, including wiring closets, branch offices, kiosks, point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative. You'll be able to manage a critical equipment outage quickly and remotely without making a costly and time-consuming physical visit to the site.

Simple and Flexible Accessibility

The 16 RJ45 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 16 Gb of internal NAND flash memory, which can be used for log storage and file storage, and is expandable with an SD card.

Connect the Built-In V.92 Modem for Out-of-Band (OOB) Access

For OOB access, connect an RJ11 cable between the front-facing RJ11 port and a functioning landline port to allow the V.92 modem to dial out.

Router/Gateway

Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.

The Utmost in Security to Keep Your Sensitive Data Private

The B098-016 supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.

PowerMan PDU and UPS Support

This USB console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment.

USB Console

Two USB 2.0 console ports allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX or other LX Platform remote management cards.

Compact Design for Convenient Mounting

The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding.

TAA-Compliant for GSA Schedule Purchases

The B098-016 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

More from the Manufacturer

Remotely Access Servers, KVM Switches, Routers and Other Serial-Based Network Devices in your Data Center

16-port console server enables remote management of routers, UPS systems and other serial-based network devices using one highly secure gateway

Meets PCI DSS 3.2, FIPS 140-2, SSL, SSH, stateful firewall, OpenVPN and IPSec VPN security standards

Features dual Gigabit Ethernet ports for primary connection and automatic failover

Includes Wi-Fi diversity antenna and supports both Client and WAP modes

Included mounting hardware for desktop or rack-mount installation

Equipped with Advanced Software and Security Features

The B098-016 offers software and security features that surpass the requirements of even the most demanding applications. These features include Network UPS Tools for UPS monitoring and PowerMan for PDU and RPC functions. It also supports PCI DSS 3.2, FIPS 140-2, SSL, SSH, stateful firewall, OpenVPN and IPSec VPN security standards. Its embedded Open SSL module is validated to meet FIPS-140-2 standards and has received certificate #2473.

Remotely access servers, KVM switches, routers and other serial-based network devices in your data center

Quickly identify and resolve network issues without having to make a trip to the site

Troubleshoot equipment issues in server rooms and wiring closets from remote locations

Feature Focus

Access and Control Network Devices from Anywhere in the World

Tripp Lite’s B098-016 16-Port Console Server provides in-band and out-of-band remote access to routers, servers, switches, firewalls, UPS systems, PDUs and other serial-based network devices. In just 1U of space, it offers reliable connectivity with dual Gigabit primary ports, a failover Ethernet port, dual SFP ports and dual power supplies (two C13 to 5-15P power cords included). It’s perfect for remote management of small to mid-size data centers, server rooms, wiring closets, branch offices, point-of-sale kiosks and any location that requires immediate resolution of network-based issues.

Connects Easily without Hassle

This console server uses standard Cat5e/6 patch cables (two Cat5e cables included) and integrates easily with industry-standard servers via TACACS+, RADIUS, LDAP and Kerberos authentication. With 16 GB of internal NAND flash memory, you can use it to store logs and files without an external drive. The memory is expandable using a user-supplied SD card.

Features 2 USB Console Ports for Connection to Newer Devices

Two USB 2.0 console ports allow you to connect the B098-016 to newer USB devices, like Tripp Lite’s WEBCARDLX-equipped UPS systems and PDUs.

Includes Wi-Fi Diversity Antenna

The B098-016 includes Wi-Fi and supports both Client and WAP modes. Simply attach the included 2.4 GHz antenna to the unit’s main Wi-Fi port, and you’re ready to go. For a stronger signal, connect a second antenna (not included) to the unit’s auxiliary port.

Features Gateways that Port Forward to an Unlimited Number of Local Hosts

The B098-016 features a built-in stateful firewall and embedded DHCP server that hosts a separate LAN for critical traffic. Each of its gateways can port forward to an unlimited number of computers, routers and other locally networked host devices.

Built-In V.92 Modem Supports Out-of-Band Access

In the event a remote site experiences network failure, the B098-016 supports out-of-band (alternate channel) access to devices. Simply connect an RJ11 telephone/modem cable between the unit’s front-facing RJ11 port and a functioning landline to allow the modem to dial out.

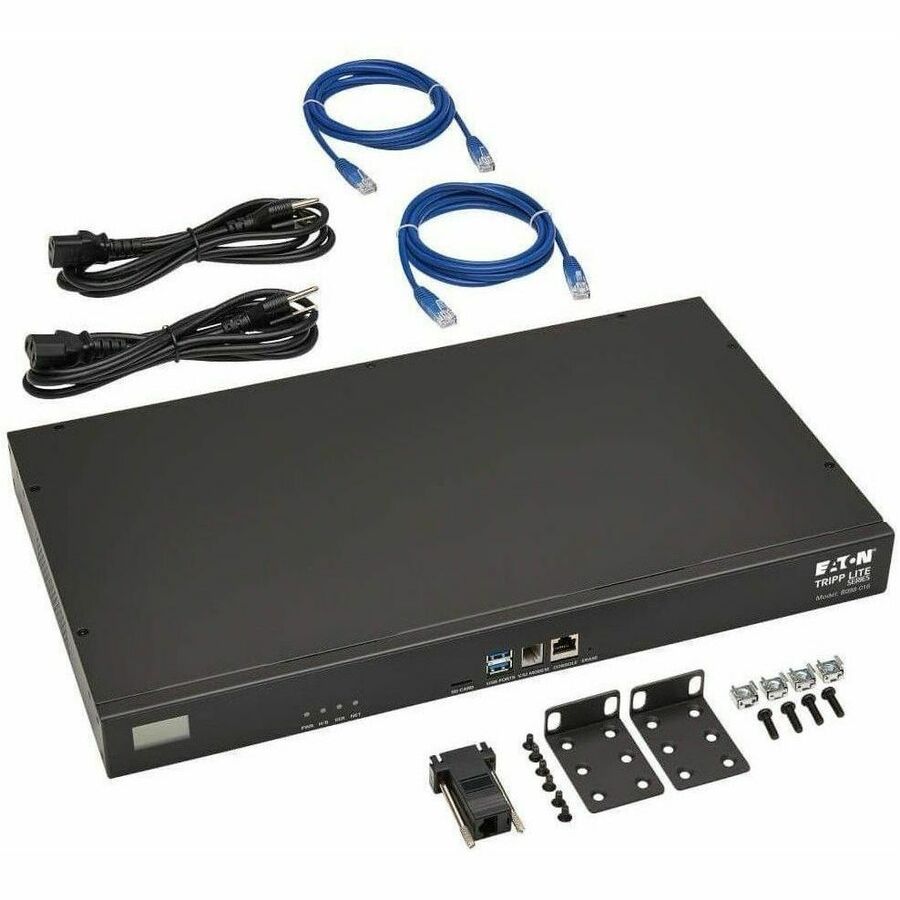

Mounts Easily with Included Hardware

The B098-016 comes with mounting brackets for installation in any EIA-standard 19 in. rack. It also includes rubber feet, so you can put it on a desk or table and not worry about it sliding around or marring the surface.
