Desktop - 12 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 12 x NEMA 5-15R
MSRP$225.57
$161.41
Save 28%In stock: 3,749
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

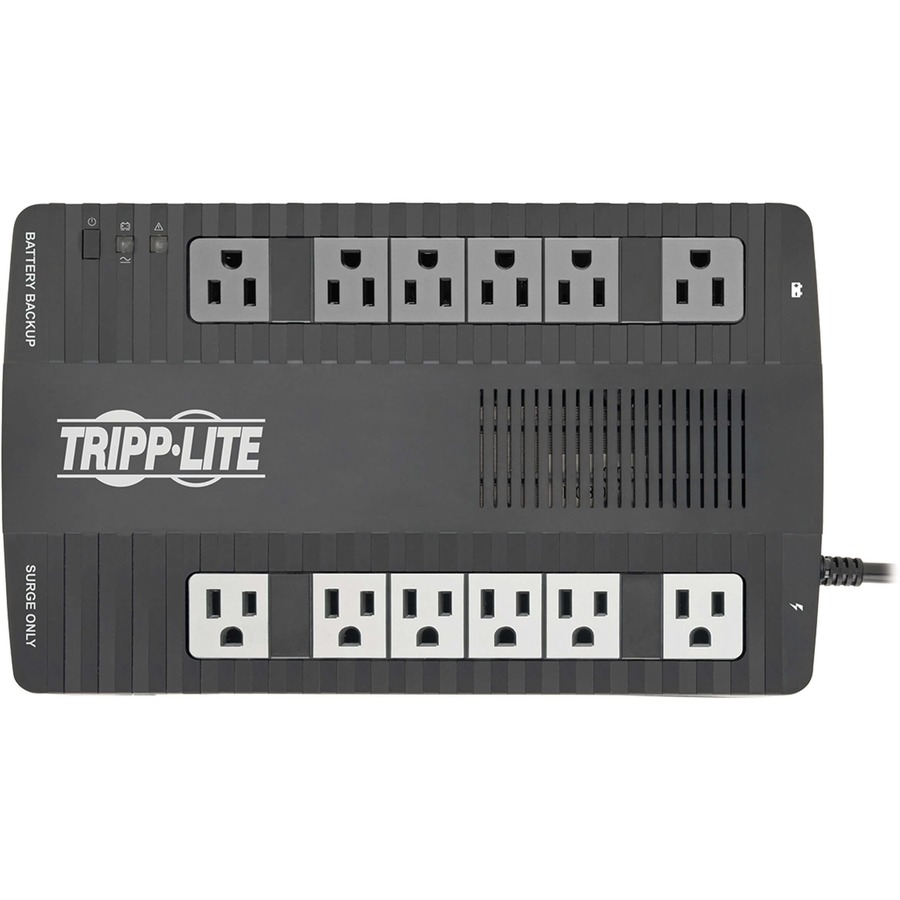

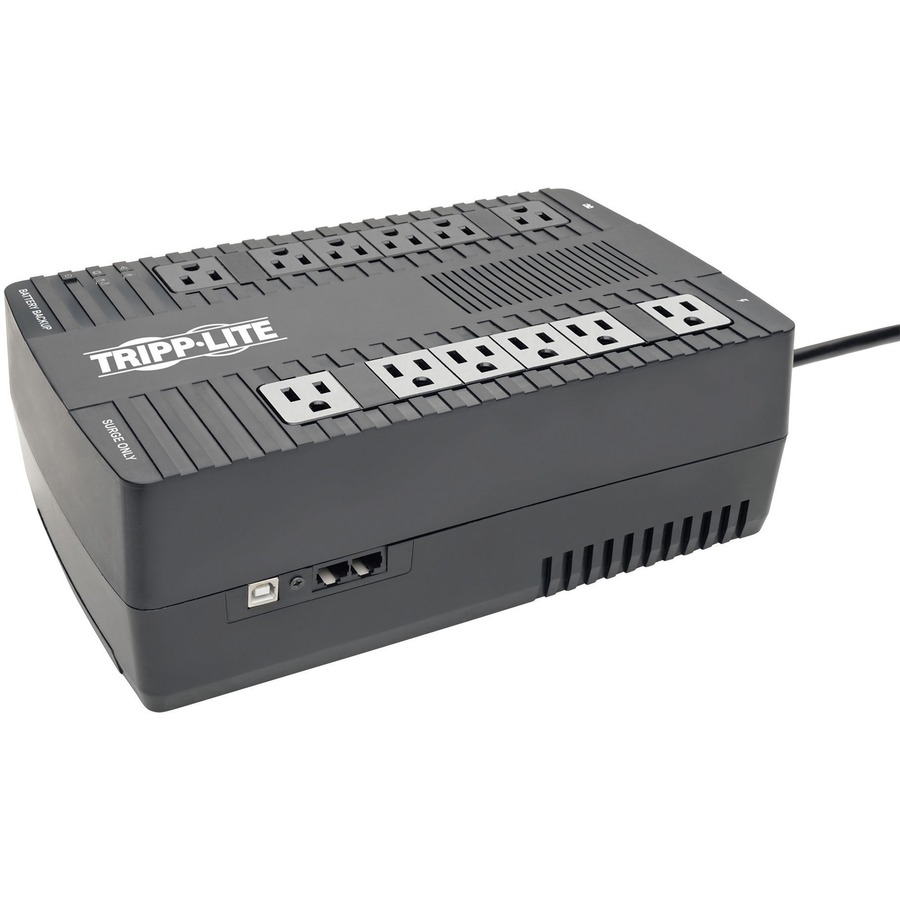

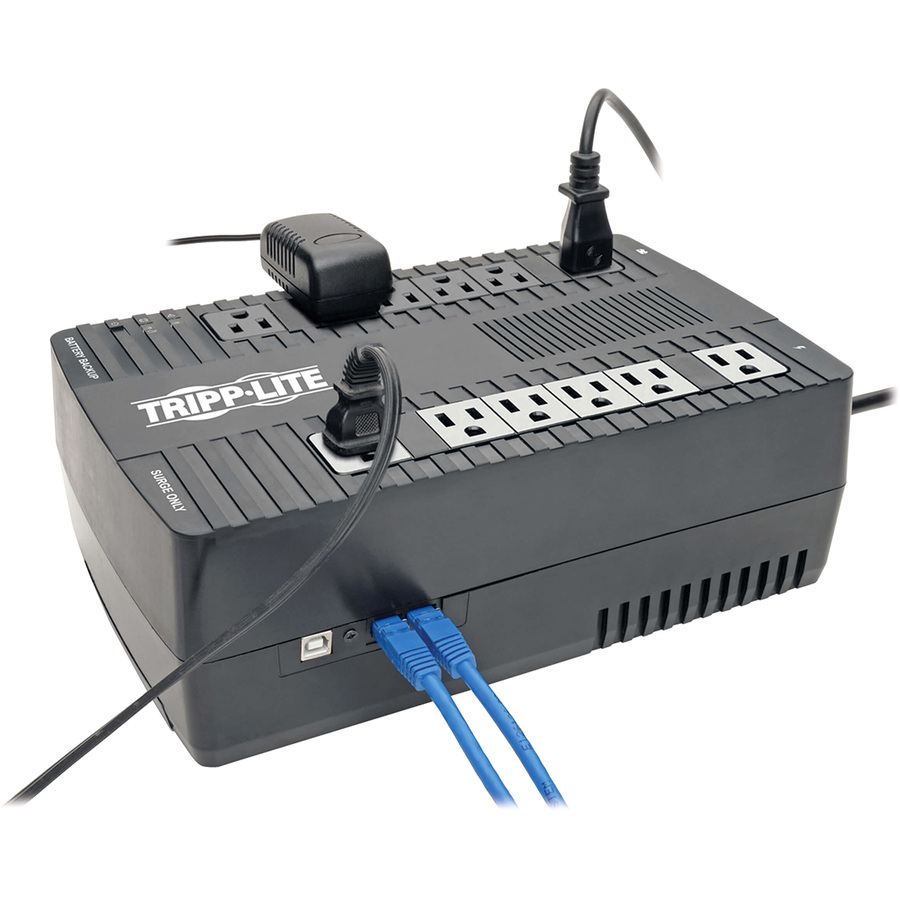

AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable. More from the Manufacturer
AVR750U
Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Tripp Lite's low-profile line-interactive UPS system fits small spaces and tight budgets. This versatile UPS provides advanced protection for a variety of electronics, including computers, smart devices and audio/video components.
Compact design saves space
Battery backup outlasts outages
AVR corrects abnormal voltages

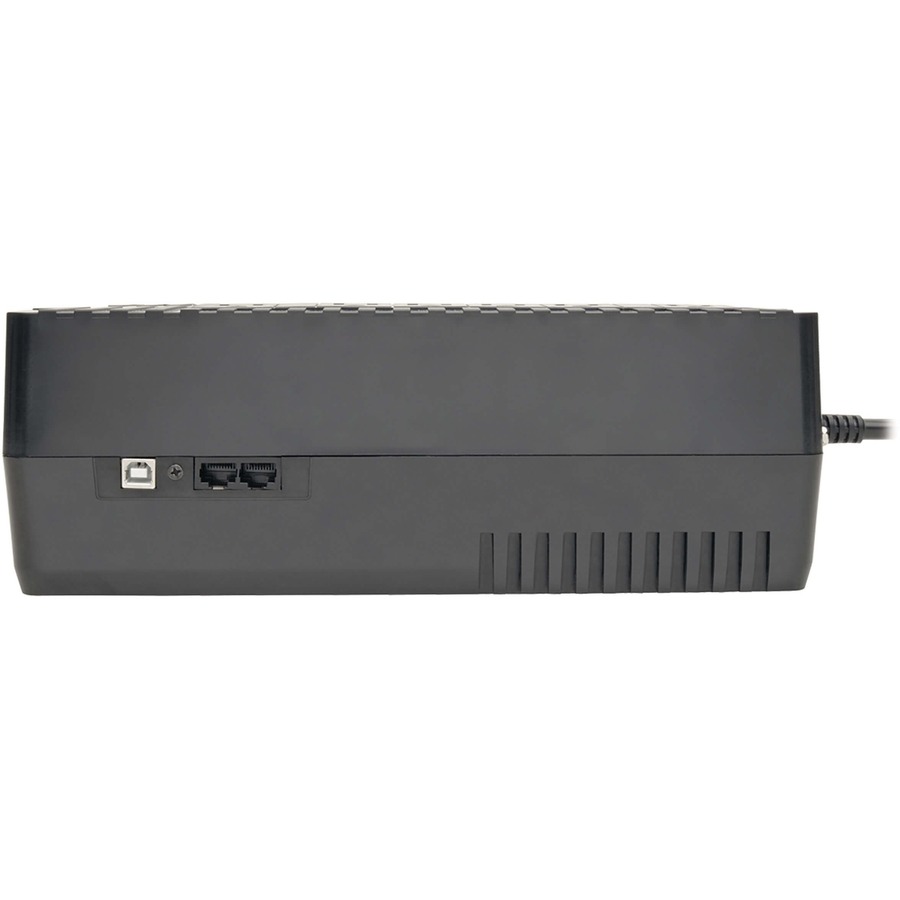

USB communication port enhances manageability
Surge/noise protection prevents damage
Diagnostic LEDs display power conditions
RJ45 jacks protect phone or network line
Advanced Protection for:
PCs, Monitors, Printers, Wireless Routers, Modems, NAS, HDTVs, DVRs, Video Game Consoles, Media Players, Disc Players, Smart Speakers, Security, Digital Signage, POS Systems, Kiosks, ATMs, Phone Systems
Low-Profile Design
Saves space in cramped offices, kiosks, network closets, media cabinets and retail stations.
Battery Backup
Outlasts most outages to prevent system downtime and allows time to shut down during extended outages.
Automatic Voltage Regulation (AVR)
Corrects abnormal voltages without switching to battery, preserving battery charge and lifespan.
USB Communication Port
Connects to a PC for enhanced functionality, including unattended system shutdown during extended outages.
Surge/Noise Protection
Helps prevent hardware damage, poor performance, malfunctions and data loss.
Muted Battery Alarm
Remains silent until the battery is low, preventing nuisance beeping caused by brief power outages.
Additional Warranty Information: 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). Limited Warranty: 3 Year Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
How to Reset/Self-Test a Flatpack UPS System
AVR750U AVR Series UPS System
| Battery Information | |
|---|---|
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 9 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | AVR750U |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Name | AVR 750VA Desktop UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Battery Backup, Low Battery, Overload, Replace Battery, Fault |
| Physical Characteristics | |
| Product Color | Black |
| Height | 4.14" |
| Width | 7.48" |
| Depth | 12" |

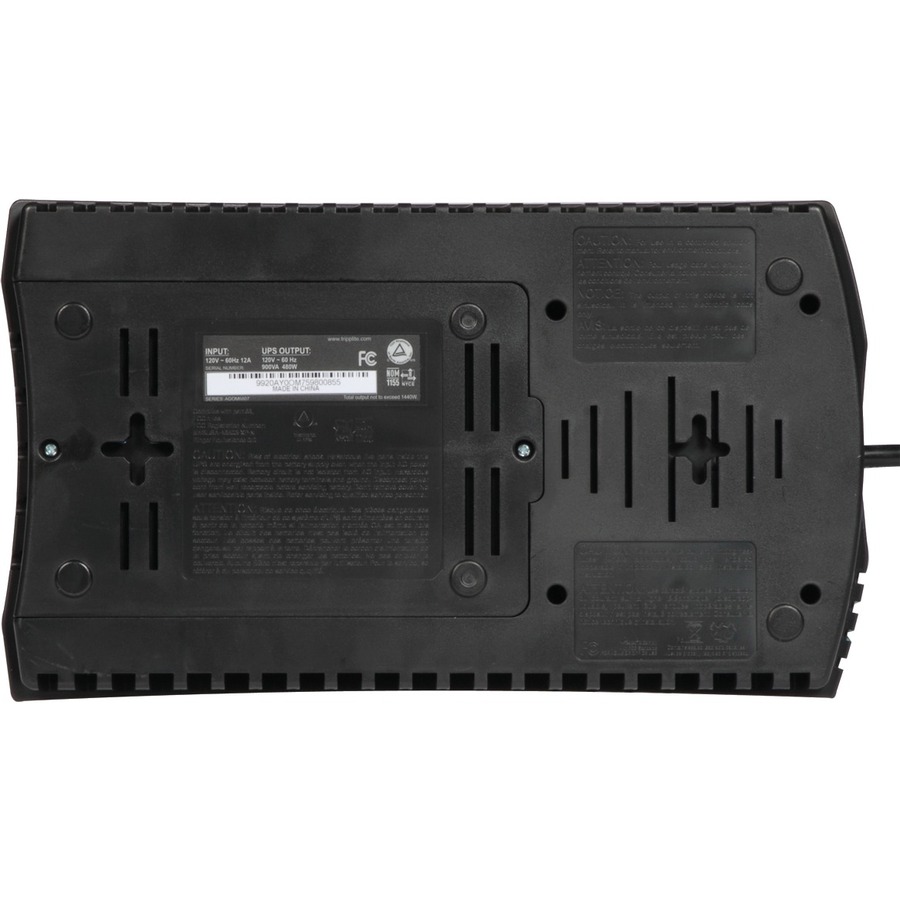

| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 15.84 lb |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 110 V AC, 115 V AC, 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Technical Information | |
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Computer, Router, Printer, TV, Blu-ray Player, Gaming Console, ATM, Security System, Digital Signage, Home/Office, Media Center, Home Theater |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
| Additional Warranty Information | 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
