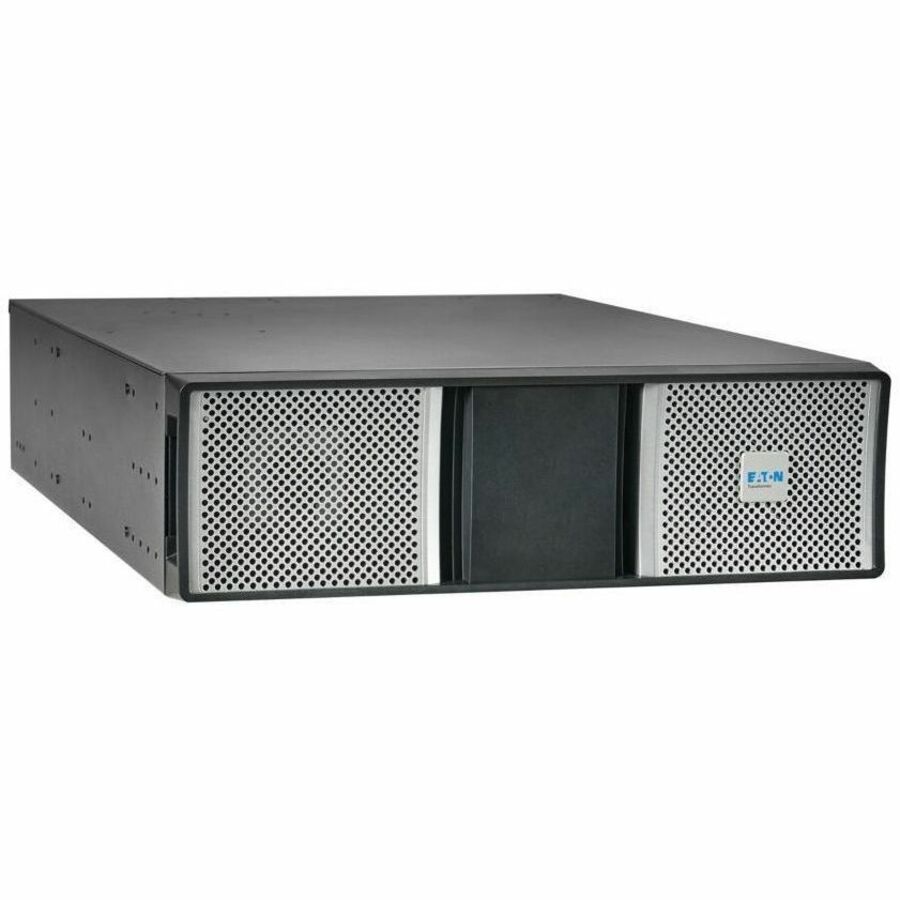

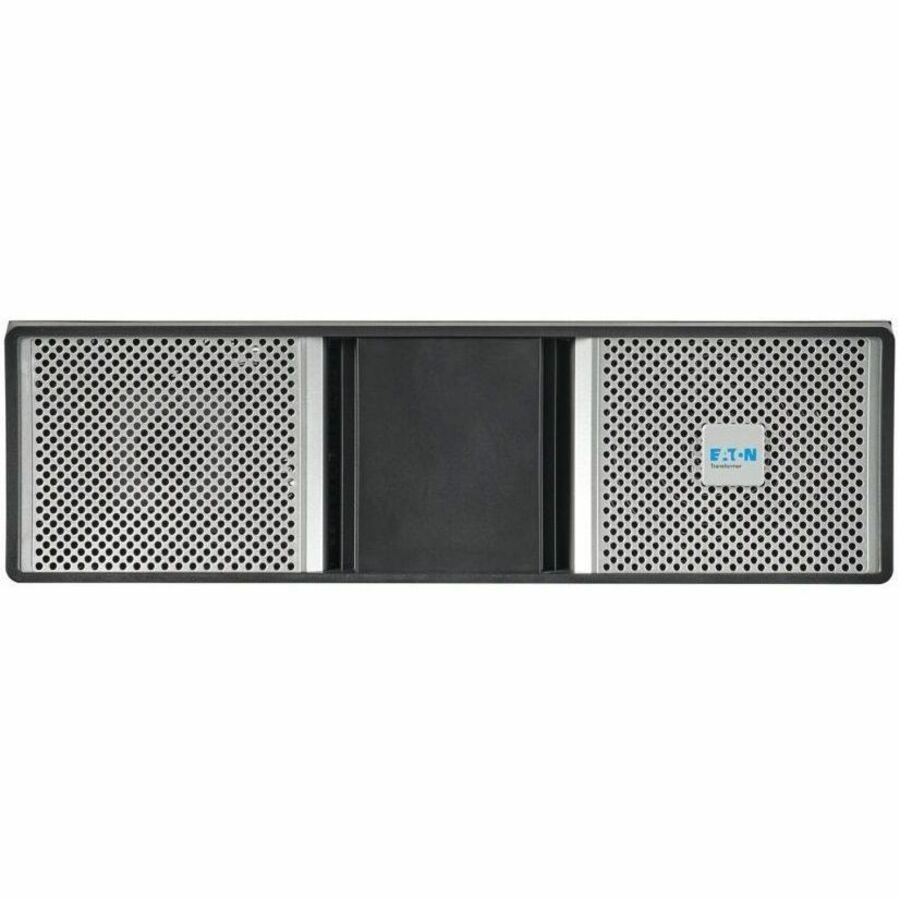

Eaton 9PX G2 5kVA 120V Step-Down Transformer - 18 NEMA 5-20R Outlets, 60 Hz, L6-30P Input, 3 ft. Cord, 3U Rack/Tower
Eaton

Eaton 9PX G2 5kVA 120V Step-Down Transformer - 18 NEMA 5-20R Outlets, 60 Hz, L6-30P Input, 3 ft. Cord, 3U Rack/Tower

10000 VA - 230 V AC Input - 120 V, 100 V Output - 3U

SKU
9PXTFMR5G2
Category
Transformers

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
9PXTFMR5G2
Category
Transformers

Overview

208V to 120V Transformer Converts High-Voltage Input to Low-Voltage Output

This 10kVA Step-Down Transformer converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features eight NEMA 5-20R and two L14-30R outlets for connecting equipment. Resettable circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR11G2 works with Eaton's 9PX8KG2 and 9PX11KG2 9PX G2 UPS systems.

Versatile Installation Options

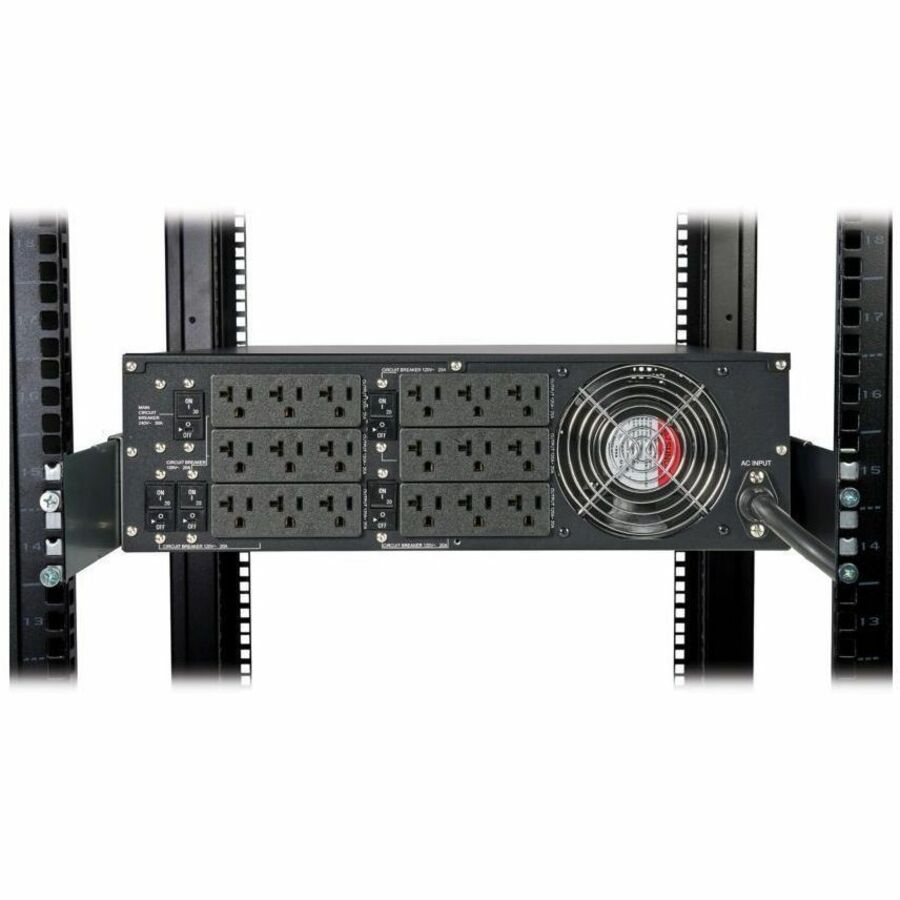

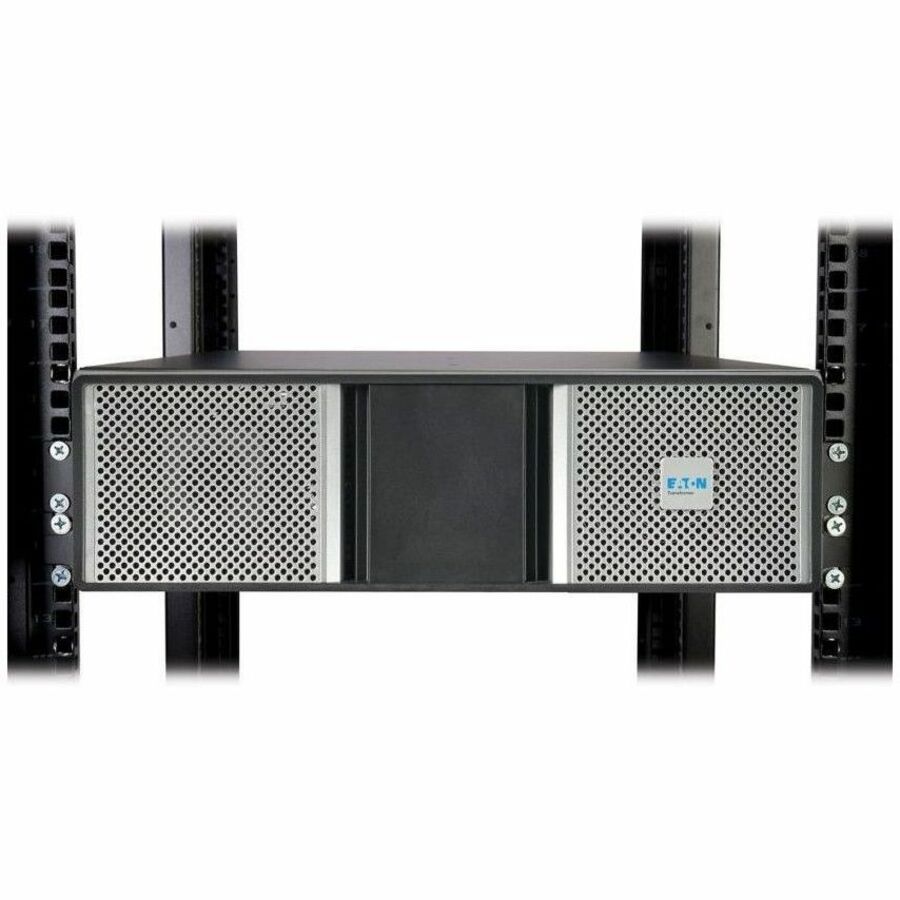

You can mount the 9PXTFMR11G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or adapt it for tower installation using the included joining bracket and hardware. Cable glands are included for hardwire input.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Converts 208V AC input into 120V output for powering low-voltage equipment

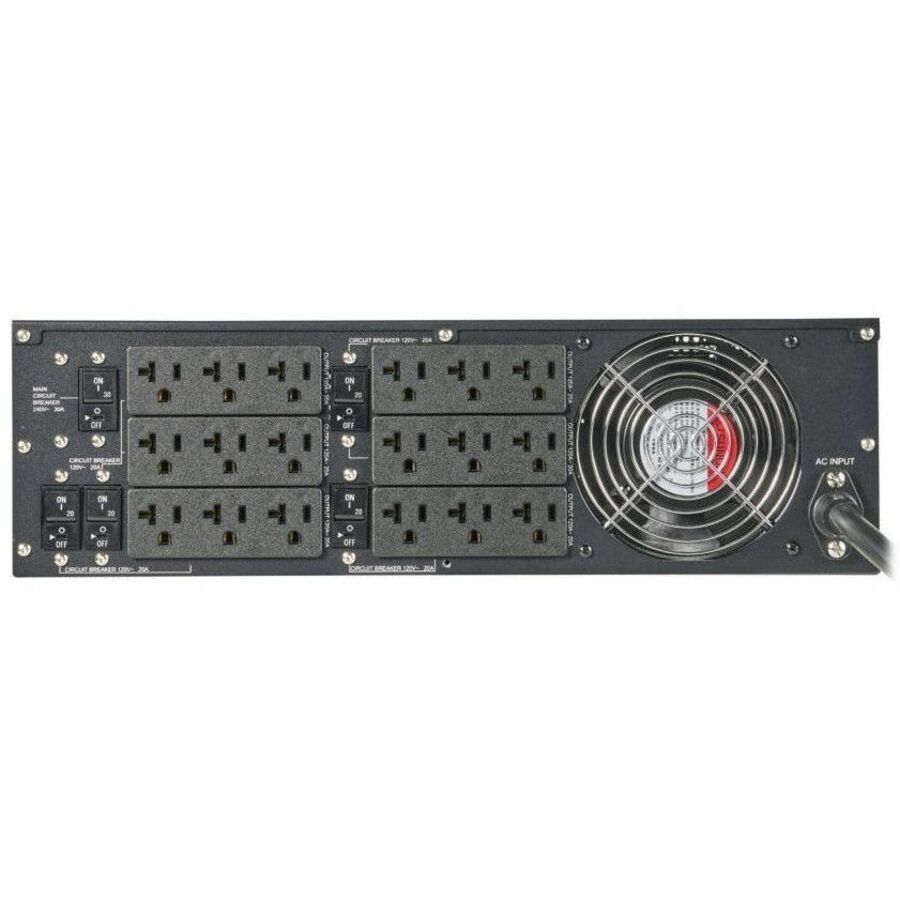

  • 18 NEMA 5-20R 120V outlets for connecting components with 5-15P or 5-20P plugs
  • Resettable circuit breakers protect mission-critical equipment from hazardous overloads
  • 3 ft. power cord with L6-30P input plug connects to compatible UPS system

Specifications

Package Contents
  • 9PXTFMR5G2 Isolation/Step-Down Transformer
  • Hardwire Cable
  • 2 x Cable Glands
  • Joining Bracket And Hardware For Tower Configuration
  • Rack-mounting Hardware
  • Owner's Manuals
Product TypeIsolation/Step-Down Transformer
Input Voltage230 V AC
Manufacturer Part Number9PXTFMR5G2
Limited Warranty3 Year
Output Voltage120 V, 100 V
Form FactorTower/Rack Mountable
ManufacturerEaton Corporation
Product Model9PXTFMR5G2
Product Name9PXTFMR5G2 Isolation/Step-Down Transformer
Rack Height3U
Power Rating10000 VA
Brand NameEaton
Country of OriginPhilippines
Height5.1"
Width17.3"
Depth27.4"
Energy StarYes
Input Receptacle TypeHardwired
Output Receptacle TypeNEMA 5-20R, NEMA L14-30R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
