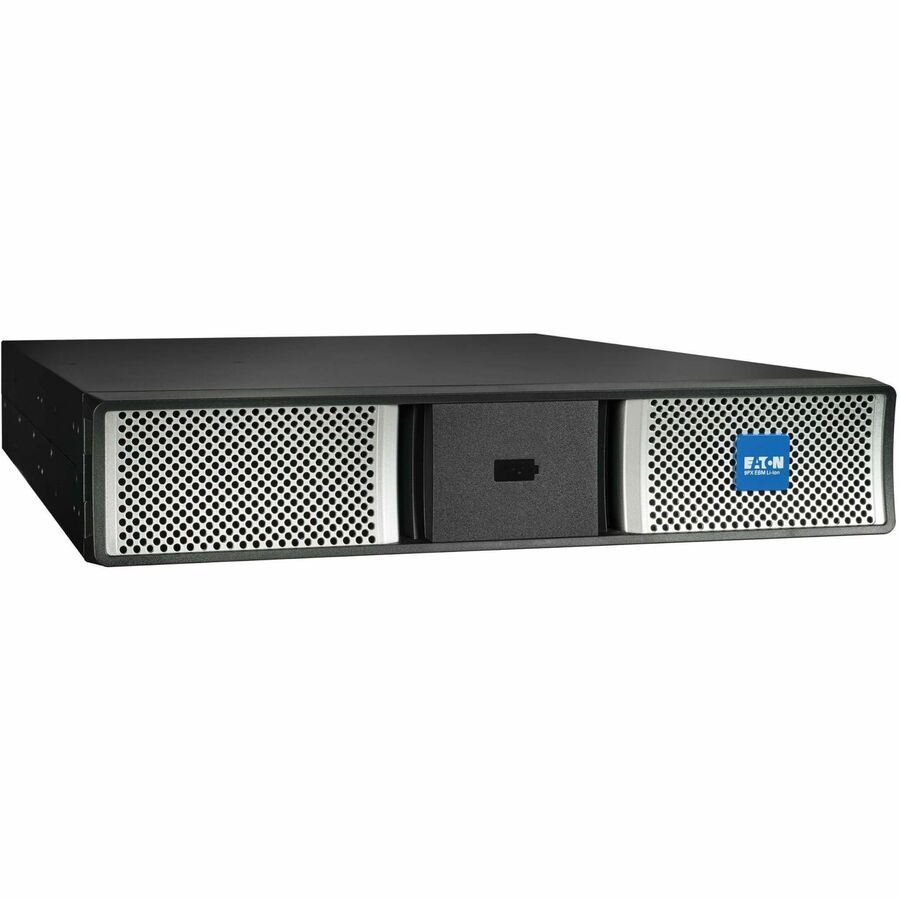

Eaton 9PX UPS Battery Pack

12000 mAh - 192 V DC - Lithium Iron Phosphate (LiFePO4) - Hot Swappable

SKU: 9PXEBM192RTG2-L
Category: UPS Batteries

MSRP$7,516.00

$4,880.32

Save 35%

In stock: 62

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: 9PXEBM192RTG2-L
Category: UPS Batteries

Overview

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

The lithium-ion 9PXEBM192RTG2-L offers extended battery runtime when used in conjunction with Eaton's 9PX6KG2-L, 9PX8KG2-L or 9PX11KG2-L UPS system. It can also be daisy-chained for a maximum of 10 matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Supports 2U Rack or Tower Installation

This lithium-ion backup battery pack is smaller and lighter than VRLA modules. Its multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack. For 2-post rack mounting, an optional RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.

Warranty

Limited Warranty: 5 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

Connects to expandable 6kVA-11kVA 9PX G2 UPS system for extended runtime
Improved lithium-ion batteries have lifespan up to 10 years - set it and forget it
Daisy-chain connector supports additional battery packs for even longer runtime
Includes heavy-gauge cabling with high-current 192V DC connectors
Supports 2U rack mounting or upright tower installation
5-year limited warranty

Specifications

Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Package Contents	9PX UPS Battery Pack External battery cable, 1 ft. (0.3 m) Rack-mounting hardware Quick Start Guide
Product Type	UPS Battery Pack
Compatibility	Eaton Uninterruptible Power Supplies: 9PX6KG2-L 9PX8KG2-L 9PX11KG2-L
Hot Swappable	Yes
Manufacturer Part Number	9PXEBM192RTG2-L
Limited Warranty	5 Year
Output Voltage	192 V DC
Weight (Approximate)	77 lb
Manufacturer	Eaton Corporation
Product Name	9PX UPS Battery Pack
Brand Name	Eaton
Height	3.4"
Width	17.2"
Depth	24.9"
Battery Size	Proprietary Battery Size
Battery Capacity	12000 mAh
Battery Energy	2304 VAh
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
