Eaton Two Rack mountable EBM required for either the 15kW or 20kW UPS Module

480 V DC - Lead Acid - Valve Regulated Lead Acid (VRLA)

SKU: 93PX2EBM480U
Category: UPS Batteries

MSRP$4,000.00

$3,246.62

Save 19%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: 93PX2EBM480U
Category: UPS Batteries

Overview

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

The 93PX2EBM480U offers extended battery runtime when used in conjunction with Eaton's 93PX 3-phase UPS systems. It can also be daisy-chained for a maximum of four auto-detected pairs of 3U extended battery modules (EBMs) to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

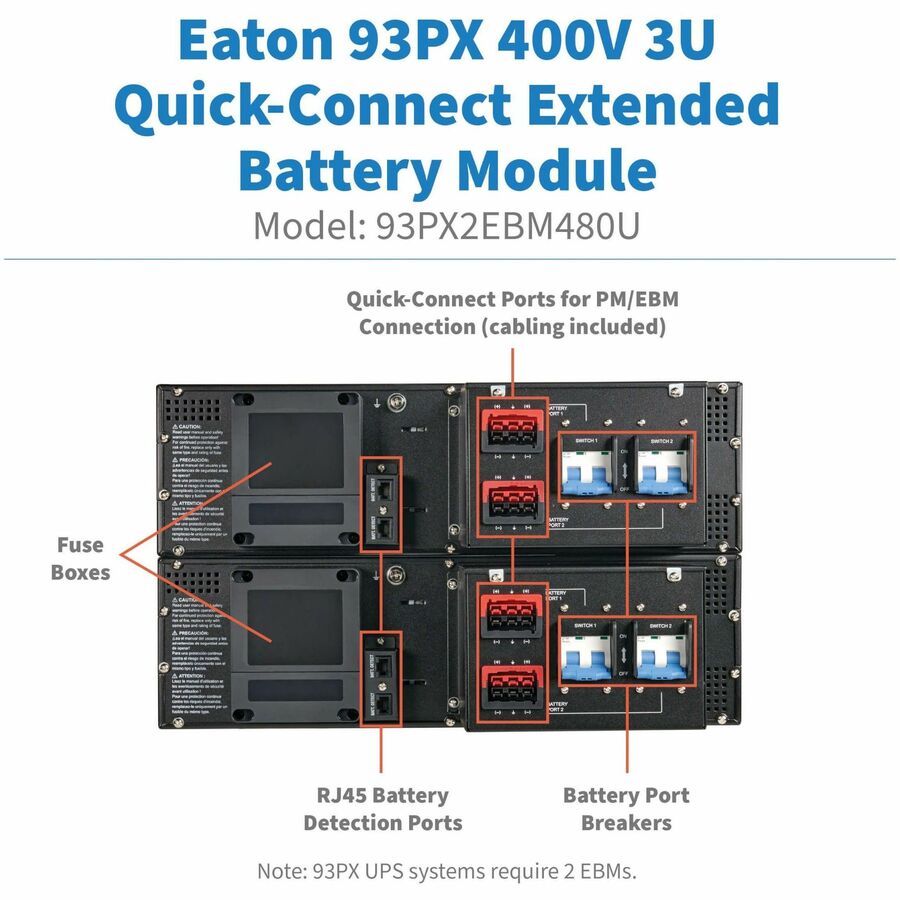

Innovative Quick-Connect Design for Easy Plug-and-Play Deployment and Service

Interconnections between the 93PX2EBM480U, UPS power module(s) and a maintenance bypass panel provide easy plug-and-play setup and serviceability. You can mount all UPS modules in an EIA-standard 19-inch rack using the included hardware, and connect the modules together using the included cables.

Warranty

Limited Warranty: 2 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

Includes one pair of 3U EBMs combined in one 6U application
Connects to select expandable Eaton 93PX UPS systems for extended runtime
Daisy-chain connector supports additional battery packs for even longer runtime
Comes with heavy-gauge cabling with high-current 480V DC connectors
Innovative quick-connect design for easy plug-and-play deployment and service
2-year limited warranty

Specifications

Battery Chemistry	Lead Acid
Package Contents	93PX2EBM480U Battery Unit Rack-Mounting Hardware Assorted Cabling User Documentation
Product Type	Battery Unit
Compatibility	Eaton 93PX 3-Phase UPS Systems
Manufacturer Part Number	93PX2EBM480U
Limited Warranty	2 Year
Output Voltage	480 V DC
Weight (Approximate)	157.60 lb
Manufacturer	Eaton Corporation
Product Model	93PX2EBM480U
Product Name	93PX2EBM480U Battery Unit
Brand Name	Eaton
Height	5.1"
Width	17.2"
Depth	27.3"
Battery Size	Proprietary Battery Size
Battery Characteristics	Valve Regulated Lead Acid (VRLA)
