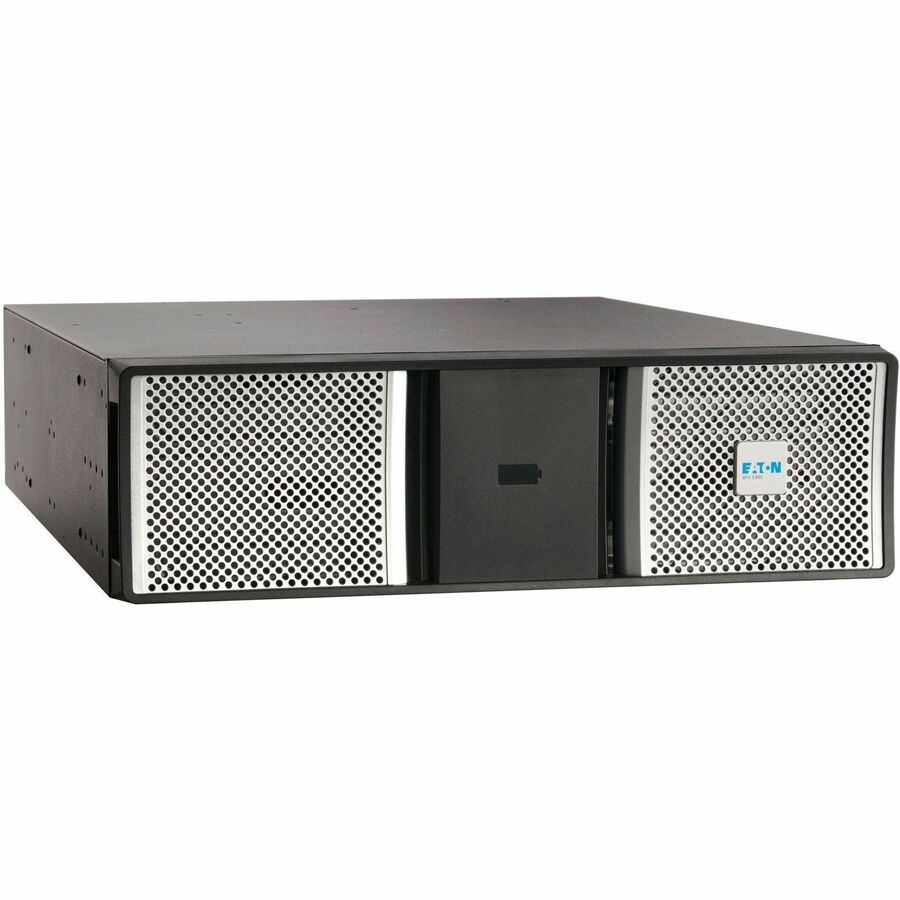

Eaton 240V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower

240 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable

SKU: 9PXEBM240RTG2
Category: UPS Batteries

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: 9PXEBM240RTG2
Category: UPS Batteries

Overview

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

The 9PXEBM240RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2, 9PX11KTF11MG2, and 9PX11KTF5G2 9PX UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Supports 3U Rack or Tower Installation

This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

Keeps your UPS up and ready for use at all times
Valve-regulated/User Replaceable battery characteristics provide dependable charging feasibility with maximum efficiency
In terms of cost per watt hours, it is an inexpensive choice providing efficient power
240 V DC battery ensures a steady and constant electric supply to UPS

Specifications

Battery Chemistry	Lead Acid
Package Contents	9PXEBM240RTG2 Battery Unit External Battery Cable, 1 ft. (0.3 m) Tower Support Stands Rack-mounting Hardware Quick Start Guide
Product Type	Battery Unit
Compatibility	Eaton's 9PX G2 UPS Systems: 9PX8KG2 9PX8KTF5G2 9PX11KG2 9PX11KTF11G2 9PX11KTF11MG2 9PX11KTF5G2
Hot Swappable	Yes
Manufacturer Part Number	9PXEBM240RTG2
Limited Warranty	3 Year
Output Voltage	240 V DC
Weight (Approximate)	143 lb
Manufacturer	Eaton Corporation
Product Model	9PXEBM240RTG2
Product Name	9PXEBM240RTG2 Battery Unit
Brand Name	Eaton
Country of Origin	Philippines
Height	5.1"
Width	17.3"
Depth	26.4"
Battery Size	Proprietary Battery Size
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Battery Characteristics	Valve-regulated/User Replaceable
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
