Eaton Tripp Lite Series Y Splitter Cable for Select Battery Packs, Blue 175A DC Connectors, 1 ft. (0.3 m)

For Battery - 48 V DC175 A - Black, Blue - 1 ft Cord Length

SKU: 48VDCSPLITTER
Category: Power Cords

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: 48VDCSPLITTER
Category: Power Cords

Overview

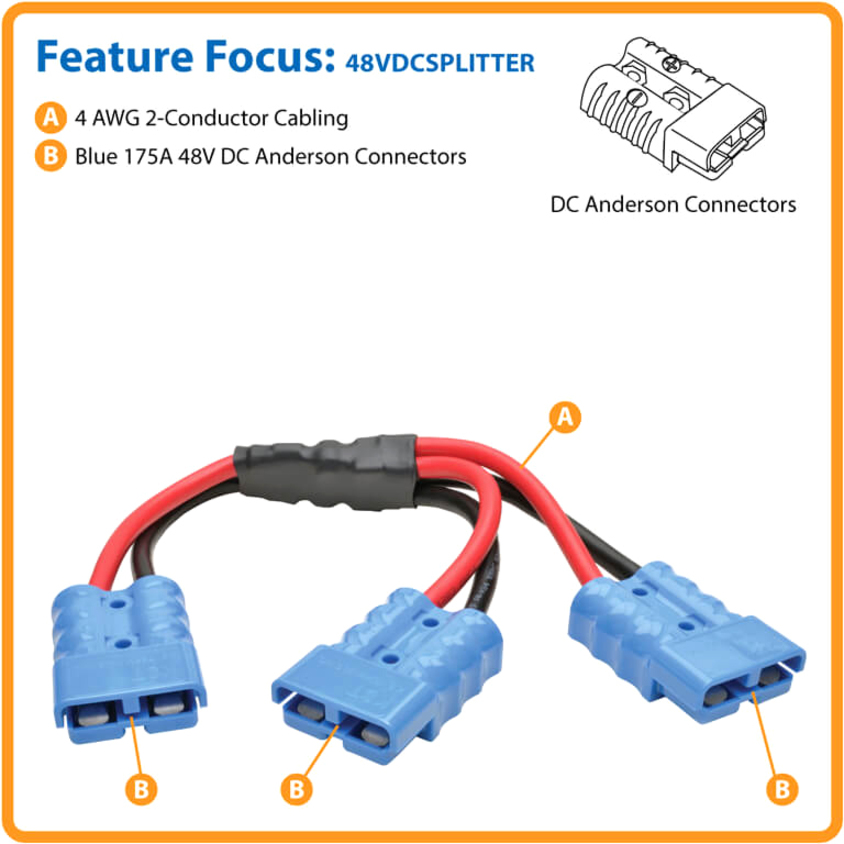

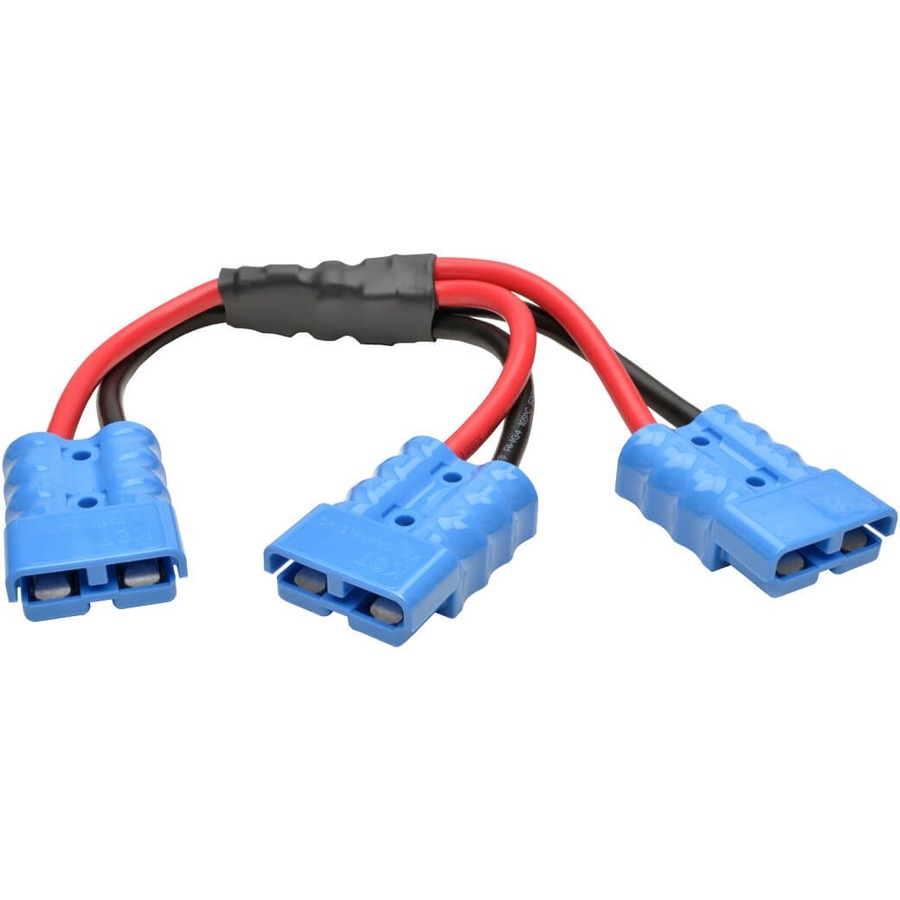

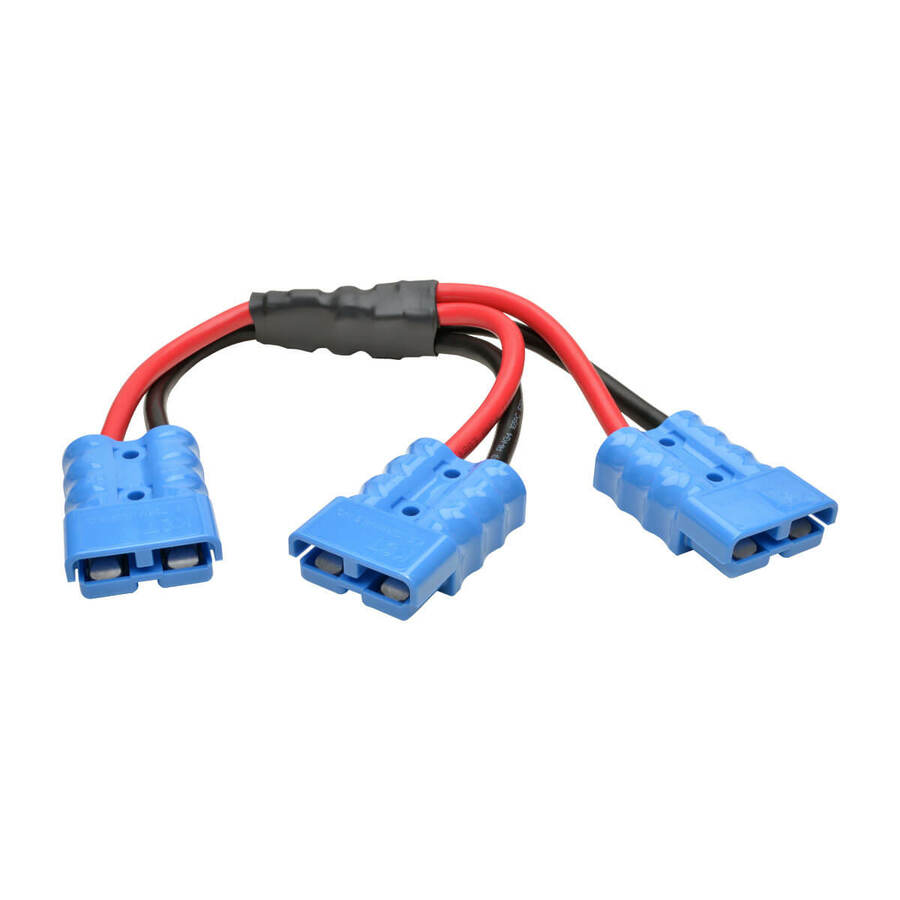

The 48VDCSPLITTER Y Splitter Cable connects two Tripp Lite external battery packs to a compatible UPS system to extend runtime. It is compatible with Tripp Lite's non-expandable BP48V24-2U and other select battery packs that specify compatibility with this cable. The one-foot (30.5 cm) 48VDCSPLITTER is constructed using 4 AWG two-conductor black cabling. It features three blue 175A DC connectors: two outputs for the battery packs and one input for a UPS system that specifies the use of a BP48V24-2U battery pack.

Warranty

Limited Warranty: 1 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

Out of power connectors? Splitter cable is the answer. It can attach additional floppy drives, removable storage drives, hard drives, CD-ROMs, CD-RWs, tape drives, fans, etc. to your computer's power supply.
Delivers 48 V DC to ensurethat adevice is always ready to use
Small in size and light in weight, users find it easy to carry around

Specifications

Product Type	Splitter Cord
Compatibility	Tripp Lite BP48V24-2U Battery Packs
Device Supported	Battery
Manufacturer Part Number	48VDCSPLITTER
Limited Warranty	1 Year
Weight (Approximate)	2 lb
Manufacturer	Eaton Corporation
Product Model	48VDCSPLITTER
Product Name	48VDCSPLITTER Splitter Battery Cord
Voltage Rating	48 V DC
Current Rating	175 A
Brand Name	Tripp Lite series
Country of Origin	China
Cord Length	1 ft
Environmentally Friendly	Yes
Product Color	Black, Blue
Color Family	Dual Color
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
