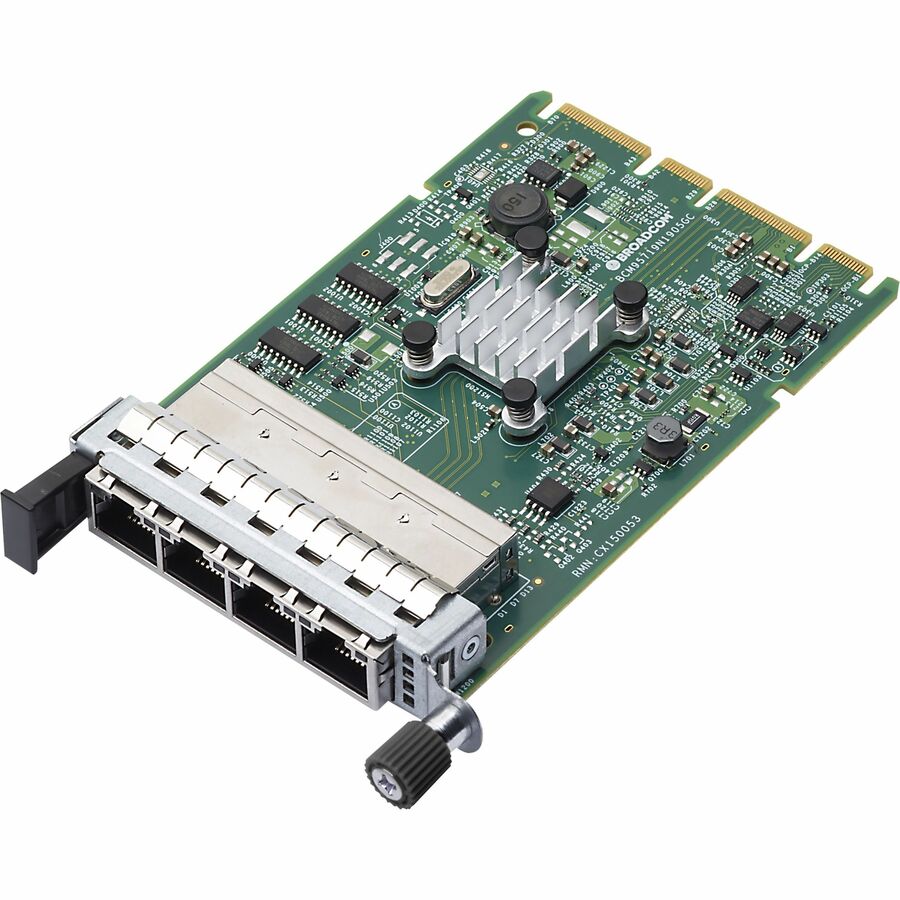

Broadcom N41T - 4 x 1GbE OCP 3.0 Adapter
Broadcom

Broadcom N41T - 4 x 1GbE OCP 3.0 Adapter

PCI Express 2.0 x4 - 4 Port(s) - 4 - Twisted Pair - 10/100/1000Base-T - Plug-in Card

SKU
BCM95719N1905C
Category
Network Interface Cards

MSRP$646.89

$569.40

Save 12%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Broadcom through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BCM95719N1905C
Category
Network Interface Cards

Overview

Designed for today's enterprise and data center environments, Broadcom's 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

The N41T quad-port 1Gb OCP 3.0 adapter is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The N41GBT OCP 3.0 adapter includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support the VMWare® NetQueue and Microsoft® VMQ technologies.

The N41T OCP 3.0 adapter includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.

Highlights

  • Enjoy the super fast Gigabit Ethernet connection by inserting this Gigabit Ethernet card into your computer
  • This 2000 MB/s bandwidth PCI Express 2.0 x4 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
  • With quad ports on a single card, save valuable expansion slots on your system for other purposes
  • Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
  • With the 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable

Specifications

Host InterfacePCI Express 2.0 x4
Product TypeGigabit Ethernet Card
Device SupportedServer
Manufacturer Part NumberBCM95719N1905C
FeaturesWake on LAN (WOL)
Form FactorPlug-in Card
ManufacturerBroadcom Corporation
Product ModelN41T
Product NameN41T - 4 x 1GbE OCP 3.0 Adapter
Network Technology10/100/1000Base-T
Brand NameBroadcom
Number of Network (RJ-45) Ports4
Media Type SupportedTwisted Pair
Total Number of Ports4
