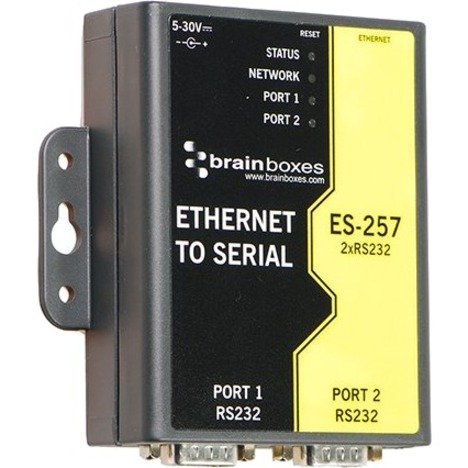

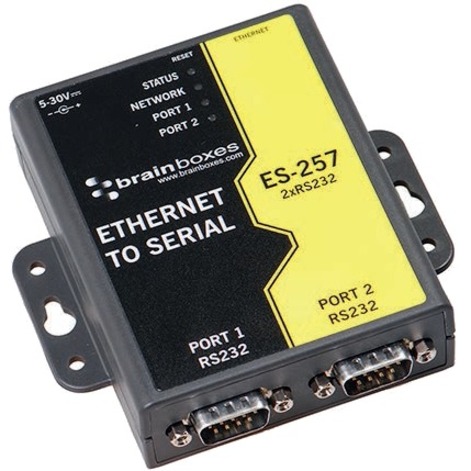

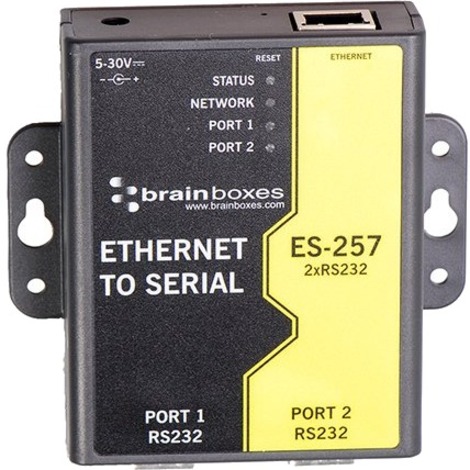

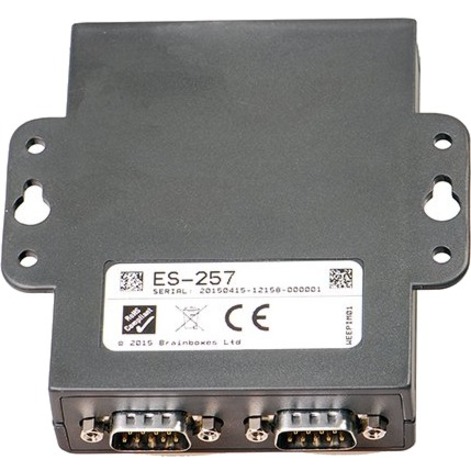

Brainboxes 2 Port RS232 Ethernet to Serial Adapter

Ethernet to Serial device server providing access to two RS232 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance.

Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.

For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.

Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.

More from the Manufacturer

2 Port RS232 Ethernet to Serial Adapter

2 Port RS-232

Ethernet to Serial Device Server

Data rate from 110 to 1,000,000 baud

Install Virtual Com ports or use the Software APIs for Visual Basic, C# and more

Serial Port Tunnelling allows serial cable replacement over any distance, no software required

Power supply included (power input 5-30V DC)

Ethernet to Serial device server providing access to two RS232 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance.

Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.

For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.

+5 to +30 Volt Power Input

enables the device to be run

from a standard car battery -

ideal for in vehicle applications

Non conducting polyamide

casing with removable

numbered power terminal for

easy wiring

Integral DIN mount and slim

design takes up minimal

cabinet space

Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
