4-Port RS-232 Expansion: Instantly adds four high-speed RS-232 (DB9) serial ports to any PCI Express-enabled system for reliable device connectivity. Perfect for connecting industrial equipment, POS systems, and serial devices
High-Speed Performance: Features 16550 UART with 256-byte FIFO buffers, supporting asynchronous baud rates up to 921.6 Kbps for smooth data transmission
Flexible Power Output: Each port supports standard RS-232 or selectable 5V / 12V power for powered devices such as scanners and POS displays (configurable via jumpers)

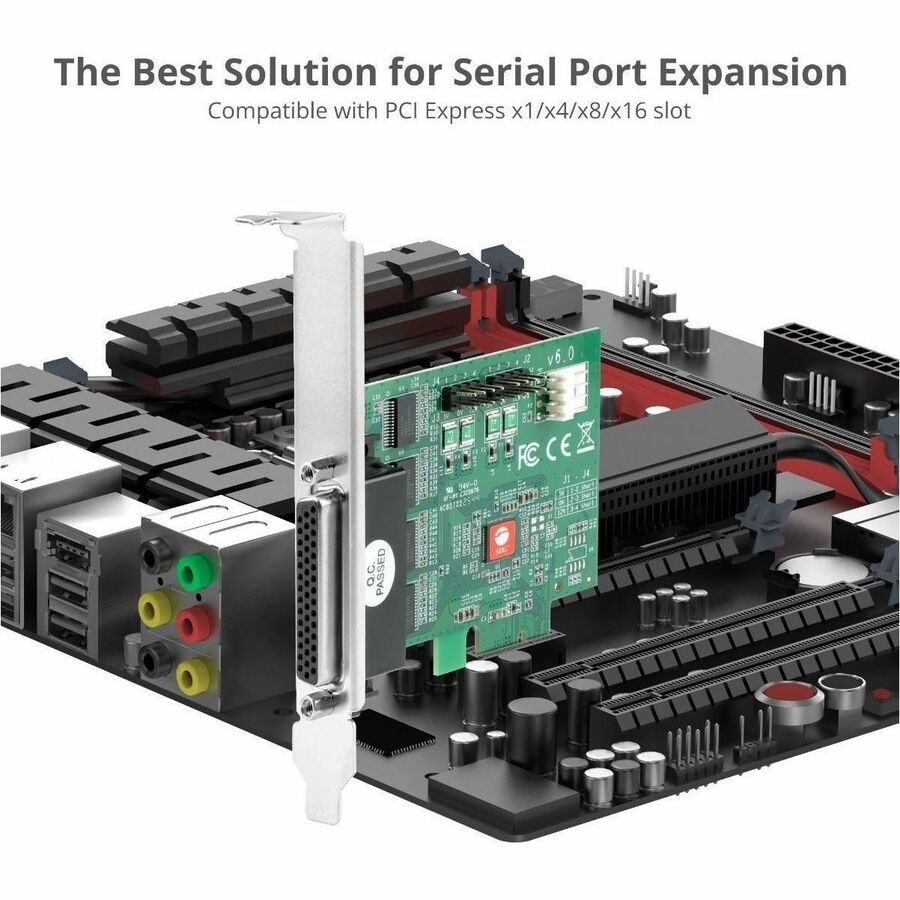

Wide Compatibility: PCI Express x1 interface works with slots of all lane widths (x1, x4, x8, x16) and supports multiple serial formats (5-9 data bits)

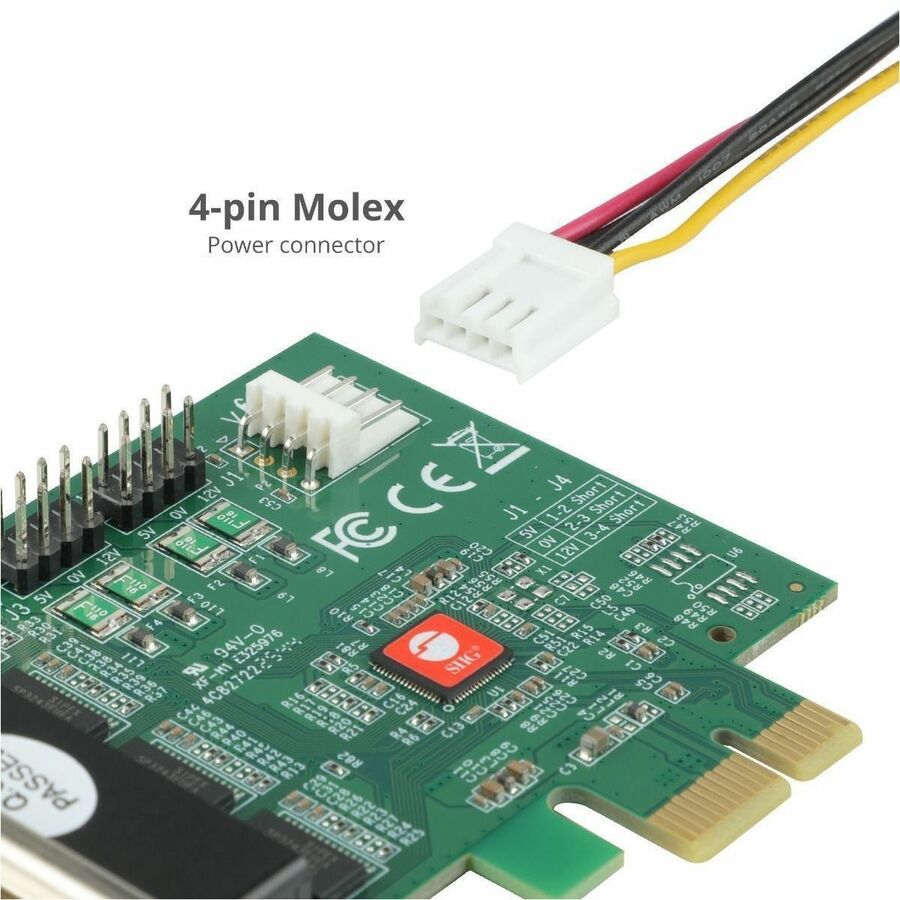

Reliable & Stable Operation: Onboard power connector ensures steady power delivery; supports hardware and software flow control for dependable communication

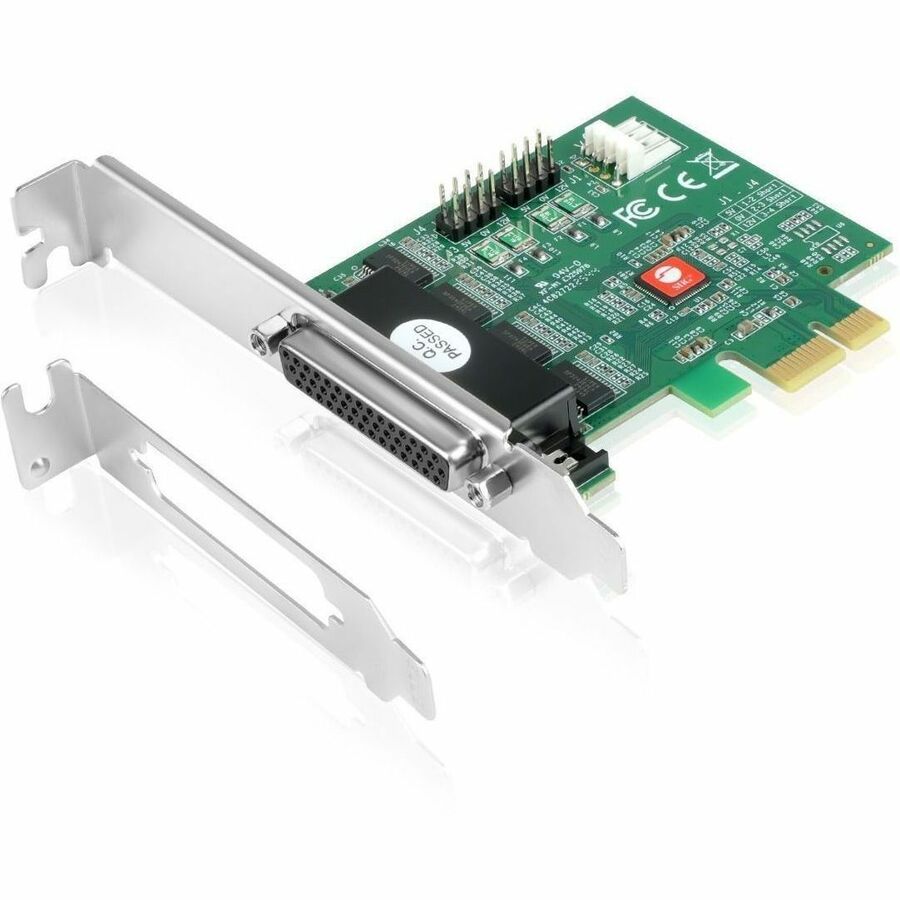

Flexible Installation: Comes with both full-height and low-profile brackets for easy installation in standard or compact PC chassis
TAA Compliant: Our device complies with the Trade Agreements Act (TAA), meeting the highest standards of quality and compliance for government and commercial applications
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
JJ-E40011-S6
Brand Name
SIIG
Product Line
CyberSerial
Product Name
DP CyberSerial 4S PCIe
Packaged Quantity
1
Product Type
Multiport Serial Adapter
Physical Characteristics
Form Factor
Plug-in Card
Height
0.8"
Width
4.7"
Weight (Approximate)
1.76 oz
Technical Information
Host Interface
PCI Express 2.0 x1
Maximum Data Transfer Rate
921 kbit/s
Warranty
Limited Warranty
2 Year
Interfaces/Ports
Number of Serial Ports
4
Miscellaneous

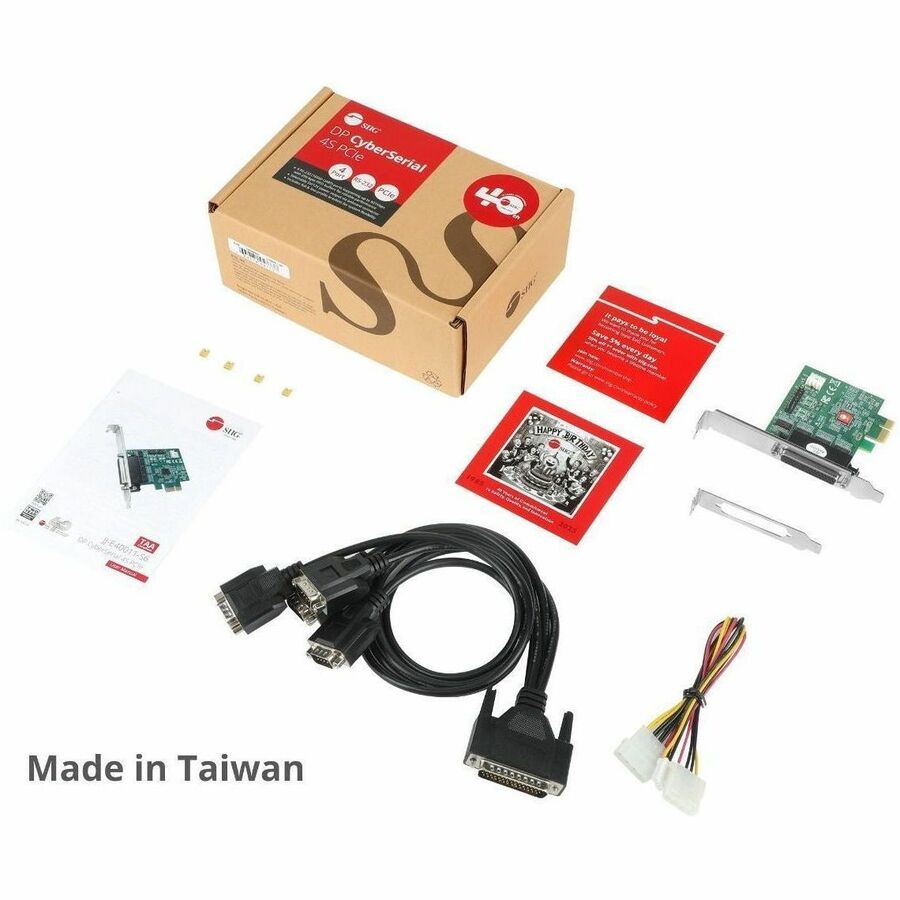

Package Contents
DP CyberSerial 4S PCIe
Spare Low Profile Bracket

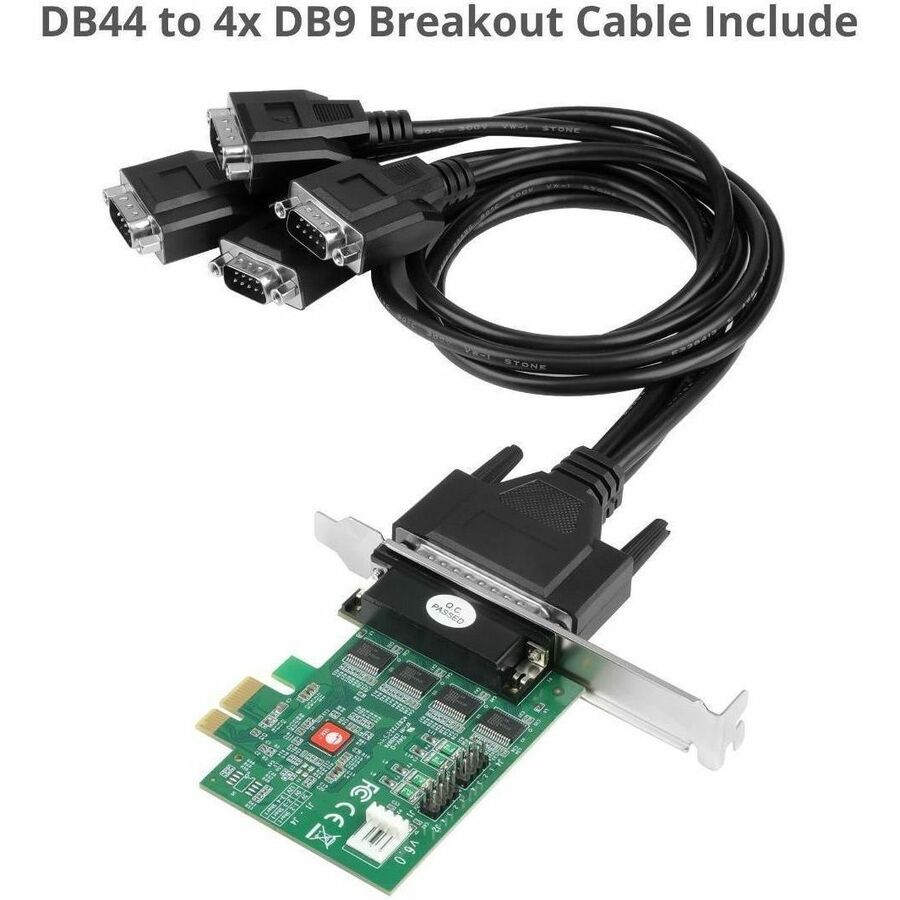

4-Port Fan-out Cable (DB 44pin)
Voltage Jumpers (4pcs)
Y-Split Power Cable
User manual
TAA Compliant
Yes
Country of Origin
Taiwan
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
