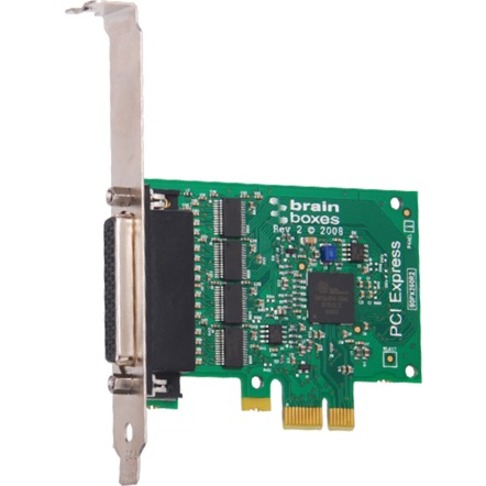

Brainboxes 4 Port RS232 PCI Express Serial Card
PCI Express x1 - 4 x DB-9 RS-232 - Serial, Via Cable (Optional) - Plug-in Card - TAA Compliant
- SKU
- PX-701
- Category
- Multiport Serial Adapters
MSRP$393.53
$342.81
Save 13%Back ordered — ships when restocked.
Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX-701
- Category
- Multiport Serial Adapters
Overview
PCI Express Card providing four RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.
Highlights
- Four RS232 serial ports
- Up to 921,600 baud rates
- Popular Operating Systems supported
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express x1 |
| Product Type | Multiport Serial Adapter |
| Manufacturer Part Number | PX-701 |

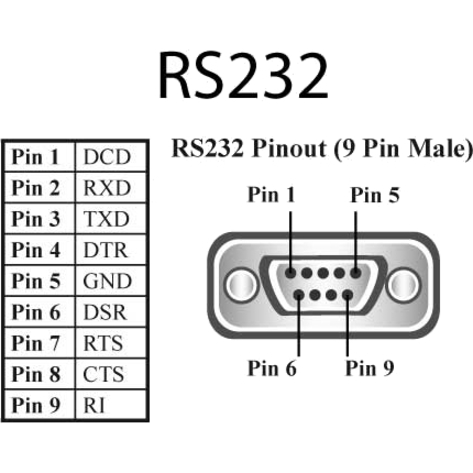

| Ports Expandability | 4 x DB-9 RS-232 - Serial, Via Cable (Optional) |
| Limited Warranty | Lifetime |
| Thickness | 3.8" |
| Weight (Approximate) | 1.94 oz |
| Form Factor | Plug-in Card |
| Manufacturer | Brainboxes Limited |
| Product Model | PX-701 |
| Product Name | 4 Port RS232 PCI Express Serial Card |
| Brand Name | Brainboxes |
| Country of Origin | United Kingdom |
| Height | 4.7" |
| Width | 0.7" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 7.20 Mbit/s |
| Number of Serial Ports | 1 |
| TAA Compliant | Yes |
