Black Box USB-C Docking Station - 4K, Dual
for Keyboard, Notebook, Mouse, Monitor, Tablet, Desktop PC - 230 W - USB 3.2 (Gen 2) Type C - 2 Displays Supported - 4K - 4096 x 2160 - 7 x USB Ports - 2 x USB 2.0 - 4 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Wired - Ethernet - Windows 10, Mac OS X 10.12 Sierra, Windows 8.1, Windows 7, Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite
- SKU
- USBC2000-4KDUAL
- Category
- Docking Stations
MSRP$395.06
$311.11
Save 21%In stock: 109
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- USBC2000-4KDUAL
- Category
- Docking Stations
Overview
The Black Box USB-C Docking Station - 4K, Dual (USBC2000-4KDUAL) with PD/Alt/KM sharing for laptops merges cutting-edge technology and high-quality hardware with innovative design elements.
Connect two 4K DisplayPort monitors and one 4K HDMI monitor, while sharing one keyboard and mouse with two MacBook Pro or Windows laptop hosts with this multi-port adapter.

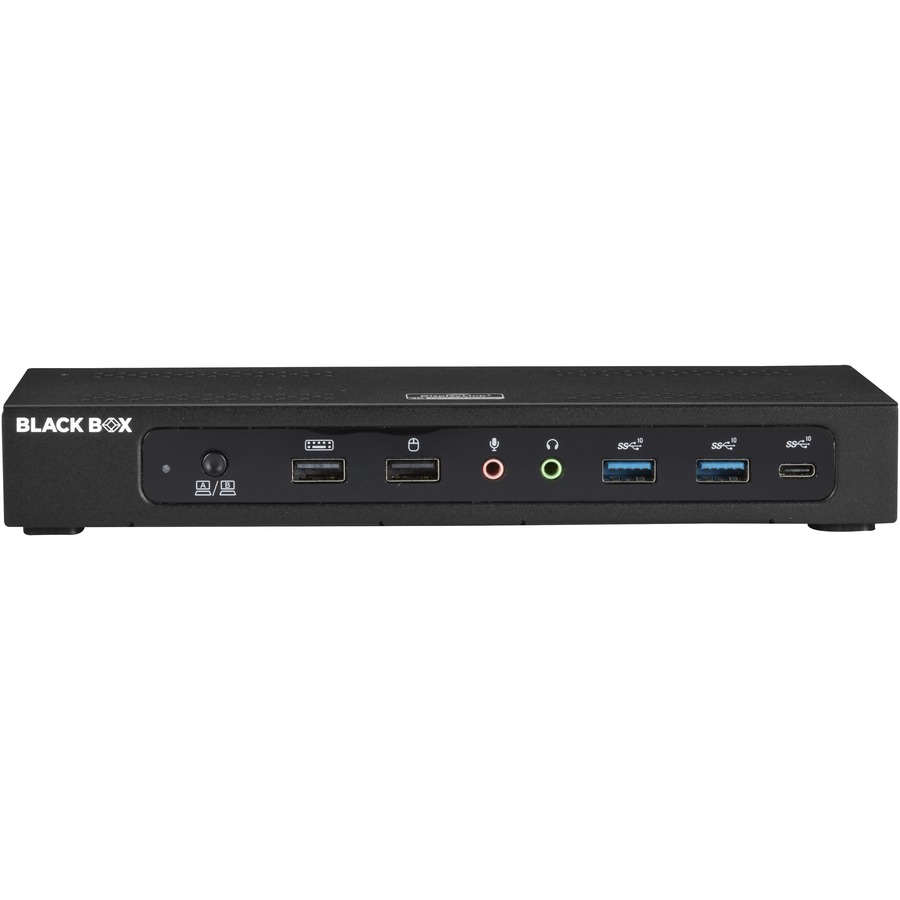

The docking station includes two USB C host ports and cables, one audio-in and one audio-out port for the switched host, one 4K HDMI and two 4K DisplayPort video ports, a LAN port, two super-speed USB 3.2 Gen2x1 Type A ports, and one super-speed USB 3.2 Gen2x1 Type C port for peripherals, one keyboard port, and one mouse port.
Supports Dual Host and Screen-Sharing
With the KVM sharing features add on, the docking station allows the user to switch the display (HDMI/DP/DP) monitors/USB-peripherals via multi-switch mode with a dual host (desktop/laptop/tablet) at the same time.
With the KM sharing feature, the USBC200-4KDUAL enables the user to move the mouse/touchpad cursor between different hosts.
Super-Fast and Backward-Compatible
The USB-C docking station supports USB 3.2 Gen2x1 (10 Gbps) data transmission. Even better, it's backward-compatible with USB 3.0 and 2.0, so you aren't limited by legacy hardware.
Includes USB Host Charging Ports
USB-C host 1 and host 2 ports can charge device 1 and device 2 at the same time. Each device draws 100 W power for a total of 200 W maximum for both host ports.
Highlights
- Supports DP resolution up to 4K x 2K at 60 Hz and HDMI resolution up to 4K x 2K at 60 Hz (source needs to support DP1.4, otherwise, 4K 30 Hz only); also backward-compatible with HD 1920 x 1080
- Includes 2 USB C host ports and cables
- 2 super-speed USB 3.2 Gen2x1 Type A ports and 1 super-speed USB 3.2 Gen2x1Type C port for peripherals support data transfer speeds up to 10 Gbps
- High-speed USB supports charging up to 200 W (100 W per USB-C host port)
Specifications
| Package Contents |
|
|---|---|
| Host Interface | USB 3.2 (Gen 2) Type C |
| Product Type | Docking Station |
| Device Supported | Keyboard, Notebook, Mouse, Monitor, Tablet, Desktop PC |
| Manufacturer Part Number | USBC2000-4KDUAL |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 1.50 lb |
| Connectivity Technology | Wired |
| Manufacturer | Black Box Corporation |
| Product Name | USB-C Docking Station - 4K, Dual |
| Brand Name | Black Box |
| Operating System Supported | Windows 10, Mac OS X 10.12 Sierra, Windows 8.1, Windows 7, Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite |
| Country of Origin | Taiwan |
| Height | 3.50" |
| Width | 8.60" |
| Depth | 1.30" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 230 W |
| DisplayPort | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 2 |
| Number of Displays Supported | 2 |
| Number of DisplayPorts | 2 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Kensington Security Slot | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 3 x USB 3.2 Gen 2 Type C Female |
| DisplayPort Version | 1.4 |
| Number of USB Type-A Ports | 4 |
| Product Color | Black |
| Supported Resolutions | 4096 x 2160 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
