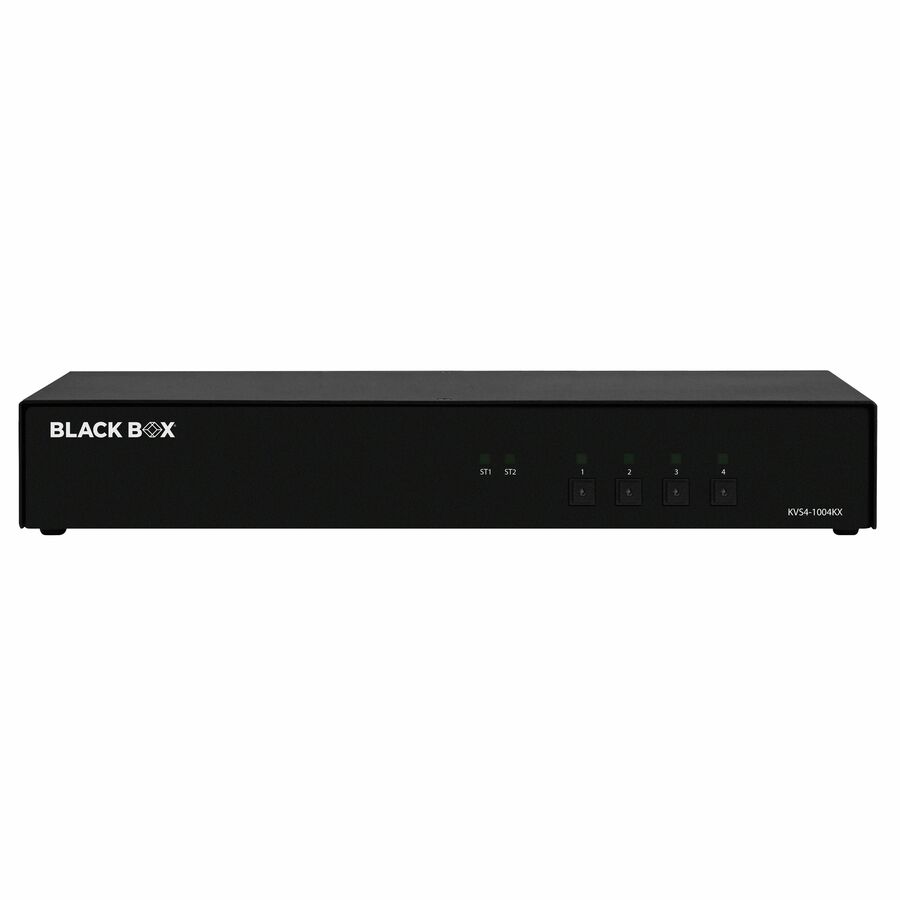

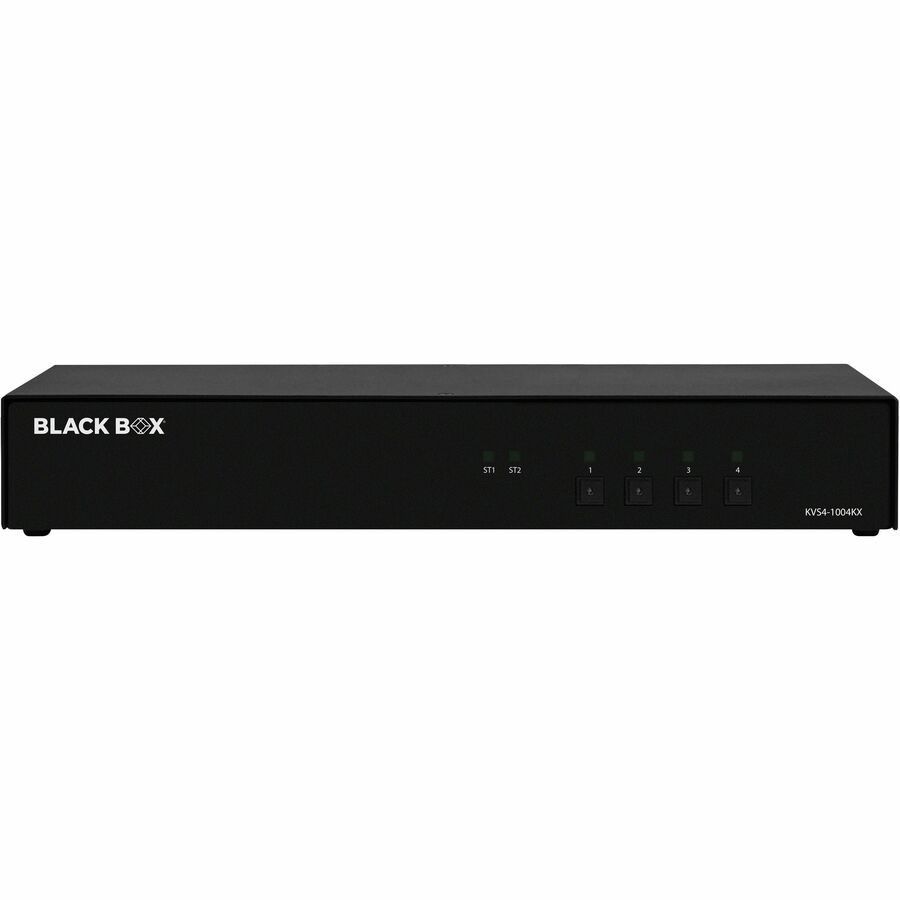

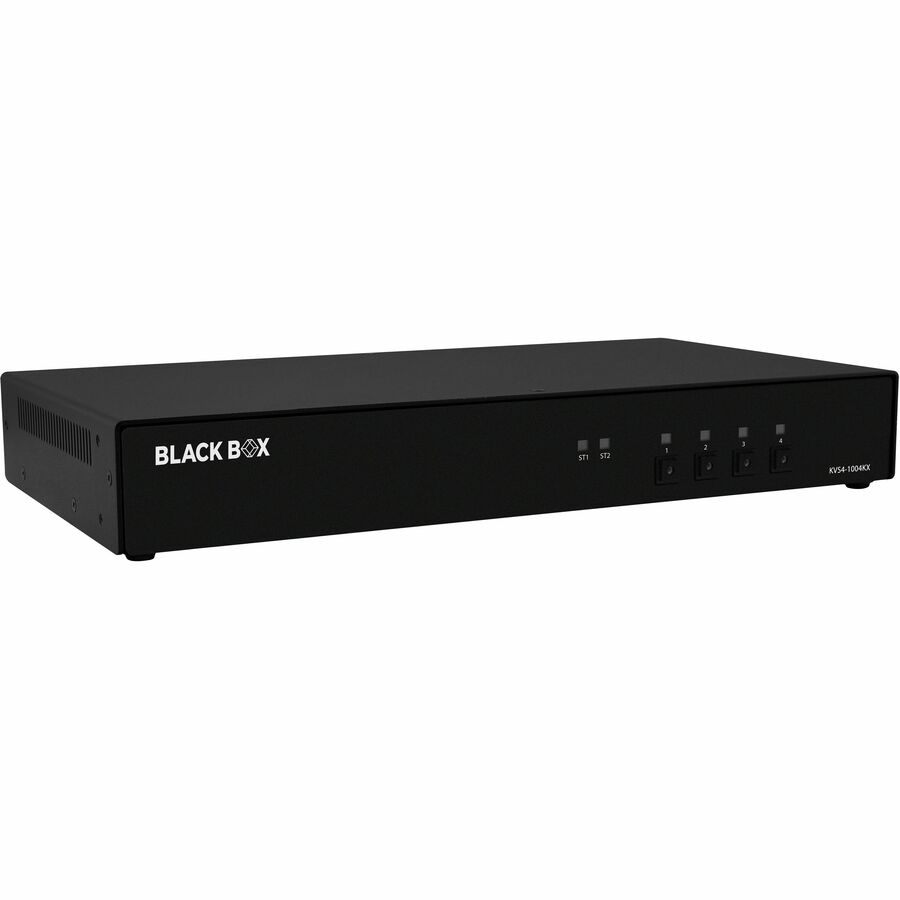

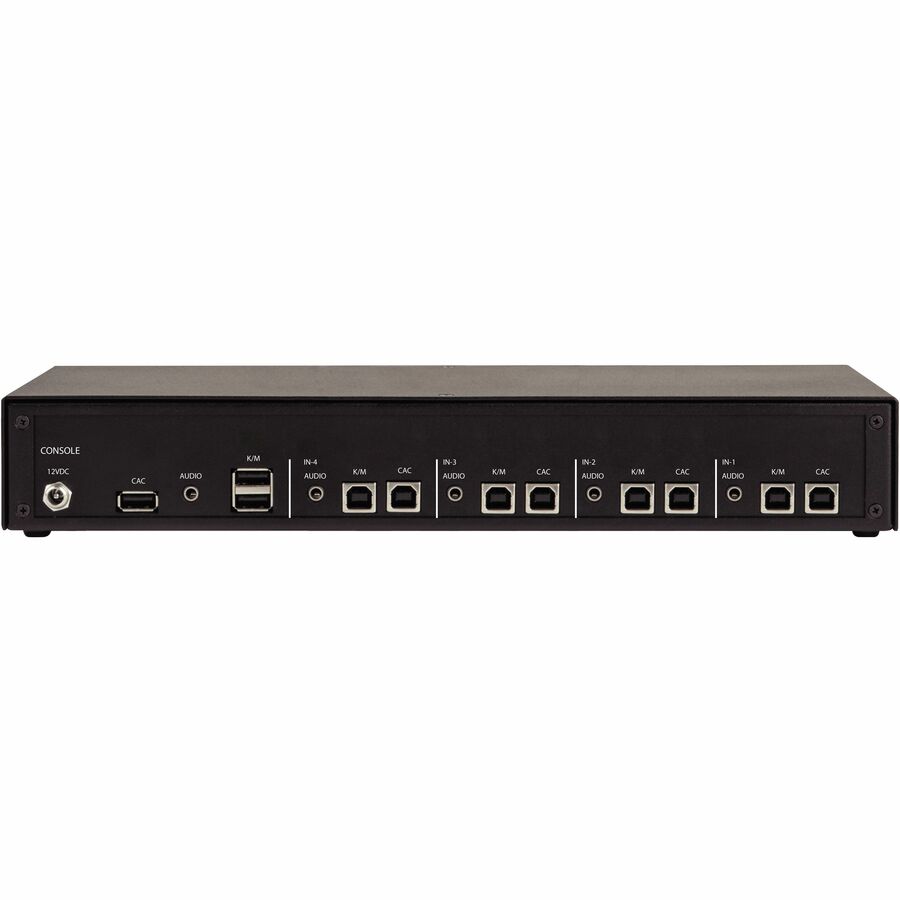

Black Box KM Switch, NIAP 4.0 Certified - 4-Port, CAC
Black Box

Black Box KM Switch, NIAP 4.0 Certified - 4-Port, CAC

4 Computer(s) - 1 Local User(s) - 11 x USB - USB 2.0 - TAA Compliant

SKU
KVS4-1004KX
Category
KVM Switchboxes

MSRP$956.36

$864.38

Save 10%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
KVS4-1004KX
Category
KVM Switchboxes

Overview

The Black Box Secure KM switches allow a single operator using just one keyboard and mouse to control up to four or eight computers by using the front push buttons saving time, money and space on the desk. Connect the switch to all computers that need to be accessed and all monitors directly to the computers. The switches are ideal for secure command and control applications, government agencies, 911 emergency call centers, and many more. The Secure KM Switches provide peace of mind knowing that each connection is secure. Options include 4-port or 8-port switches with CAC support.

The Secure KM Switches protect your sensitive data using the latest technology. The switches have isolated channels to ensure that data is not leaked between secure ports and the outside world. To prevent eavesdropping attempts through vulnerable devices, the switches support uni-directional data flow from computer to peripheral. Mechanical, electrical, and optical isolation stop hacking and data leaks in environments where security is critical. The Secure KM Switches use protected firmware to keep intruders from re-programming or reading the firmware. Keyboard/internal cache wiping and chassis intrusion protection provide even more security. The Secure KM Switches also use anti-tamper switches and tamper-evident seals to shield your confidential data.

Why Secure KM

Secure KM Switches from Black Box are NIAP PP 4.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switches contain unique hardware configurations that prevent data leakage between PCs and connected peripherals eliminating potential cyber threats.

Highlights

  • Certified for NIAP Protection Profile for Peripheral Sharing Device Version 4.0
  • Switch between four/eight monitors and attached CPUs, USB HID, and stereo audio
  • Made in the USA, TAA Compliant
  • Tested and certified under the USA scheme
  • External power supply with locking connector
  • Supports CAC Devices

Specifications

Additional Warranty Information3 Year Double Diamond? Warranty (Standard)
Package Contents
  • KM Switch, NIAP 4.0 Certified - 4-Port, CAC
  • 1x12 VDC Wallmount Supply (ICP36-120-3000) with US, EU, UK, and AU adapter clips
  • 1x Set of 4 rubber feet (already be attached)
  • 1x Quick Start Guide
Product TypeKM Switchbox
Manufacturer Part NumberKVS4-1004KX
Packaged Quantity1
Limited Warranty3 Year
Weight (Approximate)4.20 lb
Connectivity TechnologyWired
FeaturesIntrusion Detection, Anti-tamper Switch
ManufacturerBlack Box Corporation
Product ModelKVS4-1004KX
Product NameKM Switch, NIAP 4.0 Certified - 4-Port, CAC
Product LineSecure
Brand NameBlack Box
Input Voltage Range100-240V
Country of OriginUnited States
Height1.8"
Width12.6"
Depth6.7"
USBYes
Number of USB Ports11
USB StandardUSB 2.0
Number of Computers Supported4
Number of Local Users Supported1
TAA CompliantYes
USB 2.0Yes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
