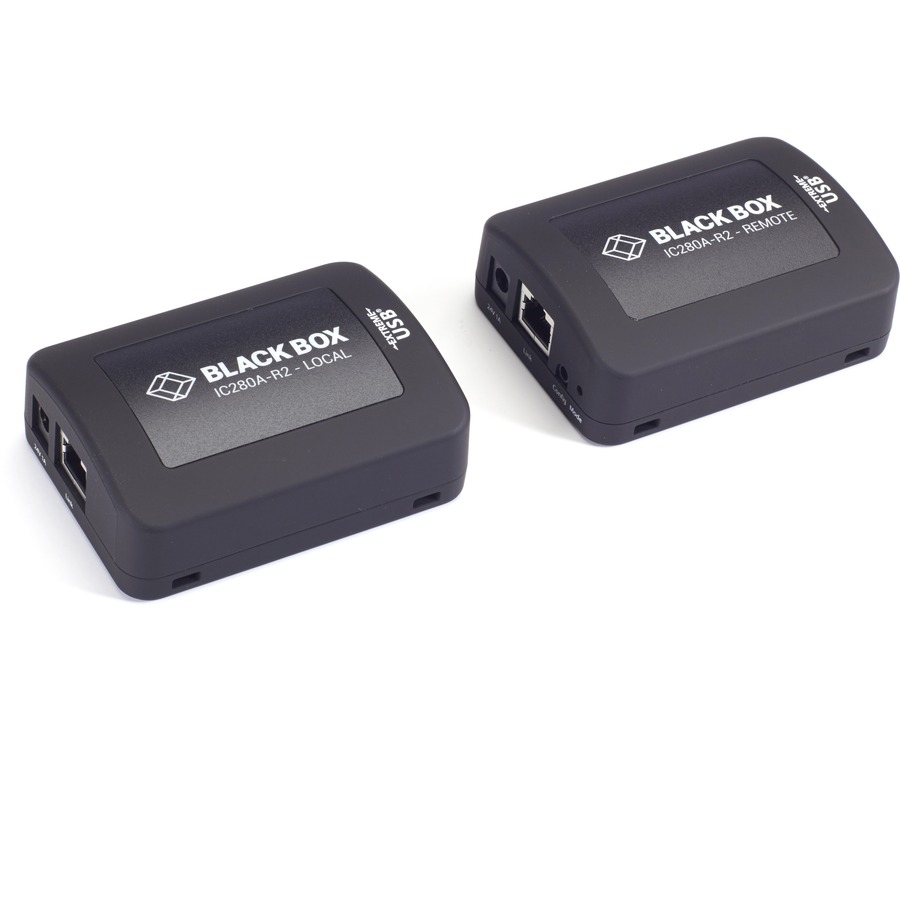

Black Box USB 2.0 Extender - CATx, FCC Class A, 1-Port
2 x Network (RJ-45) - 2 x USB - 328.08 ft Extended Range - ABS - Black
- SKU
- IC280A-R2
- Category
- Cable Extenders
MSRP$570.07
$448.71
Save 21%In stock: 105
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- IC280A-R2
- Category
- Cable Extenders
Overview
Extend USB 2.0 peripherals beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx, and power it locally or remotely. Extend a USB peripheral connection beyond the desktop to USB keyboards, mice, printers, webcams, interactive whiteboards, and other devices. The extender receives power locally or remotely, so you have the flexibility to power the extender where it is most convenient for you. Use it, for instance, in industrial control, factory floor, classroom, or meeting room applications where you're short on power outlets. The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.
Highlights
- Extend USB 2.0 signaling over CATx cable to a remote USB peripheral
- Transmits power over the UTP cable
- Compatible with USB devices operating at speeds up to 480 Mbps
- Works with Windows®, Mac®OS, and Linux® operating systems
- Simply Plug and play wihtout drivers to load on a host computer
- Transmitter and receiver units featuring mounting slots on their sides
- Includes 6-foot (18-m) USB cable for transmitter-to-host connection
Specifications
| Package Contents |
|
|---|---|
| Product Type | USB Extender |
| Input Voltage | 240 V AC |
| Manufacturer Part Number | IC280A-R2 |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Product Name | USB 2.0 Extender - CATx, FCC Class A, 1-Port |
| Brand Name | Black Box |
| Country of Origin | China |
| Height | 1.2" |
| Width | 3.4" |
| Depth | 2.6" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 60 MB/s |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| Transmitter Weight (Approximate) | 1.60 oz |
| Receiver Weight (Approximate) | 1.60 oz |
| Maximum Extended Range | 328.08 ft |
| Product Color | Black |
| Color Family | Black |
| Product Material | ABS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
