Overview

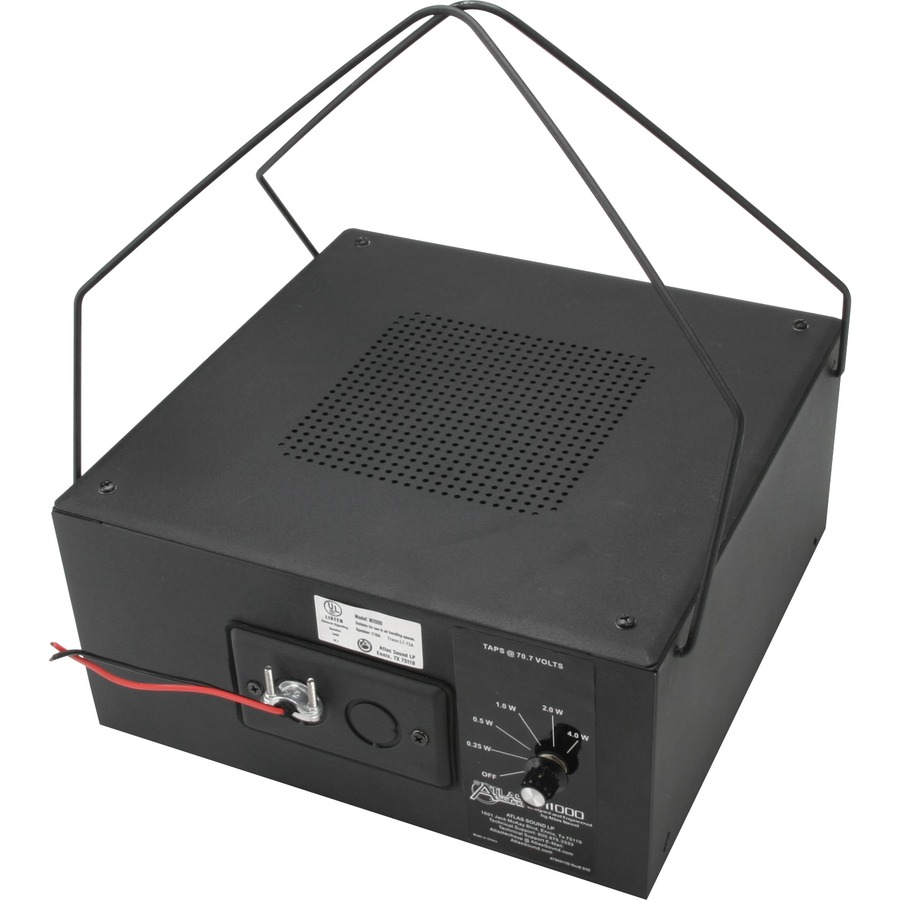

The M1000 sound masking speaker assembly is designed to accurately reproduce the required spectrum of masking signal into the plenum space. The innovative 734 cubic inch square enclosure ensures ample low frequency response. A specially designed 8" dual cone loudspeaker is included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.

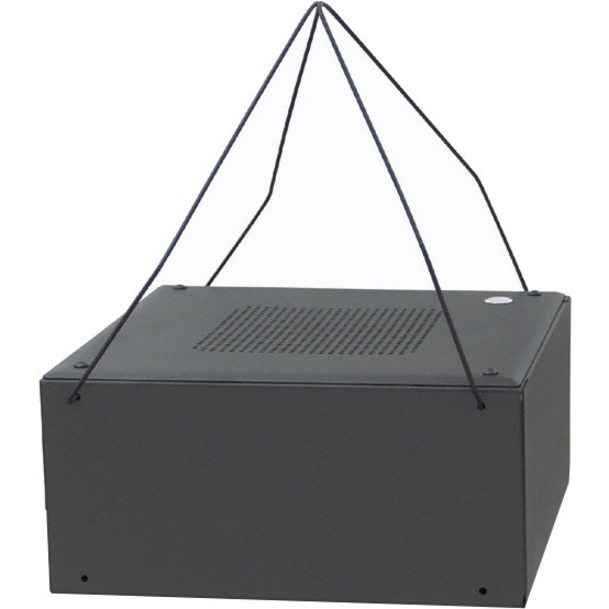

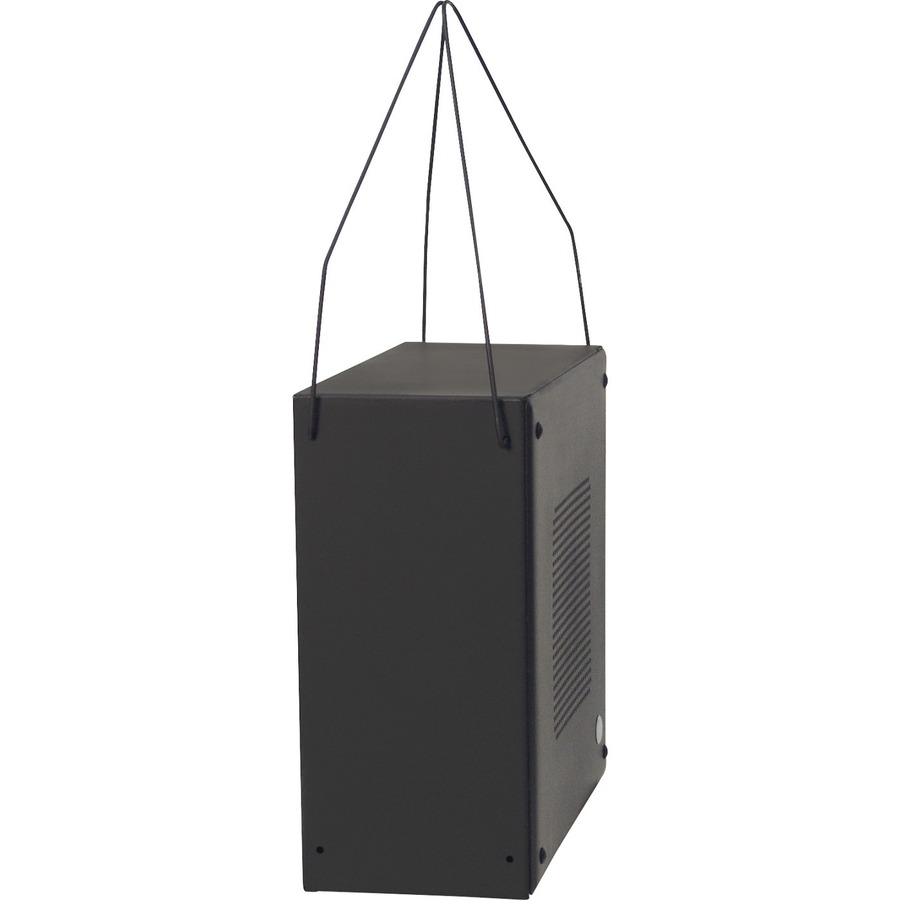

The exclusive Atlas Sound EZ hang brackets simplify installation. This innovative suspension system utilizes (2) collapsible plated hangers configured to allow quick upward, downward, or side firing installation. The hangers are factory-installed on the unit and fold flat for shipping. To meet most any local code requirement, the M1000 includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.
Installation is made easy via the optional 78" (2m) suspension chain system, part MCHAIN72, that allows quick mounting and height adjustment of the M1000. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.
Warranty
Limited Warranty: 3 Year
Highlights
Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
Listen to deep lows and euphoric highs with a frequency range of sound from 100 Hz-10 kHz
Delivers exceptional sound with 10 kHz maximum frequency response
97 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
Ceiling Mountable form factor allows hassle-free and easy usage with increased efficiency
11.6" width to ensure maximum usability and added power radiation feasibility
8" diameter for reliable frequency and sound output
9.22 lb Weight (Approximate) for placement, carrying, and fixing considerations
Specifications
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
M1000
Brand Name
AtlasIED
Product Model
M1000
Product Name
8 inch Dual Cone Sound Masking Speaker with 70.7V-4W Transformer and Enclosure
Product Type
Speaker
Physical Characteristics
Form Factor
Ceiling Mountable
Width
11.6"
Diameter
8"
Weight (Approximate)
9.22 lb
Technical Information
Minimum Frequency Response
100 Hz
Maximum Frequency Response
10 kHz
Sensitivity
97 dB
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
8 inch Dual Cone Sound Masking Speaker with 70.7V-4W Transformer and Enclosure
