25 W (PMPO) - 8" Ceramic Woofer - 3" Ceramic Tweeter - 45 Hz to 19 kHz - 8 Ohm
SKU
Category
Component Speakers
MSRP$88.99
$75.57
Save 15%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine AtlasIED through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Component Speakers
Overview
The GD87W is a high performance coaxial loudspeaker package with performance specifications identical to the legendary Atlas Sound Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87W without any noticeable sonic or performance differences.
This coaxial loudspeaker features a 45Hz-19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105° (2kHz octave band). The GD87 combines a full-size 8" (203mm) dia., low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1M).
The loudspeaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz to 15kHz. The primary taps are 1, 2, 4, and 8 watts.

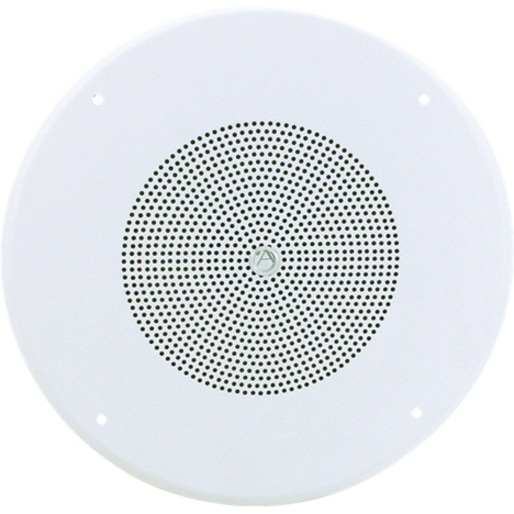

The GD87W includes a factory installed 62-8 style CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The baffle finish is white powder coat epoxy.
Highlights
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Hear every detail crisp and clear with a frequency response of 45 Hz-19 kHz
Handles up to 16 W of RMS power
8" woofer driver size allows better stereo imaging with maximum sound feasibility
3" tweeter driver size provides crispier, well-detailed sound with maximum productivity
Offers great productivity with 19 kHz maximum frequency response
96 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
2.88" depth to provide reliable and optimal Speaker sound output usage
8.1" diameter for reliable frequency and sound output
2 lb Weight (Approximate) for placement, carrying, and fixing considerations
Specifications
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
GD87W
Brand Name
AtlasIED
Product Model
GD87W
Product Name
8" Coaxial Loudspeaker With 70.7V-8W Transformer And 62-8 Baffle
Product Type
Speaker
Physical Characteristics
Depth
2.88"
Diameter
8.1"
Weight (Approximate)
2 lb
Technical Information
RMS Output Power
16 W
PMPO Output Power
25 W
Woofer Driver Size
8"
Woofer Driver Material
Ceramic
Tweeter Driver Size
3"
Tweeter Driver Material
Ceramic
Minimum Frequency Response
45 Hz
Maximum Frequency Response
19 kHz
Impedance
8 Ohm
Sensitivity
96 dB
Miscellaneous
Package Contents
8" Coaxial Loudspeaker With 70.7V-8W Transformer And 62-8 Baffle
