Genuine AtlasIED through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ALA20T-B
Category
Component Speakers
Overview

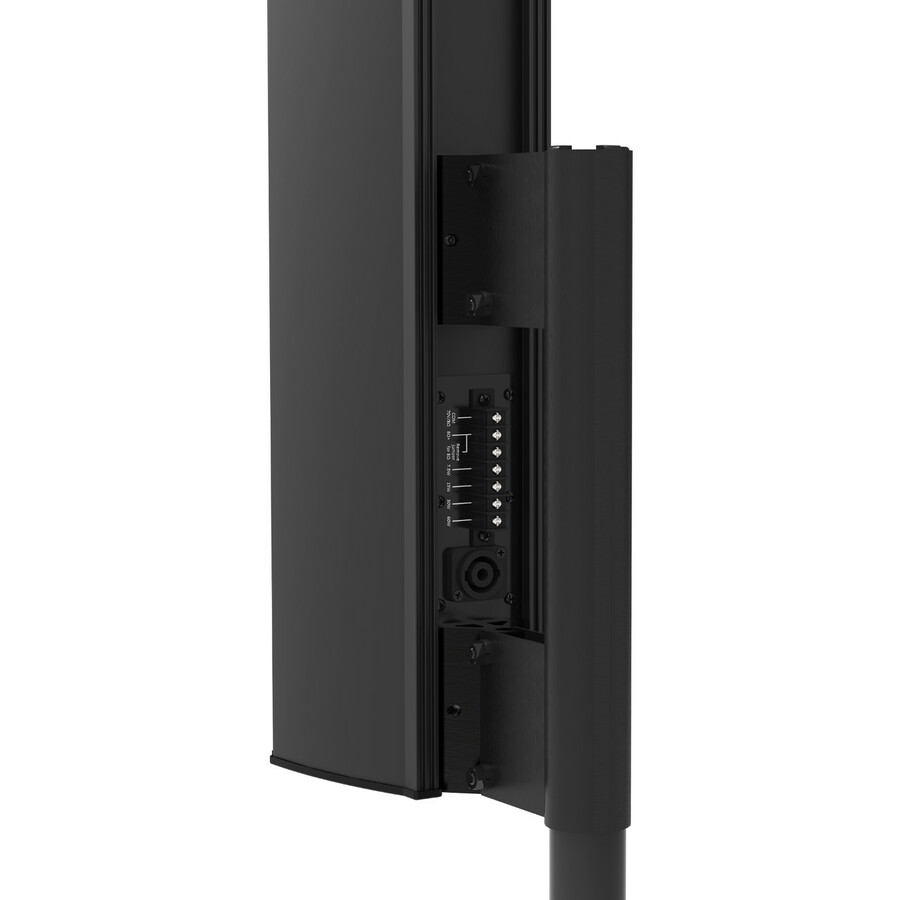

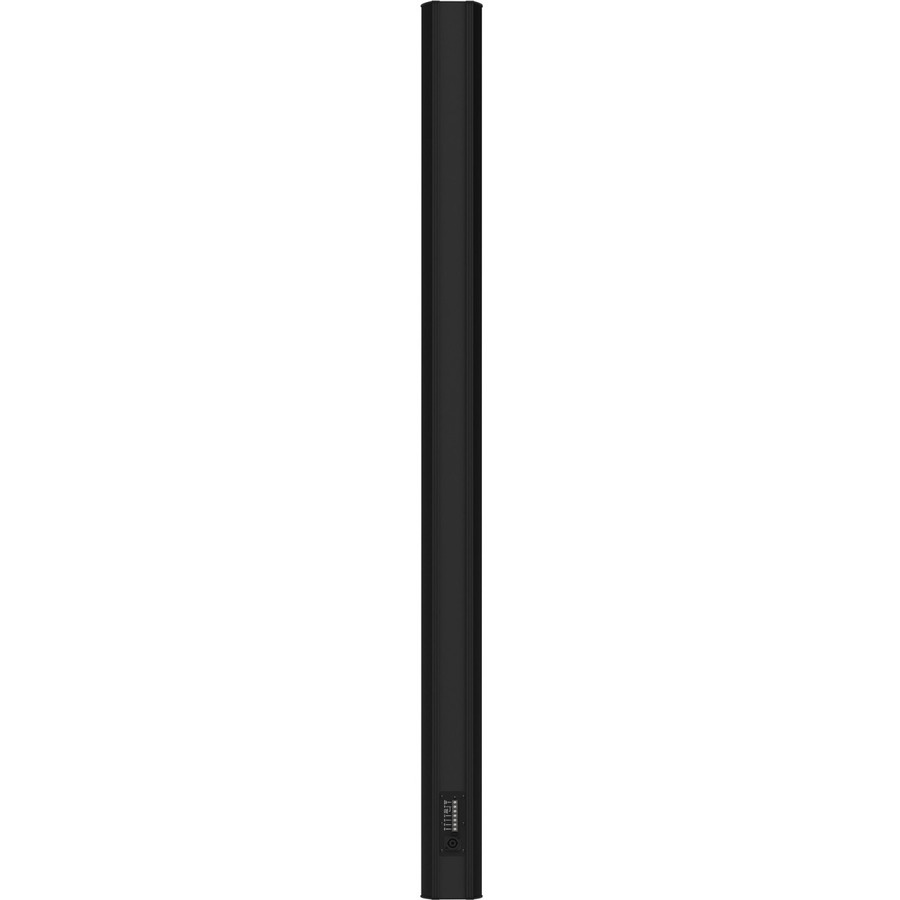

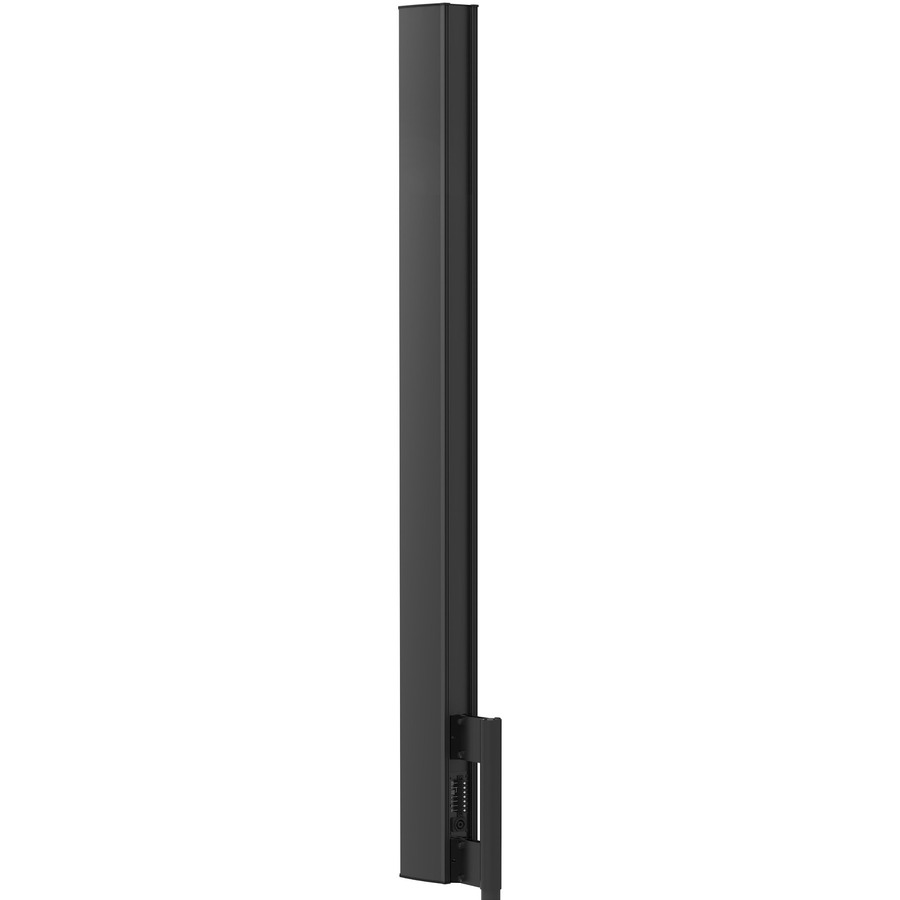

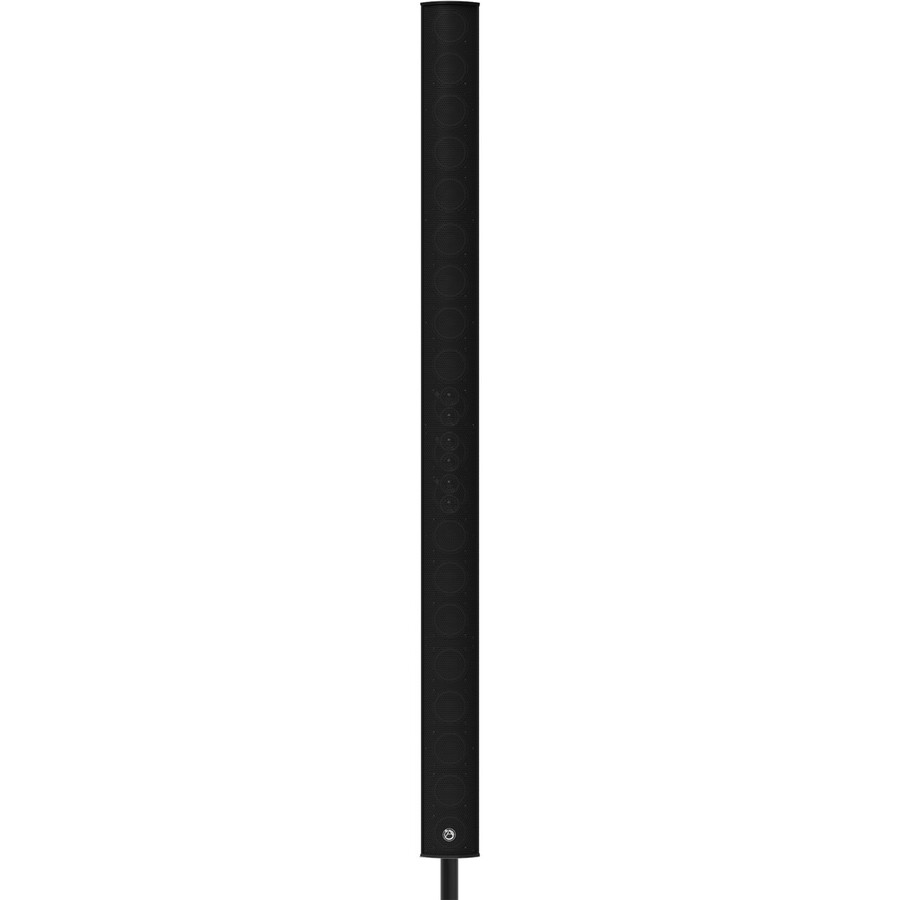

The ALA20T column line array loudspeaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T's transducer configuration combines twenty tight packed 3" full range drivers and six 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.
Warranty
Limited Warranty: 5 Year
Highlights
Use In Fixed Install or Portable Applications
40° Vertical Coverage
135° Horizontal Coverage
70.7V or 8? Operation
Twenty (20) Proprietary 3" Full Range Transducers
Six (6) High Frequency Tweeters
Barrier Strip and NL-4 Terminals
Lightweight Aluminum Housing
IP32 Weather Rating
Available In Black or Neutral Finish
Specifications
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
ALA20T-B
Brand Name
AtlasIED
Product Line
Line Array
Product Model
ALA20T
Product Name
Ultra-Compact, Passive Column Line Array Loudspeaker
Product Type
Speaker
Physical Characteristics
Product Color
Black
Form Factor
Wall Mountable
Height
65.8"
Width
4.6"
Depth
5.43"
Weight (Approximate)
38.10 lb
Technical Information
RMS Output Power
500 W
PMPO Output Power
1000 W
Tweeter Driver Size
0.87"
Tweeter Driver Material
Aluminum
Full Range Driver Size
3"
Minimum Frequency Response
110 Hz
Maximum Frequency Response
20 kHz
Impedance
8 Ohm
Sensitivity
127 dB
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
Ultra-Compact, Passive Column Line Array Loudspeaker
Wall Mount Bracket
Application/Usage
House of Worship, Transportation, Retail Space, Conference Room, Lecture Hall, Gymnasium, Convention Center, Museum, Stadium, Multipurpose
