SKU
VS482
Category
Video Switchboxes
Overview

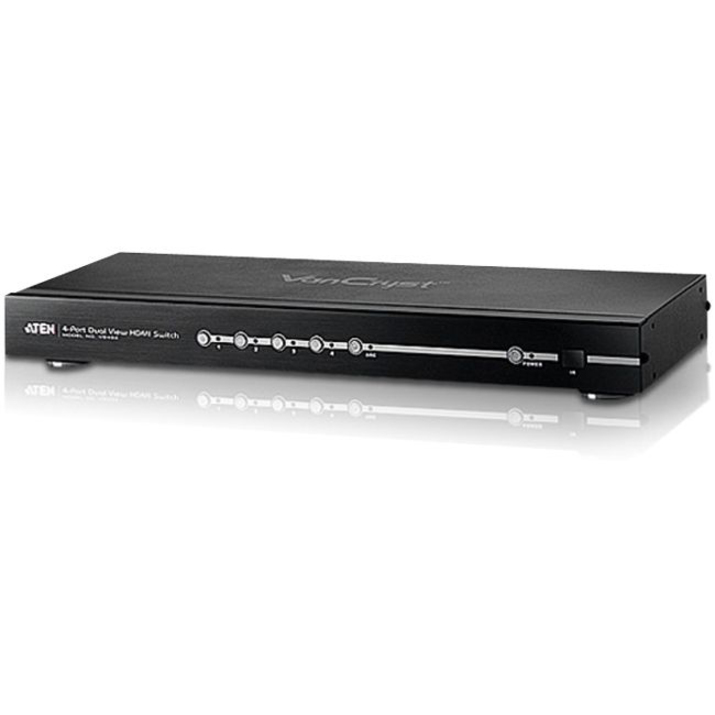

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HD Video Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
More from the Manufacturer
Highlights
Allows up to four HDMI A/V sources to be connected to two HDMI displays
HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
Supports Dolby True HD and DTS HD Master Audio
Audio Return Channel (ARC) function - connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
OSD for system configuration setting and information display
Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
Feature EDID Expert technology to set up different configurations via different EDID mode
Allows users to view the HDMI input source port / device for easy selection
Supports superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
Built-in bi-directional RS-232 serial control port for high-end system control
Specifications
Package Contents
4-Port Dual View HD Video Switch
1x IR Remote Control Unit
1x Power Adapter
1x User Instructions
1x Mounting Kit
Product Type
Video Switchbox
Device Supported
Computer
Manufacturer Part Number
VS482
Weight (Approximate)
4.76 lb
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VS482
Product Name
4-Port Dual View HD Video Switch
Brand Name
ATEN
Height
2.2"
Width
6.2"
Graphics Modes
WUXGA
Scan Format
1080p
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
Number of HDMI Inputs
4
HDMI In
Yes
HDMI Out
Yes
Number of Displays Supported
2
Number of Input Devices Supported
4
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
