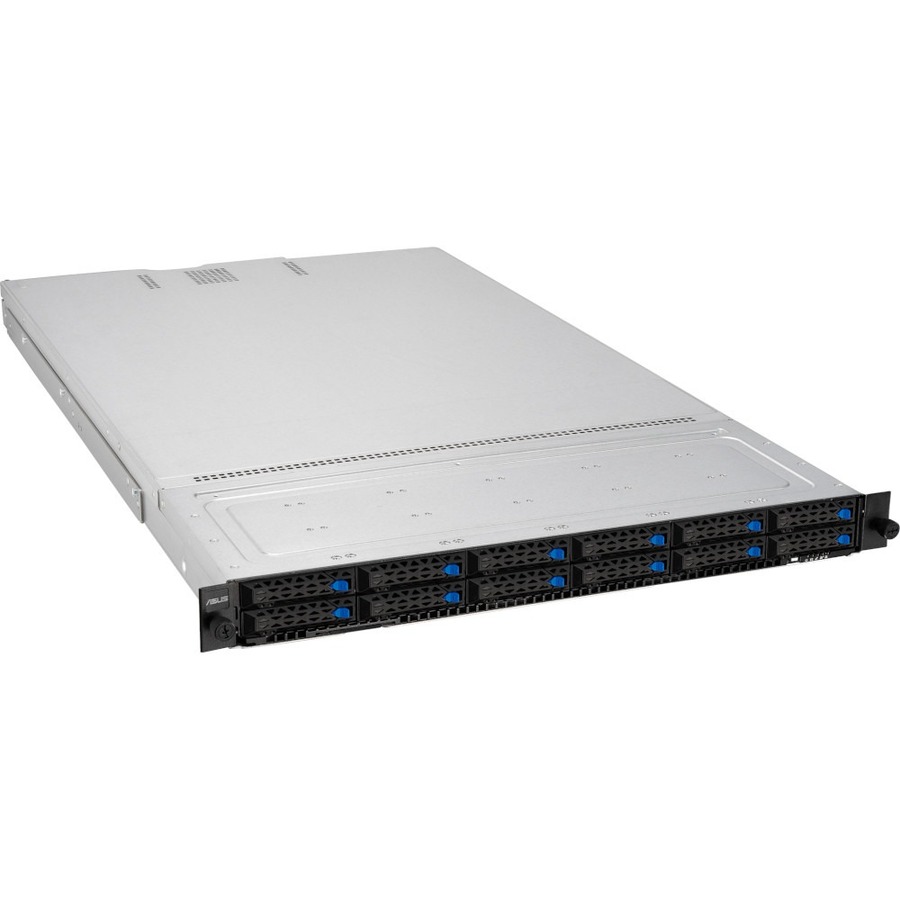

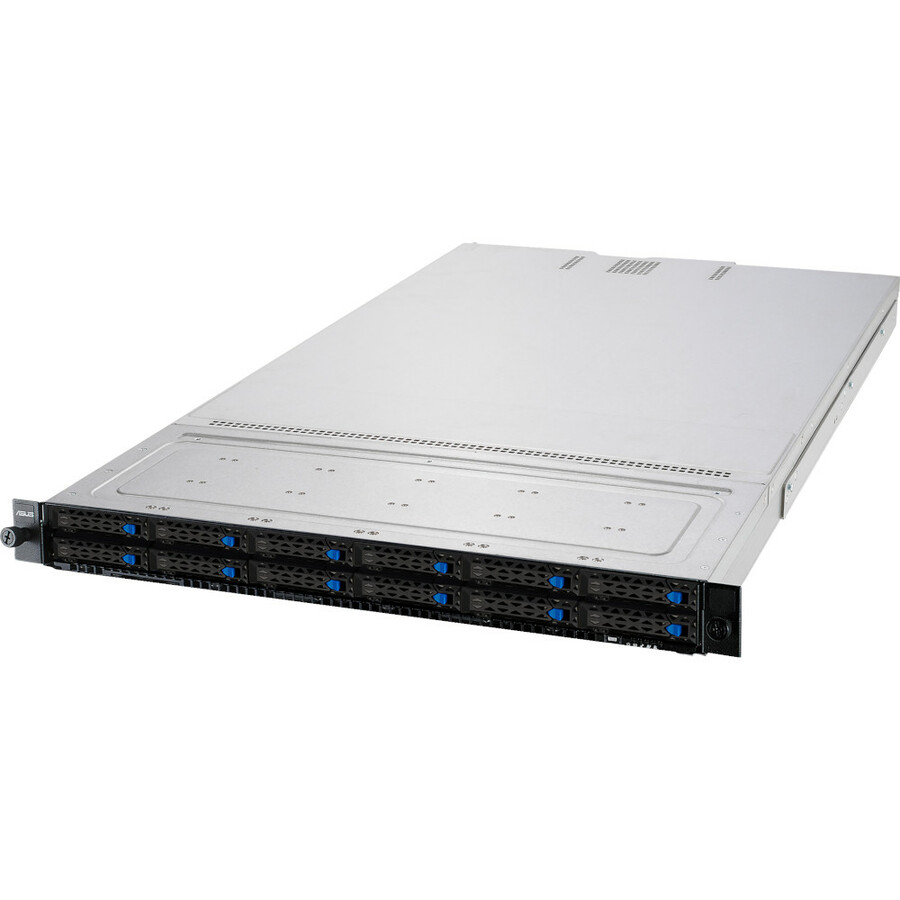

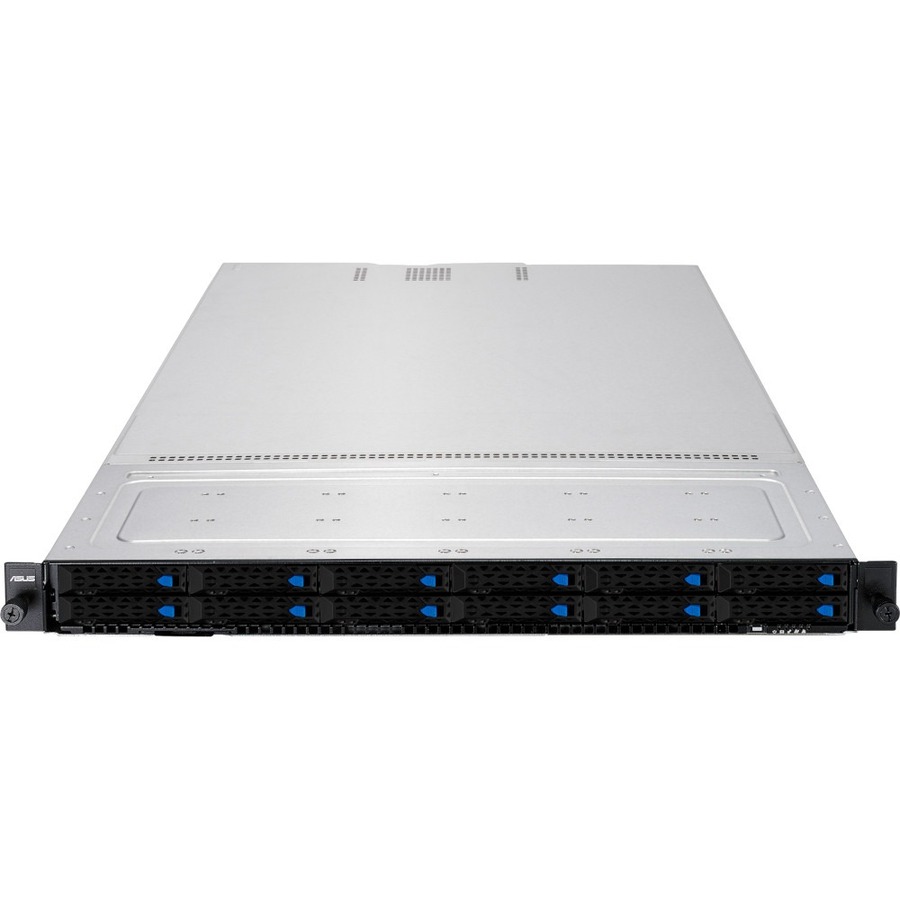

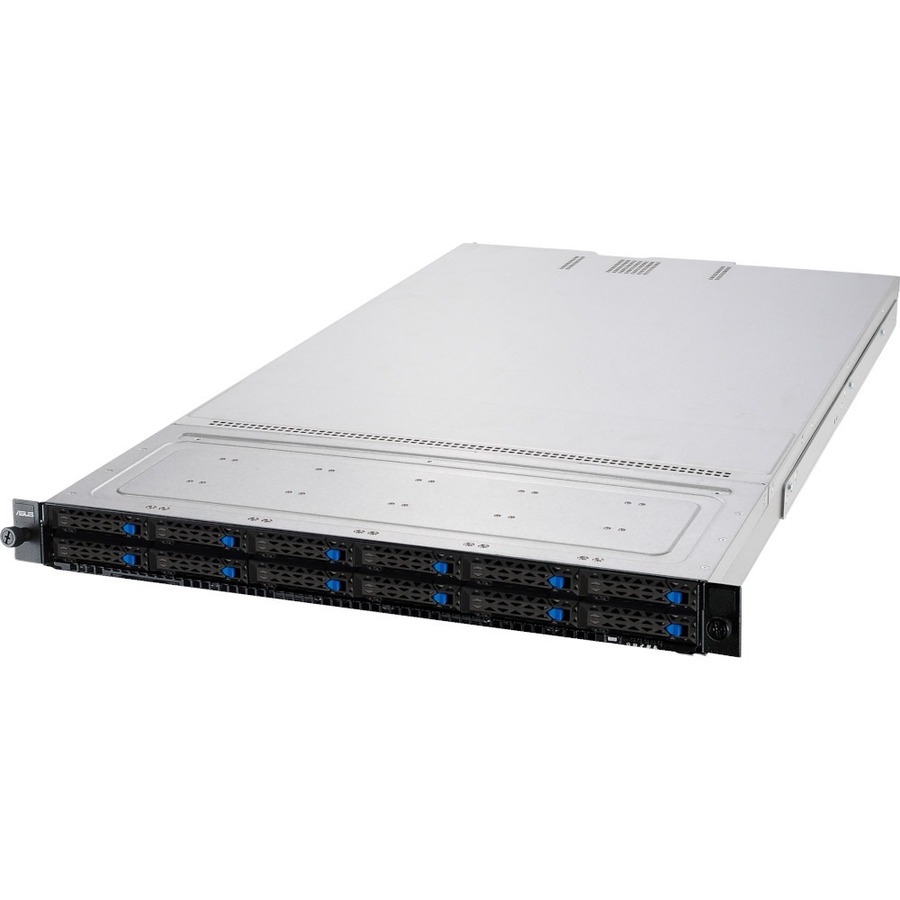

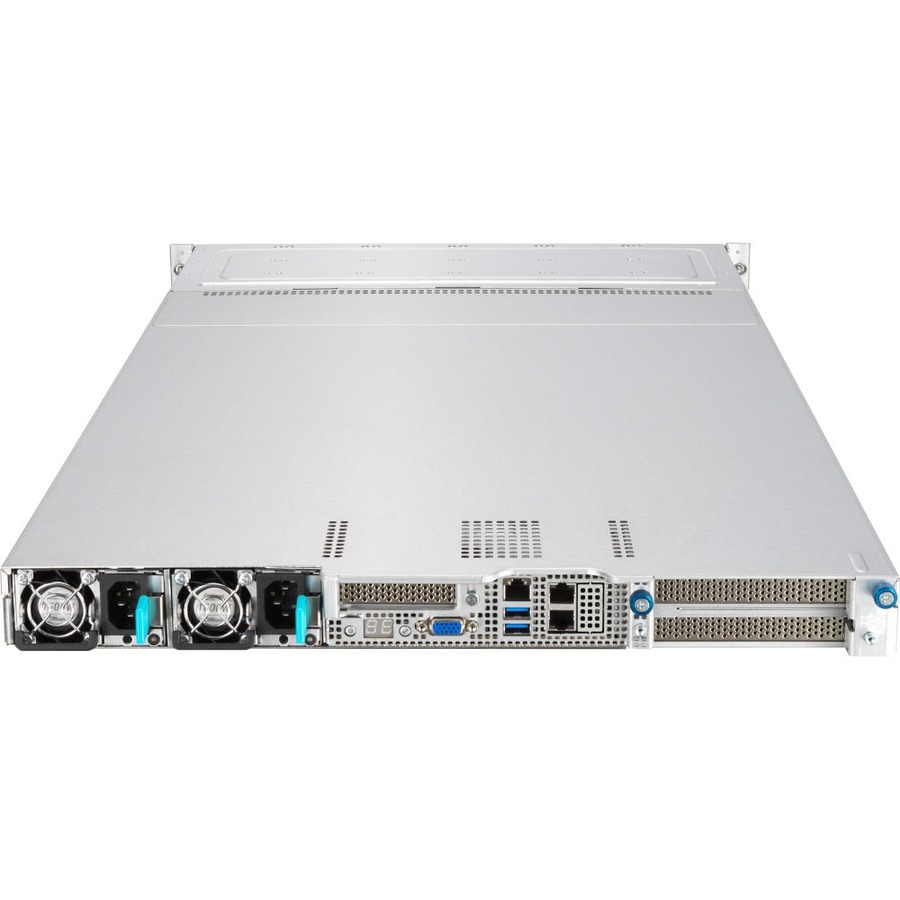

Asus RS700-E10-RS12U Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support
Intel C621A Chip - 1 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - Serial ATA/600 RAID Supported, 12Gb/s SAS Controller 64 MB Graphic(s) - 2 SATA Interface(s) - Processor Support (Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum) - Gigabit Ethernet, 10 Gigabit Ethernet - Intel Optane Memory Ready - 2 - 3 Year
- SKU
- RS700-E10-RS12U-WOCPU006Z
- Category
- Barebone Systems
MSRP$2,299.00
$2,129.32
Save 7%Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- RS700-E10-RS12U-WOCPU006Z
- Category
- Barebone Systems
Overview
1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM.
• Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
• GPU-optimized design allows one dual-slot GPU for AI workloads
• Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
• Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
• Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
• Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
• Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
Highlights
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Perform computational tasks efficiently with Xeon Bronze processor for smooth and reliable performance
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
- With 4 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
Specifications
| Product Type | Barebone System |
|---|---|
| Manufacturer Part Number | RS700-E10-RS12U-WOCPU006Z |
| Maximum Memory Supported | 1 TB |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 30.20 lb |
| Form Factor | Rack-mountable |
| Manufacturer | ASUS Computer International |
| Product Model | RS700-E10-RS12U |
| Product Name | RS700-E10-RS12U Barebone System |
| Processor Supported | Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum |
| Controller Type | Serial ATA/600, 12Gb/s SAS |
| Processor Socket | Socket LGA-4189 |
| Rack Height | 1U |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 33.2" |
| Environmentally Friendly | Yes |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Number of PCI Slots | 4 |
| Number of SATA Interfaces | 2 |
| Number of Power Supplies Installed | 2 |
| Graphics Memory Capacity | 64 MB |
| Number of Processors Supported | 2 |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 12 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Number of USB 3.1 Gen 1 Ports | 2 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
