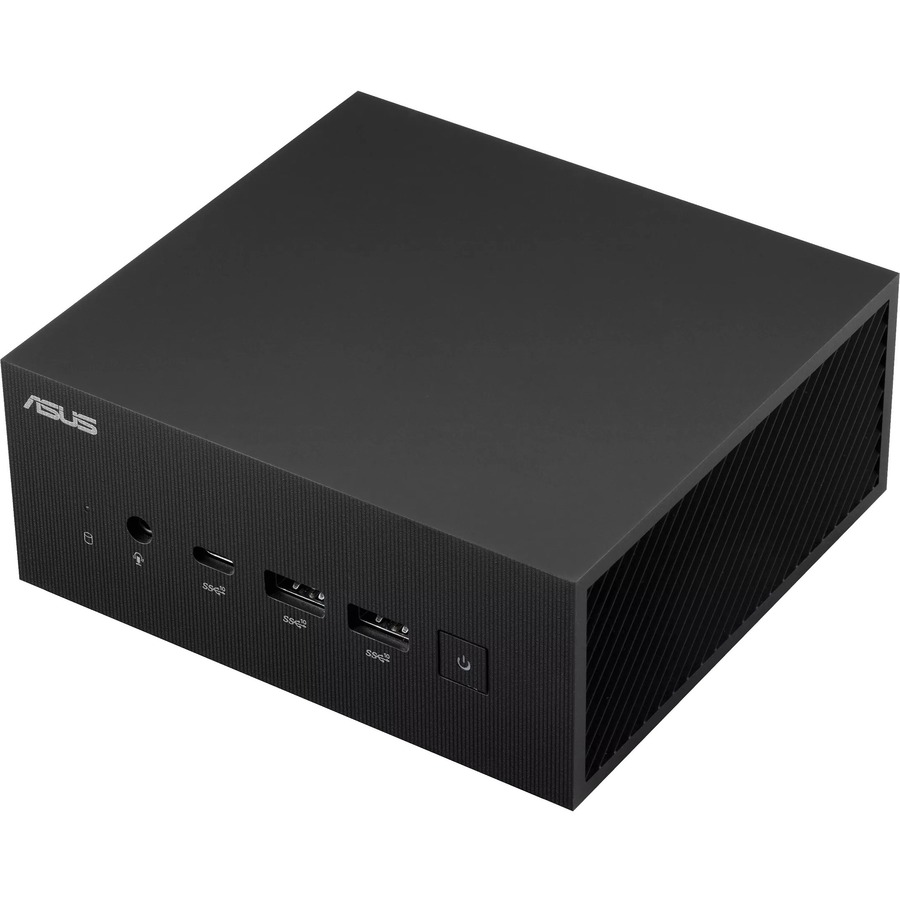

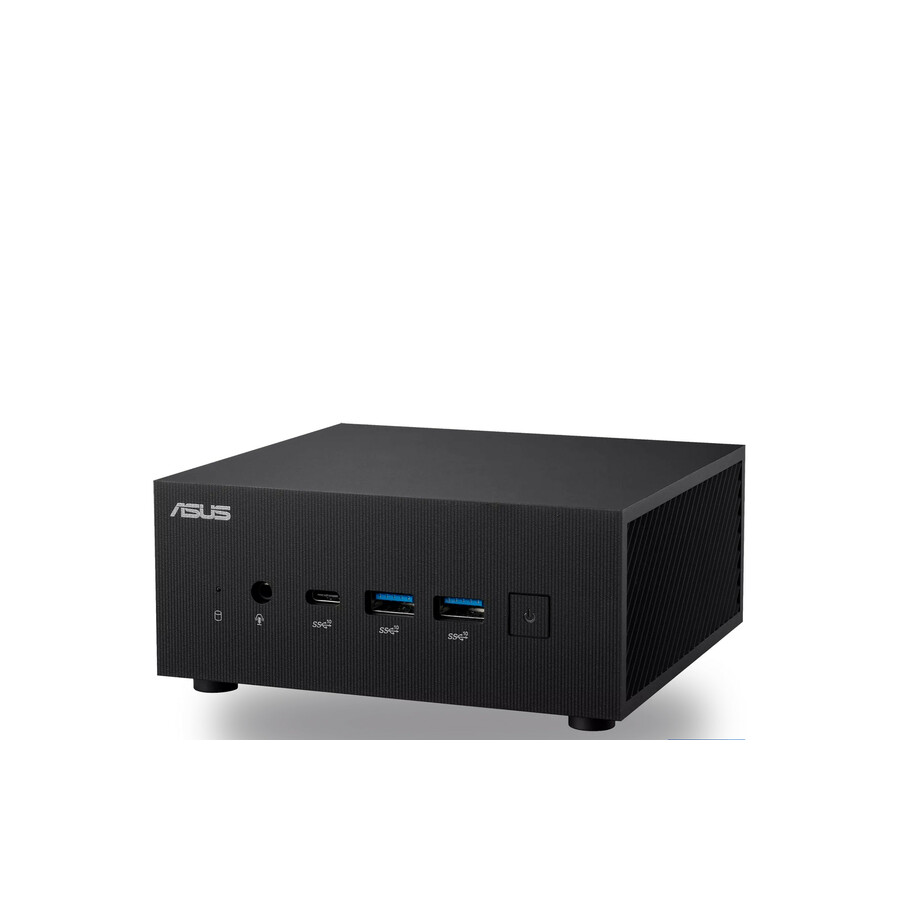

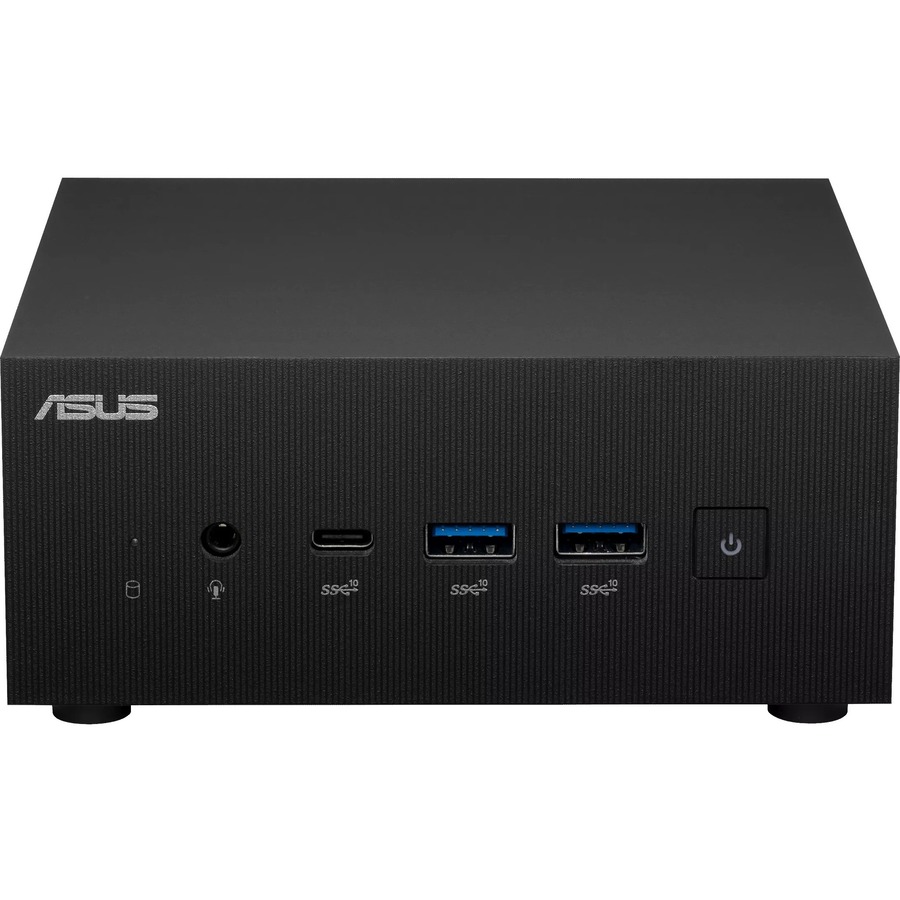

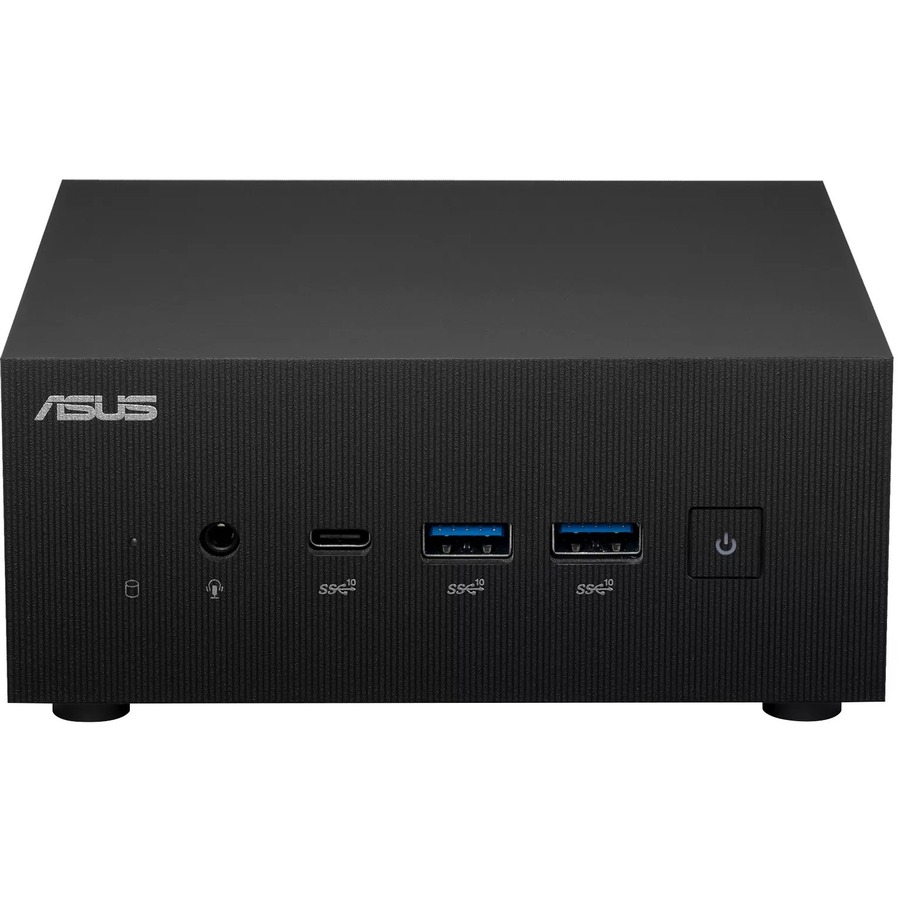

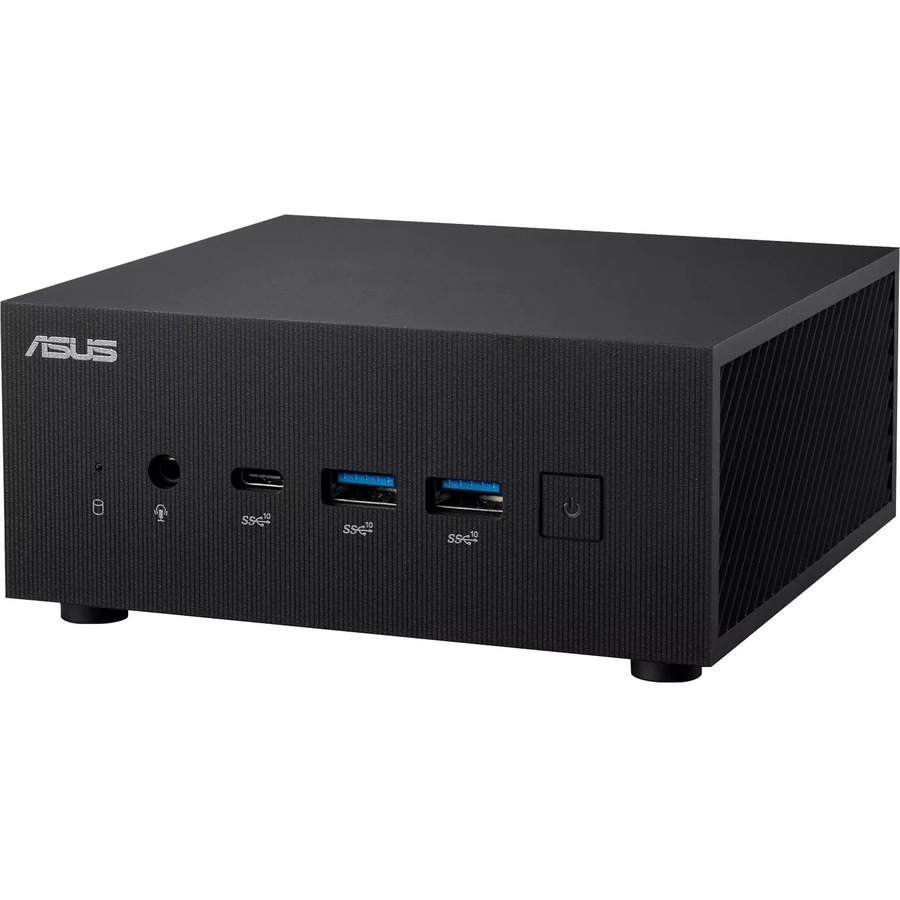

Asus ExpertCenter PN64-BB3000X1TL Barebone System - Mini PC - Core i3 12th Gen i3-1220P 1.50 GHz
Intel Chip - 64 GB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Home, Windows 11 Pro Supported Operating System - 90 W
- SKU
- 90MR00U1-M002C0
- Category
- Barebone Systems
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 90MR00U1-M002C0
- Category
- Barebone Systems
Overview
New Processor Architecture Design
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel ® Core? CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.
Superior Computing Performance
ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers a 28% boost on overall system performance, making it perfect for multitasking.
Faster and better DDR5 RAM
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel ® Core? CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN64 provides excellent performance for daily computing tasks.
Ultrafast PCIe ® 4.0 SSD
ASUS ExpertCenter PN64 supports one PCIe ® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that's twice the data transfer speeds of PCIe 3.0.
Superfast 2.5 Gbps Ethernet
ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.
Modern, Space-saving Design
Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office
Ultra-realistic 8K Visuals
ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4X greater than 4K, or 16X that of traditional FHD output.
USB Power Delivery Input
ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
4K Resolution & Quad Display Support
ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI ® ports, two DisplayPort? over USB-C ® or other user-configurable ports, without any limitation on the combination used.
Configurable Port
ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.
Padlock Ring for Security
The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.
VESA Mount-lockable Design
ASUS ExpertCenter PN64 can even be locked onto a VESA mount for additional security.
More from the Manufacturer
Highlights
- Powered by the latest Intel® 12th Generation Core? processors
- Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multi-tasking, streaming experience and intelligent workload optimization.
- DDR5-4800 memory support allows your computer to transfer data faster than DDR4
- Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency
- 4 display located in the rear I/O panel including dual HDMI2.0
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Advanced fan control to achieve better heat dissipation
- 24/7 reliability - Extensively tested to ensure long-term dependability
Specifications
| Package Contents |
|
|---|---|
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00U1-M002C0 |
| Maximum Memory Supported | 64 GB |
| Form Factor | Mini PC |
| Manufacturer | ASUS Computer International |
| Product Model | PN64-BB3000X1TL |
| Product Name | ExpertCenter PN64-BB3000X1TL Barebone System |
| Processor Speed | 1.50 GHz |
| Processor Type | Core i3 |
| Product Line | ExpertCenter |
| Controller Type | Serial ATA/600 |
| Product Series | PN64 |
| Brand Name | Asus |
| Operating System Supported | Windows 11 Home, Windows 11 Pro |
| Memory Technology | DDR5 SDRAM |
| Processor Model | i3-1220P |
| Memory Standard | DDR5-4800/PC5-38400 |
| Height | 2.3" |
| Width | 4.7" |
| Depth | 5.1" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 1 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Maximum Power Supply Wattage | 90 W |
| Total Number of USB Ports | 5 |
| Maximum Turbo Speed | 4.40 GHz |
| Processor Generation | 12th Gen |
| Energy Star | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB 3.2 Gen2 Type-C |
| HDMI (Rear) | Yes |
| Product Color | Eco Black |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Color Family | Black |
| Total Number of Memory Slots | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
