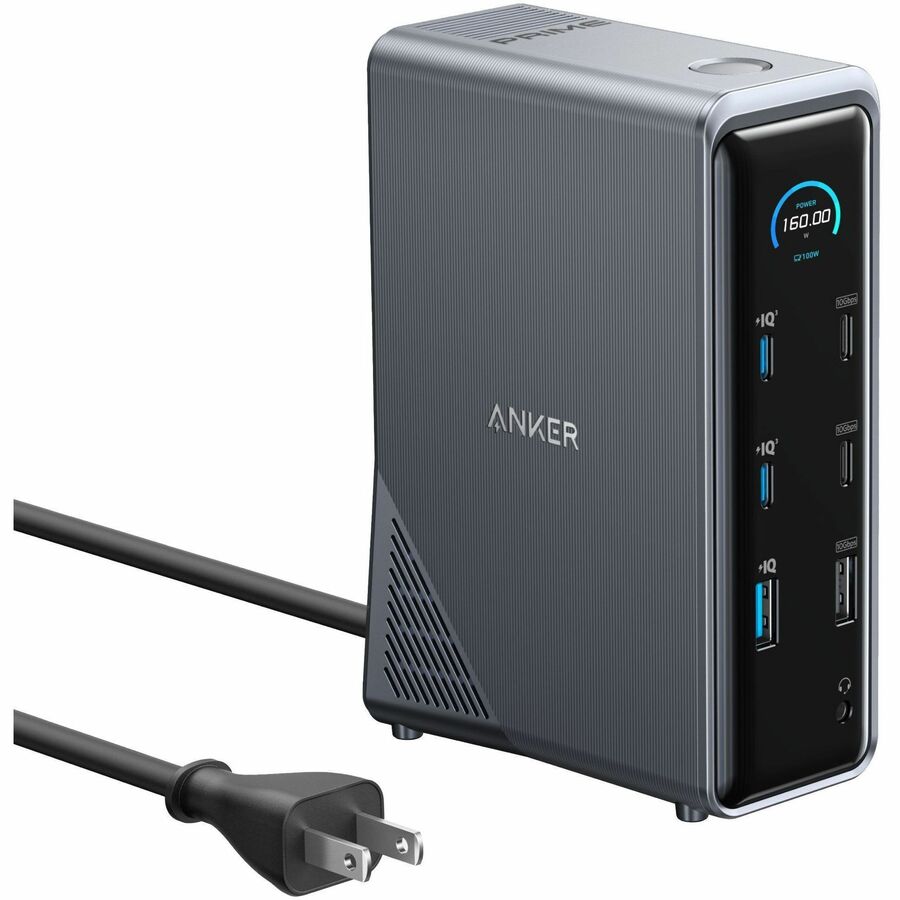

ANKER Prime Charging Docking Station (14-in-1, Dual Display, 160W)
for Notebook, MacBook - Charging Capability - 160 W - USB Type C - 2 Displays Supported - 4K @ 60Hz, 4K @30Hz, FHD @ 60Hz, 2K @ 60Hz - 3840 x 2160, 1920 x 1080, 2048 x 1080 - 9 x USB Ports - 5 x USB Type-A Ports - USB Type-A - 4 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - Wired - Gigabit Ethernet - Windows 11, Windows 10, Mac OS X 12.0 Monterey - 100W
Genuine ANKER through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Docking Stations
Overview
All Your Ports in One Place
Boasting an extensive array of ports, including four USB-C and five USB-A ports, along with dual HDMI for high-definition output, and dedicated audio and Ethernet ports.
Space-EfficientDock
Revitalize your workspace with a sleek docking station, featuring a vertical design and an integrated GaN AC-DC power module to minimize space usage while maintaining functionality.
Ultra-Clear 4K Displays
Transform how you work and play with dual 4K screens that deliver vivid colors and sharp details at a consistent 60Hz.
Highly Safe and Compatible
Stay confident with a dock designed for safety, sporting advanced heat dissipation structures and temperature controls that protect your devices while maintaining high performance.
Compatibility:
System Types: Windows, macOS
USB-C Host Devices: Dell, Lenovo, iMac, MacBook
Resolution Specifications
Determining Your Laptop's DisplayPort (DP) Version:
For Windows Devices
DP Version 1.2: Supported if your CPU is an Intel generation 10 or earlier, DP Version 1.4: Supported if your CPU is an Intel generation 11 or later, or if you are using a workstation laptop with an NVIDIA GPU.
For Windows Devices
Navigate to "This PC" (or "My Computer"), select "Properties," and look for the processor details, as highlighted in bold and underlined: Intel(R) Core i7-8850H CPU @ 2.60GHz.
Dual Display
Connect to the dual HDMI ports to enjoy crystal-clear streaming or mirroring across 2 displays at up to 2K@60Hz with a DP 1.4 laptop or 1080p@60Hz with a DP 1.2 laptop.
Warranty
Limited Warranty: 24 Month
Highlights
14-in-1 Connectivity: Bring together all your devices with a 14-in-1 solution, perfect for charging, transferring data quickly, and managing dual displays.
Ultra-Fast Docking Station: Deliver a powerful charge with 160W of total output, capable of charging up to four devices simultaneously through three USB-C ports at 100W max each and one USB-A port at 12W max.
Master Your Data Flow with 11 Ports: Efficiently manage data across multiple devices with versatile ports offering speeds up to 10Gbps, complemented by dual 4K display and audio options.
Smart Display: Receive immediate visual feedback on power levels, connection statuses, and important alerts, keeping your devices in prime condition.
What You Get: Anker Prime Charging Docking Station (14-in-1, Dual Display, 160W), USB-C cable for upstream port (3.3 ft, 100W, 10Gbps), welcome guide, 24-month warranty, and our friendly customer service.
Specifications
General Information
Manufacturer
ANKER
Manufacturer Part Number
A83B61A1
Brand Name
ANKER
Product Line
Prime
Product Model
A83B6
Product Name
Prime Charging Docking Station (14-in-1, Dual Display, 160W)
Product Type
Docking Station
Interfaces/Ports
Host Interface
USB Type C
Total Number of USB Ports
9
Number of USB Type-C Ports
4
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
2 x USB-C (10Gbps), 2 x USB-C (100W Max)
Number of USB Type-A Ports
5
Number of RJ-45 Ports
1
Network (RJ-45)
Yes
Headphone/Microphone Combo Port
Yes
Number of HDMI Outputs
2
HDMI
Yes
USB Power Delivery
100W
Network & Communication
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Height
5.51"
Width
3.82"
Depth
1.85"
Weight (Approximate)
1.96 lb
Power Description
Maximum Power Supply Wattage
160 W
Software
Operating System Supported
Windows 11, Windows 10, Mac OS X 12.0 Monterey
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Number of Displays Supported
2
Device Supported
Notebook, MacBook
Supported Resolutions
3840 x 2160, 1920 x 1080, 2048 x 1080
Screen Mode Supported
4K @ 60Hz, 4K @30Hz, FHD @ 60Hz, 2K @ 60Hz
Warranty
Limited Warranty
24 Month
Miscellaneous
Package Contents
Prime Charging Docking Station (14-in-1, Dual Display, 160W)
USB-C Cable for Upstream Port (3.3 ft, 100W, 10Gbps)
Welcome Guide
24-month Warranty and Our Friendly Customer Service.
