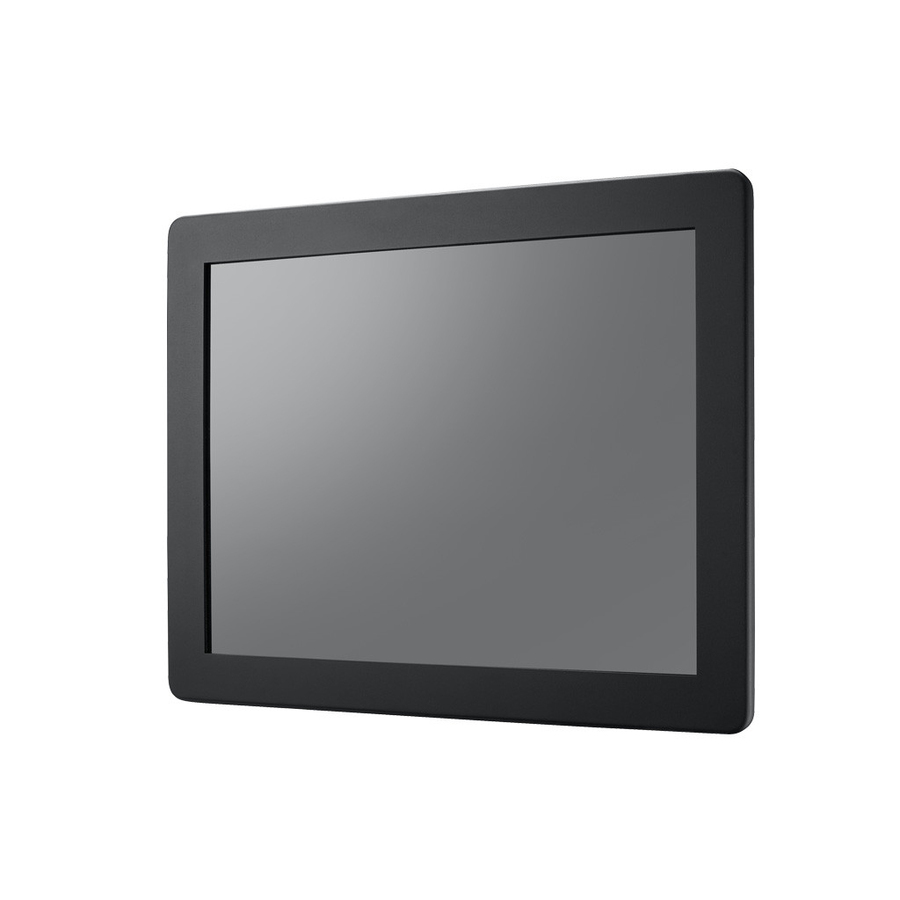

Advantech IDS-3315R-1KXGA1 15" Class LCD Touchscreen Monitor - 23 ms
Advantech

Advantech IDS-3315R-1KXGA1 15" Class LCD Touchscreen Monitor - 23 ms

15" Viewable - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 1200 Nit - LED Backlight - DVI - HDMI - USB - VGA - 2 Year

SKU
IDS-3315R-1KXGA1
Category
Touchscreen Monitors

$623.00

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3315R-1KXGA1
Category
Touchscreen Monitors

Overview

Introduction

The Advantech IDS-3315 Front IP65 Monitor Series offer waterproof and dustproof design supporting a 15" 1024 x 768 pixels TFT LCD screen, with -20 ~ 60? wide operating temperature, and optional touch touchscreens. The series supports rear and VESA mounting and is ideal for different embedded applications in different environments.

Highlights

  • Front IP65 for waterproof and dustproof
  • 15" XGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20 ~ +60 °C wide range operating temperature
  • 5-wire resistive and P-cap touchscreen solution or tempered smudge resistant protected glass
  • Multiple signal interfaces with HDMI, VGA & DVI
  • Standard integrated frame

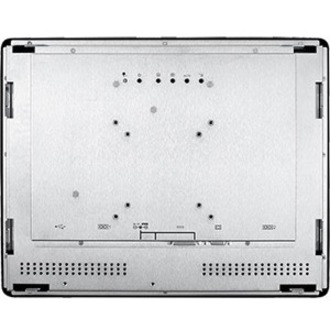

  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m2 for outdoor applications

Specifications

Package Contents
  • IDS-3315R-1KXGA1 Touchscreen LCD Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180 cm
  • 1 x VGA Cable 15P(M) 180 cm
  • 8 x Clamper
  • 8 x Clamper Screw
  • 1 x Cable Clamp
  • 1 x Cable Clamp Screw
  • 1 x Cable Tie
  • USB Cable
Product TypeLCD Touchscreen Monitor
Manufacturer Part NumberIDS-3315R-1KXGA1
Response Time23 ms
Limited Warranty2 Year
Touchscreen Type5-wire Resistive
Weight (Approximate)9.92 lb
Brightness1200 Nit
Color Supported16.2 Million Colors
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3315R-1KXGA1
Product NameIDS-3315R-1KXGA1 Touchscreen LCD Monitor
Mount TypeRear Mount, Panel Mount
Product SeriesIDS-3315
Viewable Screen Size15"
Maximum Resolution1024 x 768
Brand NameAdvantech
Screen ModeXGA
Country of OriginTaiwan
Height11.5"
Width14.4"
Depth1.8"
Environmentally FriendlyYes
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
Native Contrast Ratio2,000:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class15"
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
