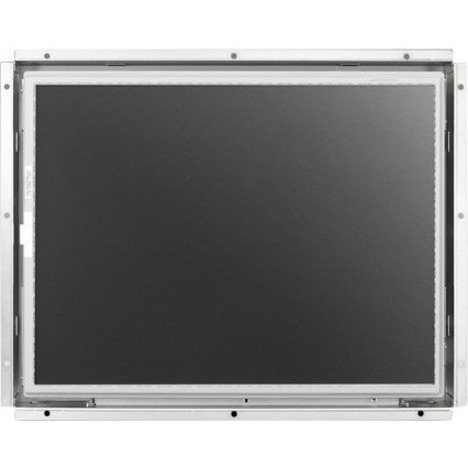

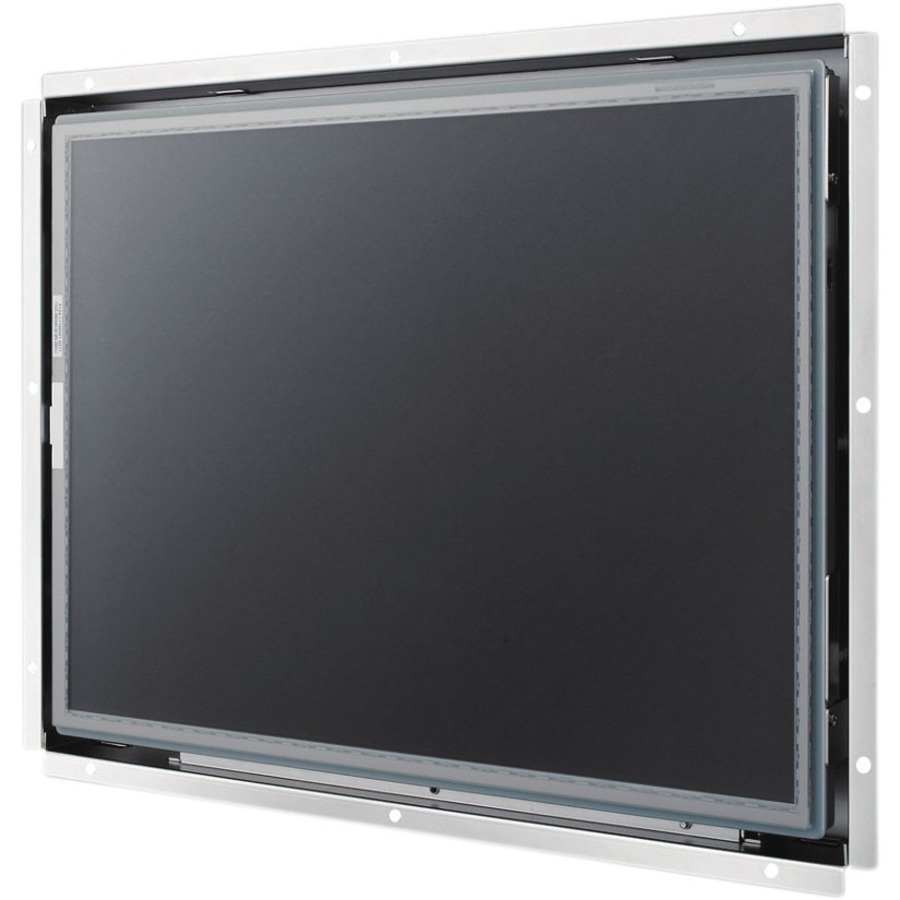

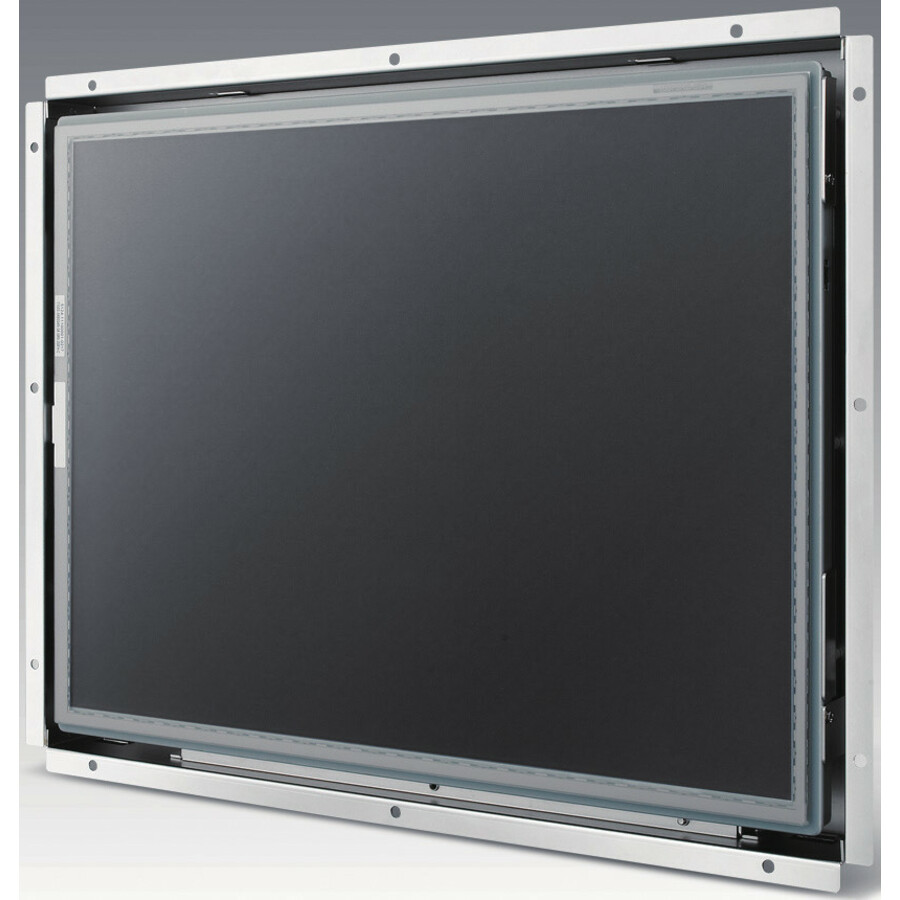

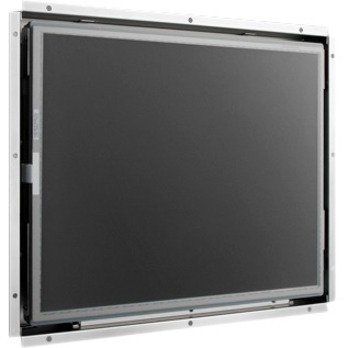

Advantech IDS-3115P-K2XGA1E 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms
15" Viewable - Projected Capacitive - Multi-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 1200 Nit - LED Backlight - DVI - USB - VGA - 2 Year
- SKU
- IDS-3115P-K2XGA1E
- Category
- Touchscreen Monitors
$626.56
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- IDS-3115P-K2XGA1E
- Category
- Touchscreen Monitors
Overview
Introduction
The Advantech IDS-3115 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
Highlights
- 15" 1024 x 768 XGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20~ 60° C operating temperature support
- 5-wires resistive and projected capacitive touchscreen solution
- Combo touch interface of RS-232 and USB
- Dual signal interface with VGA and DVI
- Integrated bracket for easy installation

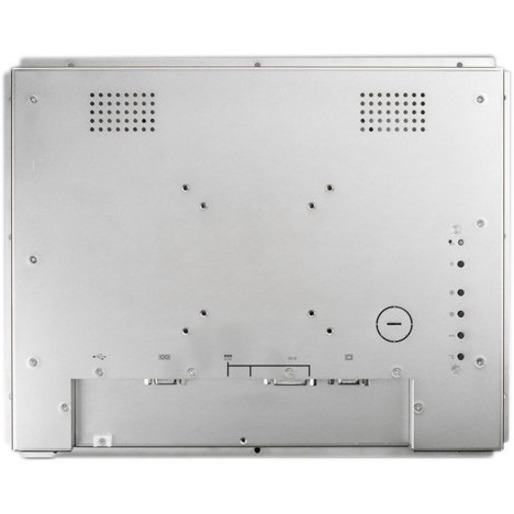

- Versatile mounting methods for Rear mounting and VESA mounting
- Anti-Reflective surface treatment for sunlight readable enhancement (optional)
- Ultra high brightness solution of 1200 nits for outdoor application (optional)
Specifications
| Aspect Ratio | 4:3 |
|---|---|
| Package Contents |
|
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3115P-K2XGA1E |
| Response Time | 25 ms |
| Limited Warranty | 2 Year |
| Touchscreen Type | Projected Capacitive |
| Weight (Approximate) | 9.92 lb |
| Brightness | 1200 Nit |
| Color Supported | 16.2 Million Colors |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3115P-K2XGA1E |
| Product Name | 15" XGA Industrial Open Frame Monitor |
| Product Series | IDS-3115 |
| Viewable Screen Size | 15" |
| Maximum Resolution | 1024 x 768 |
| Brand Name | Advantech |
| Screen Mode | XGA |
| Country of Origin | Taiwan |
| Height | 11.3" |
| Width | 14.3" |
| Depth | 1.4" |
| Environmentally Friendly | Yes |
| USB | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Operating Power Consumption | 60 W |
| Native Contrast Ratio | 700:1 |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Multi-touch Screen | Yes |
| Screen Size Class | 15" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
