Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
IDP-31150-P40DVB1G
Category
Touchscreen Monitors
Overview

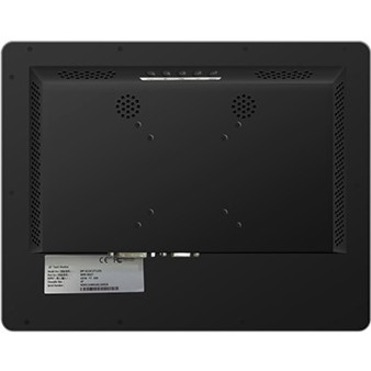

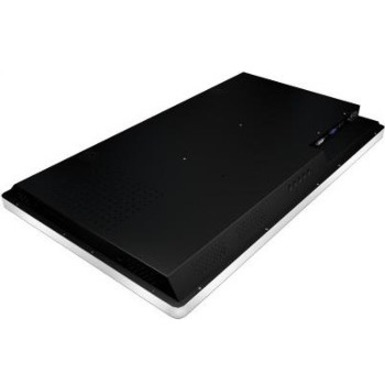

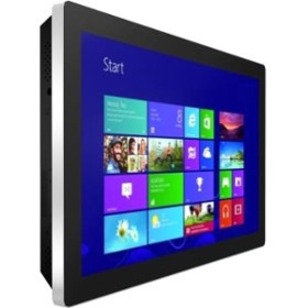

IDP-31150
15" industrial ProFlat touch monitor. 100% flat projected capacitive touch with ultra-thin profile, smooth rounded corners and rugged glass fronted for a totally contemporary outlook.
• 15" wide LCD panel with LED backlight for long service life
• Operating temperature 0 to +40° C; Storage temperature -20 to +60° C
• Regular brightness 400 CD/m2
• Resolution 1024 x 768
• Contrast ratio 800 : 1
• 80°/80°/80°/80° wide view-angle for portrait and landscape mode
• 10 points projected capacitive touch overlay
• VGA & DVI I/O interface
• IP51 rating from the front and side
The IDP-31150 is a 15" industrial grade ProFlat touch monitor with stylish silver line bezel, that responds to requirements of being durable, robust and reliable.
This range of displays marks a significant departure from the traditional industrial unit. With the most obvious change being its contemporary look and feel, the unit also features intuitive 10 point multi-touch P-CAP technology and a fully flat surface that can be easily cleaned with a wet cloth or any suitable cleaning agent.
Designed to tackle a wide range of applications, this industrial grade display uses long life durable parts that make it robust enough for the more demanding requirements.
Warranty
Limited Warranty: 2 Year
Highlights
The open-frame lcd touchscreen monitor is ideal for clubhouse gaming, entertainment, and self-service kiosks with reliable touchscreen performance
XGA touchscreen supports XGA resolution up to 1024 x 768 pixels for dependable image quality in standard applications
Projective Capacitive touchscreen supports two-finger multi-touch for smooth zooming, scrolling, and gesture-based navigation
LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
The 400 Nit brightness ensures clear, consistent visuals for smooth and accurate touch response
VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IDP-31150-P40DVB1G
Brand Name
Advantech
Product Line
Silver Line
Product Series
IDP-31
Product Model
IDP-31150
Product Name
Silver Line IDP-31150 Open-frame Touchscreen LCD Monitor
Product Type
Open-frame LCD Touchscreen Monitor
Interfaces/Ports
DVI
Yes
VGA
Yes
Physical Characteristics
Color Family
Black
VESA Mount Compatible
Yes
Product Color
Black
VESA Mount Standard
100 x 100
Height
11"
Width
14"
Depth
1.8"
Weight (Approximate)
7.69 lb
Power Description
Operating Power Consumption
18 W
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
16 ms
Horizontal Viewing Angle
160°
Vertical Viewing Angle
160°
Backlight Technology
LED
Features
6H Surface Hardness, Anti-glare, On-screen Display (OSD), OnScreen Control
Touchscreen Information
Touchscreen Type
Projected Capacitive
Multi-touch Screen
Yes
Number of Simultaneous Touchpoints
10
Video
Maximum Resolution
1024 x 768
Color Supported
16.2 Million Colors
Native Contrast Ratio
800:1
Brightness
400 Nit
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Silver Line IDP-31150 Open-frame Touchscreen LCD Monitor
